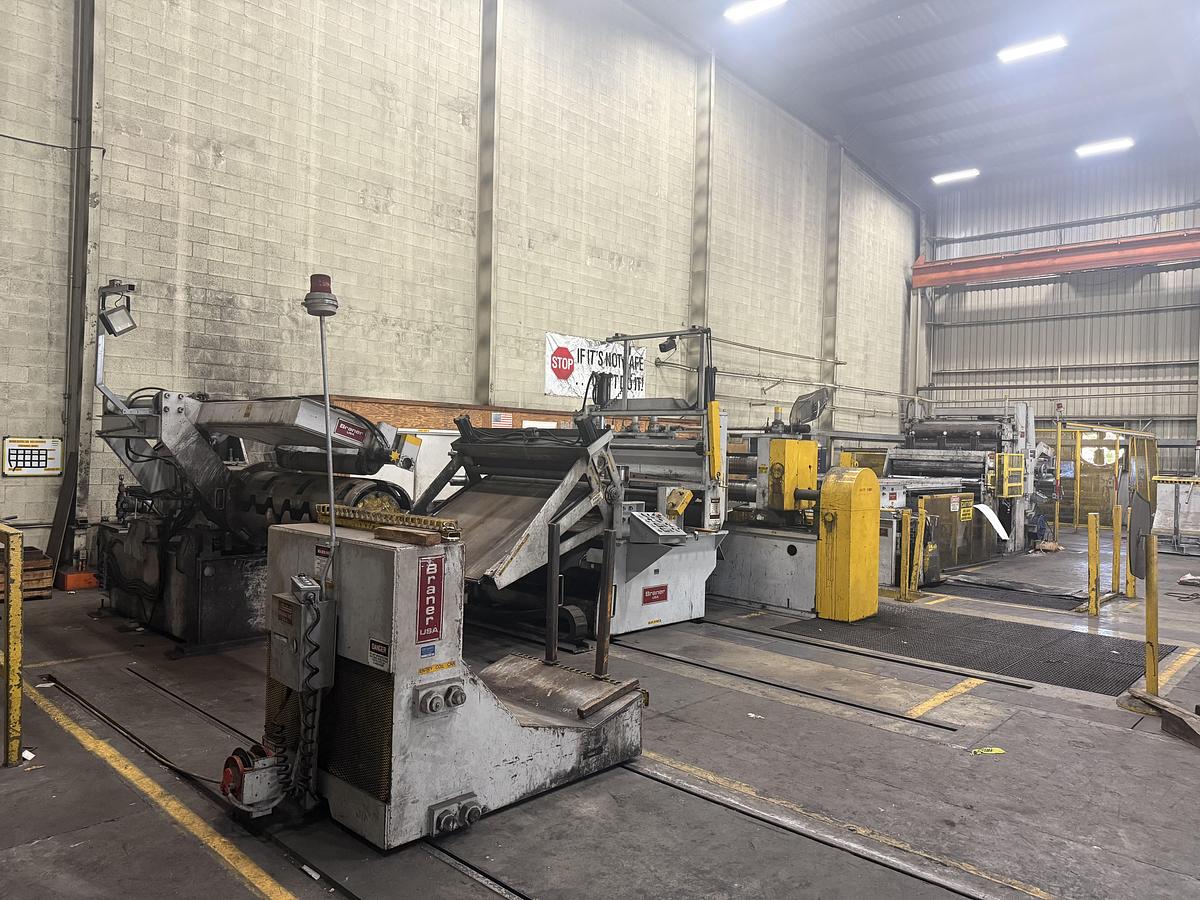

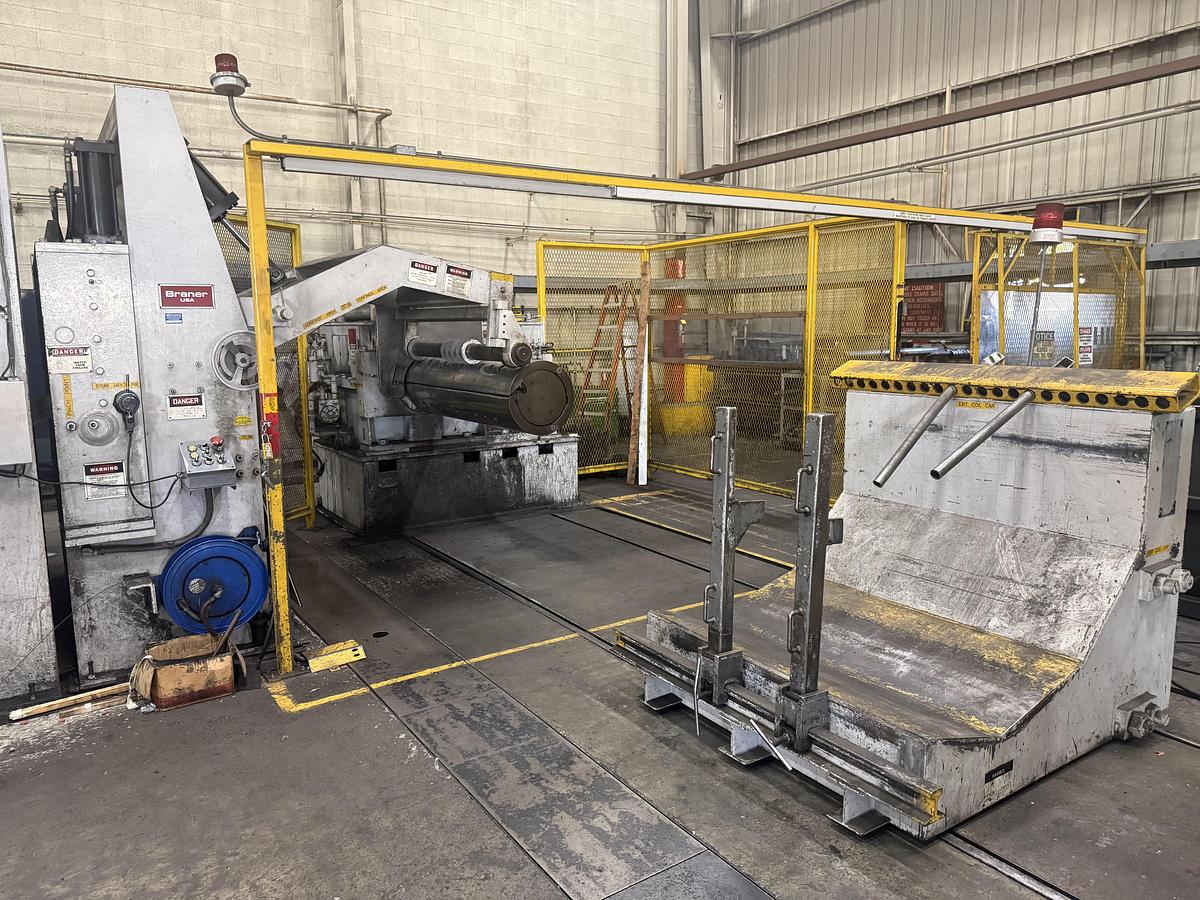

60” x .135” x 48,000 Lb Braner Slitting Line

This used 60” x .135” x 48,000 Lb Braner Slitting Line is designed for efficient processing of materials such as low carbon steel, hot rolled pickled and oiled, cold rolled, galvanized, and aluminized steel. With a maximum coil weight capacity of 48,000 lbs and an entry/exit coil diameter of 72", it handles substantial workpieces. The line accommodates material widths from 12" to 60" and thicknesses between 0.023” and 0.135”, with a minimum slit width of 0.875”. Equipped with a 150 HP DC slitter drive and a 200 HP DC recoiler drive, this slitting line offers robust power for high-performance tasks. It has a maximum shear strength of 60,000 PSI, ensuring its suitability for demanding industrial environments. The system operates at a constant line speed of 900 FPM, with specific modes providing additional flexibility such as a 300 FPM bare drum option. The slitting unit allows for multiple cutting configurations, with a tight line capacity for up to 28 cuts at thinner thicknesses and a loop slit capacity providing similar versatility. Featuring a slitter arbor size of 9.000" x 60" and supporting a maximum skid weight of 10,000 lbs, this Braner slitting line is a reliable choice for precise and efficient metal processing needs.
