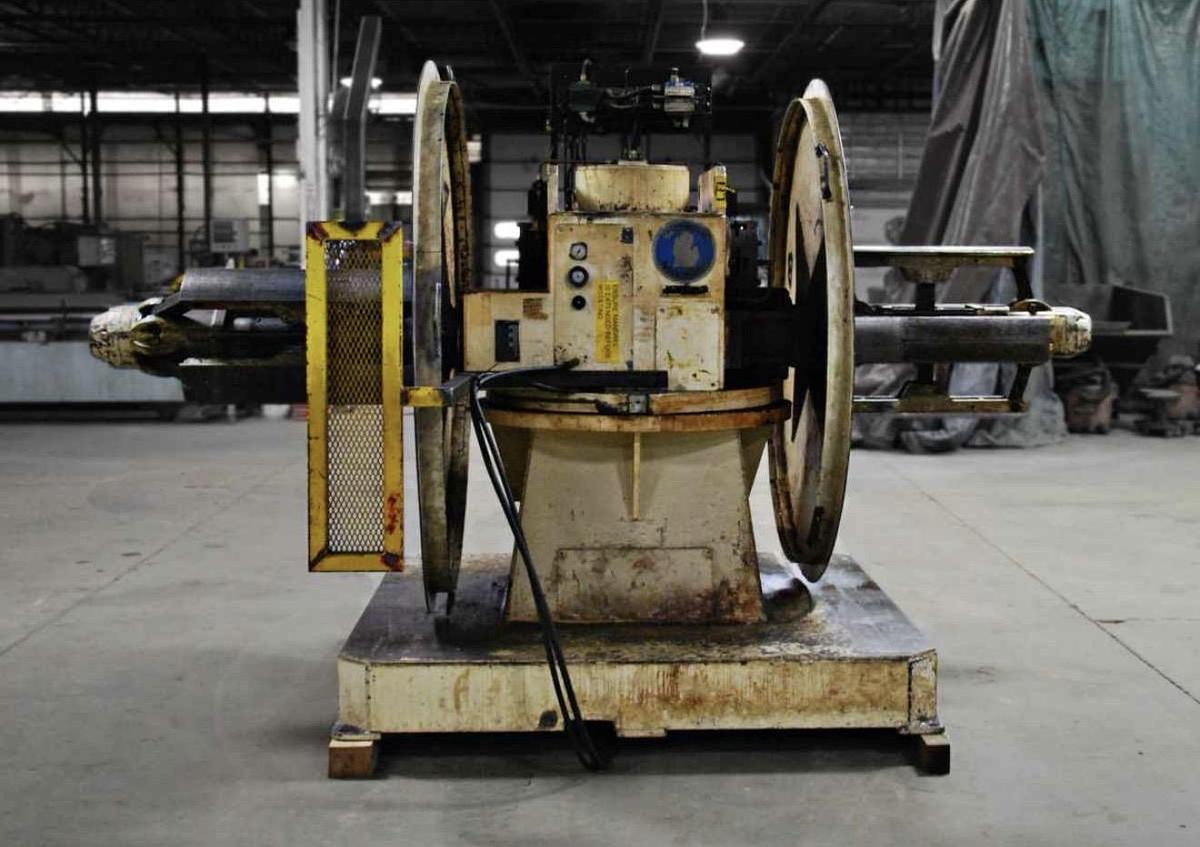

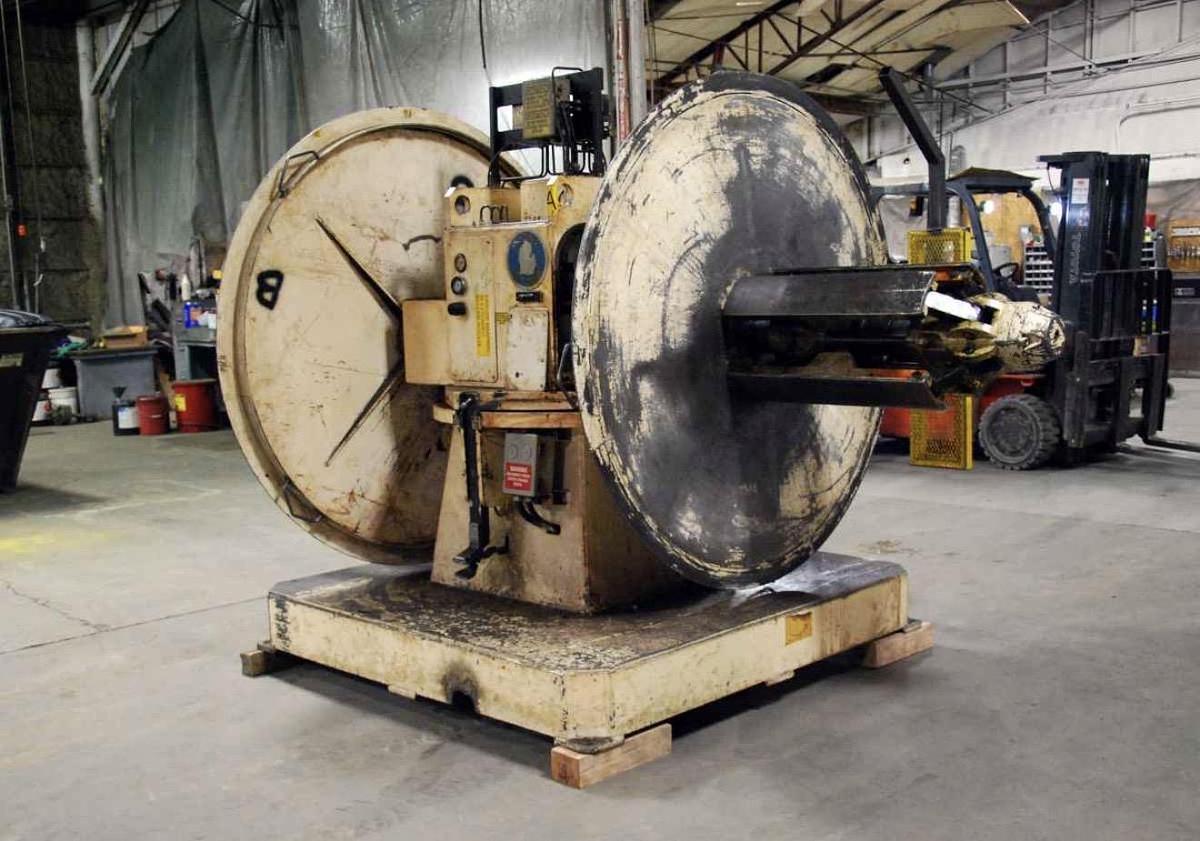

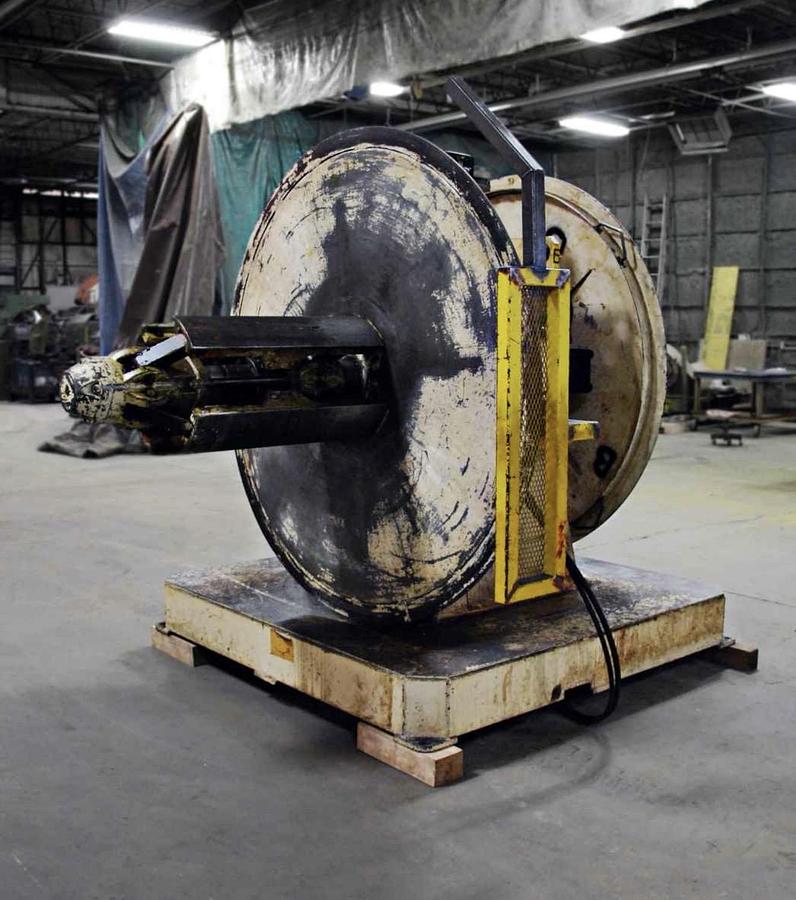

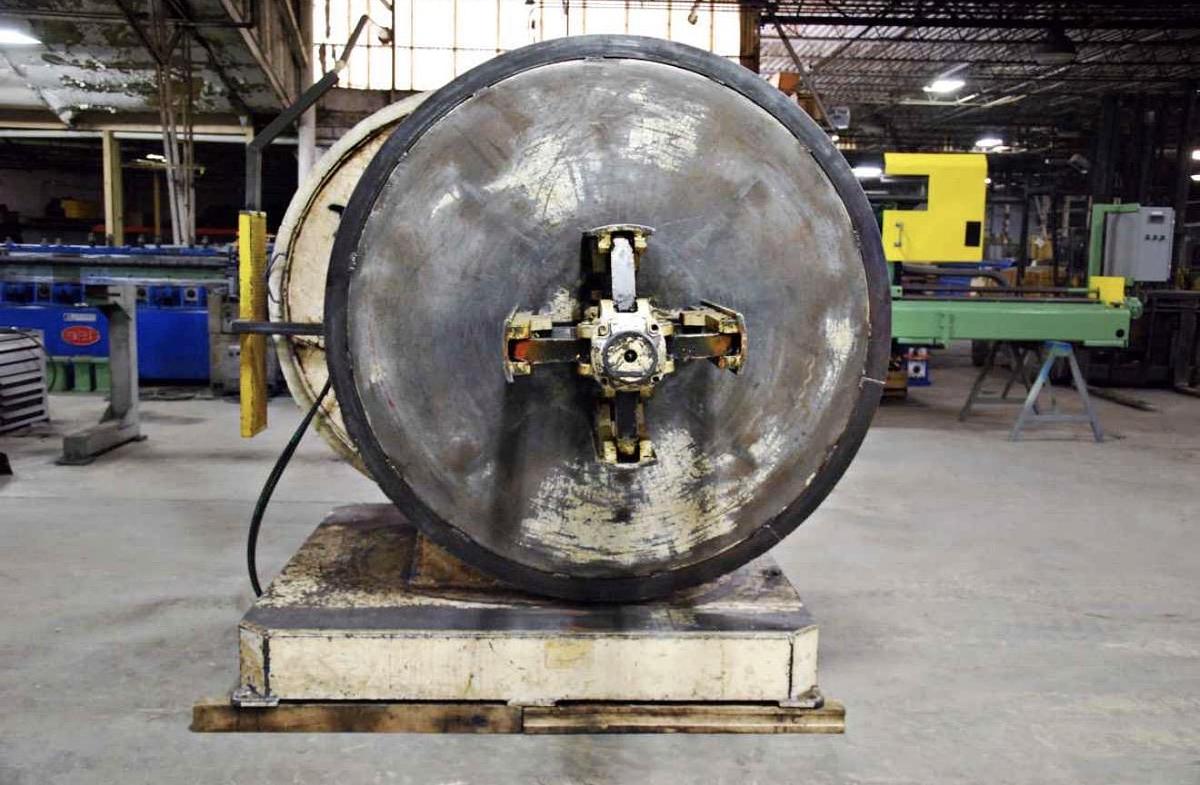

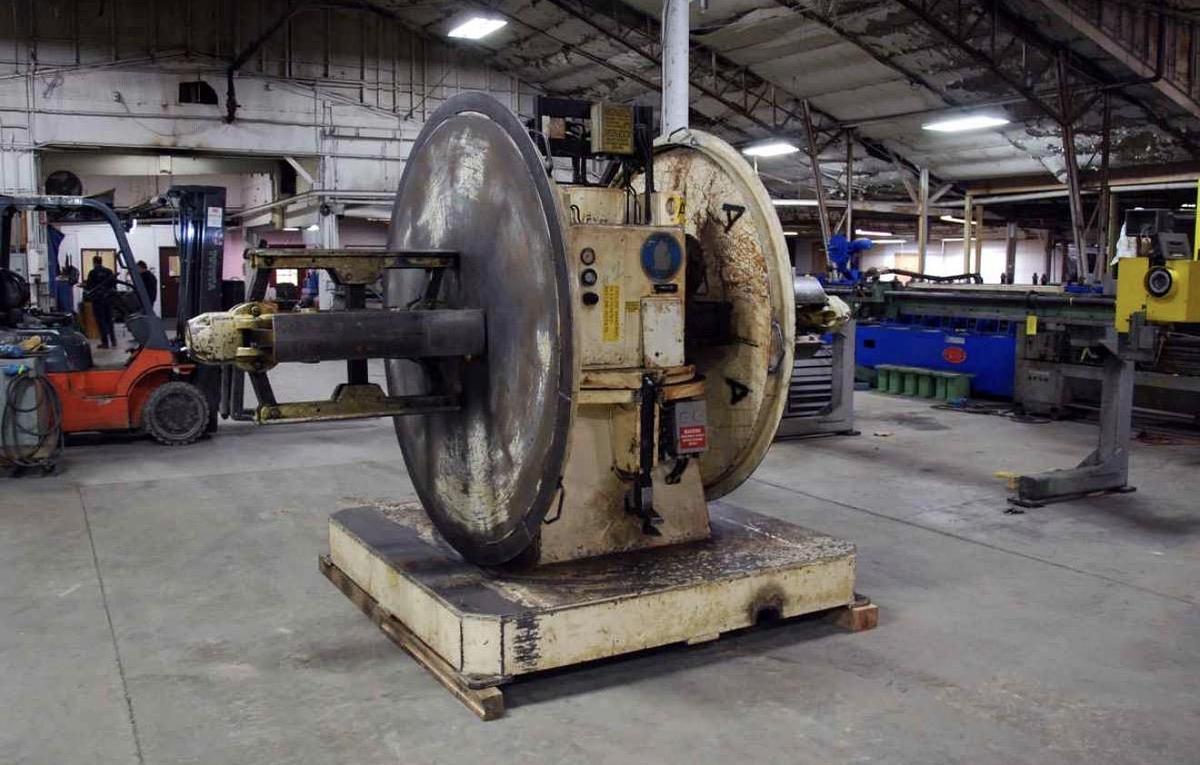

10,000 Lb. x 24" Michigan Roll Form Double Uncoiler

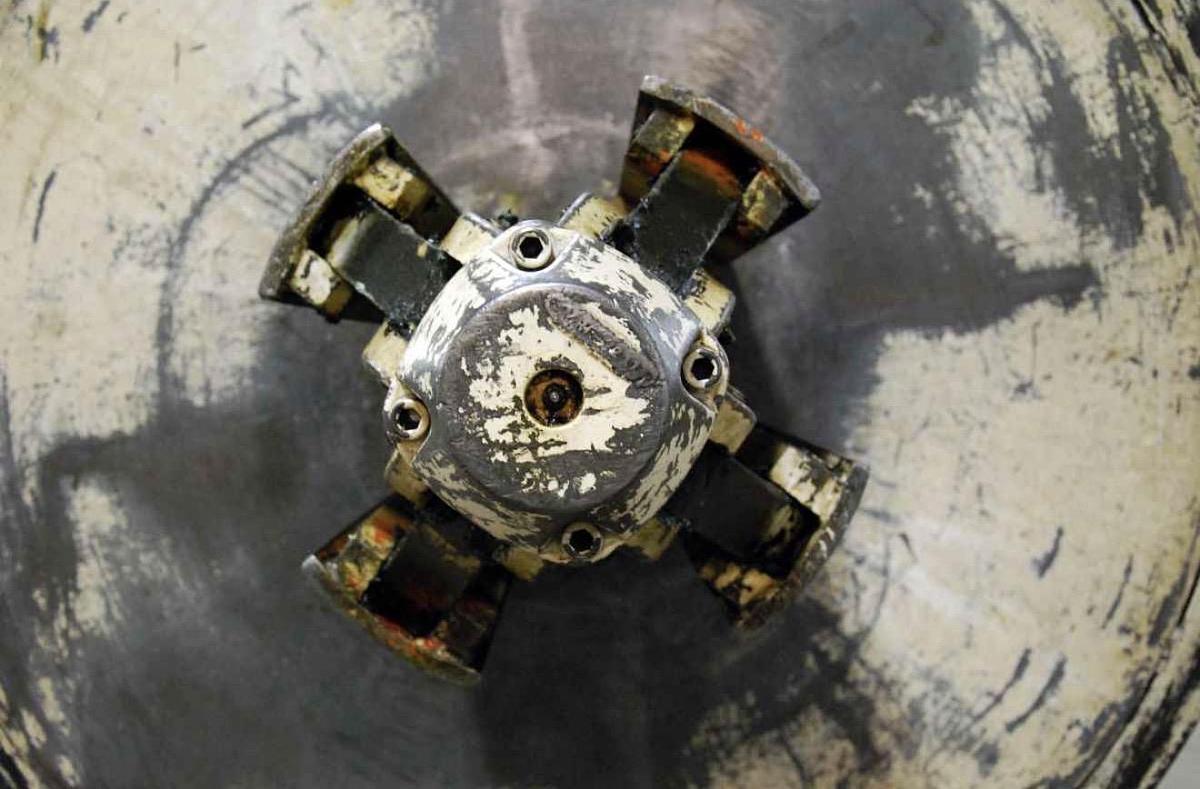

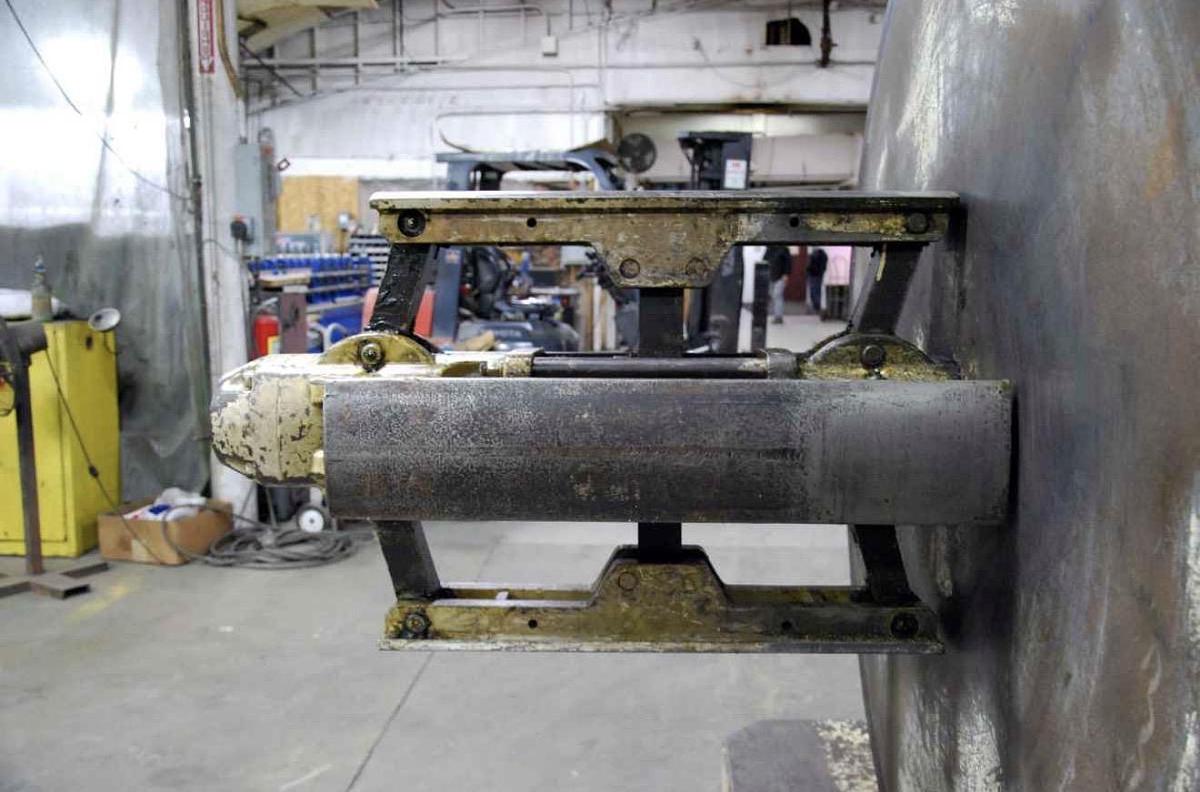

The Michigan Roll Form DHCH-98B Double Uncoiler is engineered for rigorous industrial applications, supporting up to 10,000 lbs per side. It accommodates coils with a maximum outer diameter of 72 inches and a width of 24 inches, while inner diameters can range from 16 to 20 inches. The unit is non-motorized with manual rotation and a pin lock for steadiness. With dimensions of 11 feet by 8 feet by 7 feet and a weight of approximately 11,500 lbs, this uncoiler is a substantial choice for industrial settings. Key features include a 4-arm hydraulic expansion, air brakes, and back plates, all of which enhance its usability and efficiency. However, the absence of controls should be considered, as it may require additional investment for operational readiness. Situated in Perrysburg, Ohio, this used equipment is a dependable option for businesses managing large coil tasks. Evaluating your specific operational needs, especially regarding the missing controls, is crucial to ensure this uncoiler aligns with your production processes.
