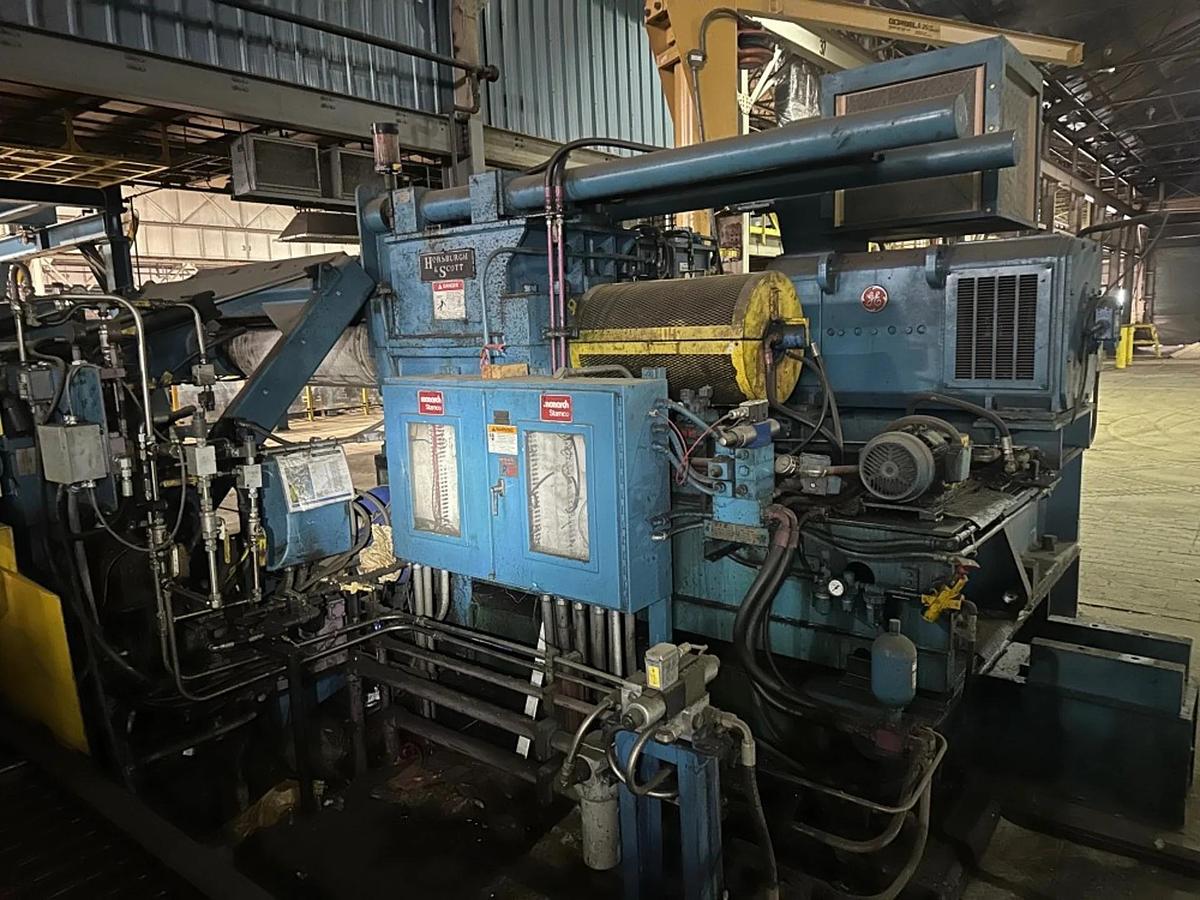

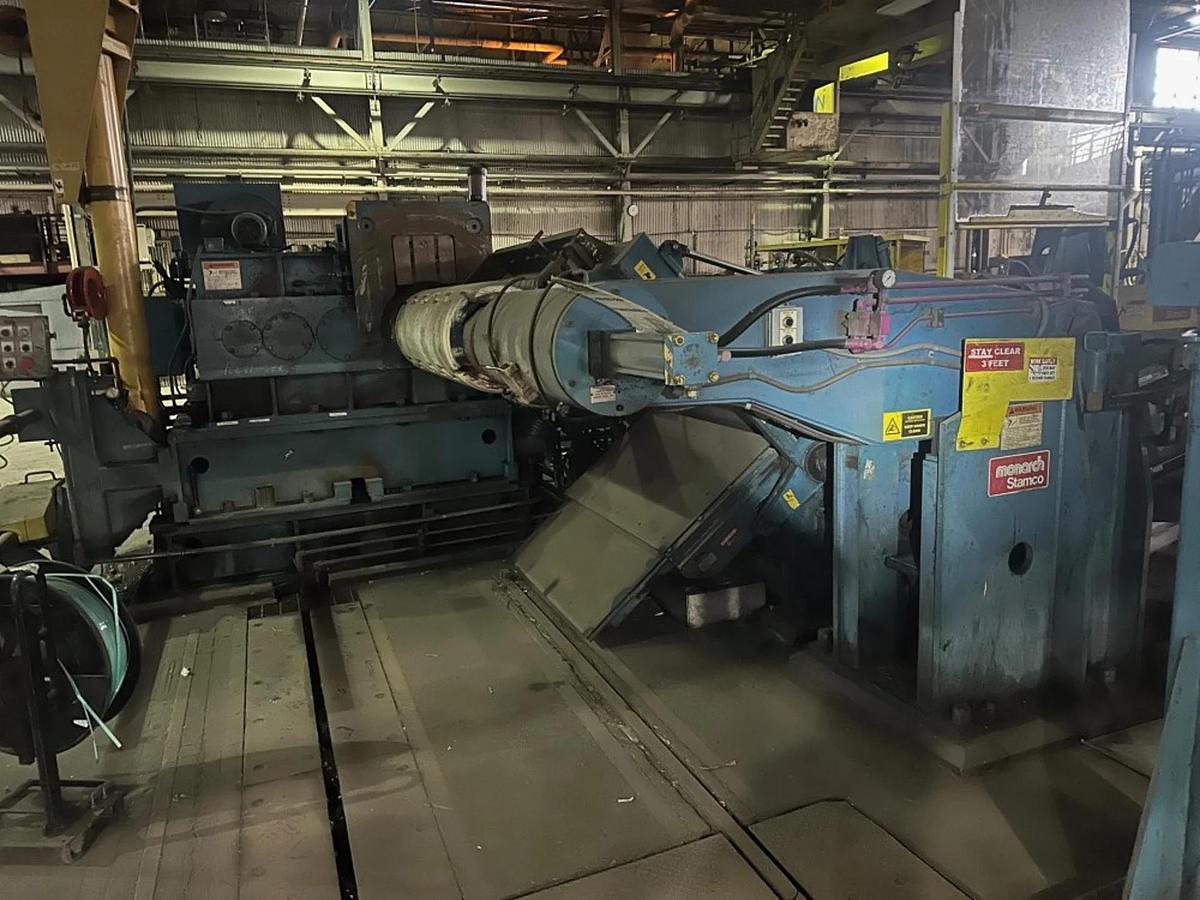

54" x 35,000 Lbs. Stamco Recoiler

The 54" x 35,000 lbs. Stamco Recoiler is a used recoiling machine designed for handling various materials efficiently. It has a width capacity of 54 inches and can handle up to 35,000 pounds. The machine accommodates an ID range featuring a 16-inch diameter with 20-inch and 24-inch bolt-on pads, ensuring flexibility for different coil sizes. It is capable of managing coils with a maximum outer diameter of 72 inches. Powered by a robust 200 HP DC motor drive sourced from GE KinaMatic, the recoiler operates at 500 volts with a speed range of 650 to 2200 RPM and 325 amps. The motor's performance is complemented by a Horsburgh & Scott 2-speed reducer gearbox, offering operational speeds of 200 FPM in low gear and 1200 FPM in high gear. This setup ensures the recoiler can manage a variety of demands efficiently. The Stamco Recoiler includes several essential features like hydraulic gripper and expansion, hydraulic pushoff, and an outboard bearing support, all contributing to its reliable and efficient performance. This machine provides a comprehensive solution for industrial recoiling needs, combining durability and flexibility in its operations.
