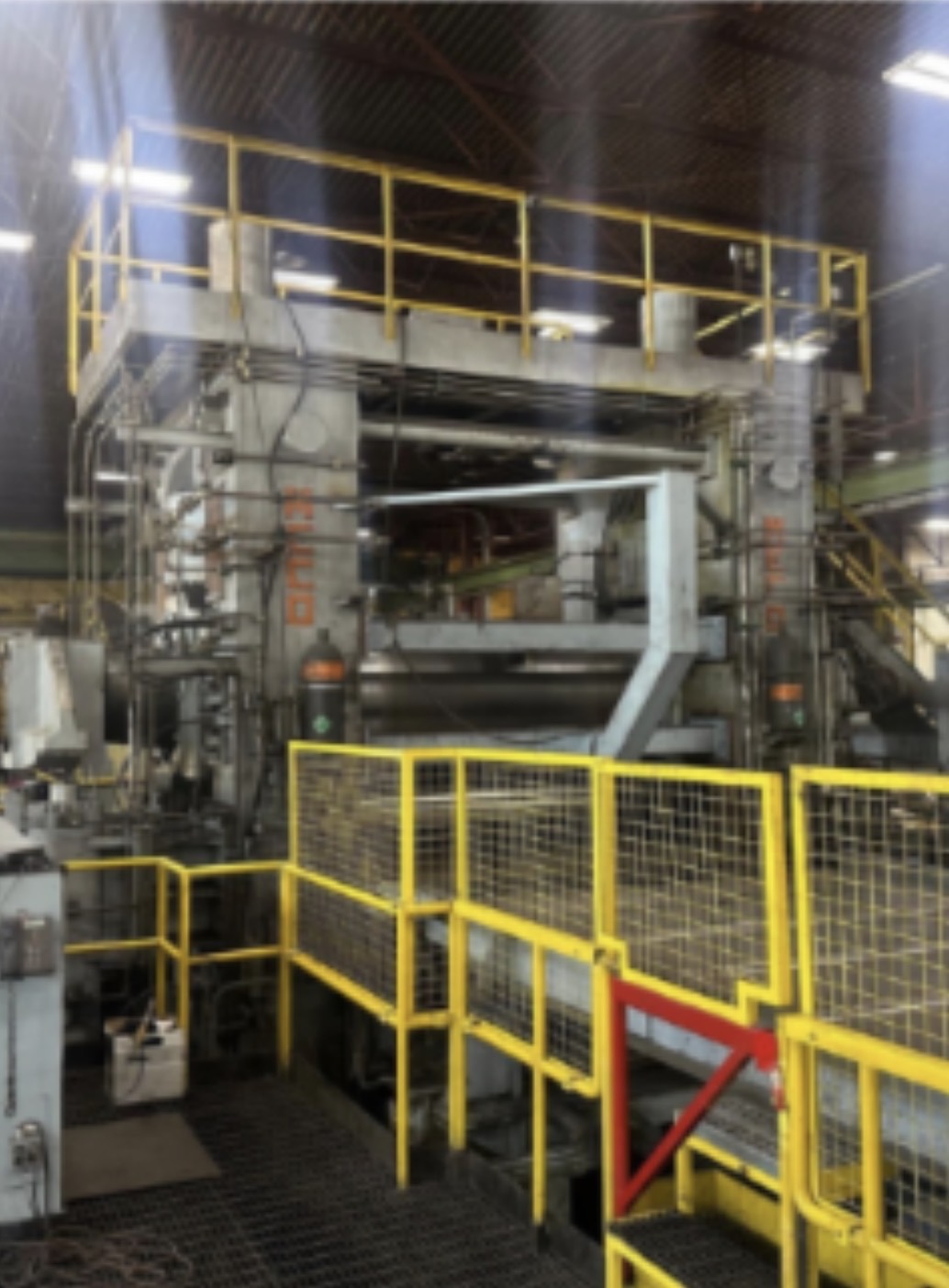

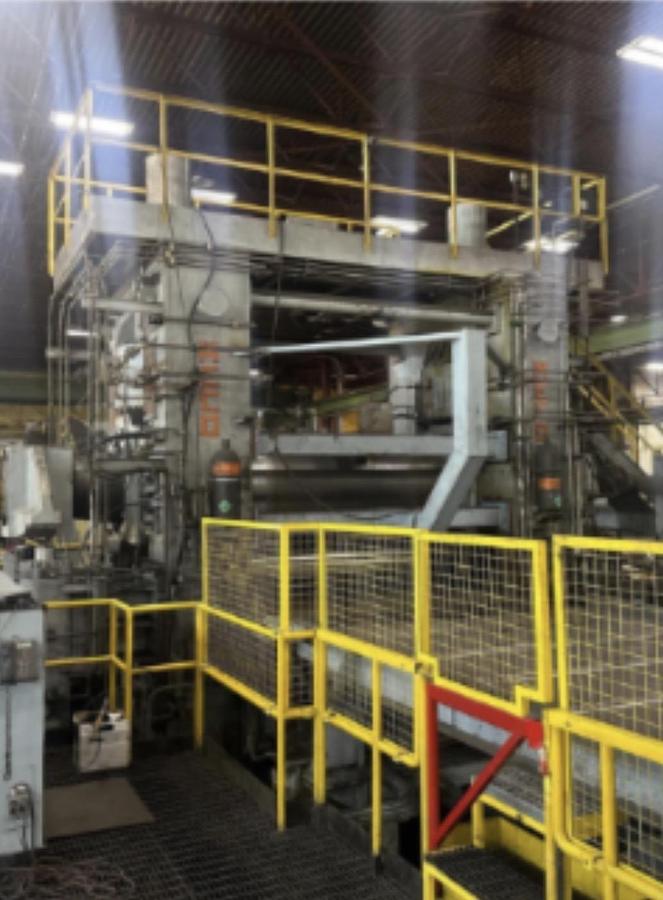

96" x 0.500" x 90,000 Lb. Meco / Bradbury Temper Mill & Cut-to-Length Line
Specifications
| Manufacturer | Meco, Bradbury, Butech, Strilich |
| Year | 1998 |
| Condition | Used |
| Stock Number | VX-36070 |
| Line Direction | Left to Right |
| Minimum Material Thickness | 0.065" (1.7 mm) |
| Maximum Material Thickness | 0.500" (12.7 mm) |
| Minimum Coil Width | 48" (1219 mm) |
| Maximum Coil Width | 98" (2489 mm) |
| Maximum Coil Weight | 90,000 lbs. (40,823 kg) |
| Minimum Coil OD | 48" (1219 mm) |
| Maximum Coil OD | 84" (2134 mm) |
| Minimum Coil ID | 28" (711 mm) |
| Maximum Coil ID | 32" (813 mm) |
| Minimum Cut Sheet Length | 48" (1219 mm) |
| Maximum Cut Sheet Length | 720" (18,288 mm) |
| Maximum Bundle Height | 24" (610 mm) |
| Status | Installed & Operating |
Description
This 1998 Meco/Bradbury/Butech/Strilich Temper Mill and Cut-to-Length Line is engineered for processing hot rolled steel and features several upgrades. It offers a left-to-right line direction and handles material thicknesses ranging from 0.065" to 0.500". The system is capable of processing coils with widths between 48" and 98", and a maximum weight of 90,000 lbs. Equipped with a closed-loop hydraulic system, it operates at maximum line speeds of 250 FPM below 0.250" thickness and 150 FPM above 0.250". The integrated equipment includes an entry coil storage system, dual expanding mandrel uncoilers with 75 HP drives, and a four-high non-reversing temper mill with 500 HP drives. The line features precision leveling with both heavy and light gauge hydraulic levelers from Bradbury, driven by high-capacity motors. An efficient Butech oscillating shear with quick-change knife capabilities is paired with a Cut Sheet Transfer Conveyor for consistent, high-speed operation. Operational versatility is ensured through features like an inkjet strip marking system and Matthews stenciler, robust control systems, and offline storage conveyors. This line demonstrates excellent integration and reliability, serving diverse industrial demands in sheet metal processing.
Includes
Entry Coil Storage Saddles with Space for Seven (7) Maximum Width Coils
Entry Coil Weigh Station
Floor Level Coil Loading Car #1
Perpendicular Travel to Unload Saddles
Floor Level Coil Loading Car #2
Parallel Travel to Load Uncoiler
Dual Expanding Mandrel Uncoiler
(1) 75 HP (55.9 kW) Drive on Each Mandrel
Pivoting Hold Down Roll
Two (2) Driven Rolls and Heavy Duty Anvil to Assist Back Bending with the Peeler
Pivoting and Telescoping Peeler Blade with Replaceable Tip
Five (5) Roll Entry Pinch Roll and Flattener Assembly
(1) 75 HP (55.93 kW) Drive
Entry Crop Shear and Scrap Disposal System
Temper Mill Threading Table
Meco Four (4) High Non-Reversing Temper Mill
(2) 19" (482.6 mm) Diameter Work Rolls
(2) 44" (1117.6 mm) Diameter Backup Rolls
(2) 500 HP (372.85 kW) Drives
Strip Accumulation Table with Entry Deflector Rolls, Elevating Hump Roll & Exit Deflector Rolls
Plate Type Strip Centering Guides
Leveler Entry Pinch Roll Assembly
(1) 50 HP (36.78 kW) Drive
Bradbury Heavy Gauge Eleven (11) Roll Four (4) High Hydraulic Leveler
(11) 6.75" (171.5 mm) Diameter Work Rolls
(7) Adjustable Backup Flights
(1) 600 HP (447.42 kW) Drive
Strip Inspection Table
Bradbury Light Gauge Eleven (11) Roll Four (4) High Hydraulic Leveler
(11) 3.50" (88.9 mm) Diameter Work Rolls
(9) Adjustable Backup Flights
(1) 400 HP (298 kW) Drive
Inkjet Strip Marking System
Matthews Stenciler System
Mperia V-Series ViaJet DOD Marking System
Plate Type Strip Centering Guides
Shear Entry Pinch Roll Assembly
(1) 15 HP (11 kW) Drive
Butech Single Rake Oscillating Shear with Quick Change Knife Assembly
(1) 300 HP (221 kW) Oscillating Drive
(1) 150 HP (110 kW) Ram Drive
Cut Sheet Transfer Conveyor with Non-Marking Belts and Pivoting Reject Station
Stacker Deceleration Rolls
Strilich Sheet Stacker
Three (3) 20' (6.1 Meter) Zones
Adjustable End Stop
Pivoting Support Arms
Powered Squaring Guides
60' End Discharge Stacker Runout Conveyors with Driven Rollers
60' Ninety (90) Degree Rotating Conveyor with Driven Rollers
60' Offline Storage Conveyor #1 with Driven Rollers
60' Offline Storage Conveyor #2 with Driven Rollers
60' Offline Storage Conveyor
Operator Control Stations
AC Controls
Variable Speed Drive Controls
Closed Loop Hydraulic System
