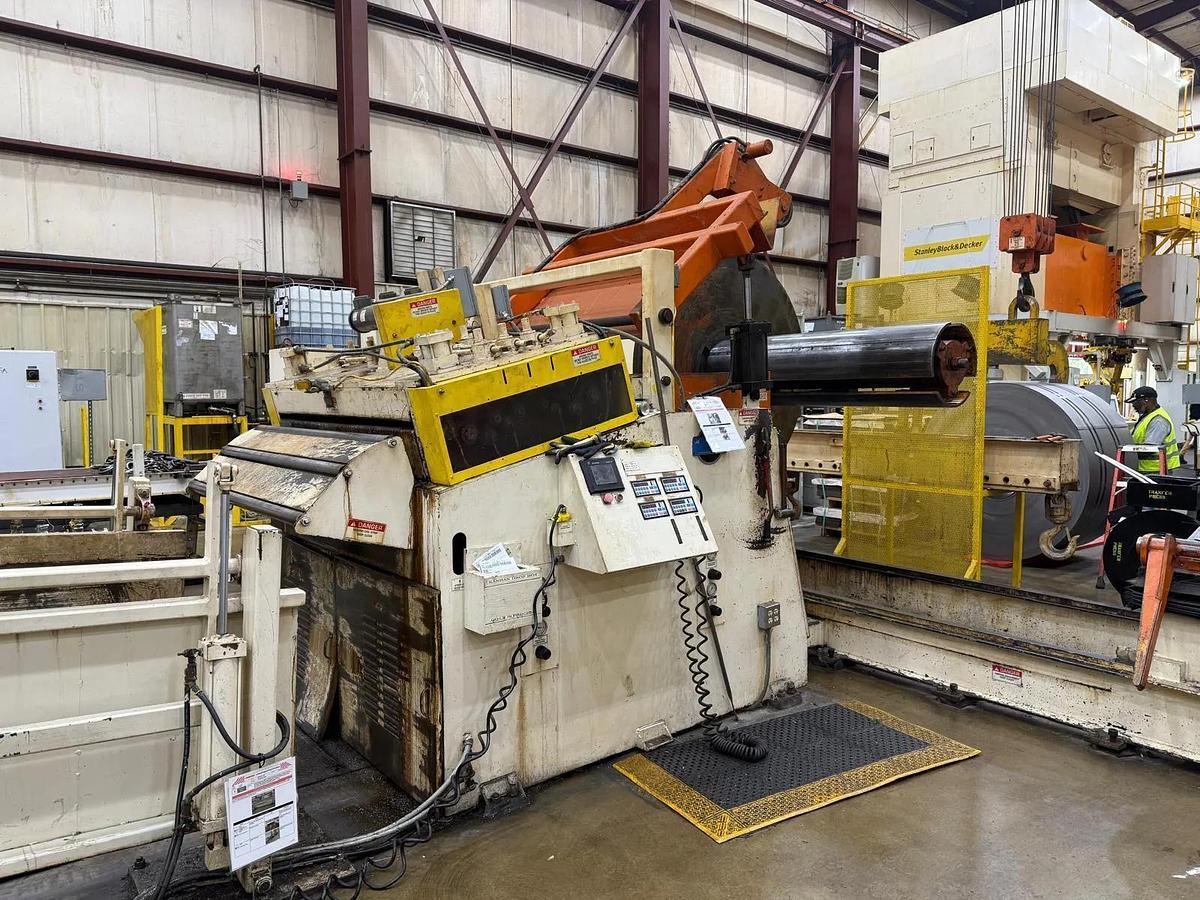

60" x 40,000 Lbs x .125" COE Feedline

Specifications:

MATERIAL CAPACITY:

Material: M.C.R.S.

Maximum Material Capacity: .125" Thick x 60" Wide

Minimum Material Capacity: .030" Thick x 60" Wide

Passline Height: 59"

Electrical: 230/460 V, 3 Phase AC

ITEM 1: COE SERVO ROLL FEED

Model: CPRF 660

Width Capacity: 60"

Number of Feed Rolls: 2

Feed Roll Diameter: 6"

Feed Roll Body Width: 60"

Drive Ratio: 6.5:1

Acceleration: 30 Ft./Sec./Sec.

Maximum Roll Speed: 240 FPM

Feed Accuracy: ±.003"

Equipped With:

Sealed Precision Roller Bearings

Full-Width Upper and Lower Feed Rolls

#3 Crodon Chrome Finish on Upper and Lower Feed Rolls

3-Roll Catenary Support Section With Full Sideplates and Funnels

Air Pressure Regulator for Feed Roll Pressure

Cluster Gear Driven Upper Feed Roll With Mating Splined Shafts and Gears

Dual-Roll Hand Crank Edge Guides With Self-Centering and Independent Adjustment

Motorized Passline Adjustment

Air-Operated Anti-Backup Roller Assembly

AC Brushless Servo Motor

Remote Jog Pendant

Single-Cycle Pushbutton for Setup at Jog Speed

Emergency Stop

Fused Electrical Safety Disconnect

Heavy-Duty Cabinet Base With Press Mount Brackets

±6" Height Adjustment

Rigid Machined Tie-Bar Construction

ITEM 2: COE DUAL THREADING TABLE

Model: CPTT 6015

Size: 60" Wide x 15' Long

Passline Height: 59"

Equipped With:

Heavy-Duty Steel Solid-Top Construction

Dual-Sided Table Construction

Adjustable Passline

Air-Operated Raise and Lower

ITEM 3: COE POWER STRAIGHTENER

Model: CPPS 305 60

Size: 3" x 60"

Pinch Roll Diameter: 5"

Drive: 30 HP AC Variable Speed

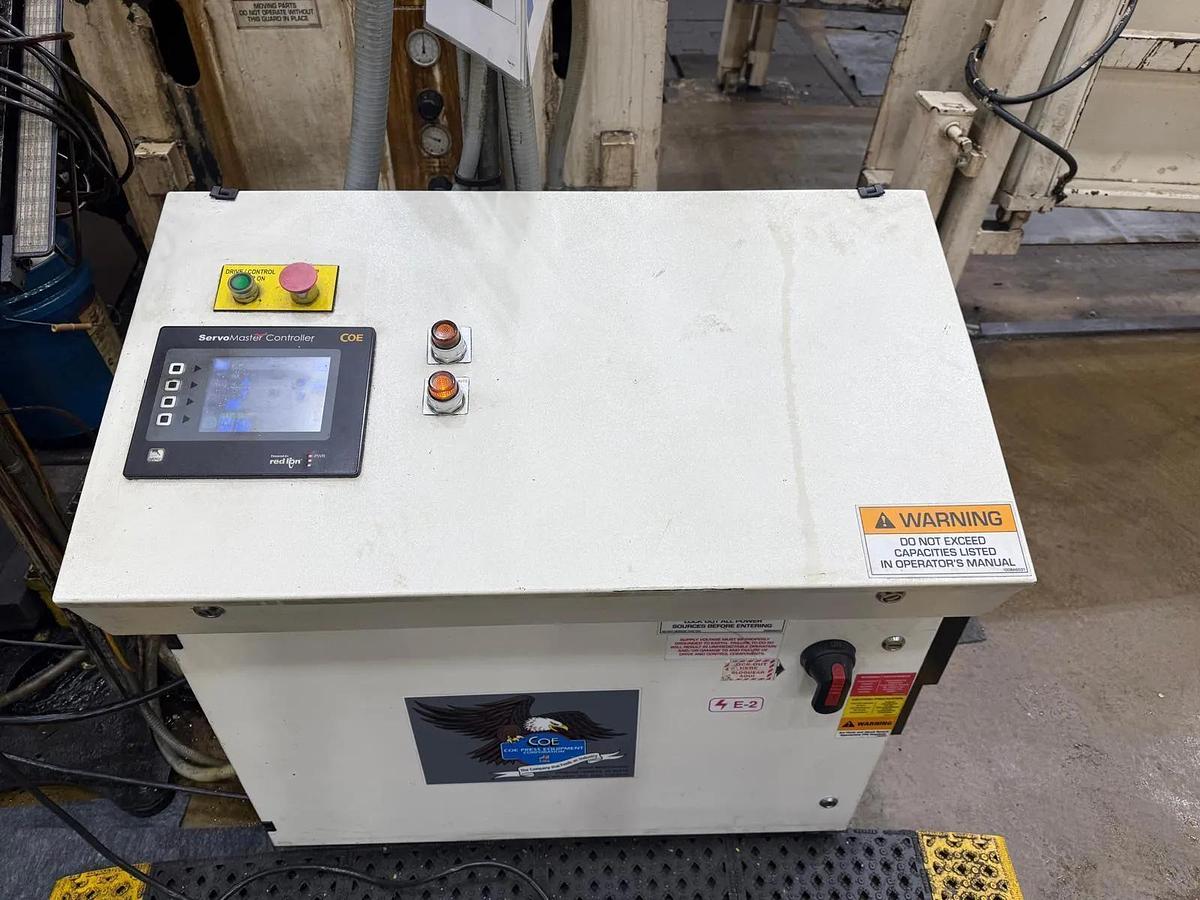

Controls: PLC With Operator Touchscreen

Equipped With:

Rigid Tie-Bar Straightener Head

3-Roll Catenary Support Section

Air-Operated Upper Pinch Roll

Crodon-Coated Upper and Lower Entrance Pinch Rolls

Independent Upper Straightener Roll Adjustment

Motorized Individual Straightening Roll Adjustment

Digital Upper Straightener Roll Height Indicators

Double-Row Upper and Lower Straightener Back-Up Rolls

Hand Crank Entrance Edge Guides

Peeler / Threader / Hold-Down Station With Motorized Endwheel

Ultrasonic Variable Speed Loop Control With 3-Position Selector Switch

Central Point Lubrication System

Reel-to-Straightener Tie-In Brackets

Remote Jog Pendant

Electrical Safety Disconnect

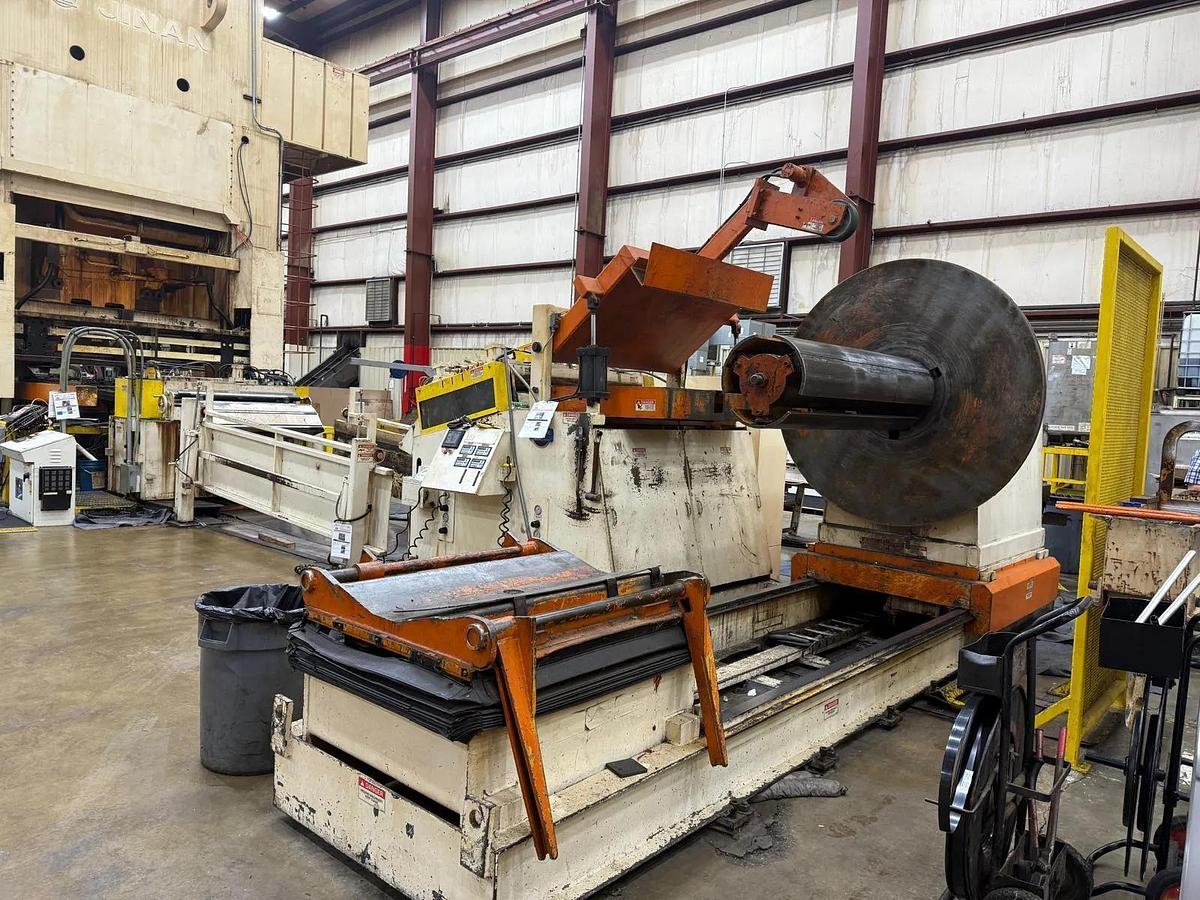

ITEM 4: COE TRAVELING COIL REEL

Model: CPTR-PO 40060

Maximum Coil Weight: 40,000 Lbs.

Maximum Coil Width: 60"

Maximum Coil O.D.: 72"

Mandrel Expansion Range: 19.25" - 24.75"

Equipped With:

3-Pad Mandrel

Bearing Tube Mandrel Support

Hydraulic Mandrel Expansion

Hydraulic Threading Drive

Material Width Scales on Mandrel Pads

Fail-Safe Drag Brake

Full-Radius Mandrel Pads With Matching Keepers

72" O.D. Backplate

Heavy-Duty Welded Steel Construction

COIL LOADING SYSTEM:

Stationary Load V-Nest

V-Nest Vertical Lift: 18"

Traveling Coil Reel

The coil reel travels to the stationary V-nest to pick up the coil. The automation package then positions the reel to the line centerline based on the programmed coil width, with the coil loaded against the backplate.
