60" Slear 1 Iowa Precision Multi-Blank / CTL Line

Specifications:

Manufacturer/Year: Iowa Precision / 2004

Model: Model # REC-TS-60, Slear 1

Materials: CRS, Alum., Galv.

Min./Max. Coil Width: 6 - 60"

Thickness Range: .015 - .064"

Max. Shear: 45,000 PSI

Max Yield: 45,000 PSI

Max Coil Weight: 20,000 lbs

Coil I.D. : 20 - 24" (nominal)

Max Coil O.D. : 64"

Slitting Capacity: 5 cuts of .060" and 6 cuts of .045"

Minimum Slit Width: 3"

Line Direction: Right to Left

Stacker Length: 1 - 12'

Maximum Bundle: 18" x 10,000 lb @ 12'

Mode of Operation: Front Loop

Line Speed: 20-120 fpm

Required Area: 20' x 70'

Required Power: 121 amp @ 230v, 3-phase, 60Hz FLA, recommend 160A)

Equipment List:

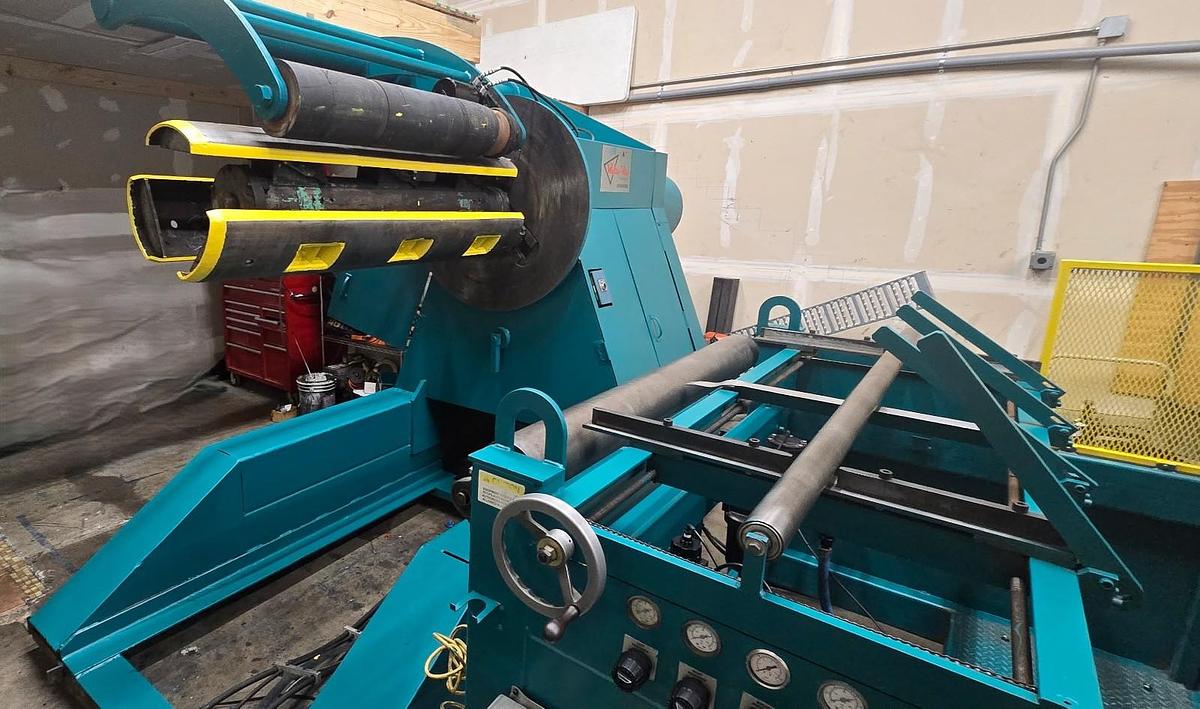

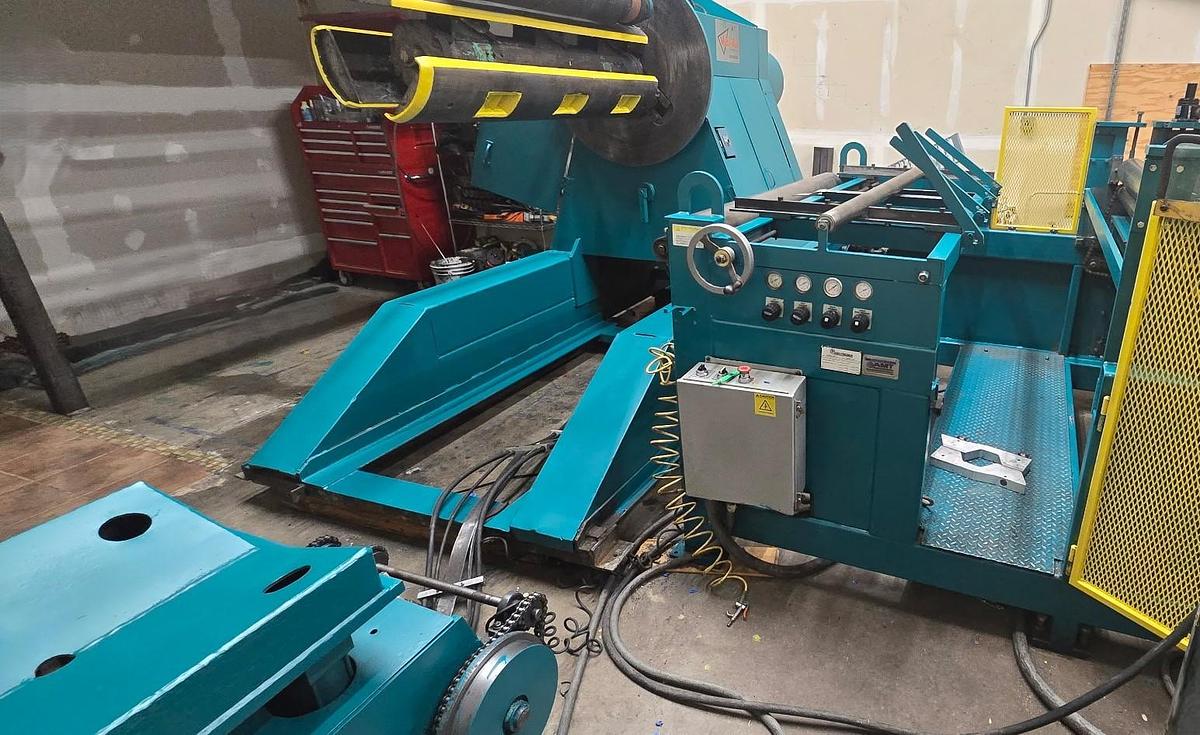

Entry Coil Car: Floor-mounted type; powered lift and traverse for loading coils onto uncoiler mandrel.

Uncoiler: Mandrel type; powered expansion; Feed-up drive; Hold-down with powered snubber; Loop control w/ dancer arm; Self-contained hyd- draulic unit.

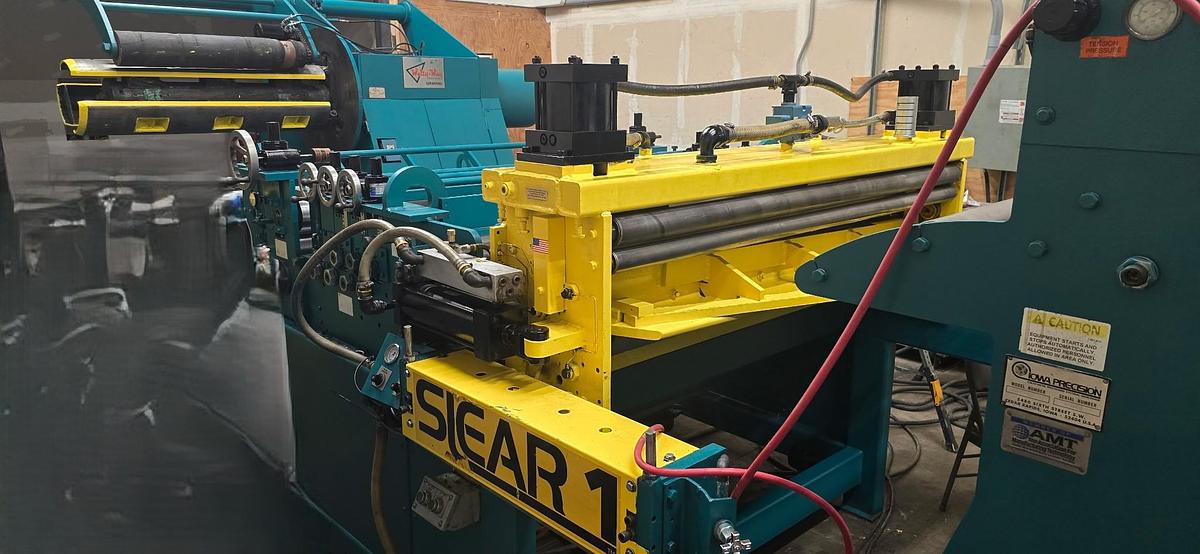

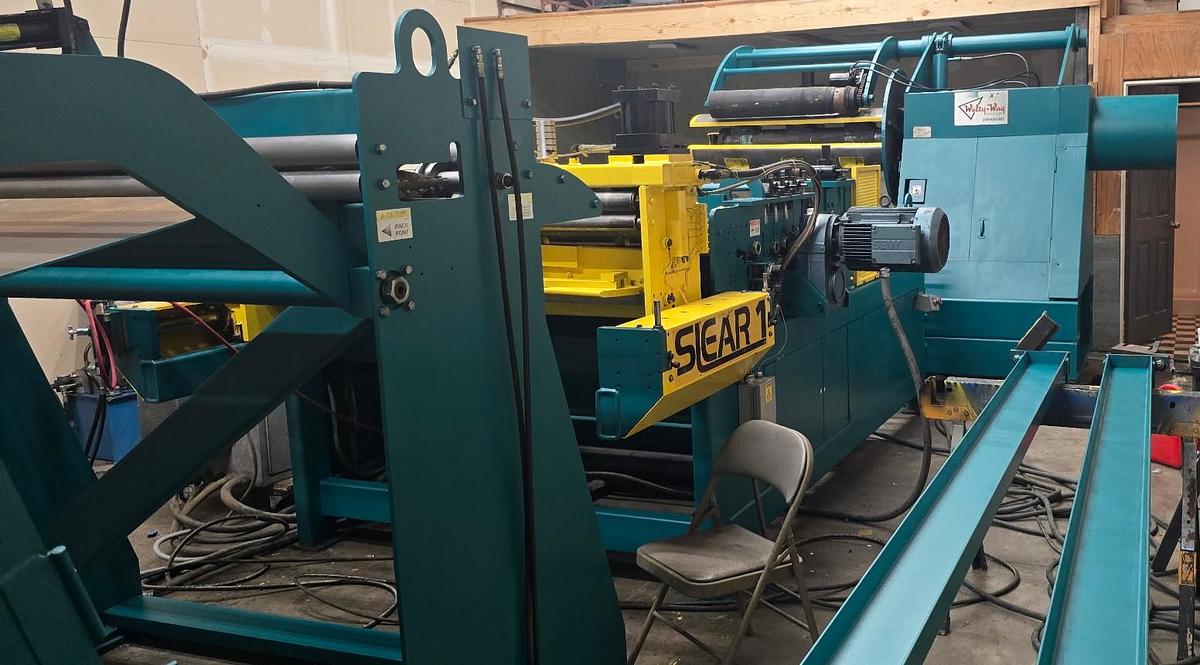

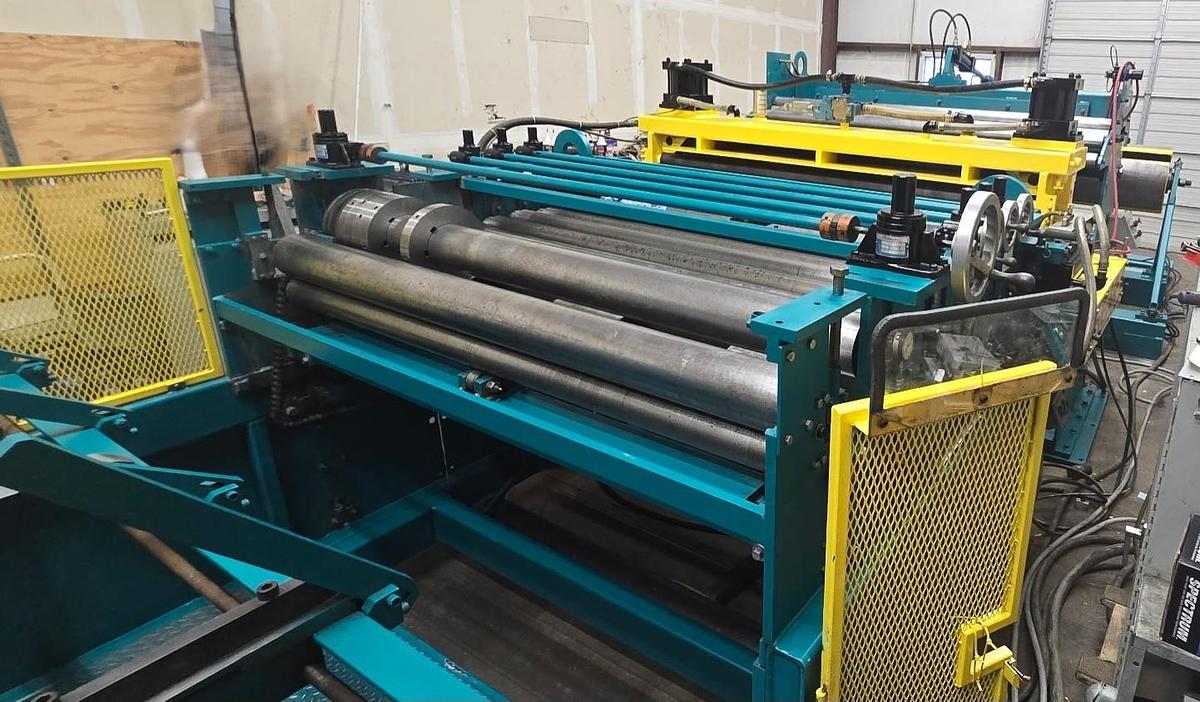

SLEAR 1 Unit: Powered pinch rolls (entry, intermediate, exit); hub-type head with 5" arbor and 15 slitter knives; 6-roll flattener (3/3); down-cut shear on traversing track with single-rake blade; spare shear blade set.

Tension Stand: Free standing, 5' width, with dual idler roll configuration, w/ pneumatic separator arms, and precision scale mounting. Pressure adjustable braking system (300-1500 PSI).

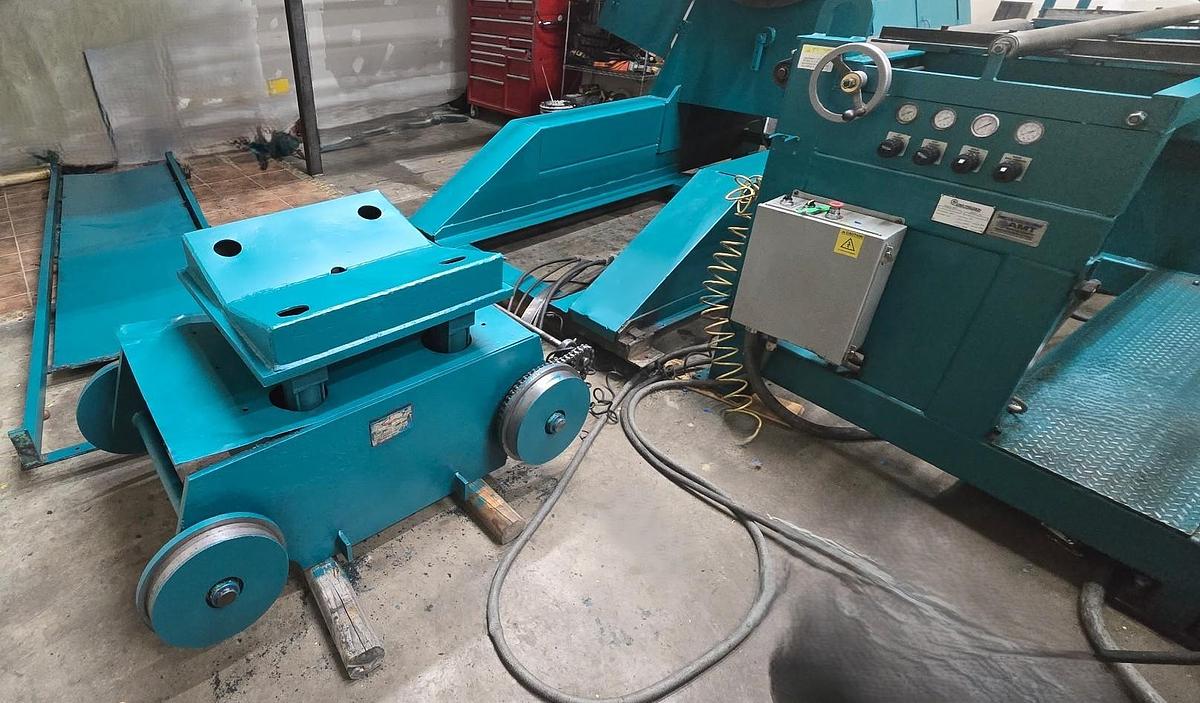

Exit Coil Car: Floor-mounted, Powered lift and traverse functions; single

or dual cylinder hydraulic actuation; Travel range approx. 80"; adjustable separator arms; automatic & manual controls.

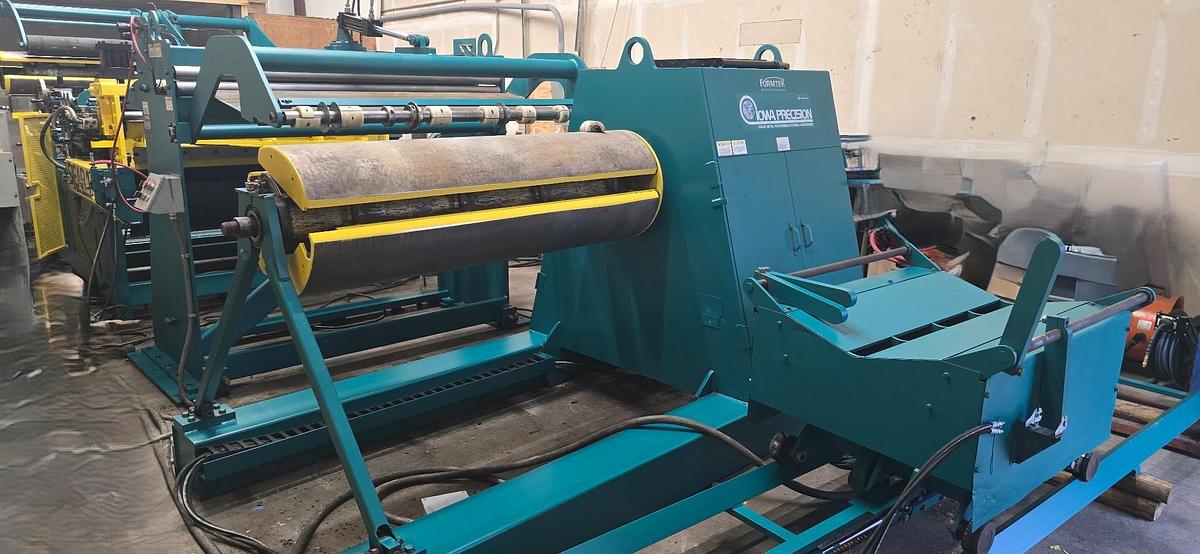

Rewinder: Hydraulic expansion recoiler mandrel, 5' x 50" capacity, rated for 20k-22k lb coils. Self-centering mandrel expansion, oil-cooled hydraulic drive with remote console controls, adjustable tension relief, auto-rewind.

Electronics: Main operator's console with Allen-Bradley PLC and touch screen; auxiliary control stations for coil handling and tension stand; AC/DC cabinet with transformers and electrical disconnects; remote-mounted control console for system operation.
