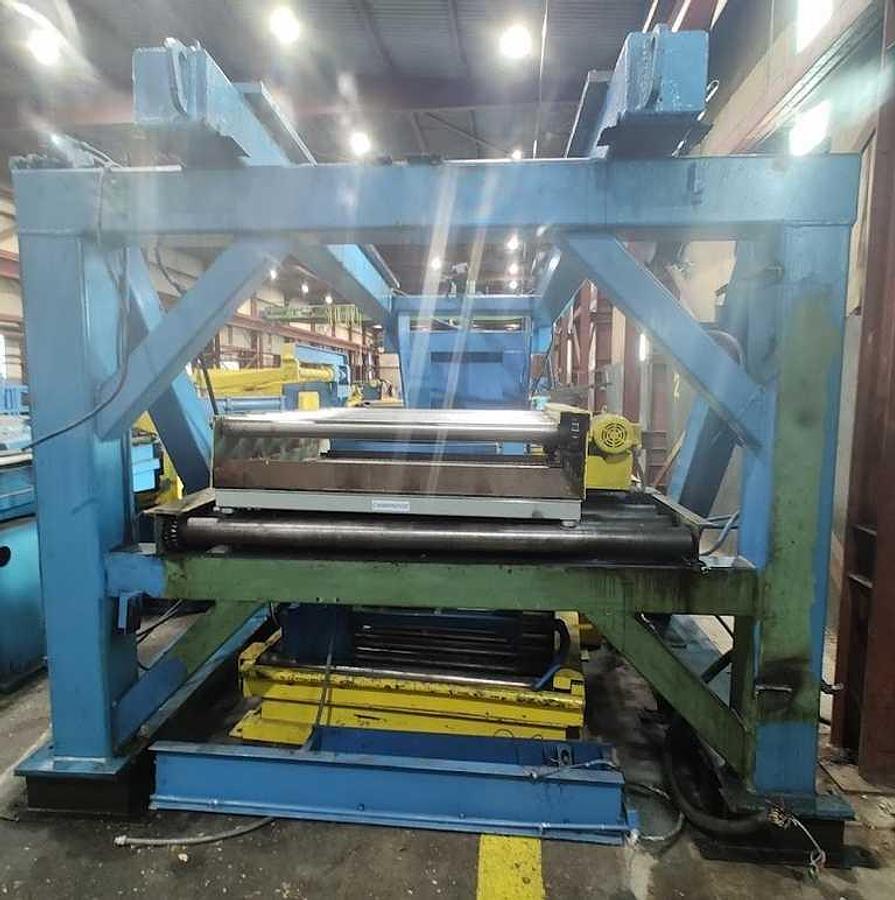

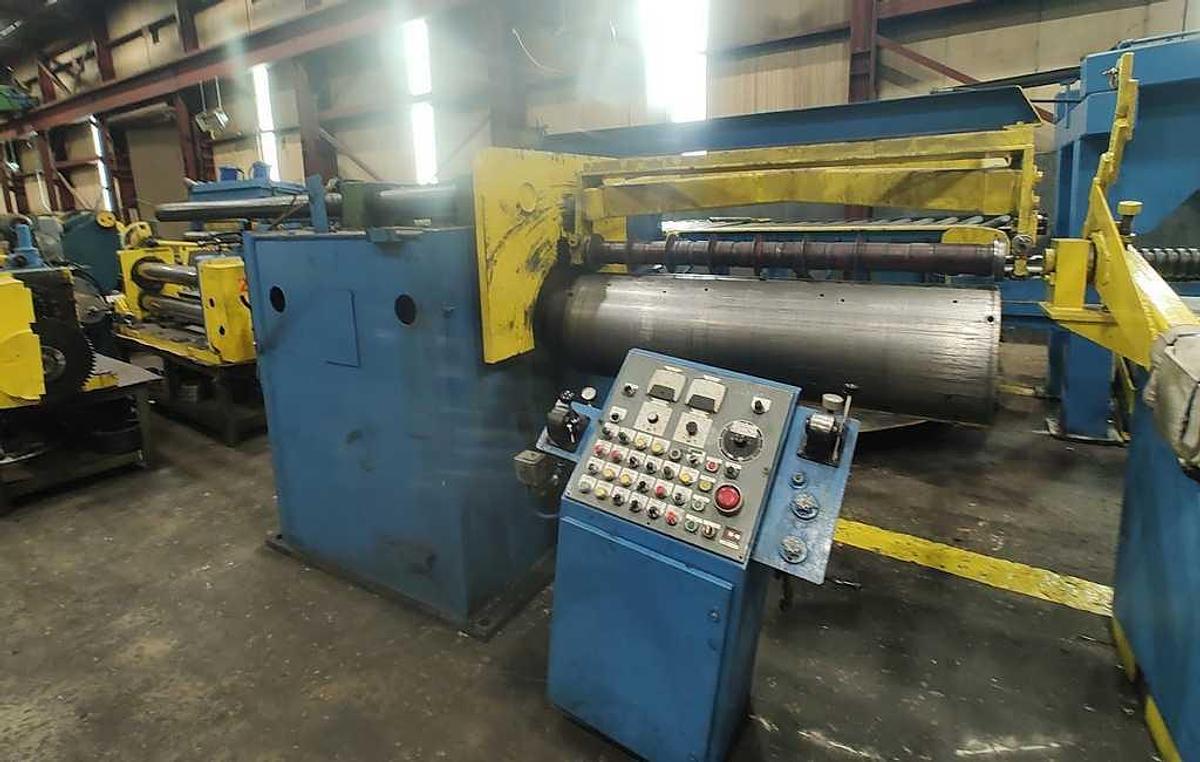

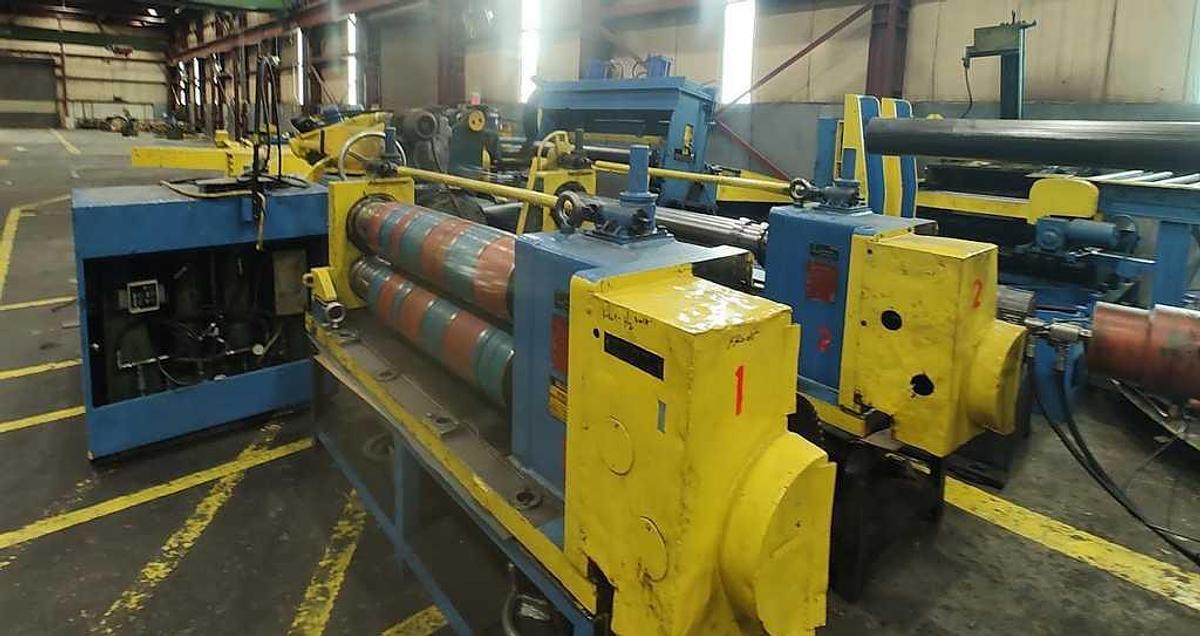

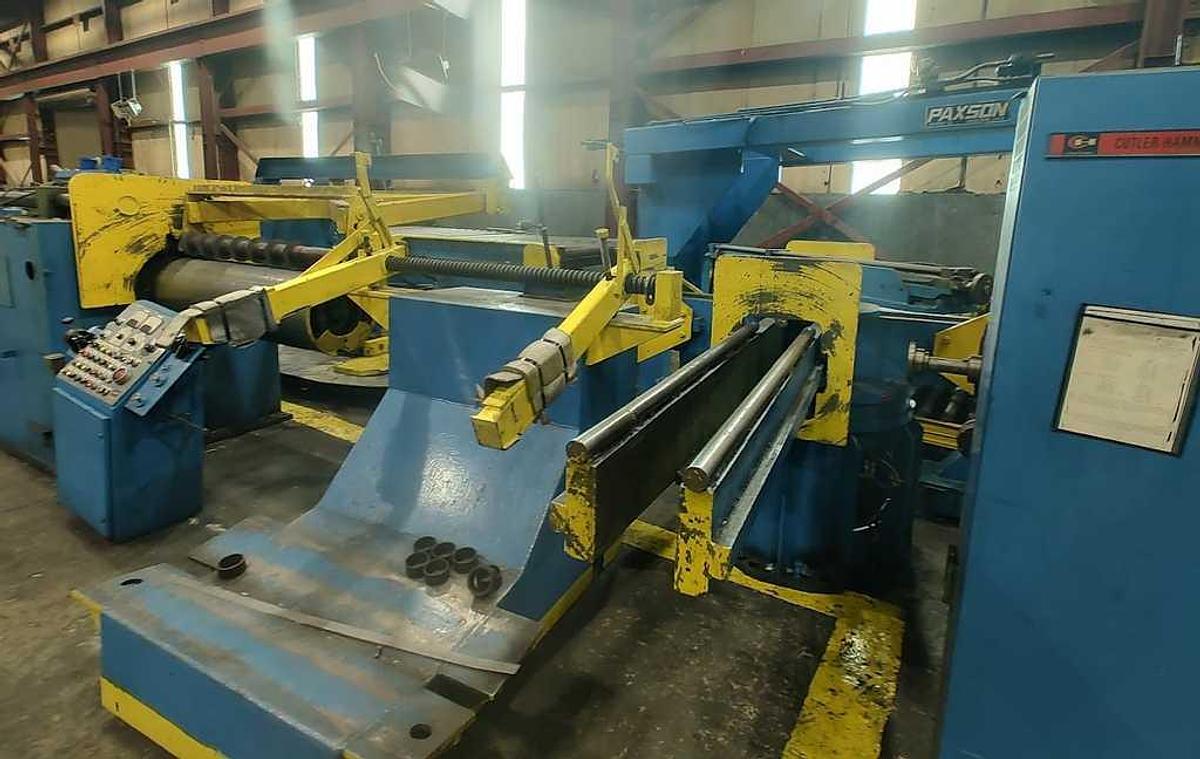

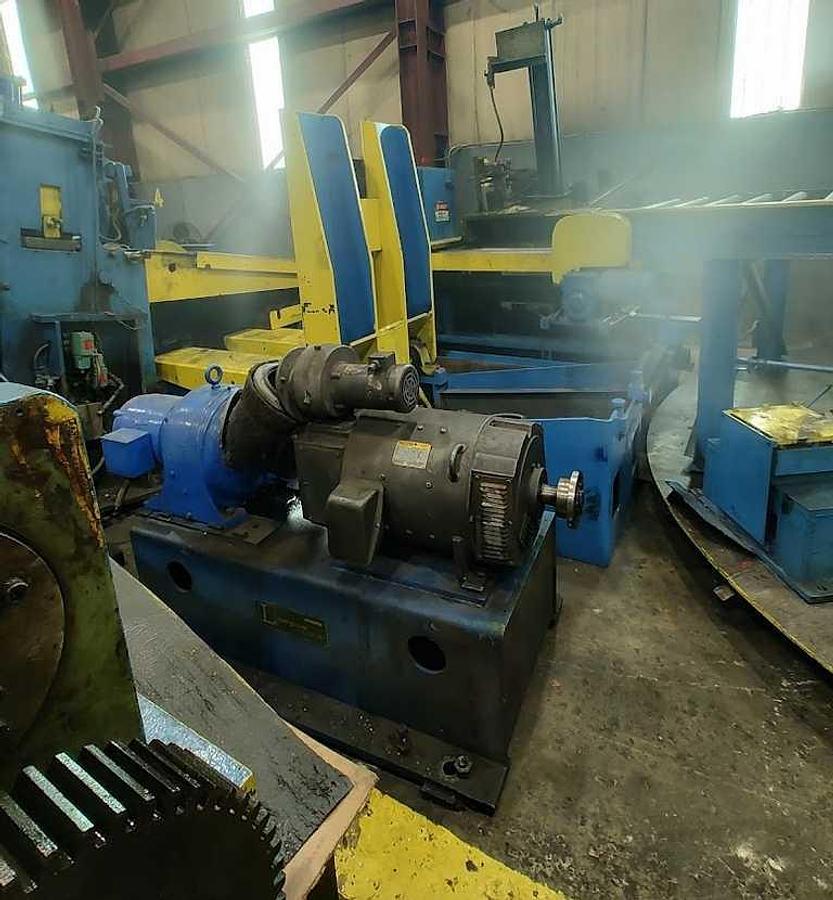

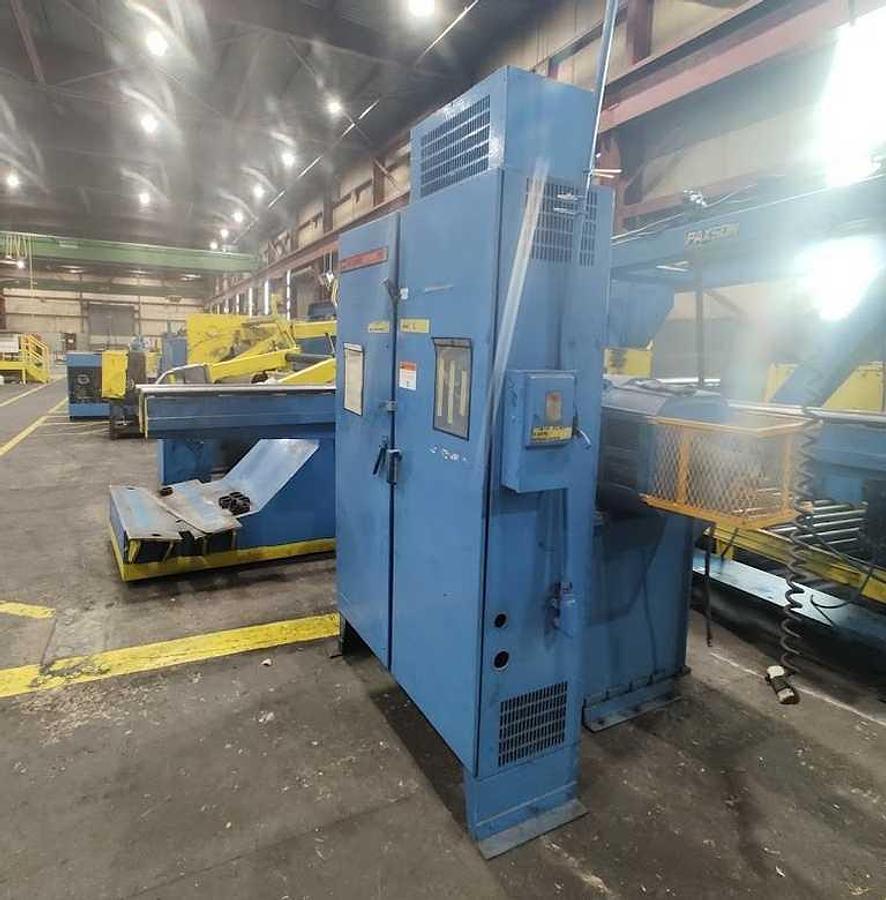

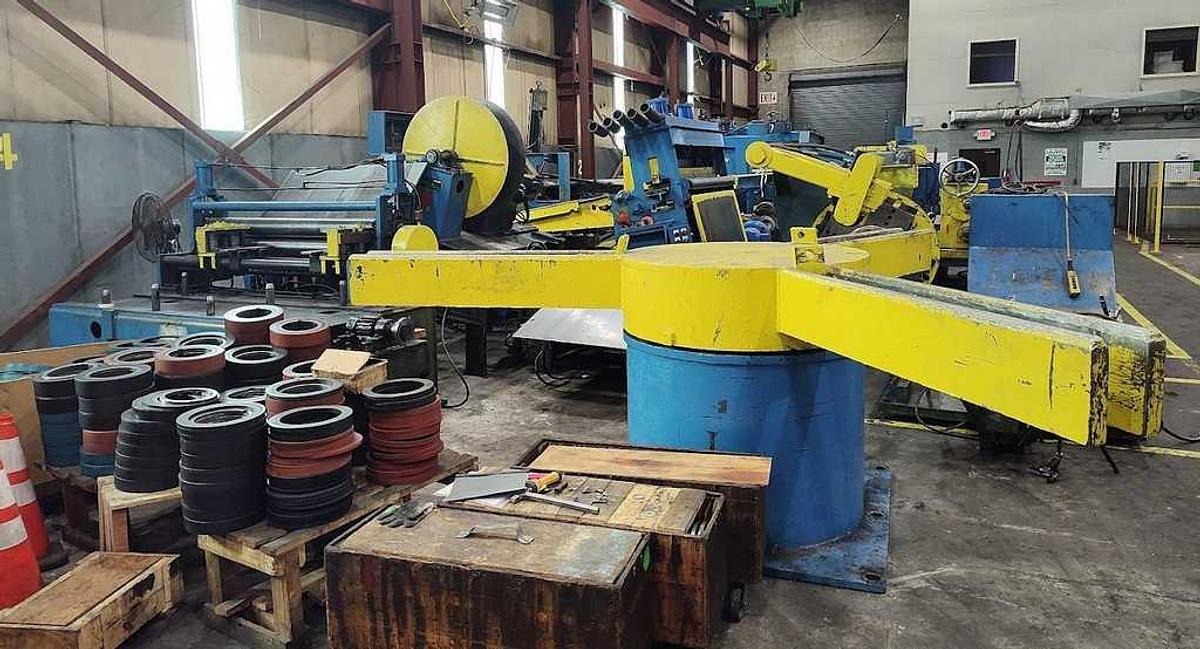

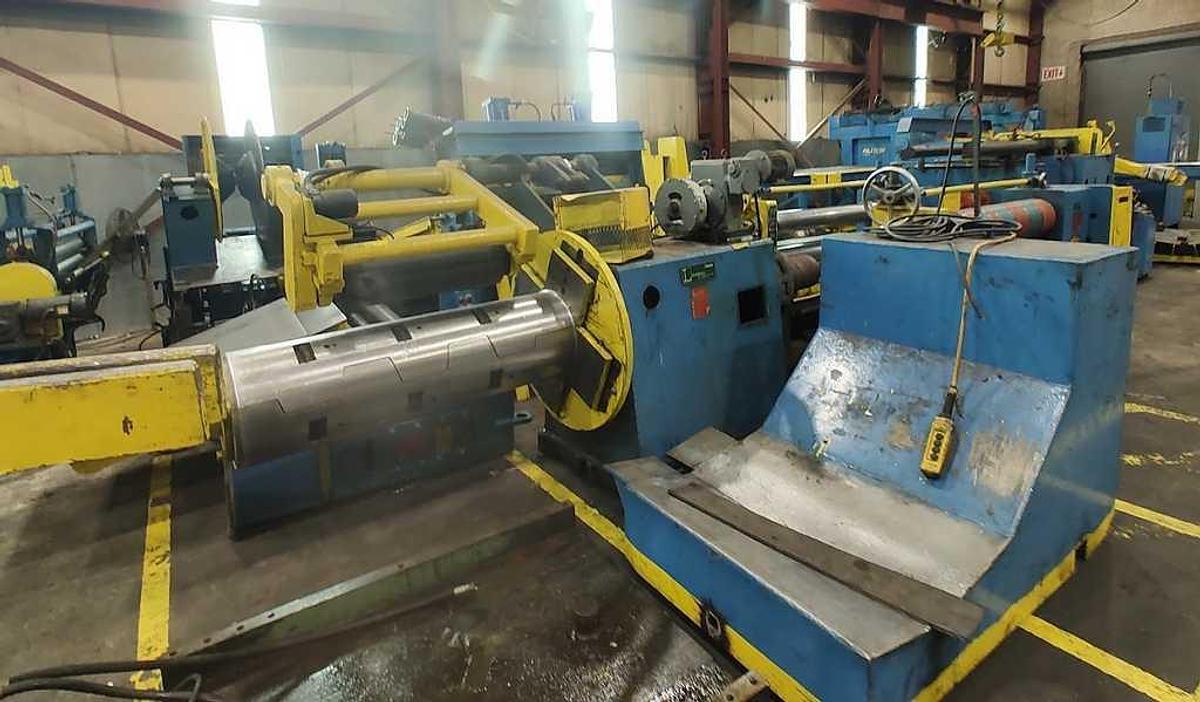

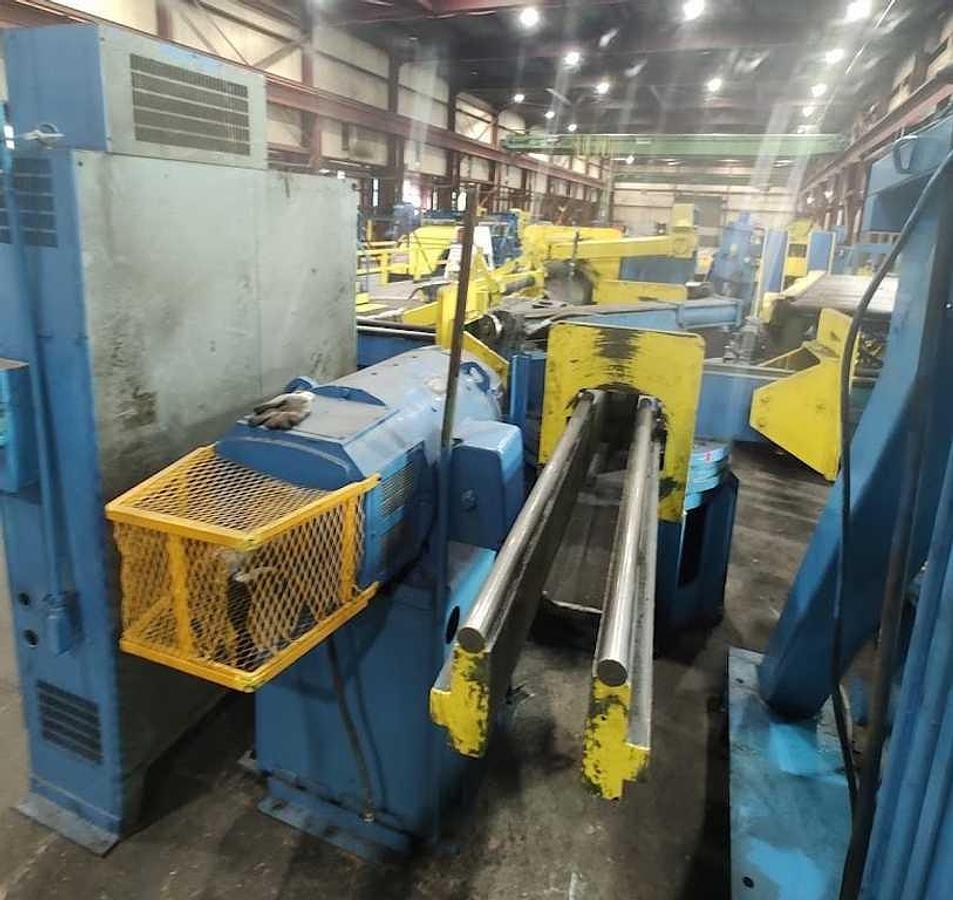

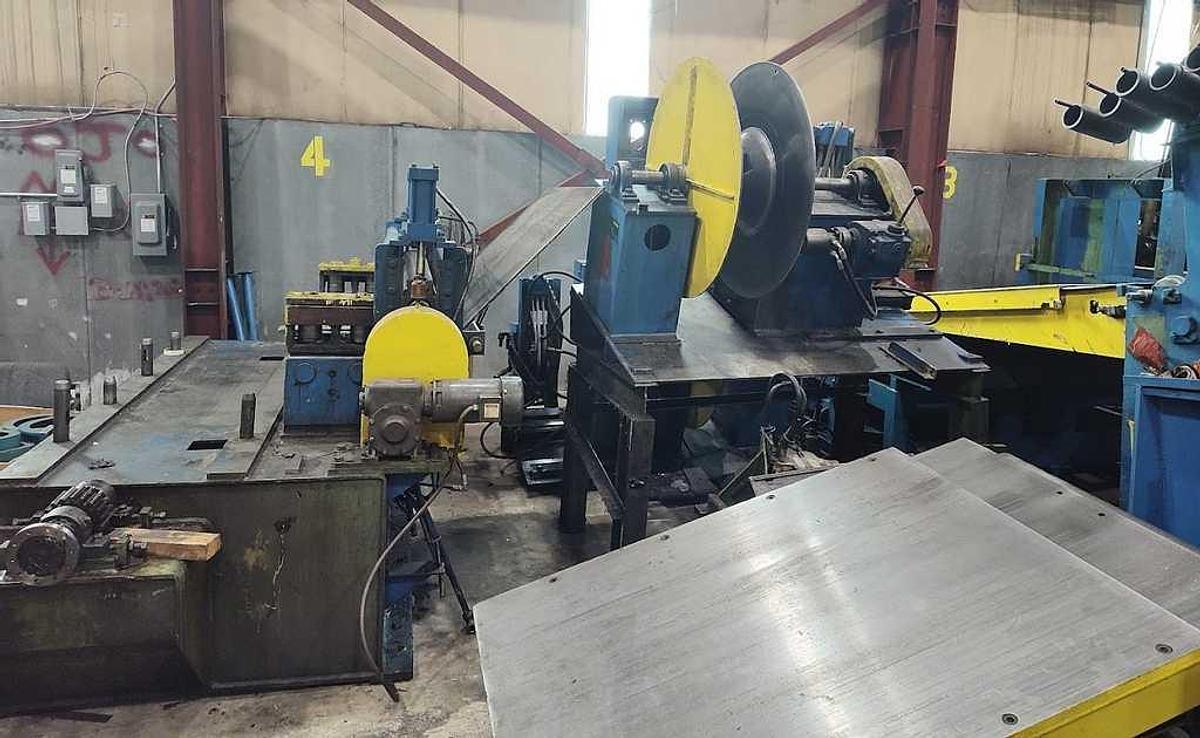

60" x .188" x 40,000 Lb. Loopco Slitting Line

Manufacturer: Loopco

Machine Type: Slitting Line

Slitter Model: 160

Maximum Material Width: 60"

Material Thickness Range: 0.020" - 0.188"

Coil Weight Capacity: 40,000 Lbs.

Slitter Arbor Diameter: 7-1/2"

Material Shear Strength: 45,000 - 60,000 PSI

Slitting Configuration: Pull-Through With Optional Helper Drive

Line Direction: Left to Right

Line Speed:

Low Speed Range: 250 FPM at 24" Coil Diameter, Increasing to Approximately 750 FPM at 72" O.D.

High Speed Range: Up to 1,500 FPM at 72" O.D.

Slitting Capacity - Low Speed Range (250 FPM):

45,000 PSI Material:

8 Cuts at 0.188"

9 Cuts at 0.179"

10 Cuts at 0.164"

12 Cuts at 0.135"

14 Cuts at 0.120"

16 Cuts at 0.105"

20 Cuts at 0.090"

60,000 PSI Material:

6 Cuts at 0.188"

7 Cuts at 0.179"

8 Cuts at 0.164"

9 Cuts at 0.135"

11 Cuts at 0.120"

12 Cuts at 0.105"

15 Cuts at 0.090"

18 Cuts at 0.075"

20 Cuts at 0.067"

Slitting Capacity - High Speed Range:

45,000 PSI Material:

7 Cuts at 0.120"

8 Cuts at 0.105"

11 Cuts at 0.090"

16 Cuts at 0.075"

20 Cuts at 0.067"

Lighter Gauges Down to 0.020"

60,000 PSI Material:

4 Cuts at 0.120"

6 Cuts at 0.105"

8 Cuts at 0.090"

12 Cuts at 0.075"

15 Cuts at 0.067"

19 Cuts at 0.060"

20 Cuts at 0.048"

Lighter Gauges Down to 0.020"
