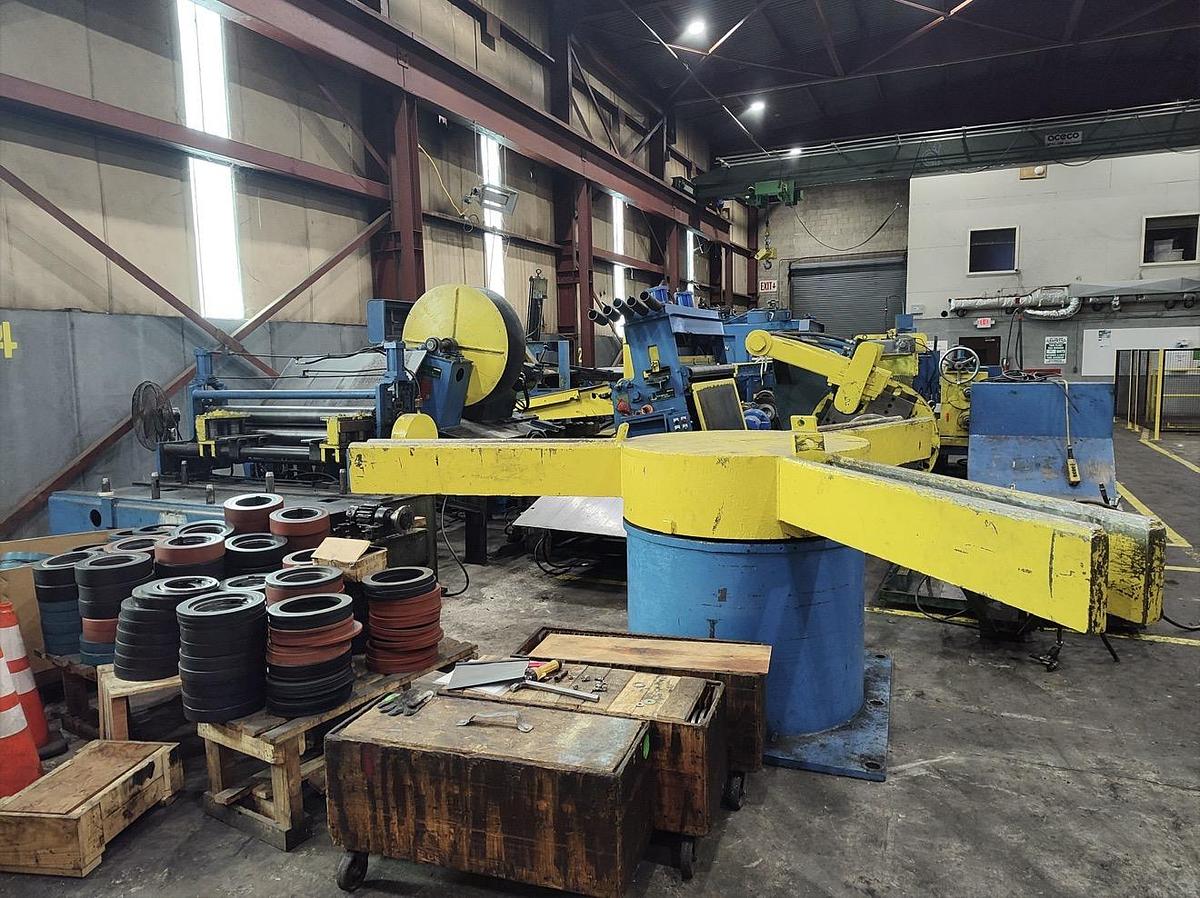

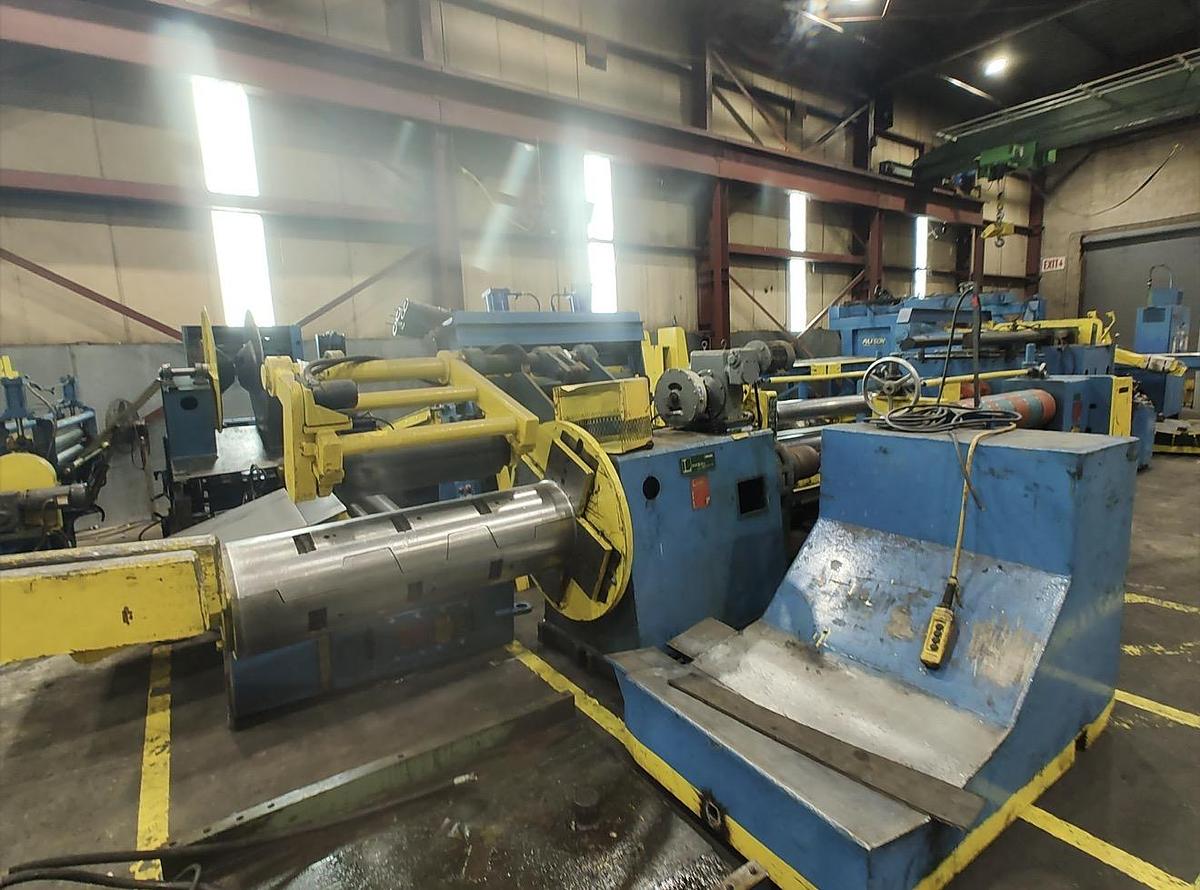

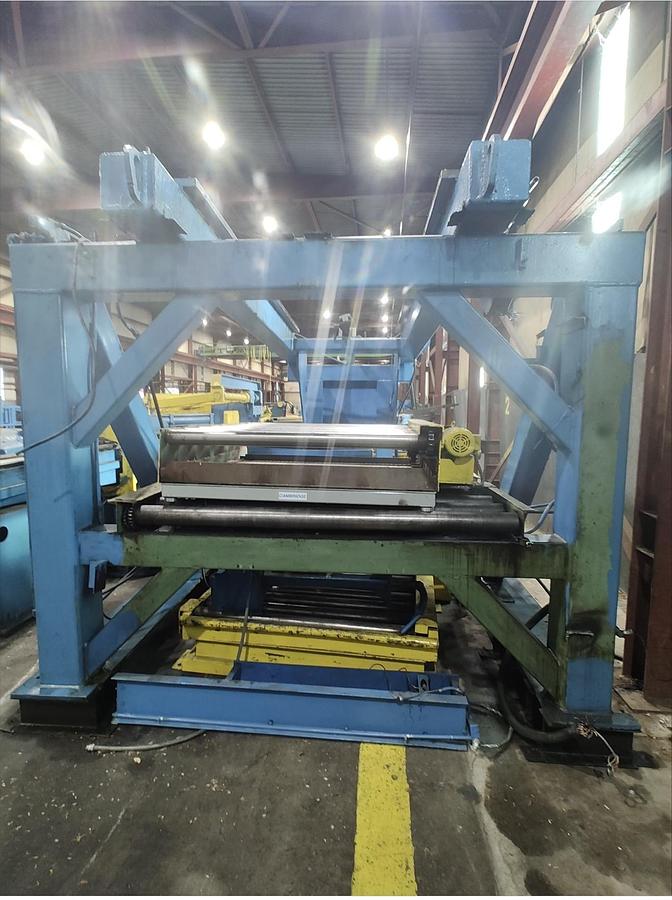

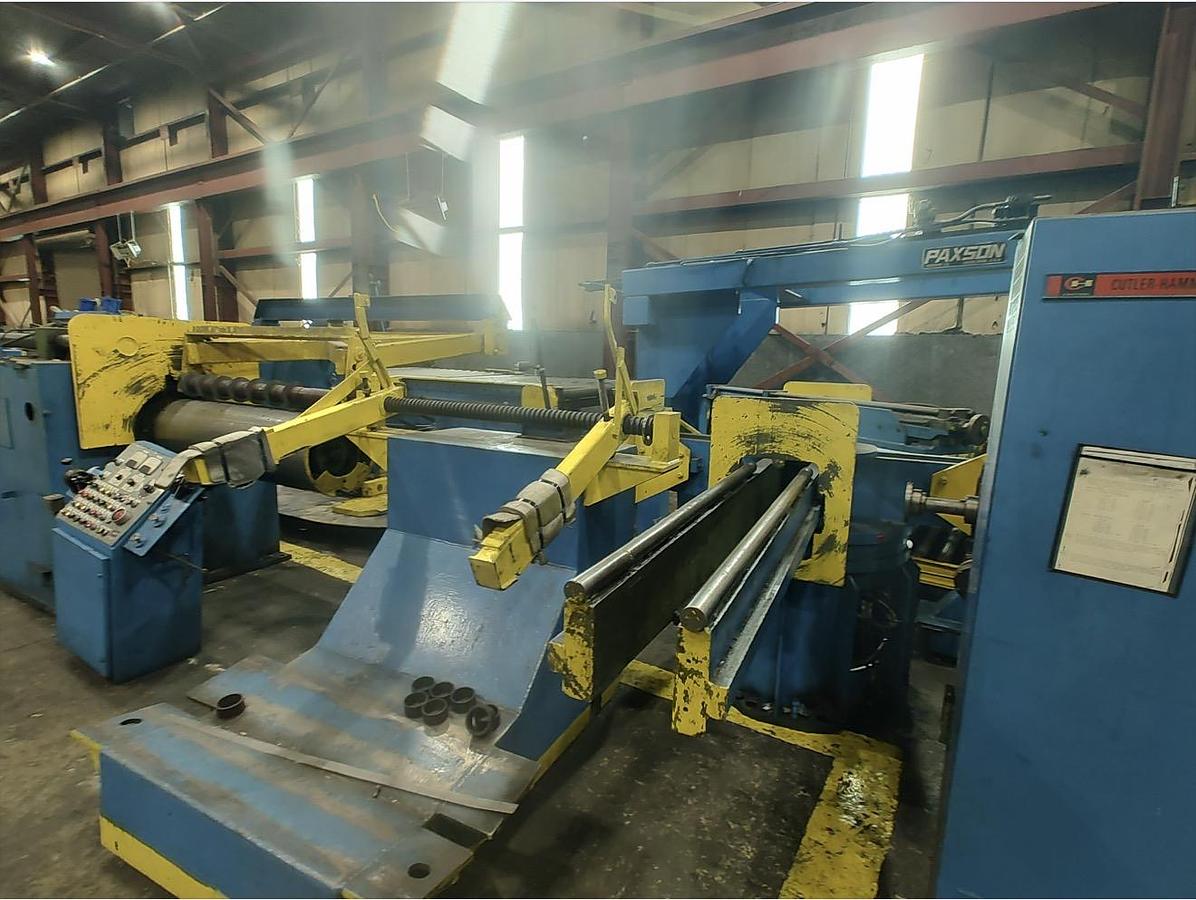

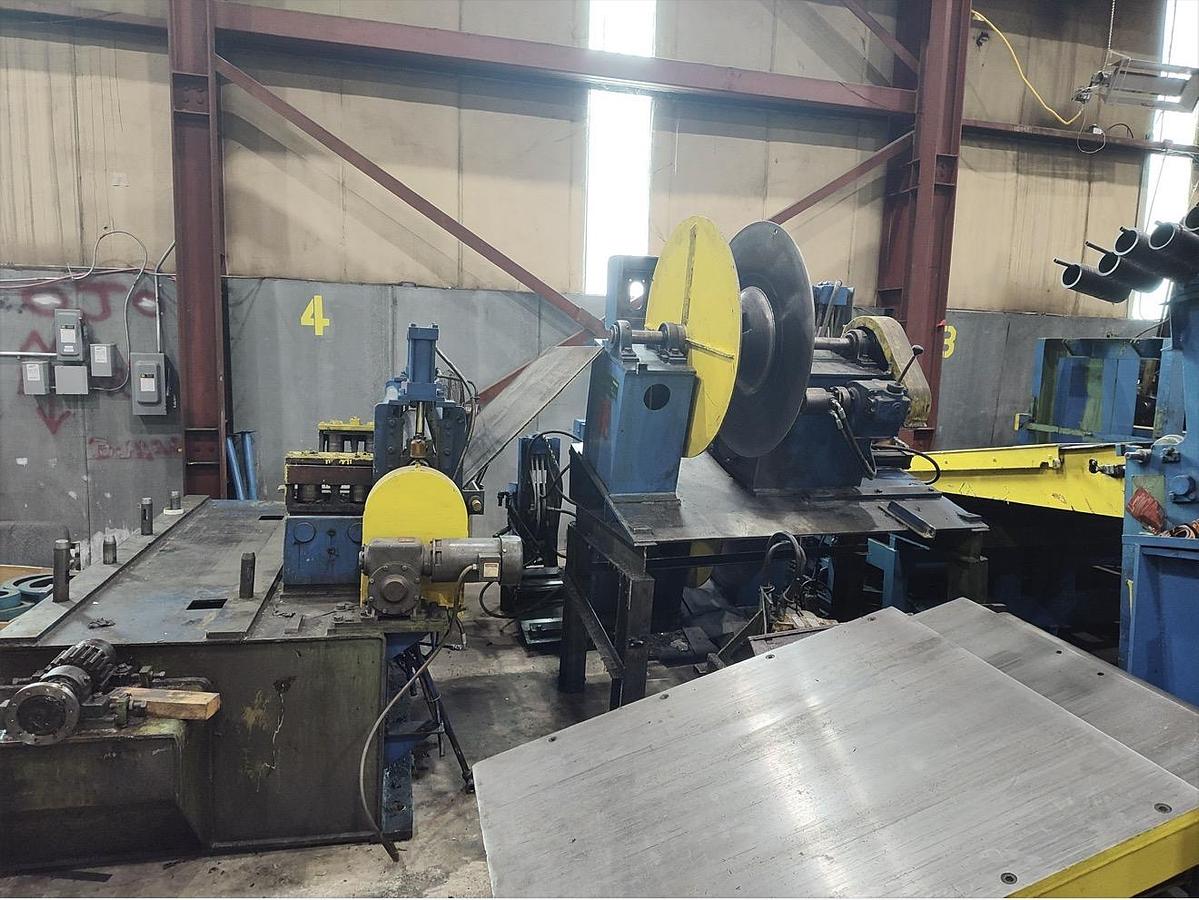

Loopco Model 160 Slitting Line, 7-1/2” Arbors, 1,500 FPM

Manufacturer: Loopco

Machine Type: Slitting Line

Slitter Model: 160

Slitter Arbor Diameter: 7-1/2"

Material Shear Strength: 45,000–60,000 PSI

Slitting Configuration: Pull-Through With Optional Helper Drive

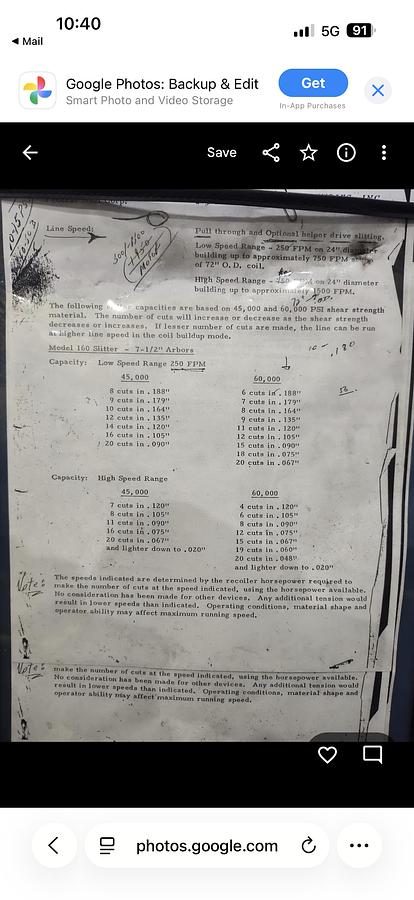

Line Speed:

Low Speed Range: 250 FPM on 24" Diameter Coil, Increasing to Approximately 750 FPM on 72" O.D. Coil

High Speed Range: 450 FPM on 24" Diameter Coil, Increasing to Approximately 1,500 FPM on 72" O.D. Coil

Slitting Capacity - Low Speed Range (250 FPM):

45,000 PSI Material:

8 Cuts at 0.188"

9 Cuts at 0.179"

10 Cuts at 0.164"

12 Cuts at 0.135"

14 Cuts at 0.120"

16 Cuts at 0.105"

20 Cuts at 0.090"

60,000 PSI Material:

6 Cuts at 0.188"

7 Cuts at 0.179"

8 Cuts at 0.164"

9 Cuts at 0.135"

11 Cuts at 0.120"

12 Cuts at 0.105"

15 Cuts at 0.090"

18 Cuts at 0.075"

20 Cuts at 0.067"

Slitting Capacity - High Speed Range:

45,000 PSI Material:

7 Cuts at 0.120"

8 Cuts at 0.105"

11 Cuts at 0.090"

16 Cuts at 0.075"

20 Cuts at 0.067"

Lighter Gauges Down to 0.020"

60,000 PSI Material:

4 Cuts at 0.120"

6 Cuts at 0.105"

8 Cuts at 0.090"

12 Cuts at 0.075"

15 Cuts at 0.067"

19 Cuts at 0.060"

20 Cuts at 0.048"

Lighter Gauges Down to 0.020"

Additional Information:

Slitting capacities are based on material shear strengths of 45,000 and 60,000 PSI.

The number of cuts may increase or decrease depending on material shear strength.

Fewer cuts may permit higher operating speeds in coil buildup mode.

Speeds are based on available recoiler horsepower.

Additional tension or operating conditions may reduce actual running speeds.

Material shape and operator ability may affect maximum operating speed.
