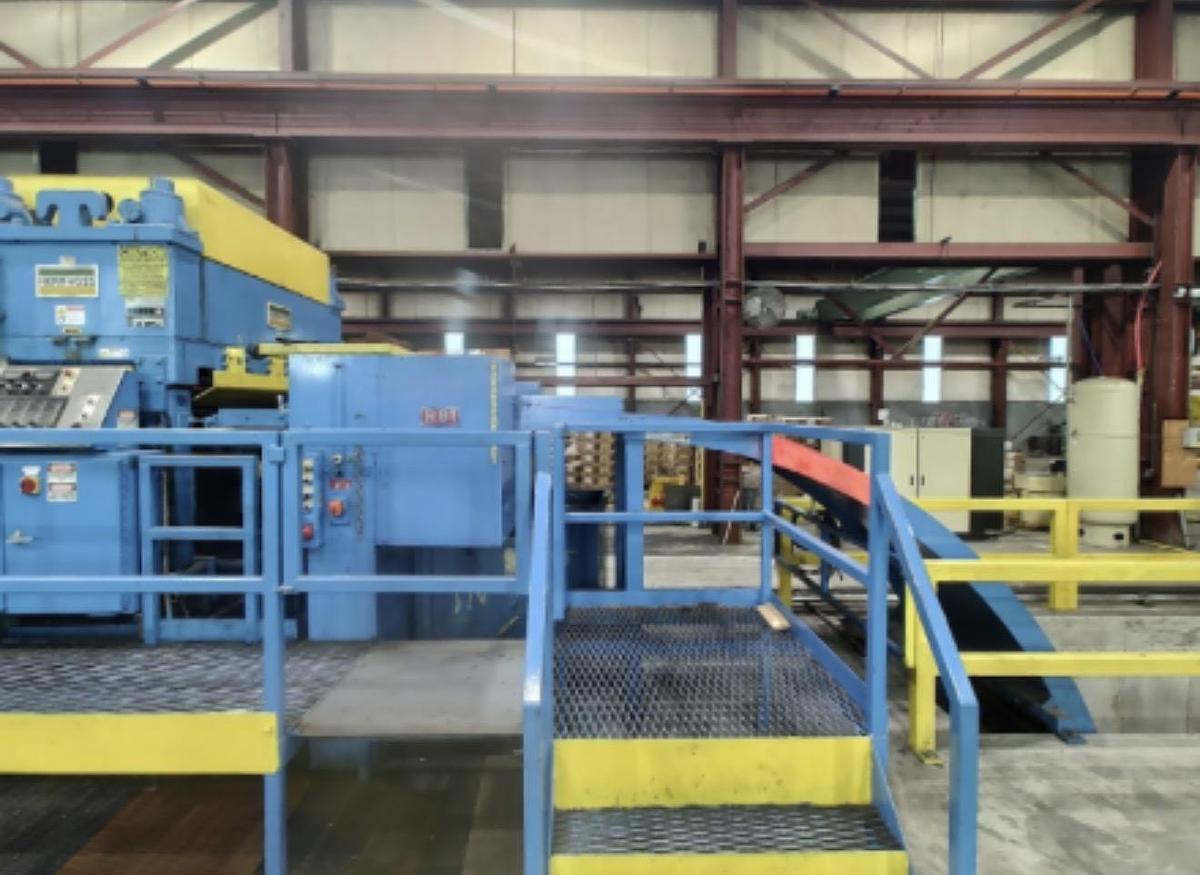

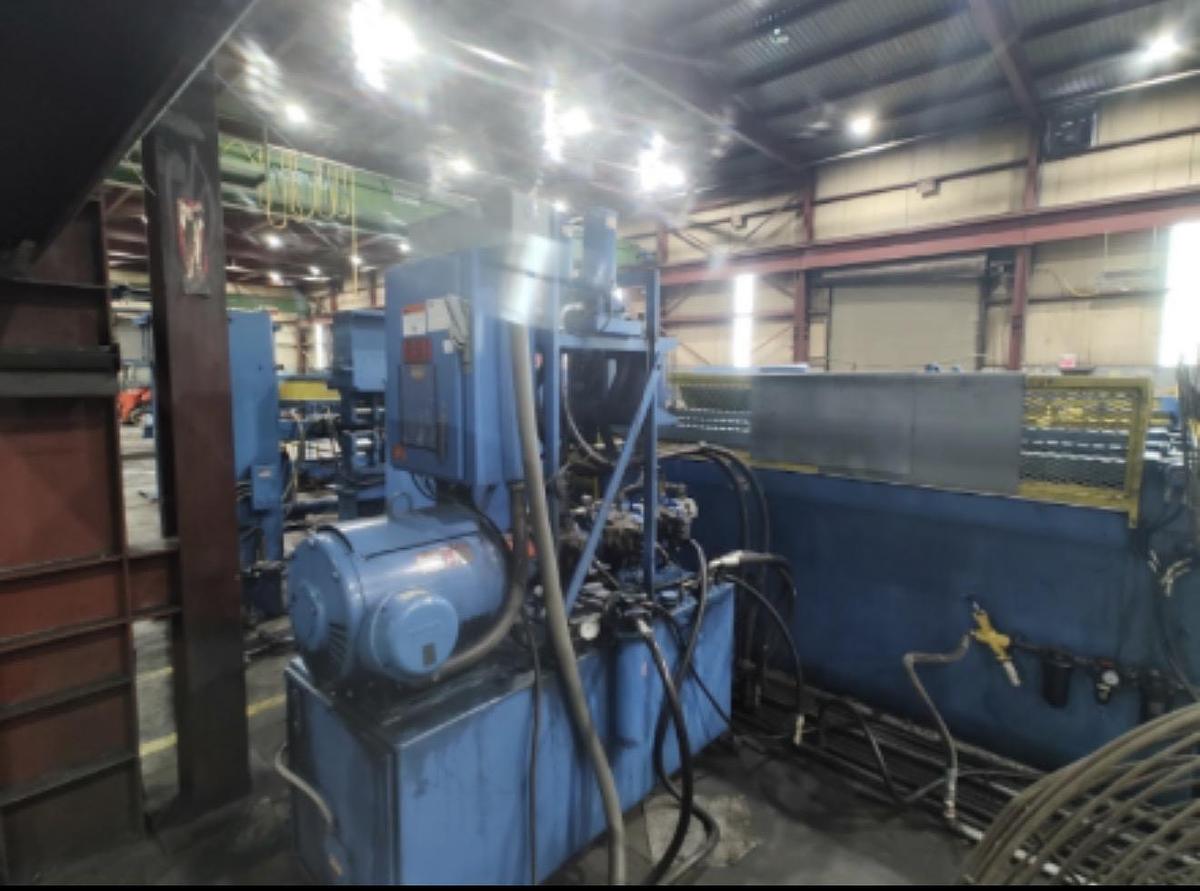

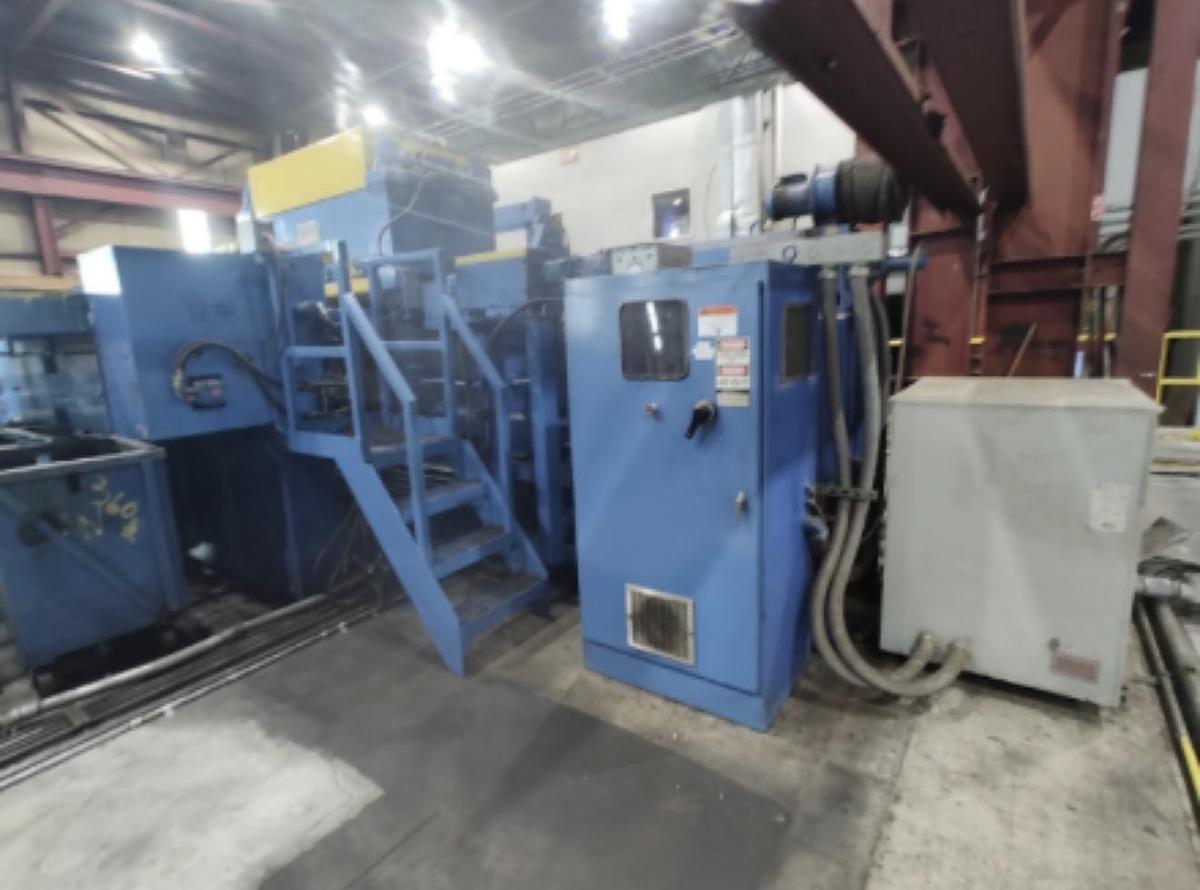

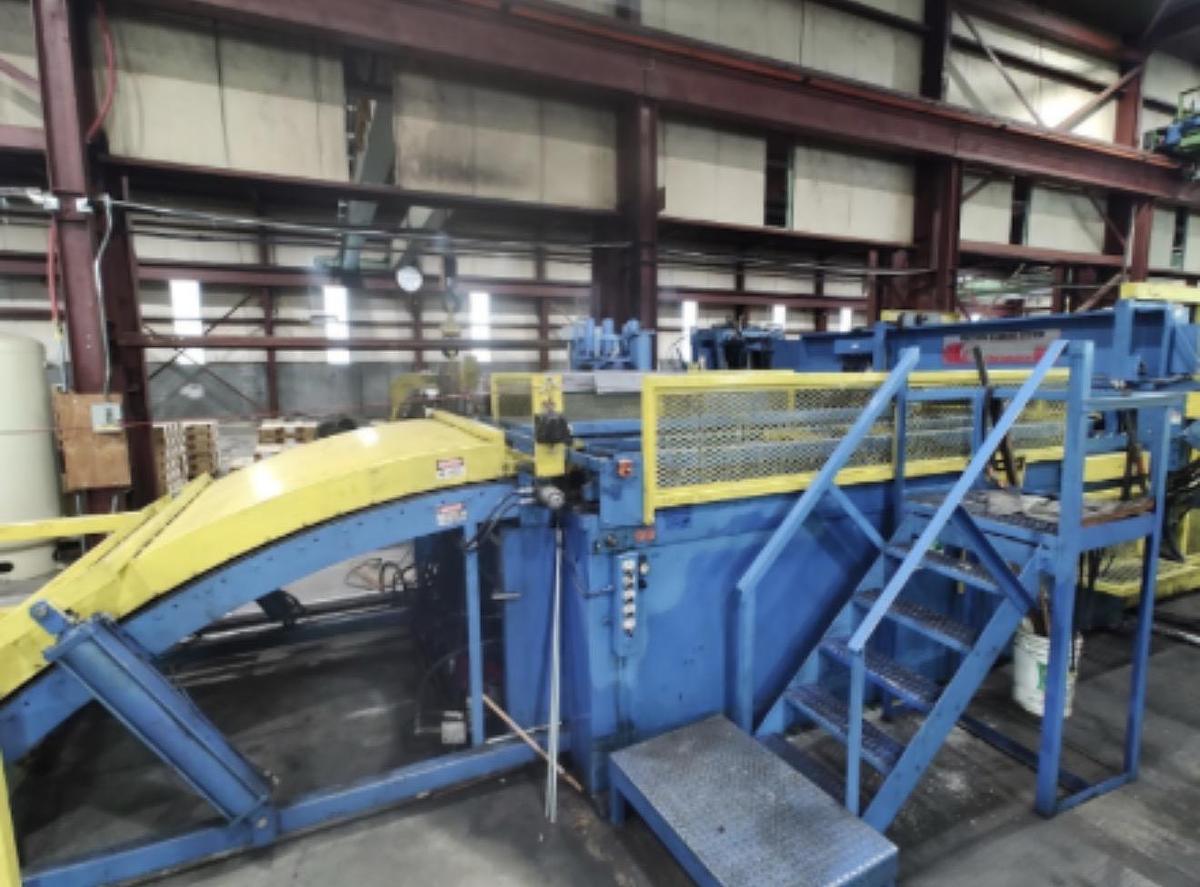

60" x 0.020"–0.187" x 50,000 Lb. Red Bud / Herr-Voss Multi-Cut Blanking

Manufacturer: Red Bud Industries / Herr-Voss

Machine Type: Precision Multi-Cut Blanking Line

Original Equipment Documentation: 1997

Retrofit Quotation Date: 2003

Maximum Material Width: 60"

Material Thickness Range: 0.020"–0.187"

Maximum Multi-Cut Blanking Thickness: 0.135"

Maximum Edge Trimming Thickness: 0.187"

Maximum Coil Weight: 50,000 Lbs. (2003 Retrofit Specification)

Original Line Coil Weight: 40,000 Lbs.

Material: Hot Rolled Steel / Cold Rolled Steel

Retrofit Material Tensile Strength: 50,000 PSI at Maximum Thickness

Original Line Material Shear Strength: 60,000 PSI

Feed Stroke Length: 120"

Maximum Stack Length: 144"

Line Direction: Left to Right (Original Drawing)

Electrical: 460V / 3 Phase / 60 Hz

Required Air Pressure: 80 PSI Minimum

Control Manufacturer: Allen-Bradley

Line Configuration: Looping

Operation: Centerline

Length Tolerance: +/- 0.005" Centerline

Squareness Tolerance: 0.015"

Diagonal Tolerance: 0.030"

Original Line Speed Specifications:

Low Speed Range: 250 FPM at 24" Coil O.D. to 750 FPM at 72" Coil O.D.

High Speed Range: 750 FPM at 24" Coil O.D. to 1,500 FPM at 72" Coil O.D.

Herr-Voss Leveler Maximum Speed: 275 FPM

Speed Note: Actual Operating Speed Depends on Material, Gauge, Coil Diameter, Equipment Configuration, and Operating Conditions

Coil Stage & Load System:

Manufacturer: Red Bud Industries

Maximum Material Width: 75" (Equipment Documentation)

Maximum Coil O.D.: 84" (Equipment Documentation)

Maximum Lift: 36"

Standard Rack Capacity: 6 Coils at 50" O.D.

Standard Rack Capacity: 5 Coils at 60" O.D.

Standard Rack Capacity: 4 Coils at 75" O.D.

Standard Rack Capacity: 3 Coils at 84" O.D.

Rack Design: Expandable

Coil Elevation: Hydraulic

Keeper Arms: For Stabilizing Narrow Coils

Lift Cylinder Overload Protection: Relief Valve

Coil Loading: Coils Under 28" Wide Loaded Directly Onto Coil Car

Foundation Required: Yes

Reel Traverse: Required Option According to Equipment Documentation

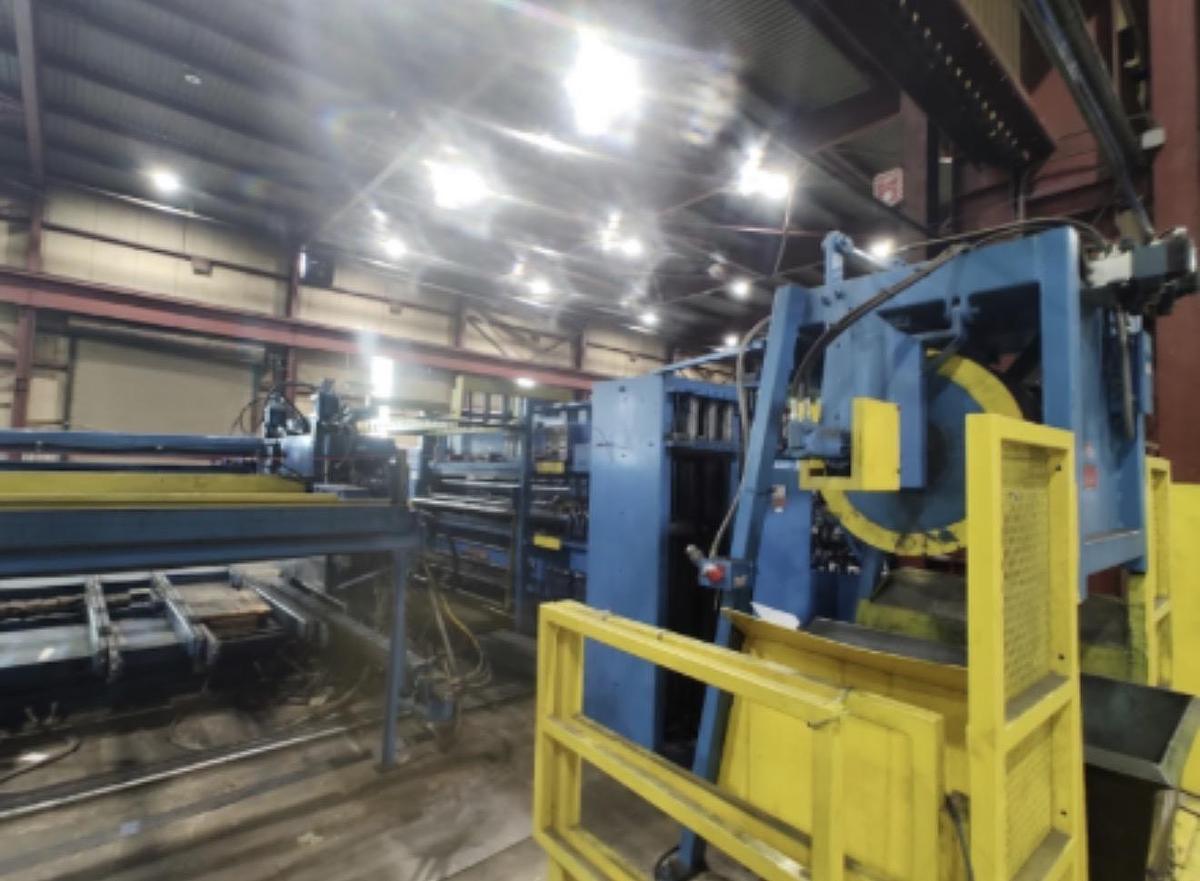

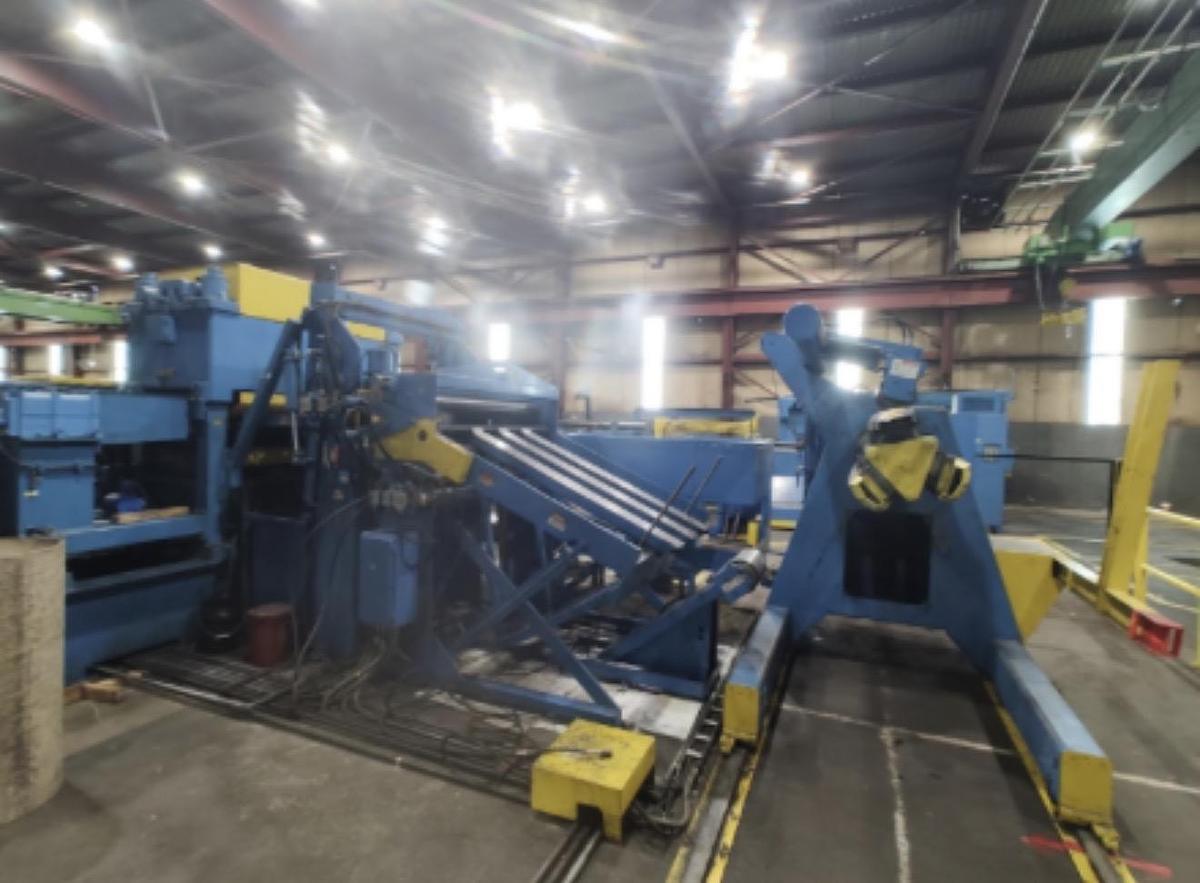

Uncoiler / Reel:

Manufacturer: Red Bud Industries

Maximum Material Width: 75" (Equipment Documentation)

Maximum Coil O.D.: 84" (Equipment Documentation)

Mandrel Centerline Height: 66"

Mandrel Expansion Range: 6"

Mandrel Type: Three-Shoe Precision Machined Wedge Expansion

Mandrel Expansion: Hydraulic

Coil Support: Full Coil Weight

Disc Brake: Adjustable Tension Control

Jog / Threading Drive: Powered

Mandrel Expansion Limiter: Yes

Reel Foundation: No Special Foundations or Anchors Required Per Equipment Documentation

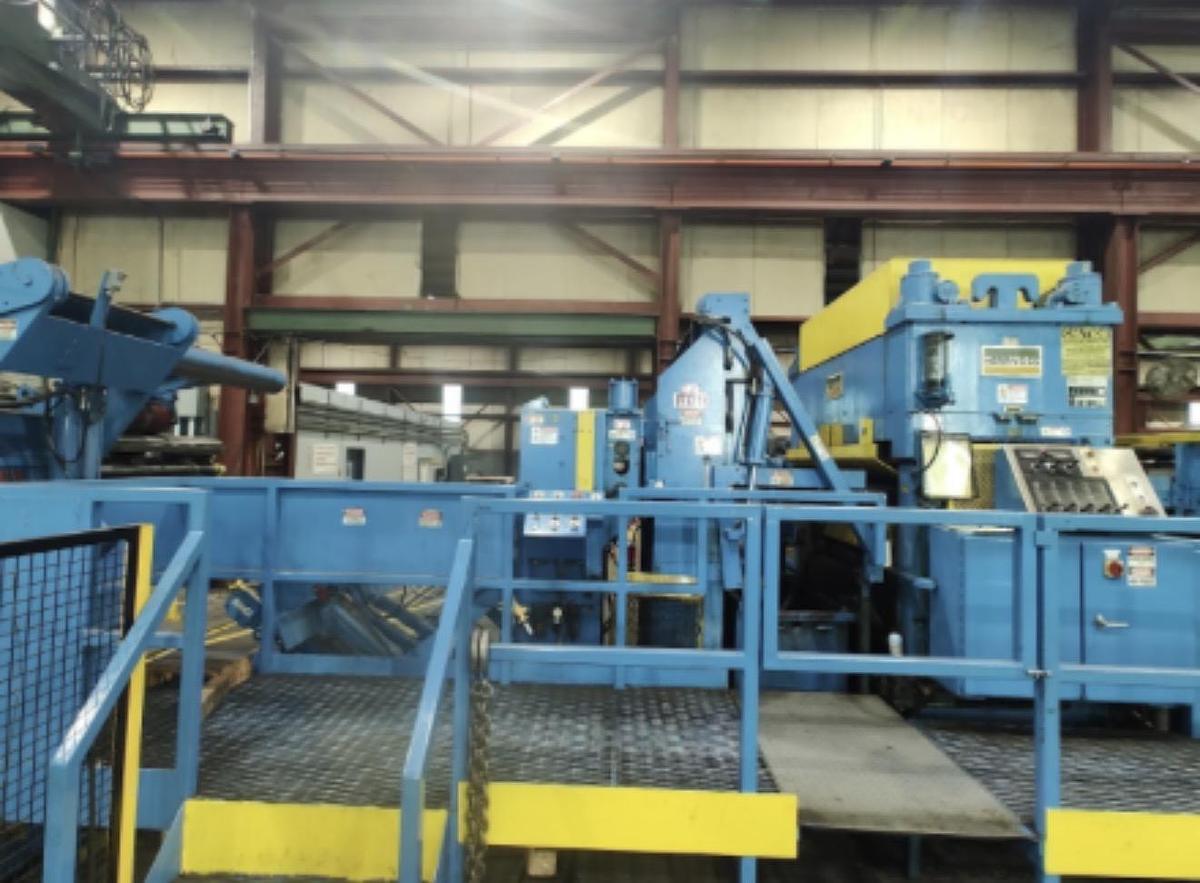

Precision Leveler:

Manufacturer: Herr-Voss Corporation

Model: VKL 72/2.187-19/7-4HI LH

Maximum Material Width: 60"

Material Thickness Capacity: 0.036"–0.187"

Material: Hot Rolled and Cold Rolled Mild Steel

Maximum Material Yield Strength: 35,000 PSI

Maximum Line Speed: 275 FPM

Motor Speed: 1,769 RPM (Design Drawing)

Herr-Voss Order Number: 50462

Drawing Number: GA-50462-01

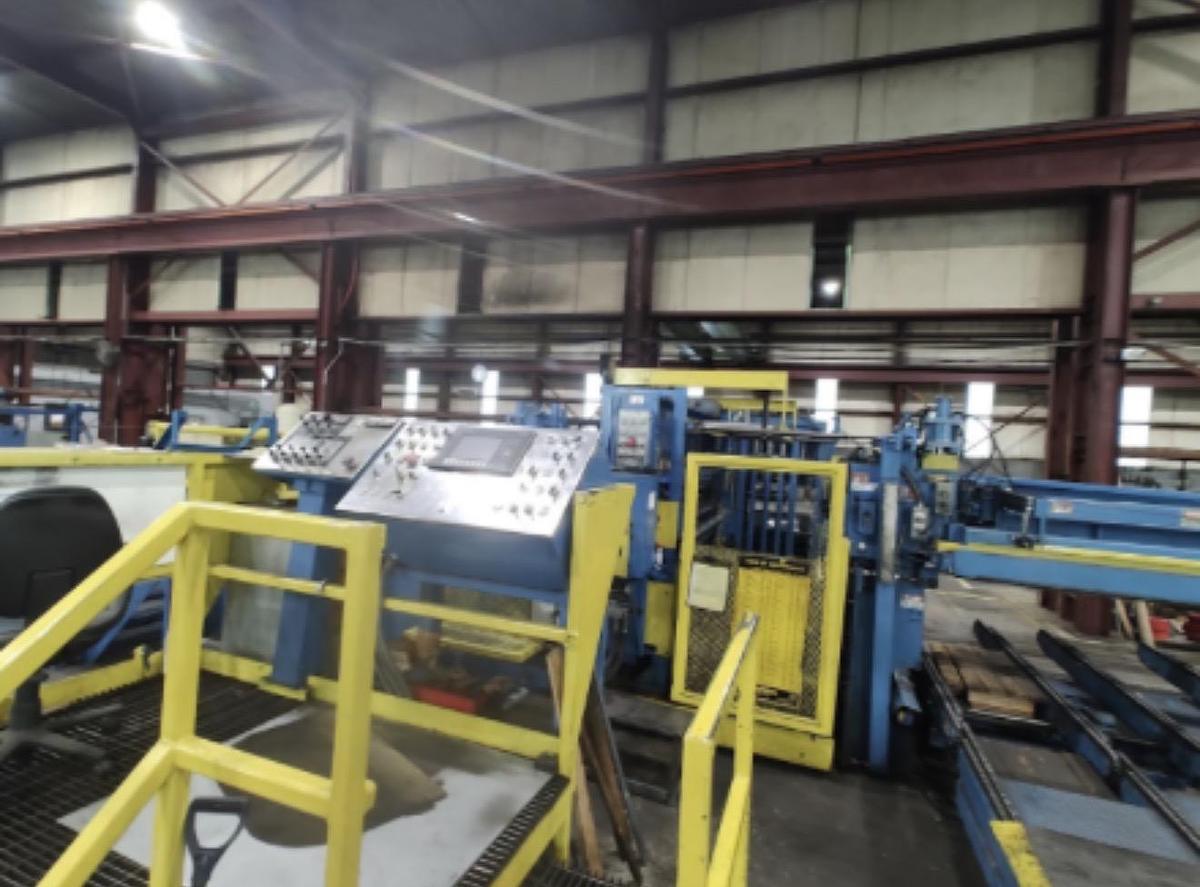

Multi-Cut Blanking Slitter:

Manufacturer: Red Bud Industries

Model: SLEA60 (Nameplate)

Type: Backed-Up Arbor

Maximum Material Width: 60"

Material Thickness Range: 0.020"–0.187"

Maximum Multi-Cut Blanking Thickness: 0.135"

Maximum Edge Trimming Thickness: 0.187"

Minimum Slit Width: 3"

Blade Positioning: Computer Controlled

Width Accuracy: +/- 0.005"

Approximate Setup Time: 2 Minutes Per Knife Set

Single Point Clearance: Yes

Clearance Setting: Dial Indicated

Blade Locking: Automatic

Powered Penetration: Yes

Penetration Setting: Dial Indicated

Stripper Adjustment: Automatic

Alignment Hubs: Yes

Blade Backups: Yes

Blade Storage: Offline Arbor

Knife Size: 3/4" x 10"

Knife Sharpening: Surface Ground

2003 Slitter Retrofit Equipment Specified:

Expand Arbor Knife Lock Slitter Head

Automatic Logic Strip Slitting Interface

Expand Arbor Heavy Gauge Arbor Guards

Automatic Logic Hi-Power System

High-Carbon High-Chrome Knife Set

Stress Reduction / Edge Pinch Roll Set

Programmable Automatic Digital Knife Adjustment

Scrap Winder System:

Manufacturer: Red Bud Industries

Type: Dual Cone

Quantity: 2

Specified Capacity: 2,000 Lbs. Each

Scrap Dump: Automatic

Maximum Scrap Width: 2" Per Side (Original Equipment Specification)

Scrap Guide: Oscillating

2003 Retrofit: Drop-In Cart Ball Scrap Winder Specified

2003 Retrofit: Side Discharge Strip Slit Trim Scrap Slack Take-Up Specified

2003 Retrofit: Long Strip / Thin Material Air Flotation System Specified

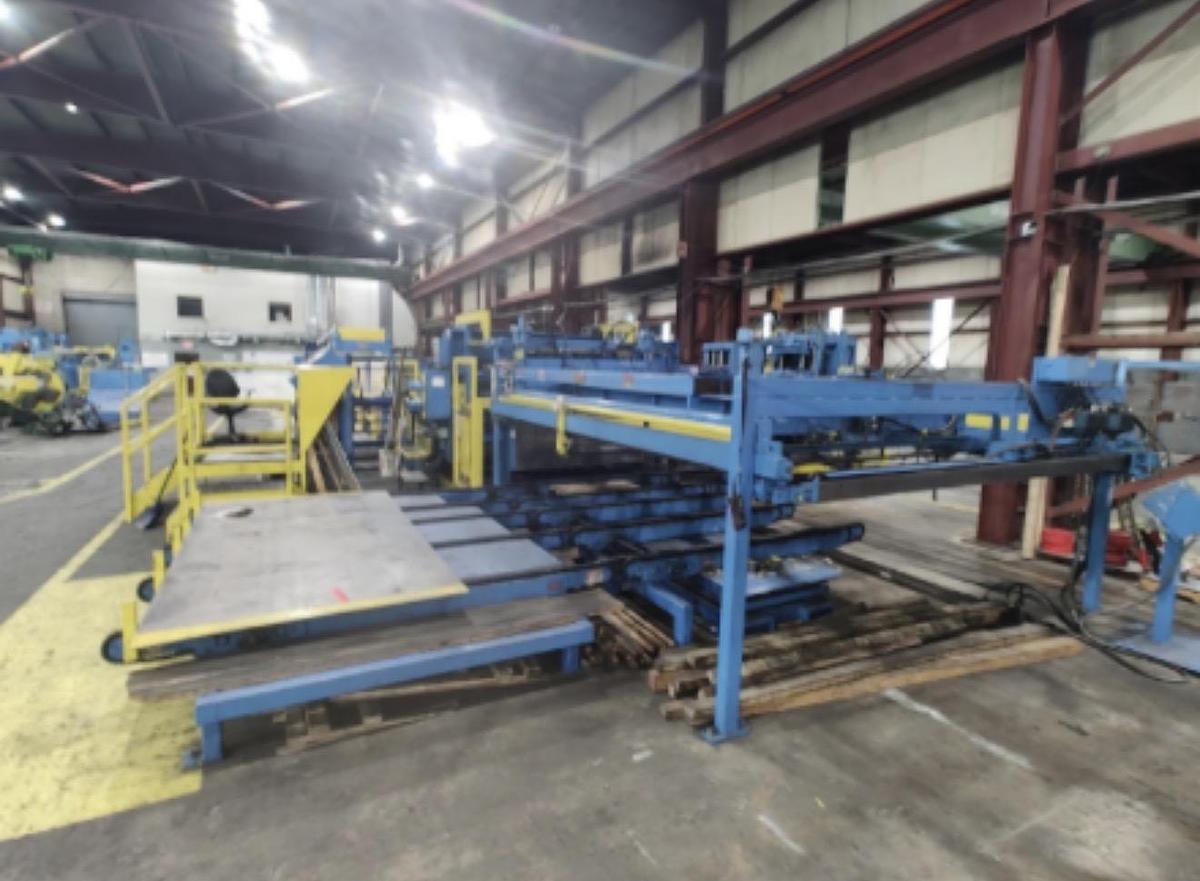

Automatic Strip Stacker:

Manufacturer: Red Bud Industries

Type: Multiple Part Automatic Strip Stacker

Maximum Stack Length: 144"

Minimum Strip Width: 3"

Minimum Strip Length: 10"

Stack Clearance: 24"

Stacker Location: Shear Mounted

Containment Divider: Yes

Back Guide: Included

Automatic Divider Positioning: Computer Controlled

Divider Location Lock: Automatic

Divider Storage: Offline

Tampers: Yes

Tamper Positioning: Automatic

Air Assist Stacking: Yes

2003 Retrofit: Programmable Automatic Strip Divider Position Specified

2003 Retrofit: 3" Minimum Width Part Strip Divider Specified

Pallet Rollout System:

Manufacturer: Red Bud Industries

Type: End Roll

Minimum Skid Length: 13"

Powered Discharge: Yes

Individual Controls: Yes

2003 Retrofit: End Roll Discharge Rollout Table Specified

2003 Retrofit: End Discharge Roll-Type Pallet Loader Specified
