53´´ (1346mm) 4 STAND CONTINENTAL 4-HI TANDEM MILL (USED)

53´´ (1346mm) 4 STAND CONTINENTAL 4-HI TANDEM MILL (USED)

orCall (734) 854-8700

Description

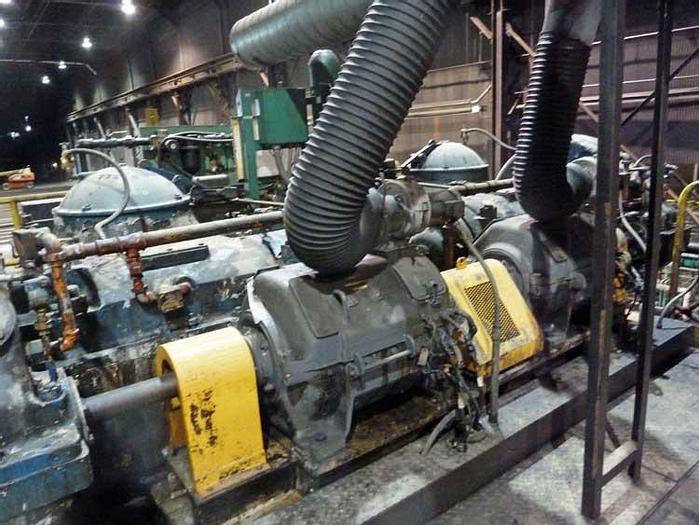

Entry Thickness: .050" (1.3mm) Minimum - .180" (4.6mm) Maximum Exit Thickness: .020" (0.5mm) Minimum - .080" (2mm) Maximum Coil OD: 50" (1270) Minimum - 72" (1829mm) Maximum PIW: 428 Minimum - 1025 Maximum 5% - 75% Reduction Depending on Grade and Width Mill Includes: Entry Coil Conveyor Coil Box Entry 4 Stand Tandem Cold Mill 60" (1524mm) W x 20" (508mm) Diameter Works Rolls (14) 60" (1524mm) W x 48" (1219mm) Diameter Back Ups (22) Back Up Chocks (20) Mechanical Screw Downs, (2) G.E. 75 HP (56kw) DC Motors Recoiler with outboard support Belt Wrapper Pit Coil Car Exit Coil Conveyor Features: VAI AGC & Controls Electromechanical AGC Automatic Gauge Control Filter X Filtering System M-G Sets Motor Details: Stand 1 (1) G.E. 3500 HP (2237kw), 90/225 RPM, 750 Volt DC Motor Stand 2 (2) G.E. 2500 HP (1864kw), 150/370 RPM, 750 Volt DC Motor Stand 3 (2) G.E. 2500 HP (1864kw), 225/470 RPM, 750 Volt DC Motor Stand 4 (2) G.E. 2500 HP (1864kw), 300/800 RPM, 750 Volt DC Motor Recoiler (2) G.E. 600 HP (447kw), 150/225 RPM 375 Volt DC Motor

Specifications

ConditionUsed
Stock NumberVX-17550
MaterialHot Rolled & Pickled Mild Steel & Silicon Strip
Coil width30" ( 762mm) Minimum, 53" (1346mm) Maximum
Weight capacity50,000 Lb. (25 Ton) Maximum
Coil id24" (610mm) only
Finishing speed3000 FPM (914mPM)
Back up rolls60" (1524mm) Wide x 48" (1219mm) Diameter
Work rolls60" (1524mm) Wide x 20" (508mm) Diameter
Production capabilities75-80,000 tons per month. 80 tons per hour.
Post area27" (686mm) x 32" (813mm)
