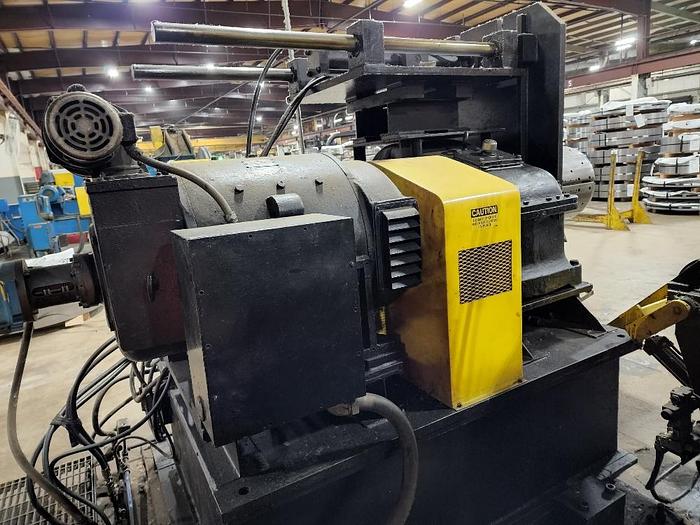

8" Torrington 2HI Mill w/ Edging (Used)

orCall (734) 854-8700

Specifications

ConditionUsed
Stock NumberVX-17586

Description

General Specifications:

8” Wide

6000 Lbs. MAX Coil

20” ID - 72” Max OD on Recoiler

20” Min. ID on payoff

Gauge Range .020”/.310”

Width Edging 1 – 4”

Width Rolling 1 – 4”

Edging #5 Deburred to #4 Full Round

Line Direction: Left to Right



Line Includes:

 Uncoiler

   20" Wide Drum Face

   Collapses to 16"

   Expands out to 21"

   Free Standing Hold Down Feed Up Gear Motor

with Chain & Sprocket Drive  to Main

Shaft

   Linkbelt, 3-hp, 1750-rpm, 208-220/440-volts, 9/4-amps,

   Hydraulic Expansion

   Air Brake

Edging Stands

   2 Edging Passes with Edging Dies

   Motorized Open & Close on Main Edging Dies

   Westinghouse, 20/25-hp, 740/1800-rpm, arm volts-230, arm amps-74/92,

Mill Stand - 2-HI

   8" Wide Rolls x 8" Diameter Rolls

Hydraulic Screwdowns

   40 HP AC Westinghouse Motor, 500/1500-rpm, arm

volts-230, arm amps-145 on Mill

Measuring Counting Unit

Gauge Caliper

Exit Shear, Hydraulic Downcut

Recoiler

  24" Wide

  20" Diameter Drum

  30 HP DC Motor, 400/1600-rpm, arm volts-250, arm

amps-105,

  Recoiler blower - Baldor, .33-hp, 3450-rpm, 115/206-230-volts, 6/3.2-3-amps,



Also Includes:

Hyd. unit - Lincoln, 30-hp, 1760-rpm, 230/460-volts, 74/37-amps,

Heat exchanger fan - Baldor, 1/8-hp, 1140-rpm, 115/208-230-volts, 4.6/2.4-2.3-amps,

Heat exchanger pump - Baldor, 2-hp, 1725-rpm, 206-230/460-volts, 6.5-6.2/3.1-amps,
