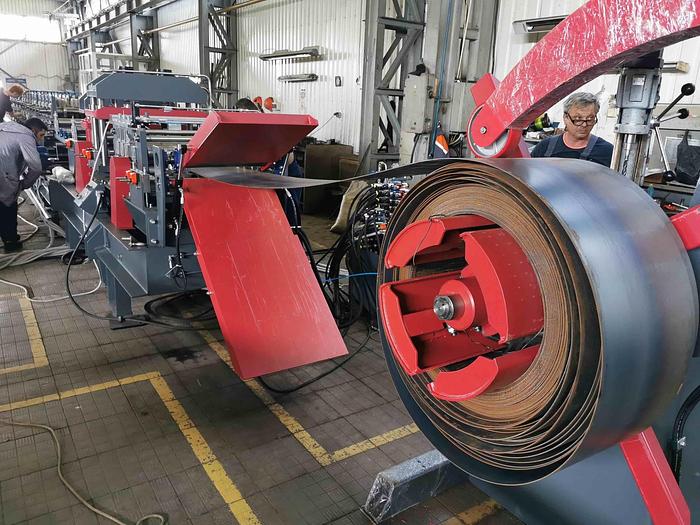

16 - Stand C & U & Z Purlin Roll Forming Line

orCall (734) 854-8700

Specifications

ManufacturerFinprofile
Year2023
ConditionNew
Stock NumberVX-35186

Description

Make: Finprofile (Ukraine)

Profile: C, U, Z Purlin

Number of Stands: 16

Maximum Material Width: 490mm

Material Thickness: 1mm - 3mm

Coil Weight: 4,000kg

Coil ID: 480mm - 620mm

Coil OD: 1500mm

Speed: 20 meters per minute


Entry Coil Car

Floor Standing Design

Powered Lift and Traverse


Mandrel Uncoiler

Powered Hold Down Roll


Coil Straightener

Adjustable Work Rolls


Pre Punching Press

4-Post Design

Hydraulic Drive


Pre Cut Off Press

4-Post Design

Hydraulic Drive


16-Stand Roll Former

Chain Driven Stands

Entry Edge Guides

Adjustable Width and Height

Motor: 45Kw AC

Powered Exit & Run Out Table

Maximum Profile Length: 12m


Electrics, Hydraulics, Controls, Tooling & Dies
