36” x 14-Stand ASC Panel Roll Forming Line with Pre-Cutoff & Measuring System, 6’ to 42’ Long

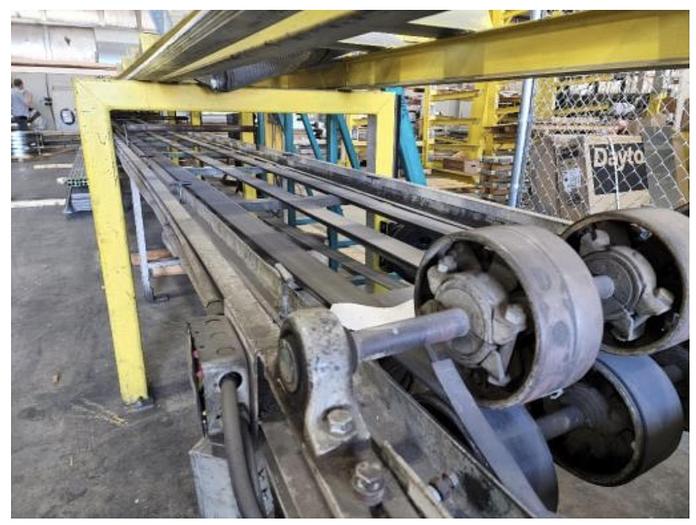

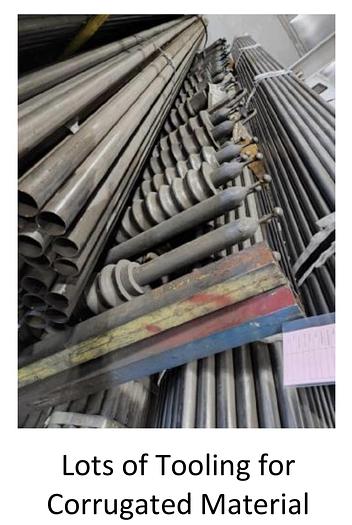

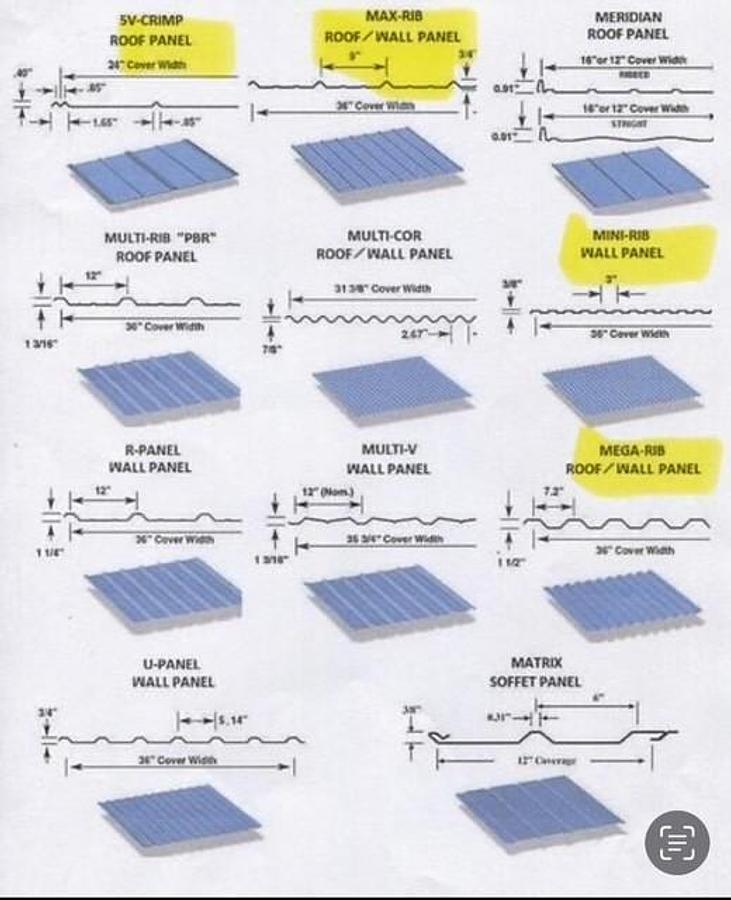

This used 36” x 14-Stand ASC Panel Roll Forming Line is optimized for handling various materials including galvanized, galvalume, and pre-painted metals. It processes material thickness ranging from .012" to .040", making it suitable for a variety of applications in roofing, siding, and corrugated products. The roll forming line features a 37" distance between housings and utilizes a robust shaft with a 2-3/4" diameter and a 3-1/2" outside diameter, ensuring precision and durability. Included components enhance the efficiency and versatility of this setup. It comes with a 36" single-end expanding mandrel uncoiler accommodating 20” to 24” ID coils and a feeder/shear unit with adjustable measuring for flexible length control. Additionally, a 45' entrance conveyor streamlines material handling, while the 36” roll former is equipped with tooling suitable for four different shapes or profiles, meeting diverse production needs. Overall, this roll forming line is a comprehensive solution for manufacturers seeking reliability and flexibility in producing high-quality metal panels over a range of sizes, from 6’ to 42’ long. Its robust construction and detailed engineering provide a reliable choice for demanding industrial environments.
