20 Stand x 2" x 13" Tishken Rollformer

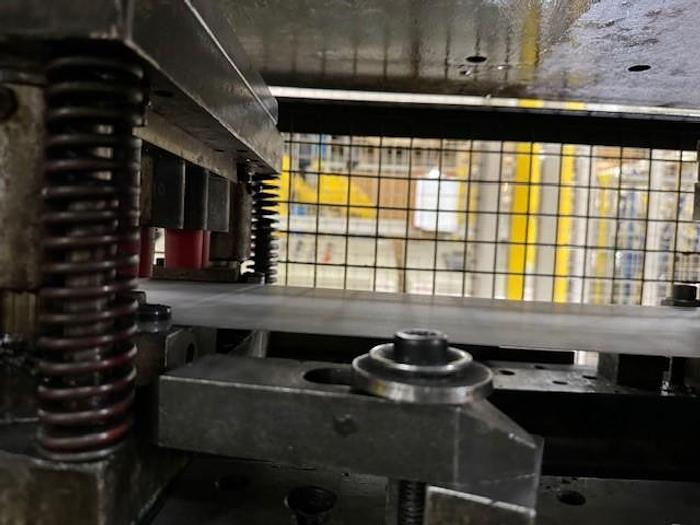

The used Tishken Rollformer is equipped with 20 stands, each with a spindle diameter of 2 inches, and a roll width of 12 inches, accommodating materials up to 12 inches wide and 24 gauge in thickness. This machinery is specifically suited for producing access door back panels. The line includes a mandrel uncoiler with a width of 36 inches and a coil weight capacity of 10,000 pounds. Additionally, it features a Servomatic IV press feed unit. The Rousselle straight side press, model 4S56, boasts a capacity of 40 tons, a 3-inch stroke, a shut height of 15.5 inches, with 3 inches of adjustment, operating at a speed of 45 strokes per minute. The setup also incorporates a notch and cut-off press, along with a parts chute. Controls for the roll forming line are managed by an AMS MP300 series unit, ensuring efficient operation and precision. This robust equipment offers a comprehensive solution for diverse roll forming needs, maintaining high performance and reliability in processing tasks.
