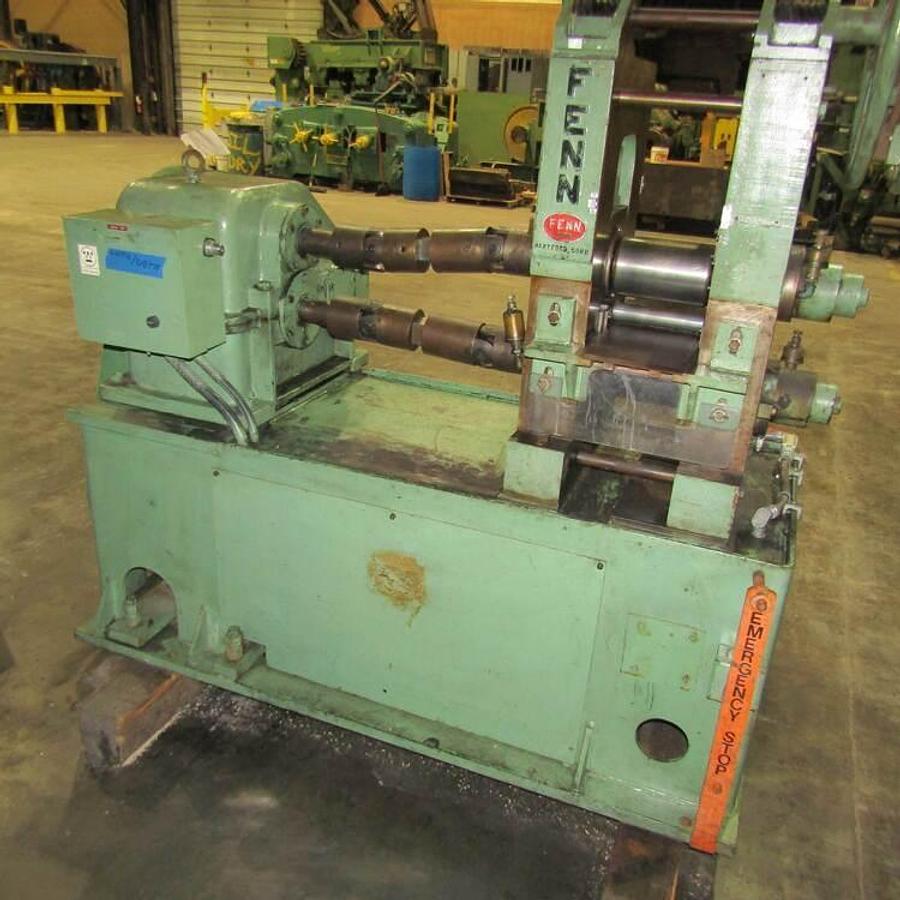

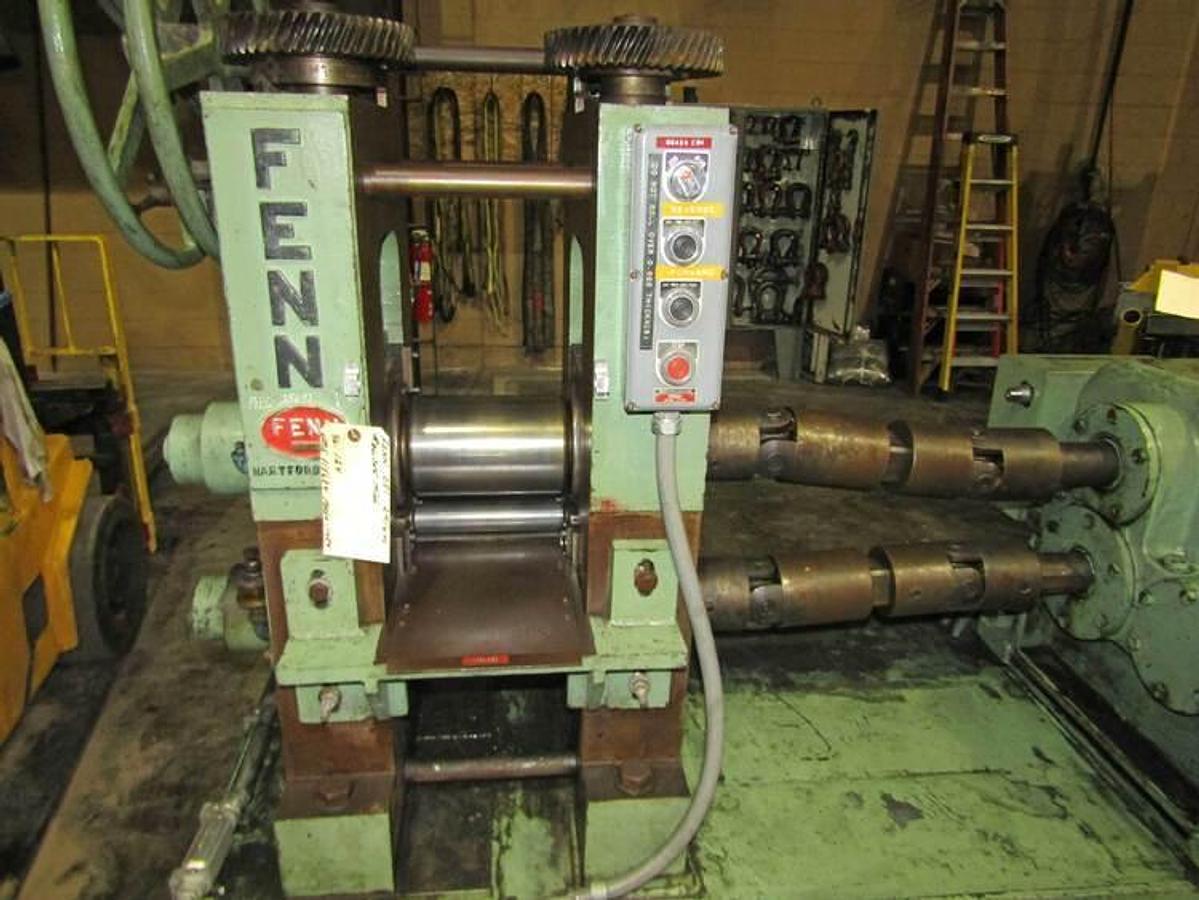

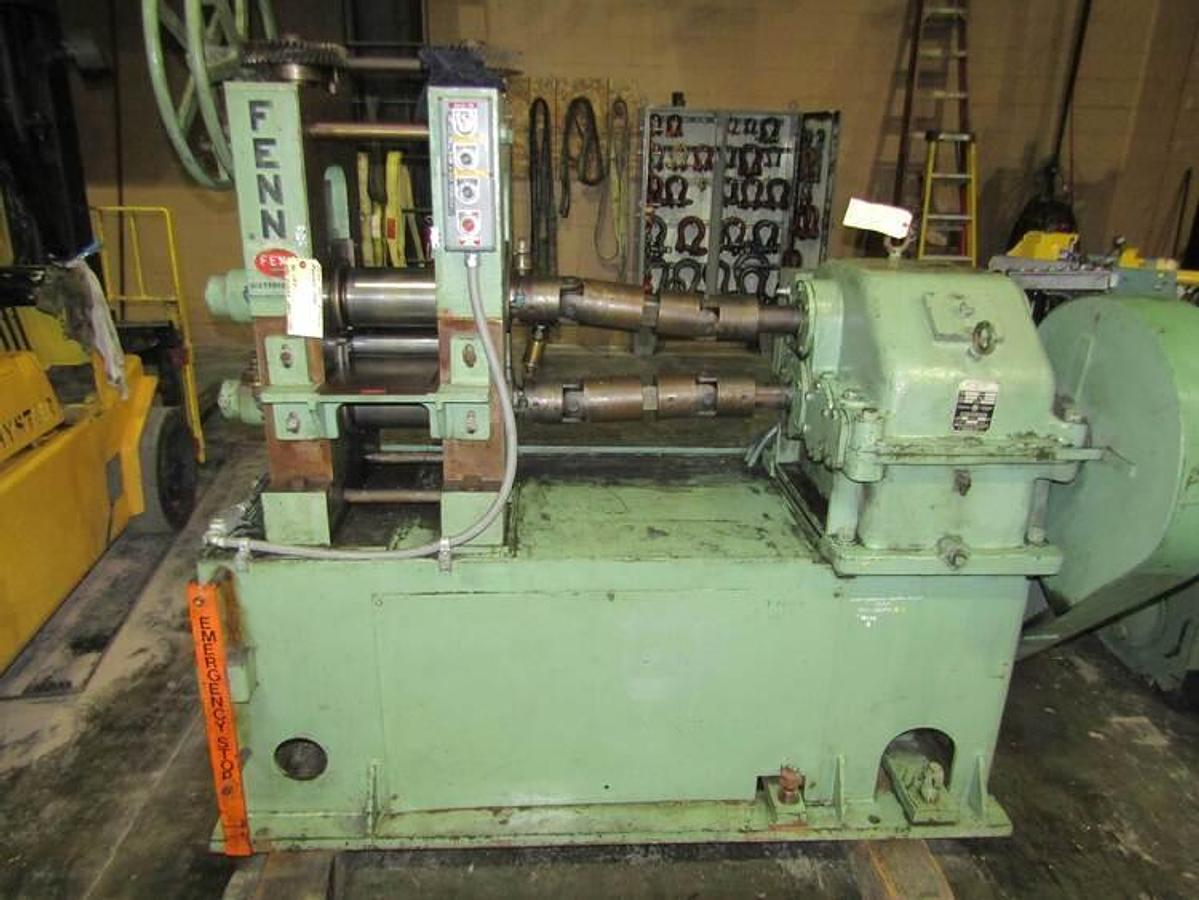

2" x 5" x 8" FENN 2/4 HIGH REVERSING ROLLING MILL

Specifications

Manufacturer: FENN Manufacturing USA

Type: 2/4 Hi Combination Rolling Mill

Model: 051

Work Roll Size: 2"(50mm) Dia. X 8"(203mm) Wide

Backup Roll Size: 5"(127mm) X 8" (203mm) Wide

Screwdowns: Dual Handwheel

Spindles & Couplings: Universal

Drive Motor: 15 HP, 1185 RPM, 208/220/440 VOLTS,

3 PH, 60 HZ, 38.2/19.2 AMPS

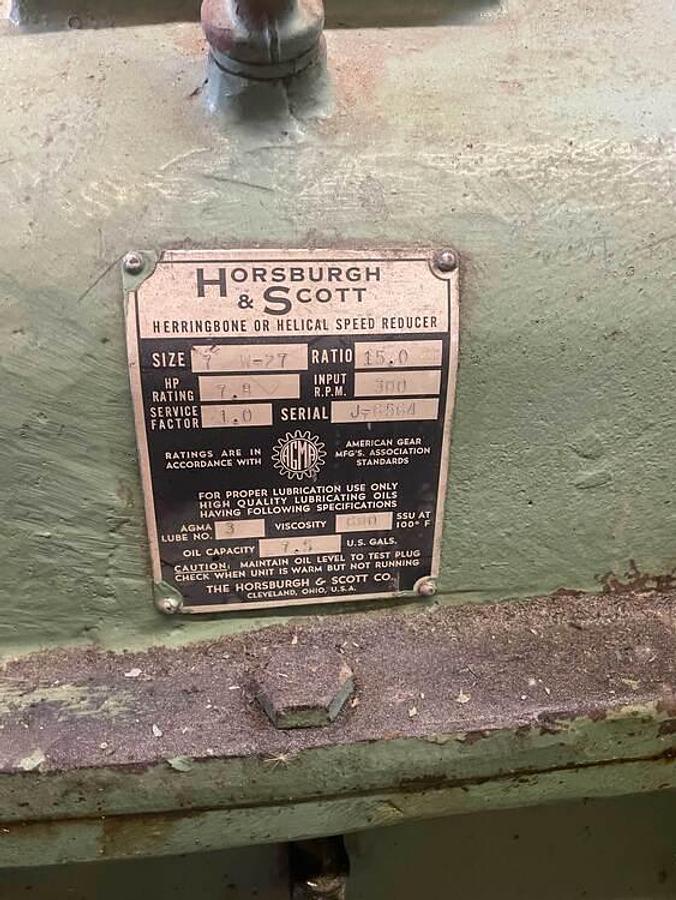

Pinion Stand & Gearbox: Combination Horsburgh & Scott

Size 7" W-27, Ratio 15.0,

HP Rating 7.8, Input RPM 300

Floor Space: 6' 5" Long X 3'4" Wide X 6'1" High
