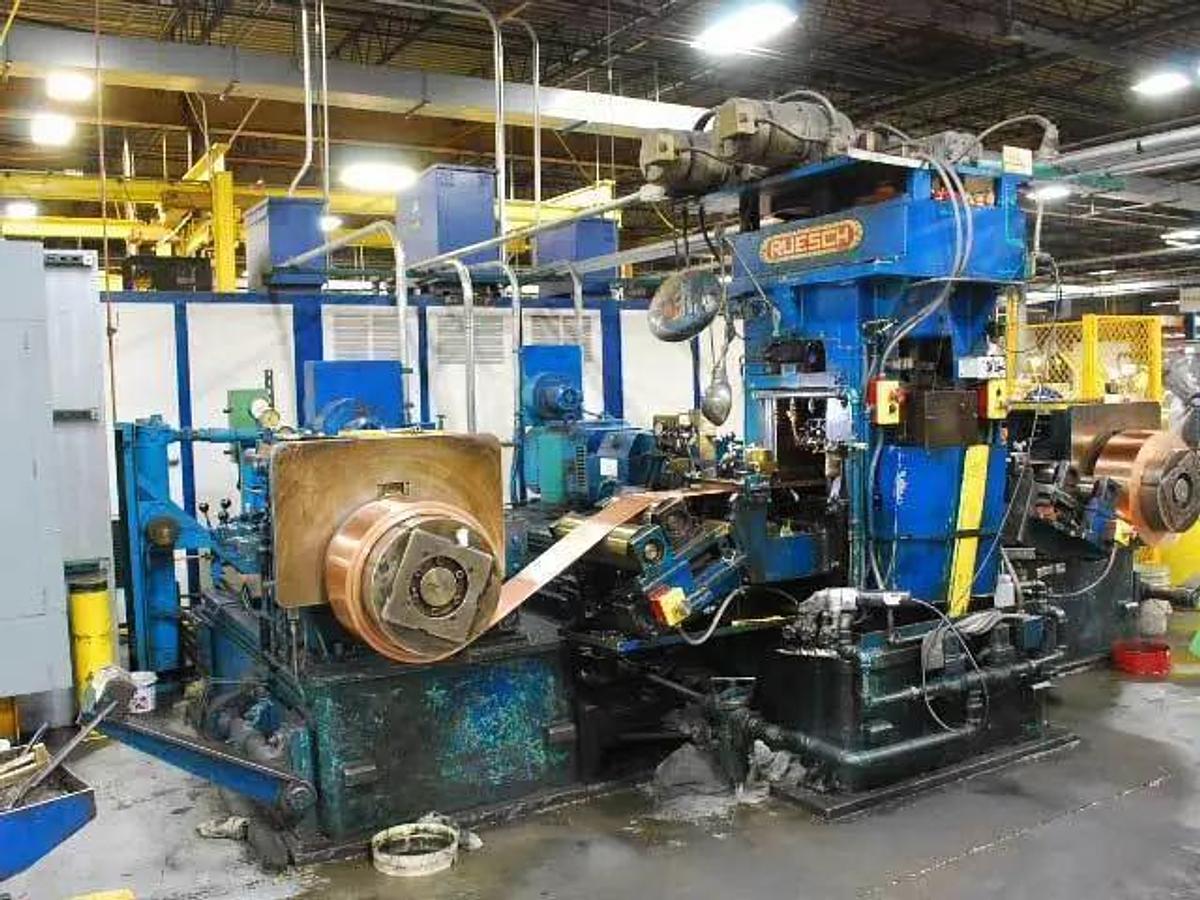

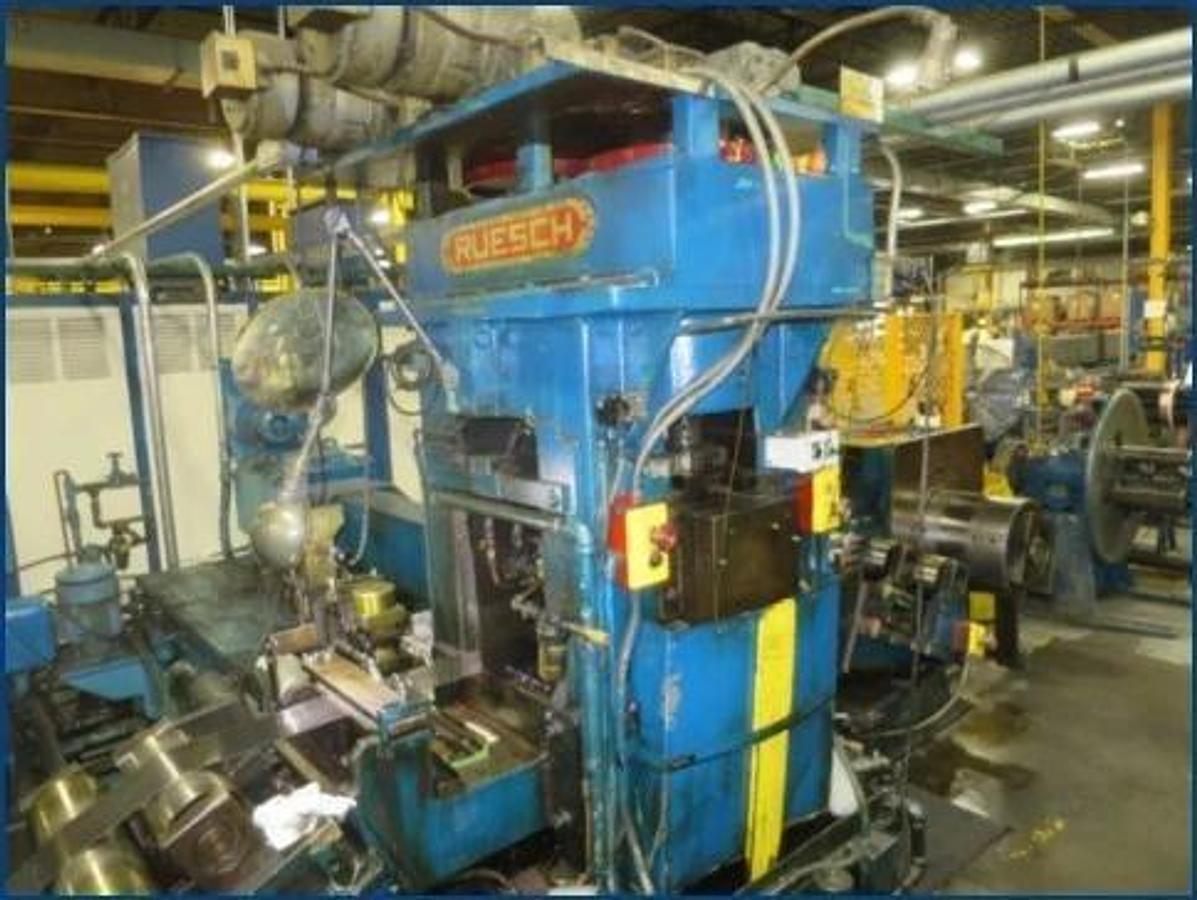

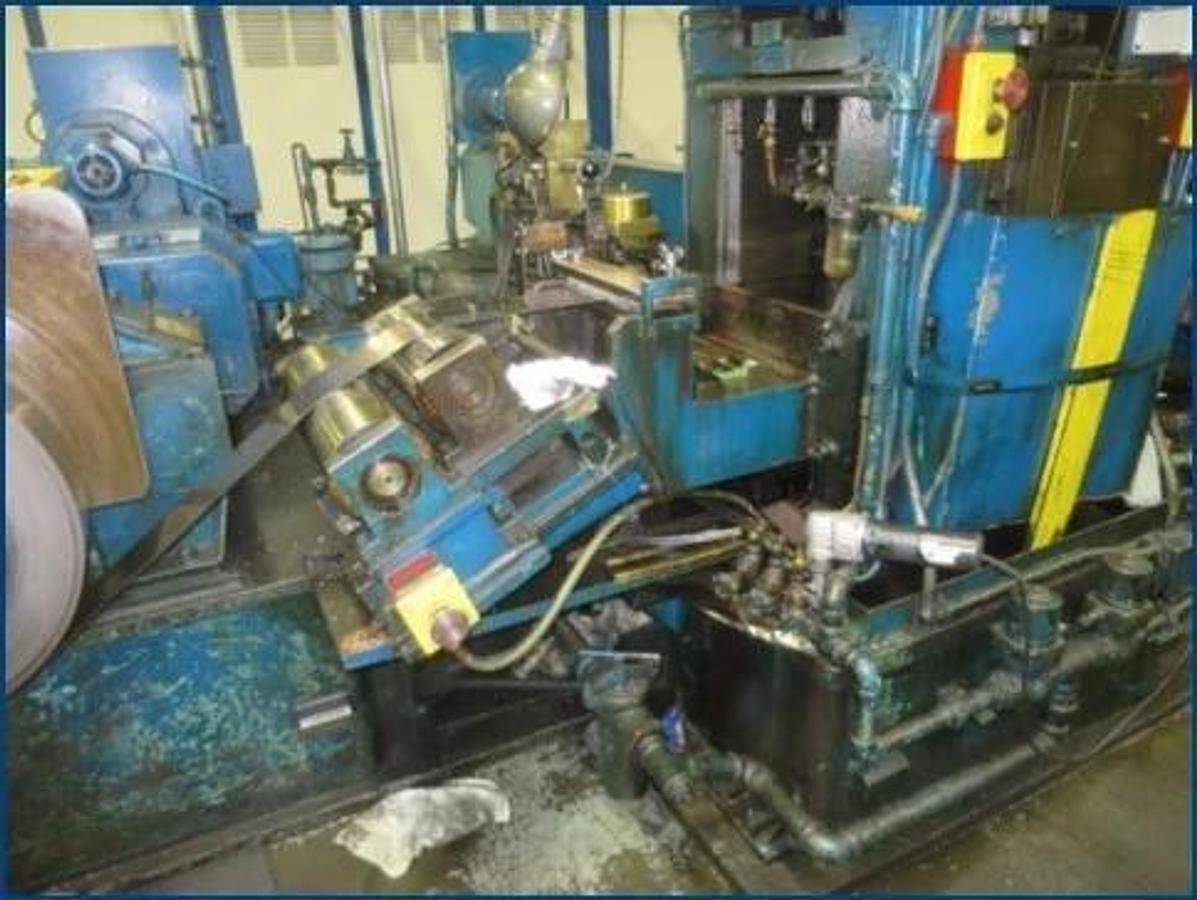

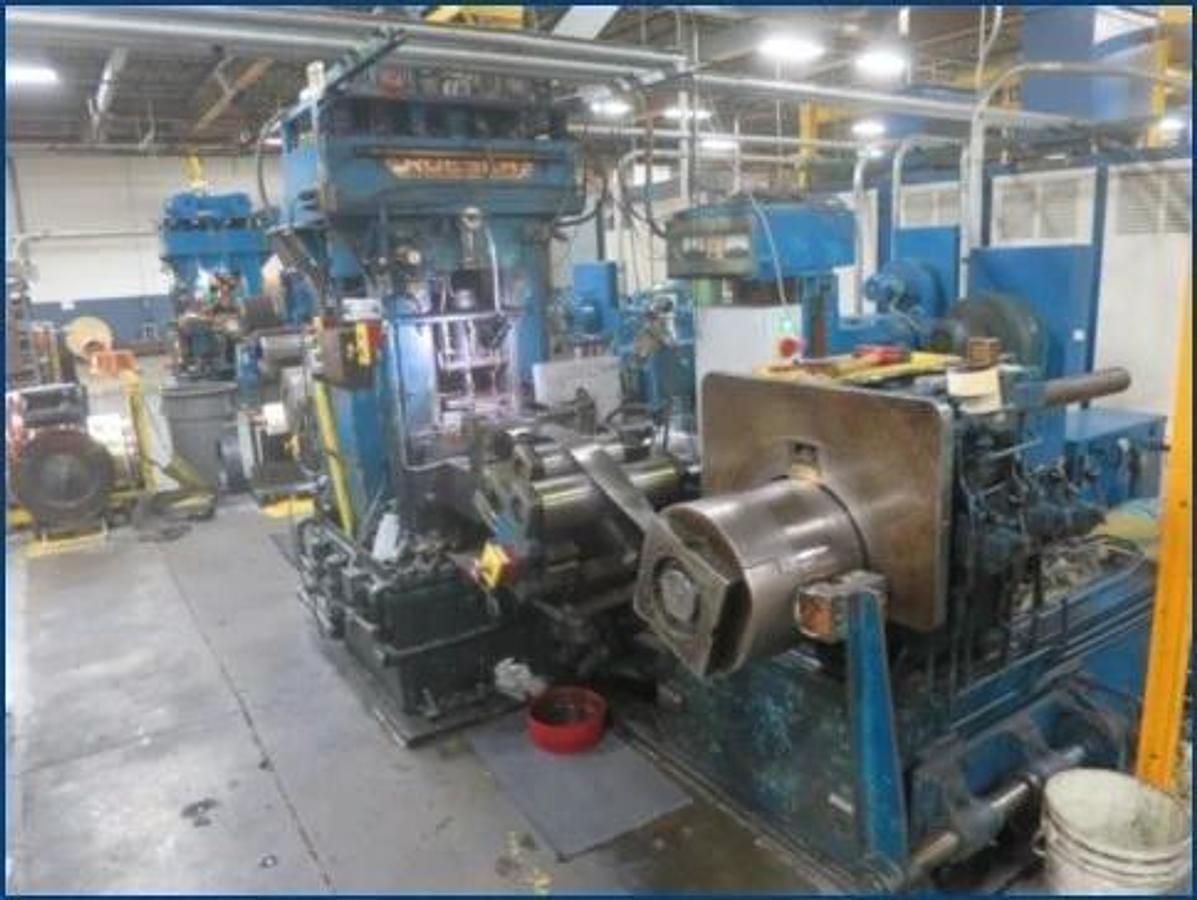

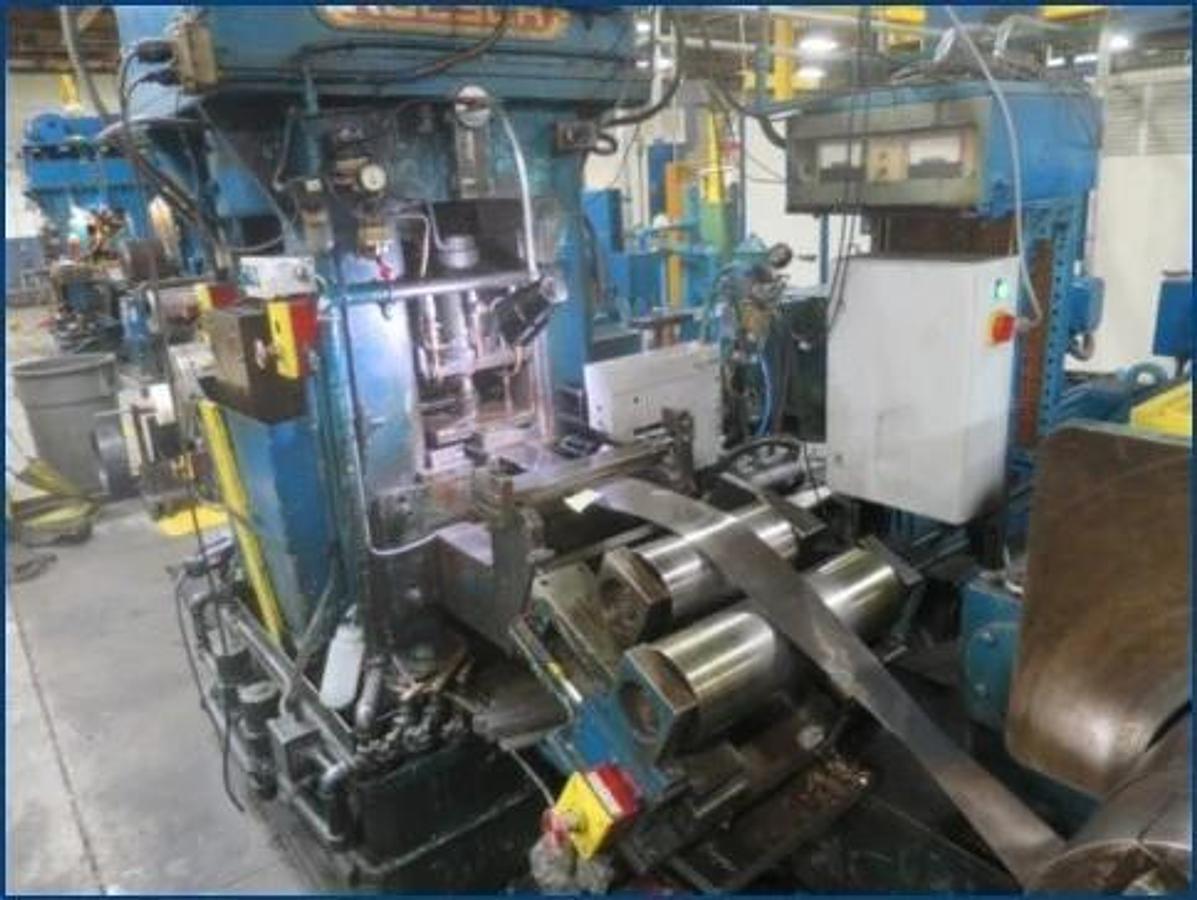

2.5" (63.5mm) x 8" (203mm) x 10" (254mm) RUESCH 4-HI ROLLING MILL

Specifications:

2.5" (63.5mm) x 8" (203mm) x 10" (254mm) RUESCH 4-HI ROLLING MILL

Type - 4HI Reversing Cold Mill

Screwdowns - Electro Mechanical Adjustment

Width Range - 2"-8" (50mm - 203mm)

Max Weight Reels - 3,000 lbs.

Gauge Range - .125" - .005" (3mm - .127mm)

Line Speed - 200-400FPM (60-121 MPM)

Coil ID/OD - 16" ID - 40" OD

Main Mill Motor - 75HP AC, 500 Volt, 500/1700 RPM

Reel Motor -

Mill Coolant - Mineral Oil

Electrics - Reliance Electric Co.

Main Mill Components:

Main Mill Housing

Work Roll Diameter - 2.5"

Back-up Roll Diameter -

Contact Gauges

(4) Deflector Rolls - 2 per side

(2) Reversing Reels with Pushoff

(2) Vollmer Gauges

-Vollmer Contact Gauge

-Vollmer VMF 1000 Gauge

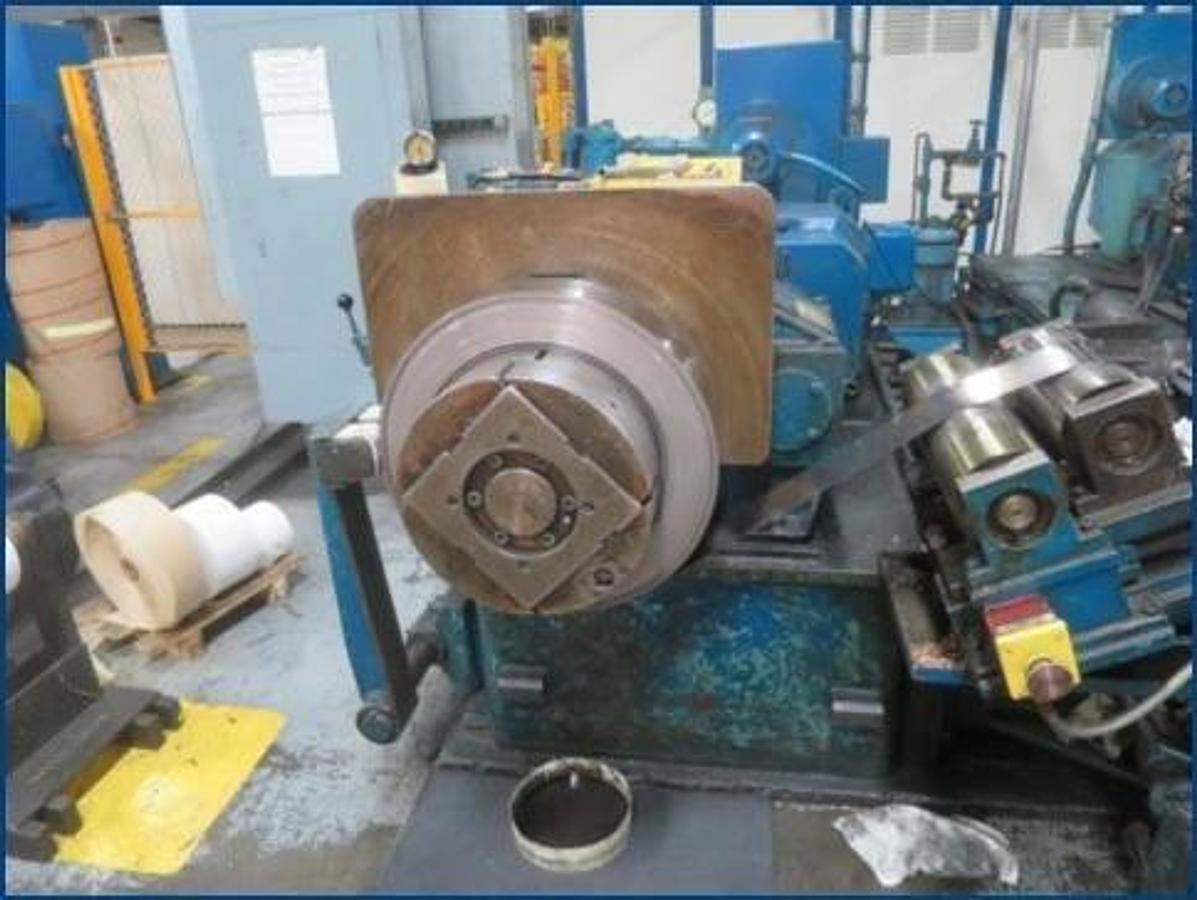

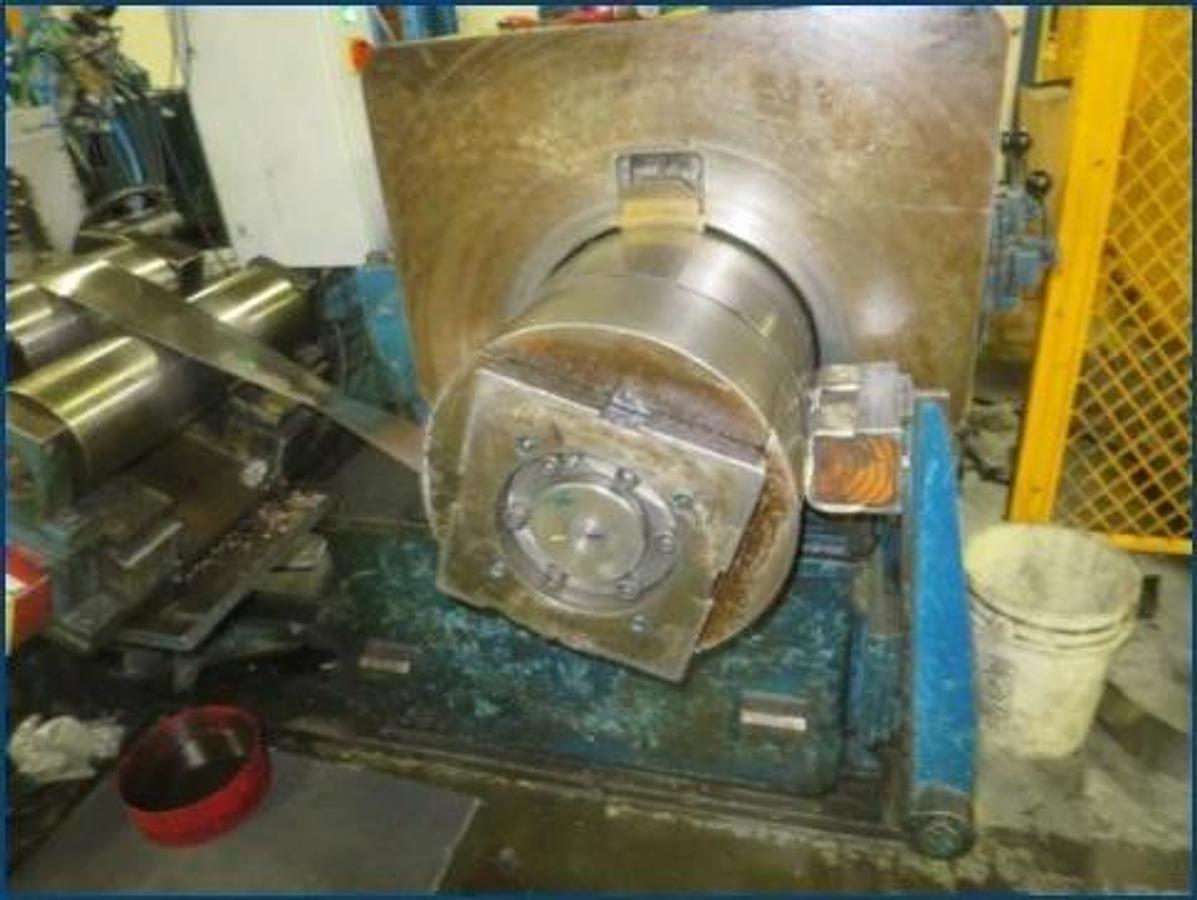

Mandrel Uncoiler

Assortment of Rolls

Hydraulic Unit

Floor Space: 32 ft. X 33 ft. (9.7m X 10m)
