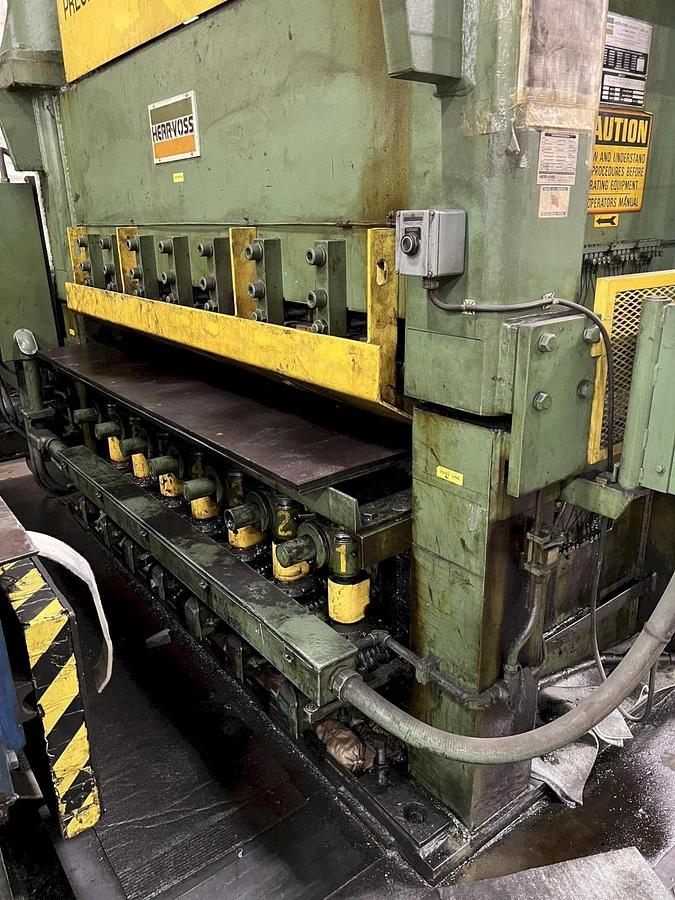

72" x .187" Herr Voss 5HI Precision Leveler

Specifications:

Manufacturer: Herr-Voss

Minimum Width: 18"

Maximum Width: 72"

Maximum Thickness: .187"

Line Direction: Right to Left

Material Capacity:

Stainless & Carbon Steel Thickness Range: .043" - .187" at 60,000 PSI Yield Strength

Aluminum Thickness Range: .040" - .210" at 35,000 PSI Yield Strength

Leveler:

Number Of Work Rolls: 17

Work Roll Configuration: 8 Over 9

Work Roll Diameter: 2.687"

Work Roll Face: 84"

Back-Up Flights: 7 Top / 7 Bottom

Motorized Back-Up Flights: 7 Bottom

Back-Up Adjustment: Individual Motorized

Back-Up Roll Positioning: Digital

Open & Close Adjustment: Motorized

Tilt Adjustment: Motorized

Drive:

Horsepower: 150 HP

Motor Type: DC

Digital Drive: Control Techniques Mentor III
