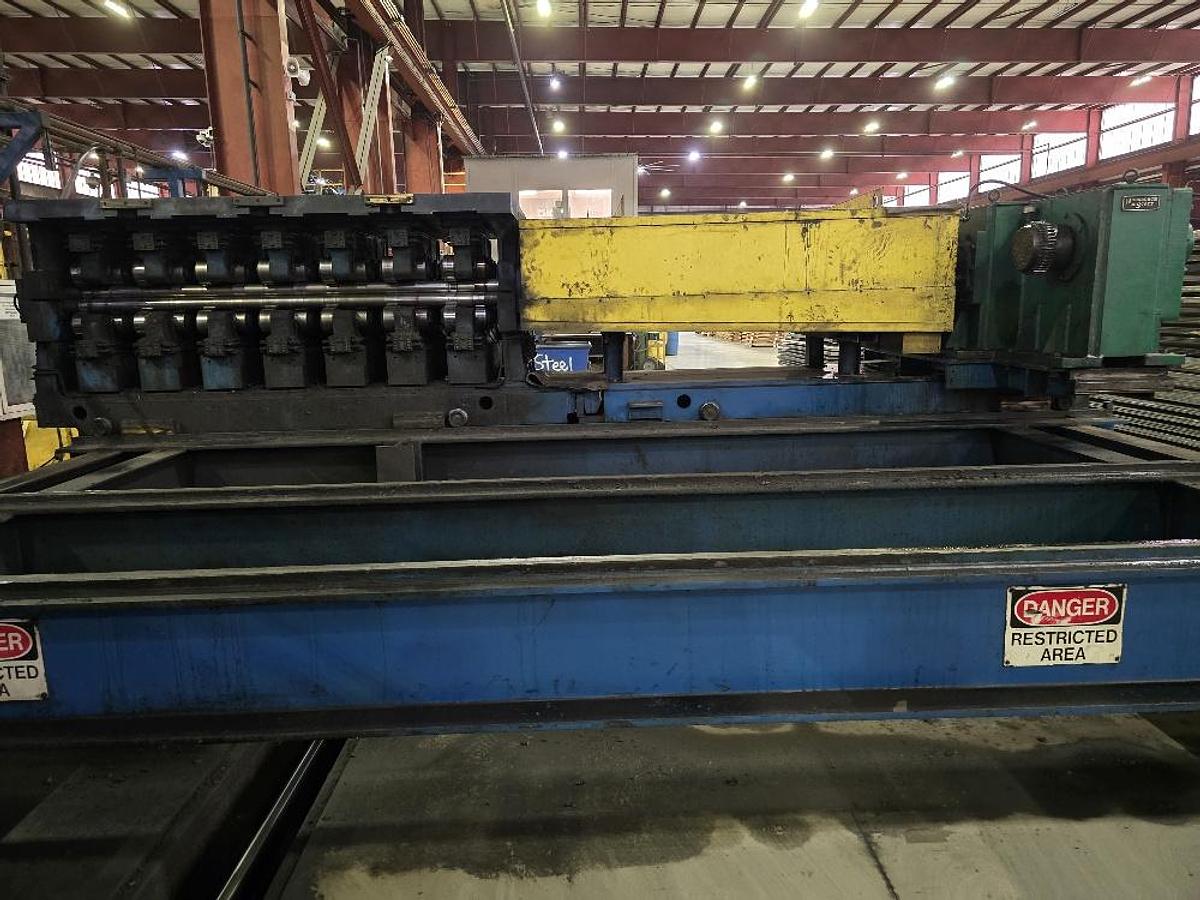

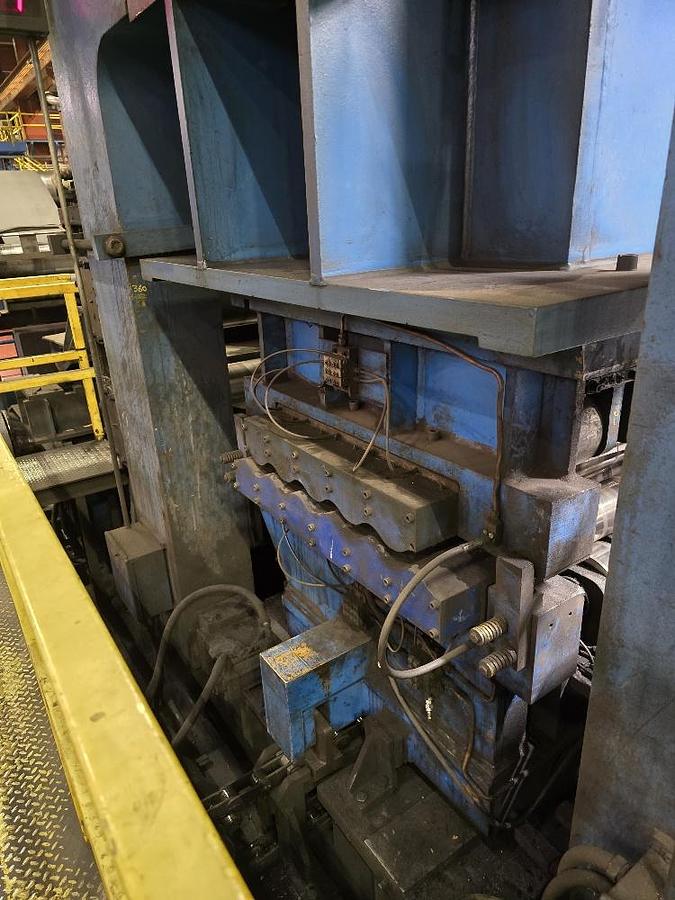

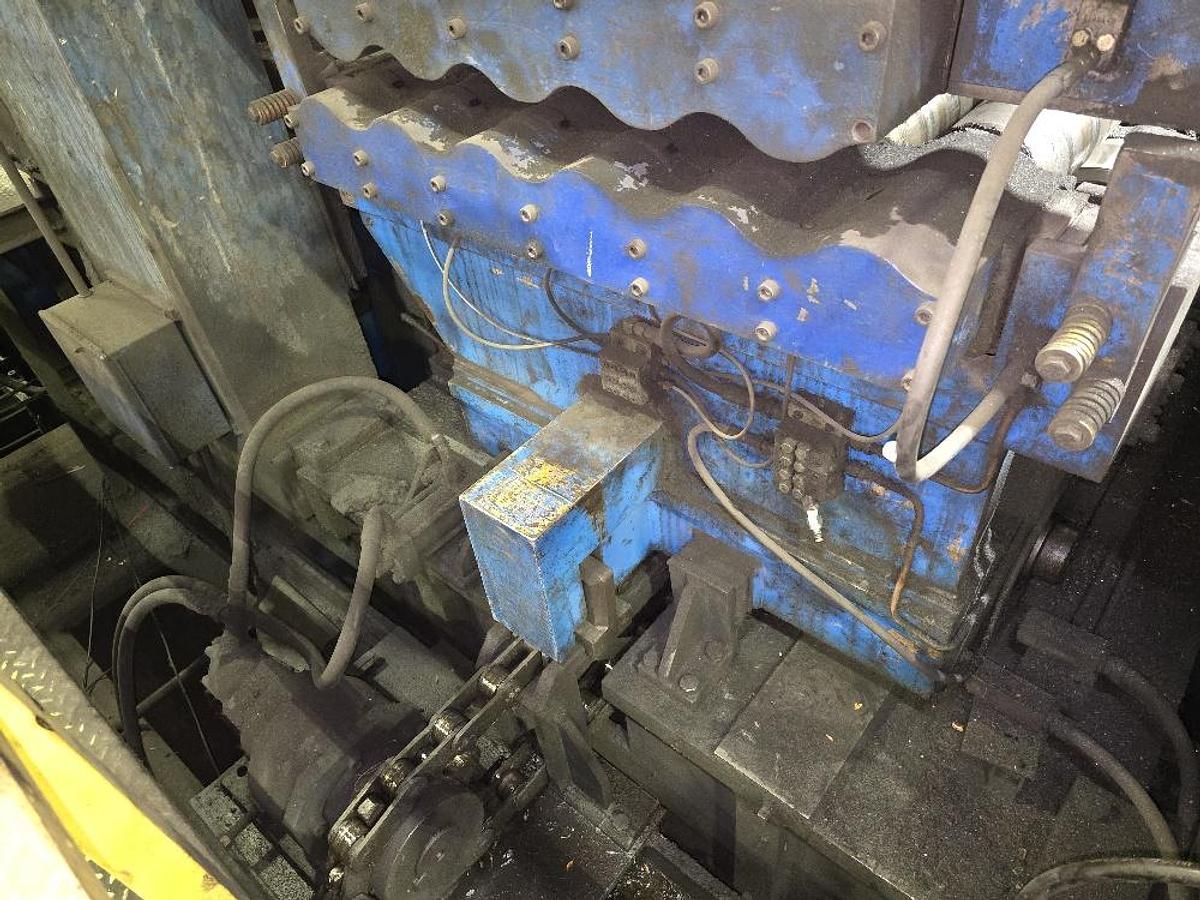

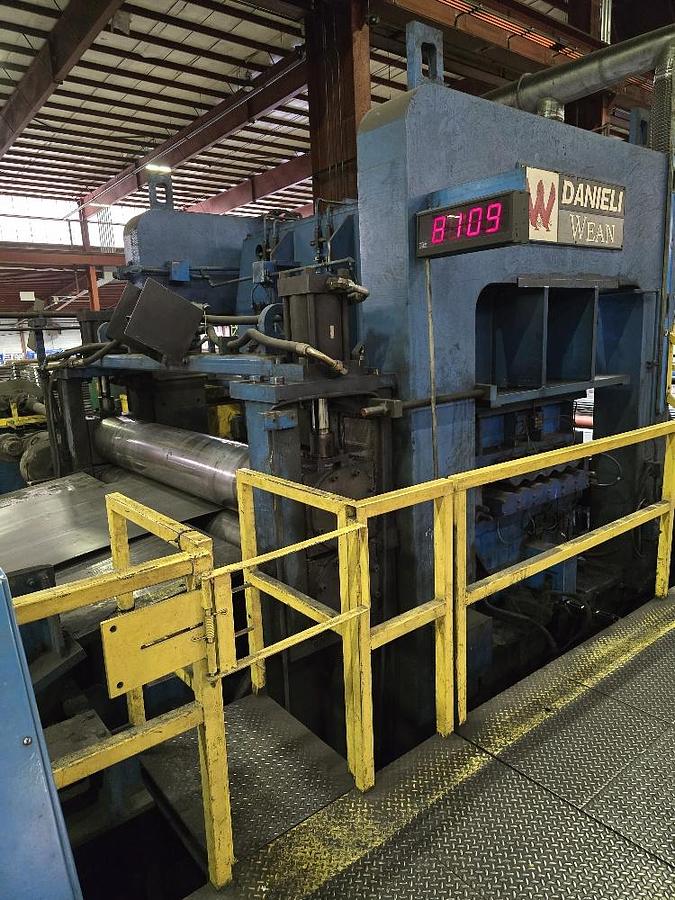

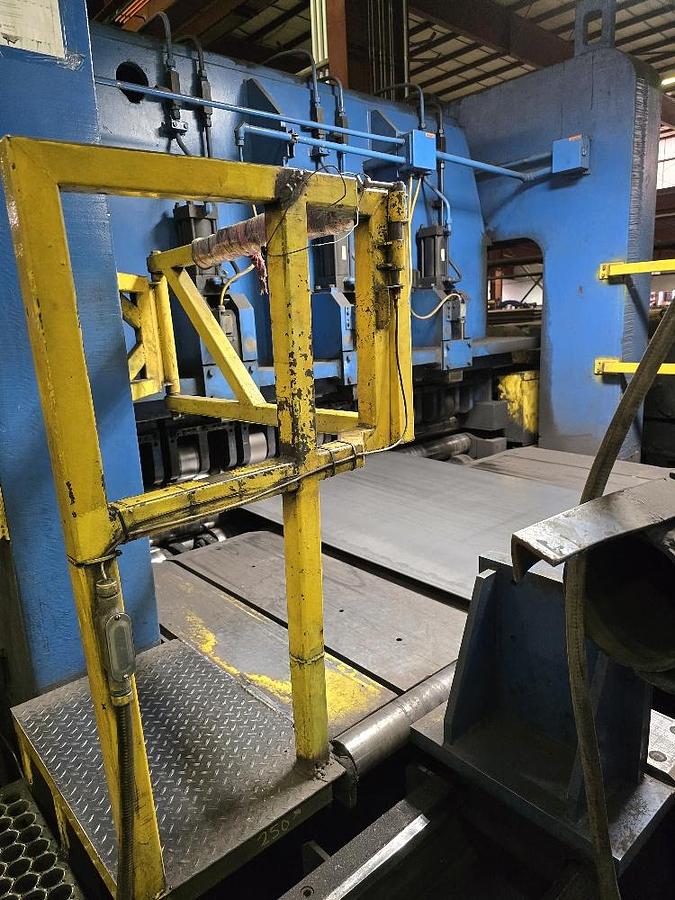

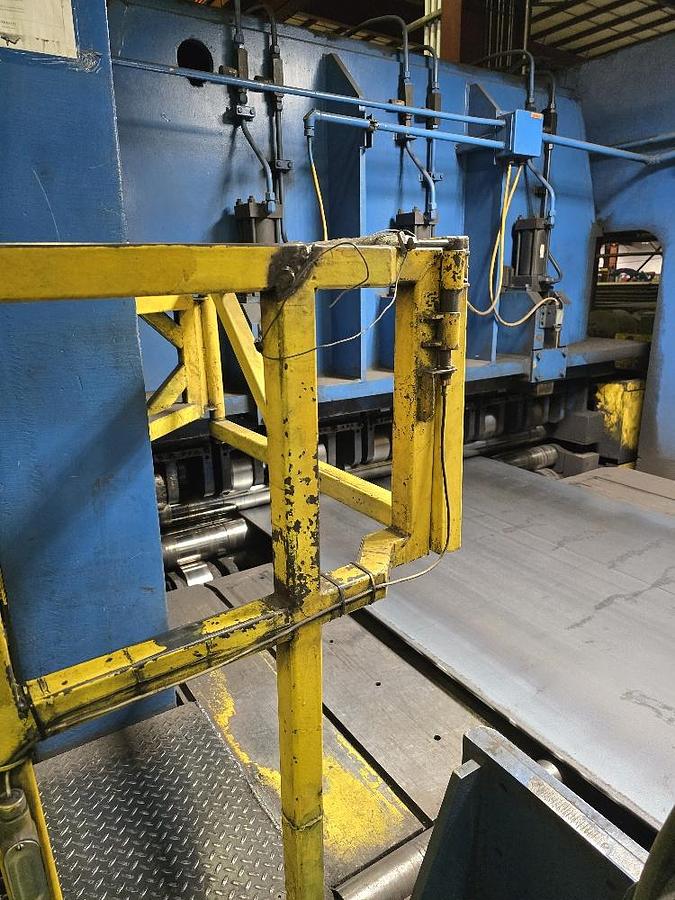

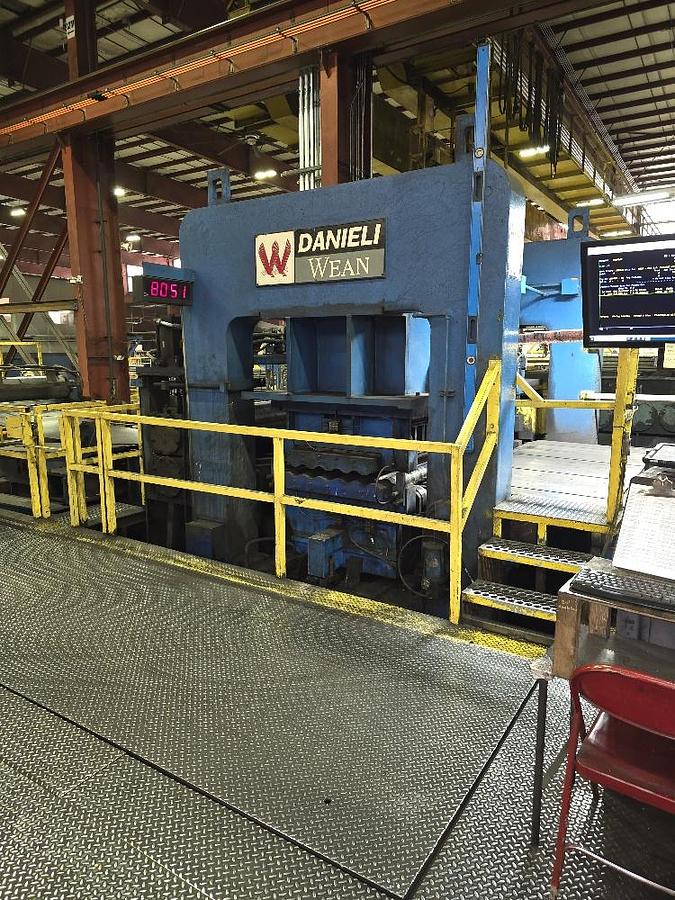

96" x .750" Danieli-Wean Cassette Leveler
or
Call (734) 854-8700
Featured
Specifications
| Manufacturer | Danieli-Wean |
| Year | 1997 |
| Condition | Used |
| Stock Number | VX-35798 |
| Minimum Product Width | 29" |
| Maximum Product Width | 96" |
| Minimum Thickness | 0.100" |
| Maximum Thickness | 0.625" |
| Maximum Line Speed | 250 FPM |
| Line Direction | Left to Right |

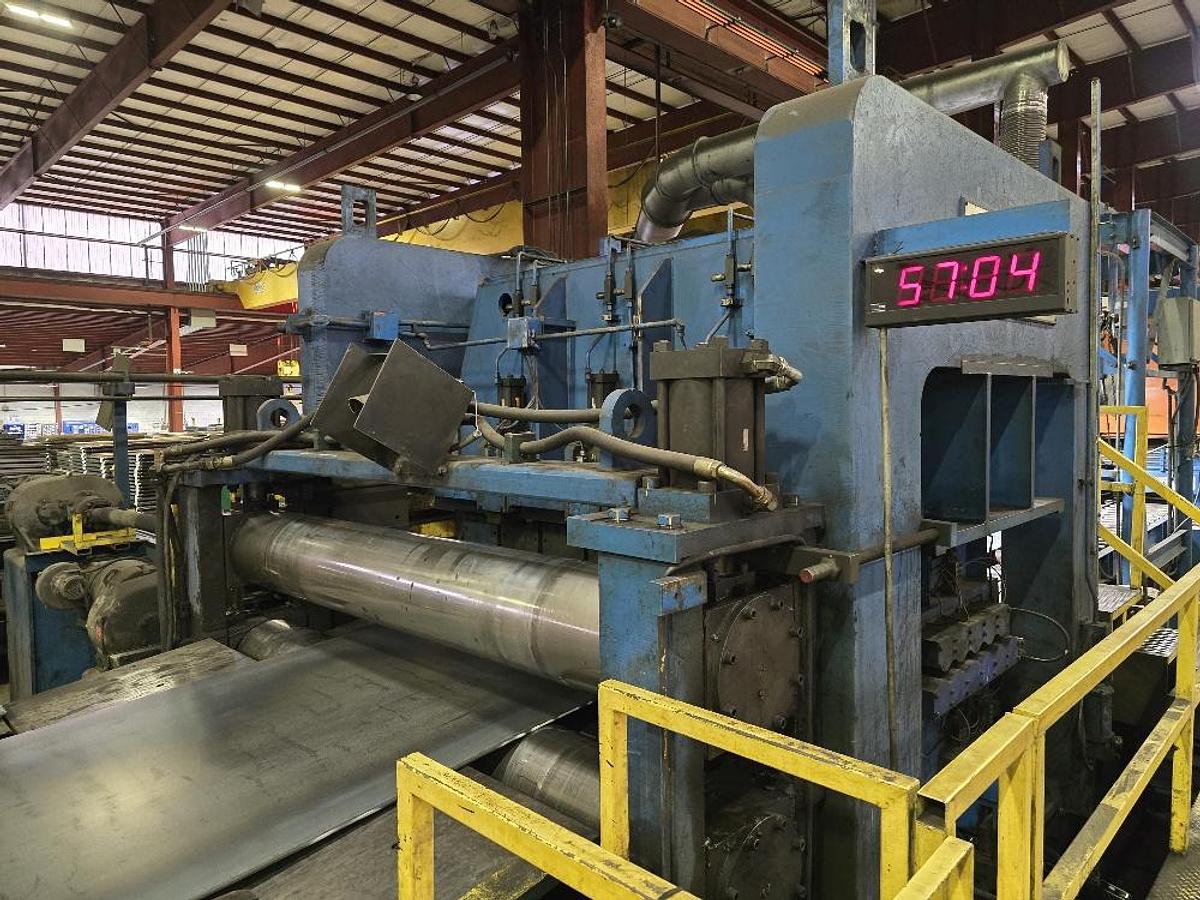

| Pinch Roll Diameter | 9.850" (250 mm) |
| Pinch Roll Face | 102" (2600 mm) |
Description
Material Capacity:
Mild Steel
- Maximum Thickness: 0.625"
- Maximum Width: 96"
- Maximum Yield Strength: 60,000 PSI
High Strength Steel
- Maximum Thickness: 0.500"
- Maximum Width: 96"
- Maximum Yield Strength: 100,000 PSI

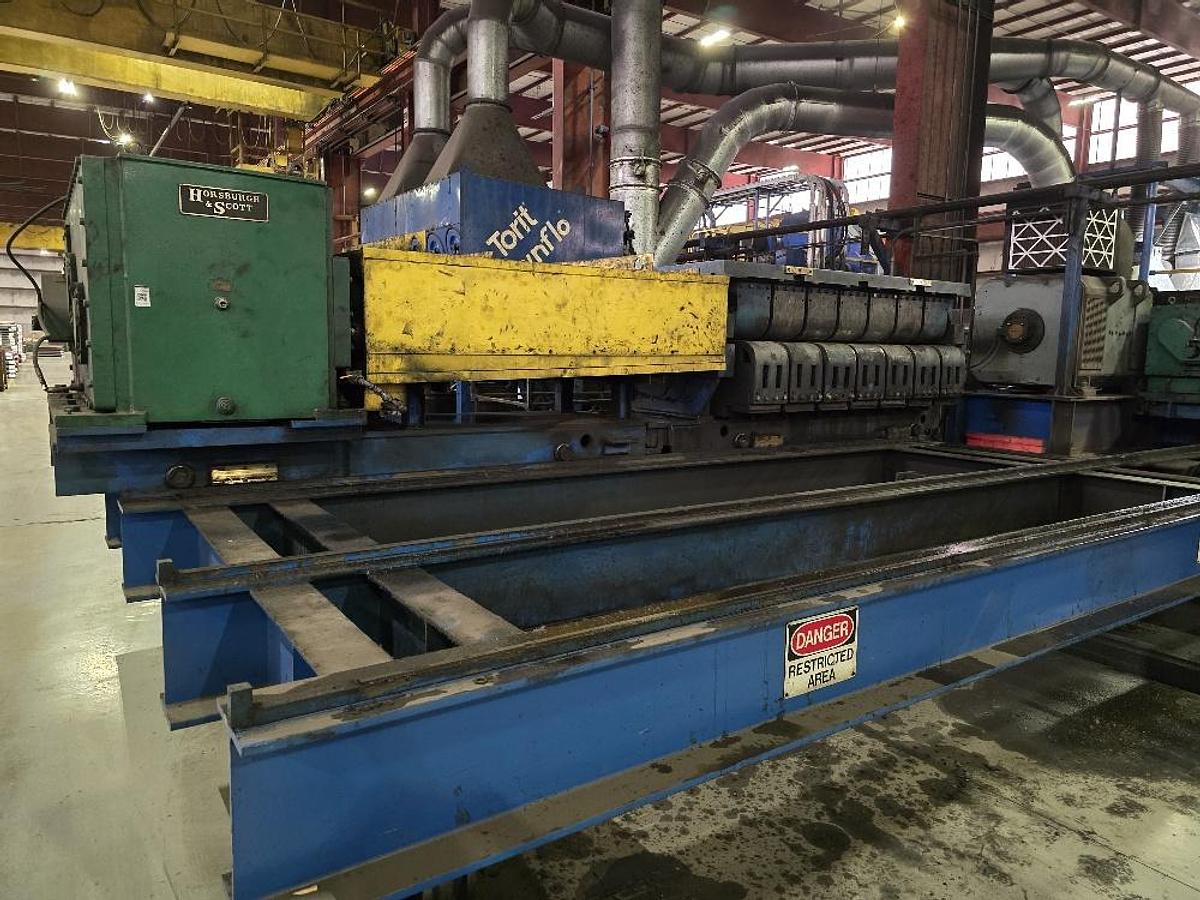

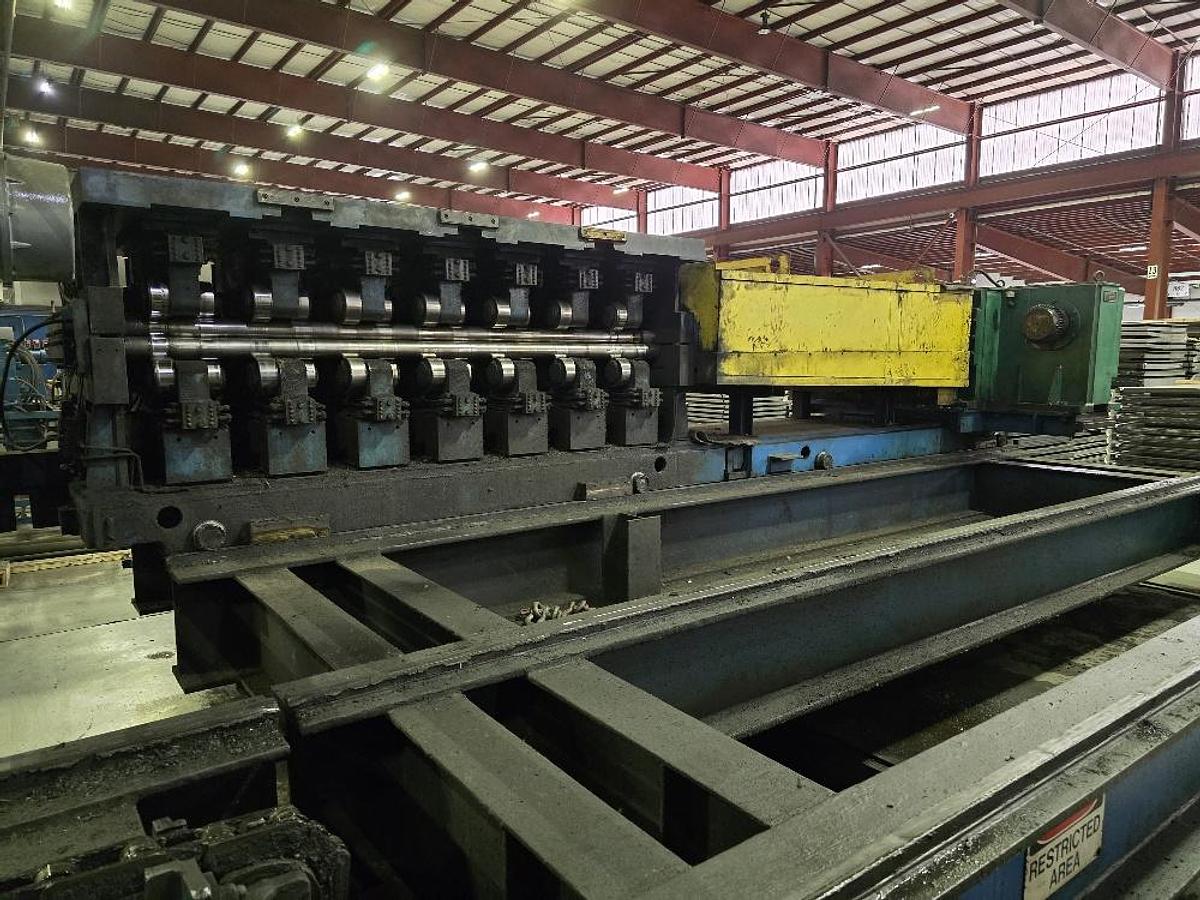

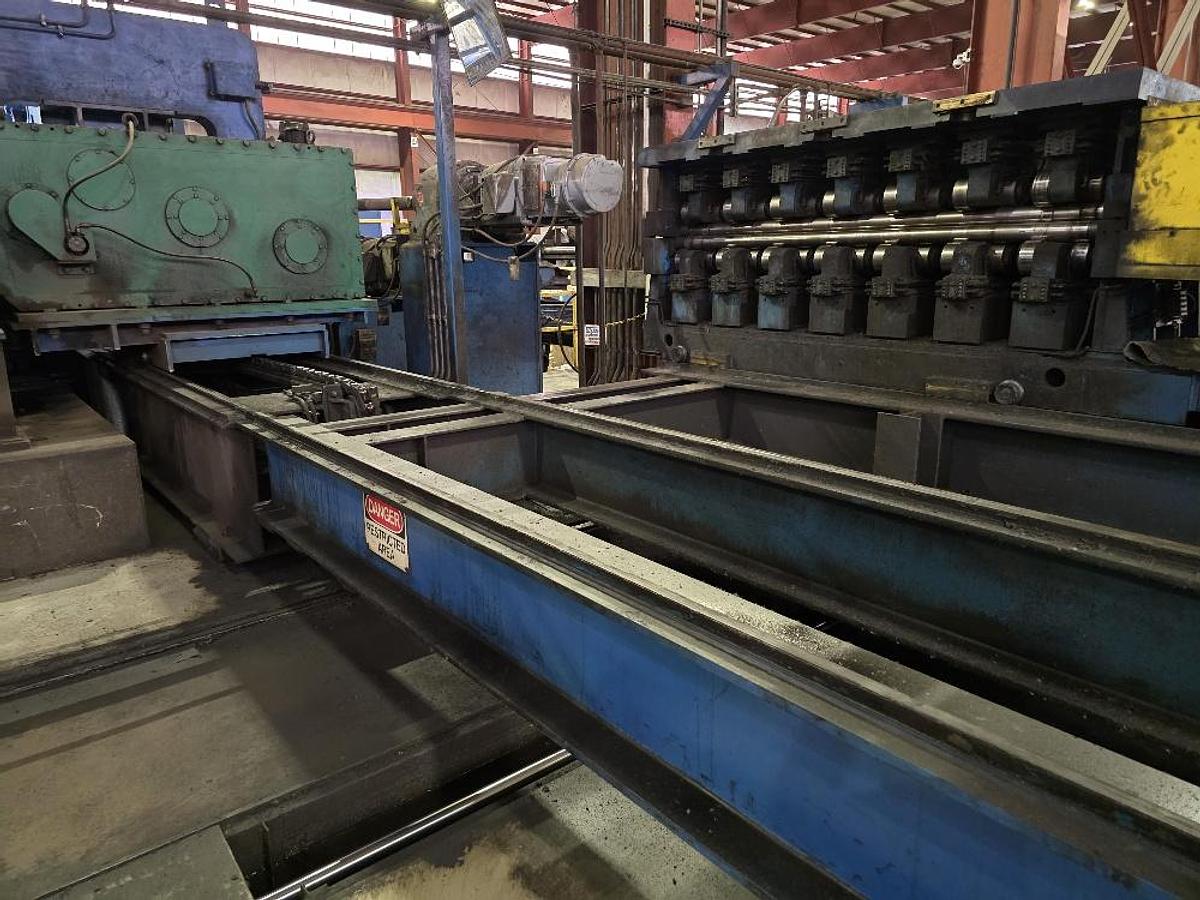

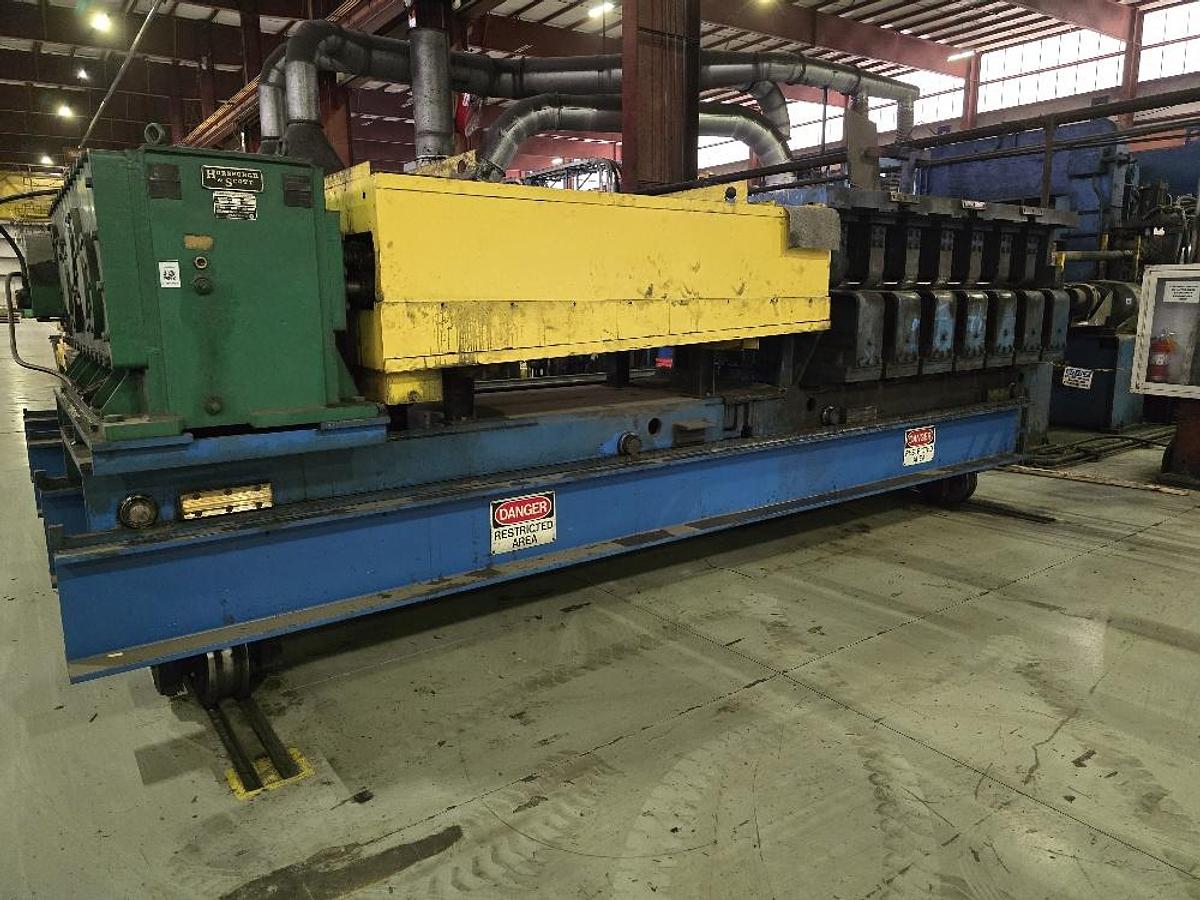

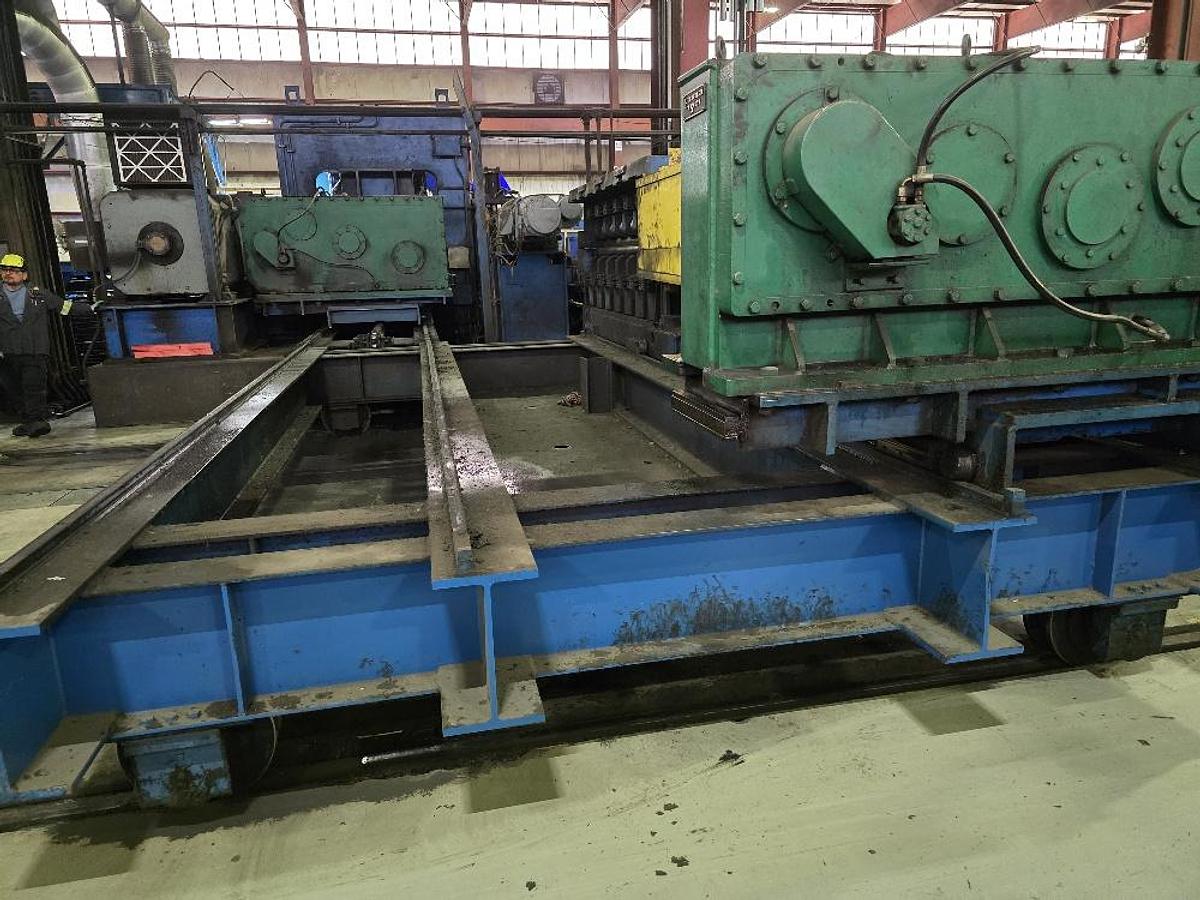

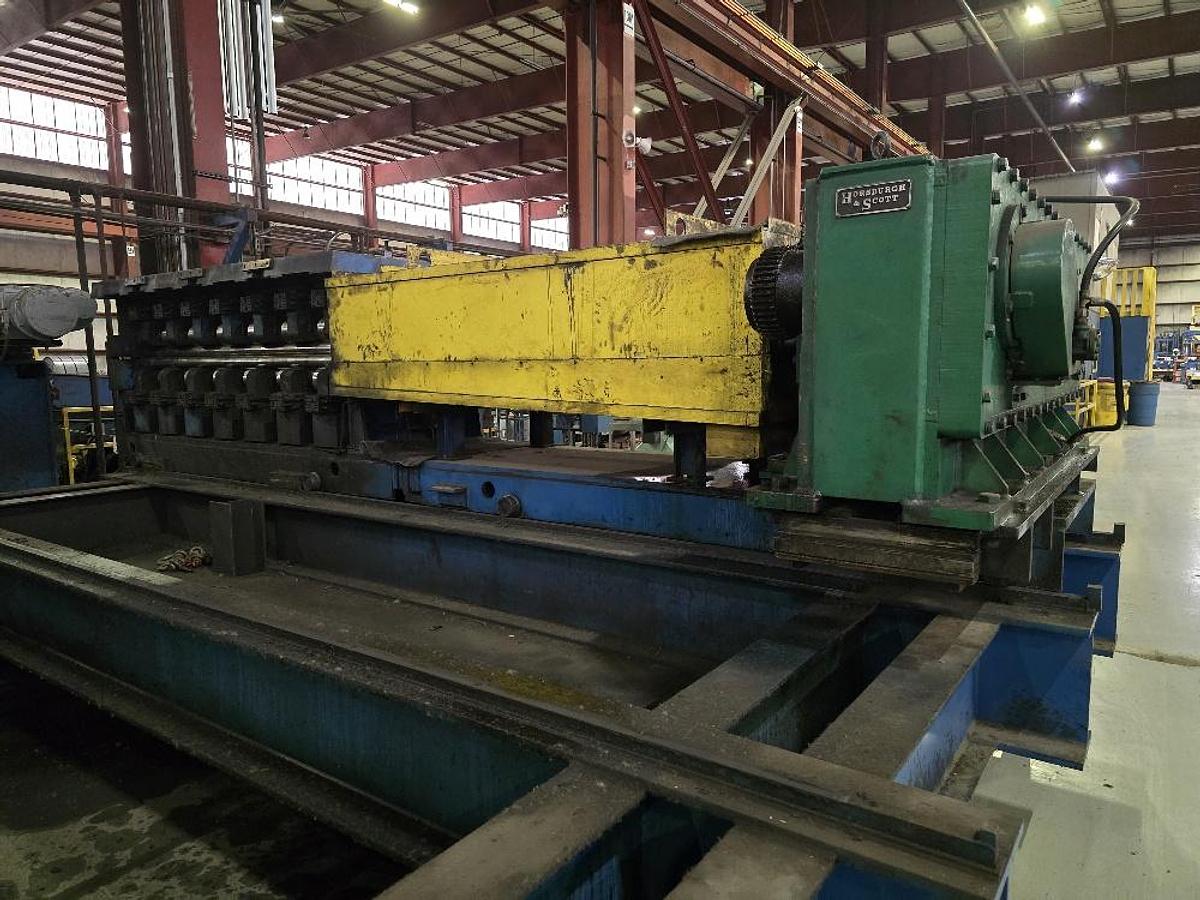

Dual-Cassette Floor-Mounted Injection System:

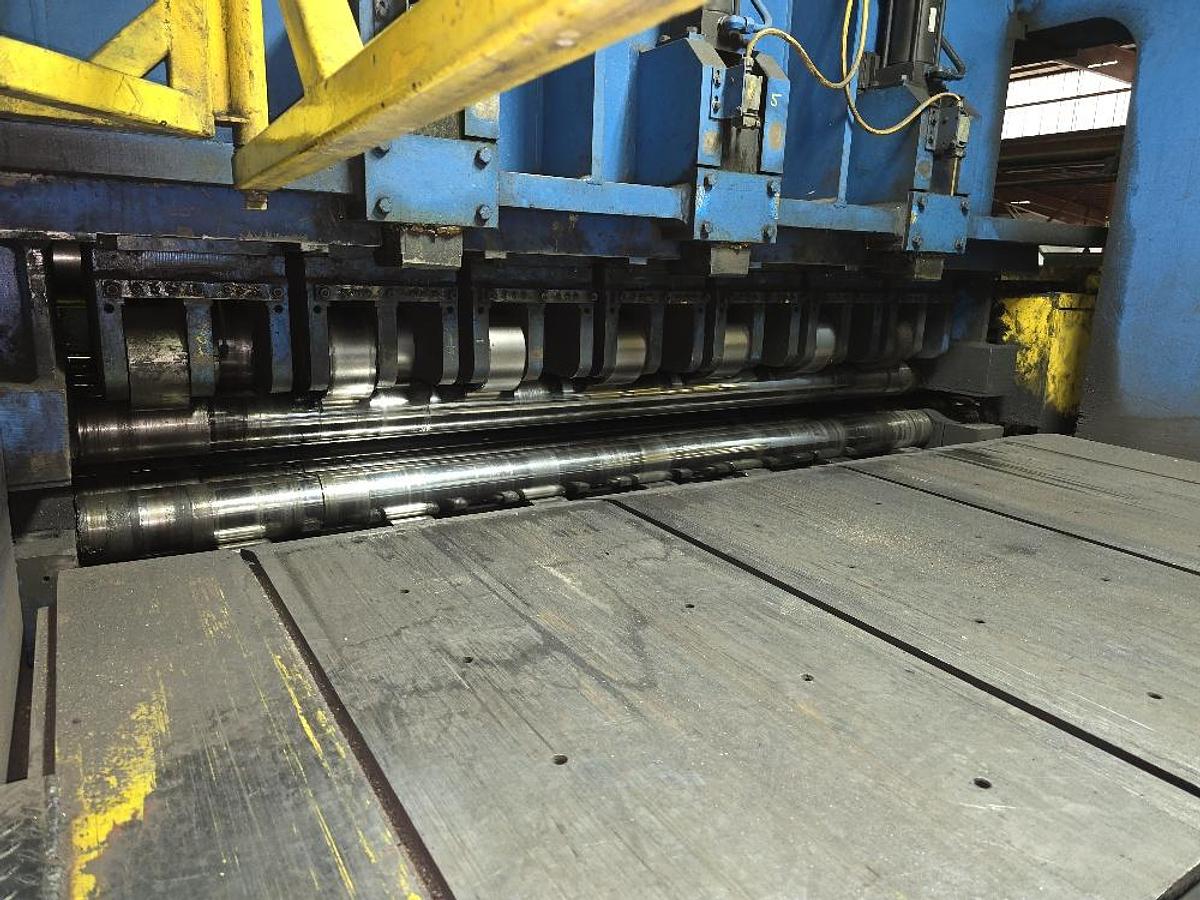

Heavy-Gauge Cassette
- 11-Roll Configuration (5 Over 6)
- Work Roll Diameter: 5.500" (140 mm)
- Work Roll Face: 104" (2641 mm)
- 3 Top Backup Flights
- 7 Bottom Backup Flights
- Pinch Roll Diameter: 9.850" (250 mm)
- Pinch Roll Face: 102" (2600 mm)
Light-Gauge Cassette
- 17-Roll Configuration (8 Over 9)
- Work Roll Diameter: 3.500" (89 mm)
- Work Roll Face: 104" (2641 mm)
- 3 Top Backup Flights
- 7 Bottom Backup Flights

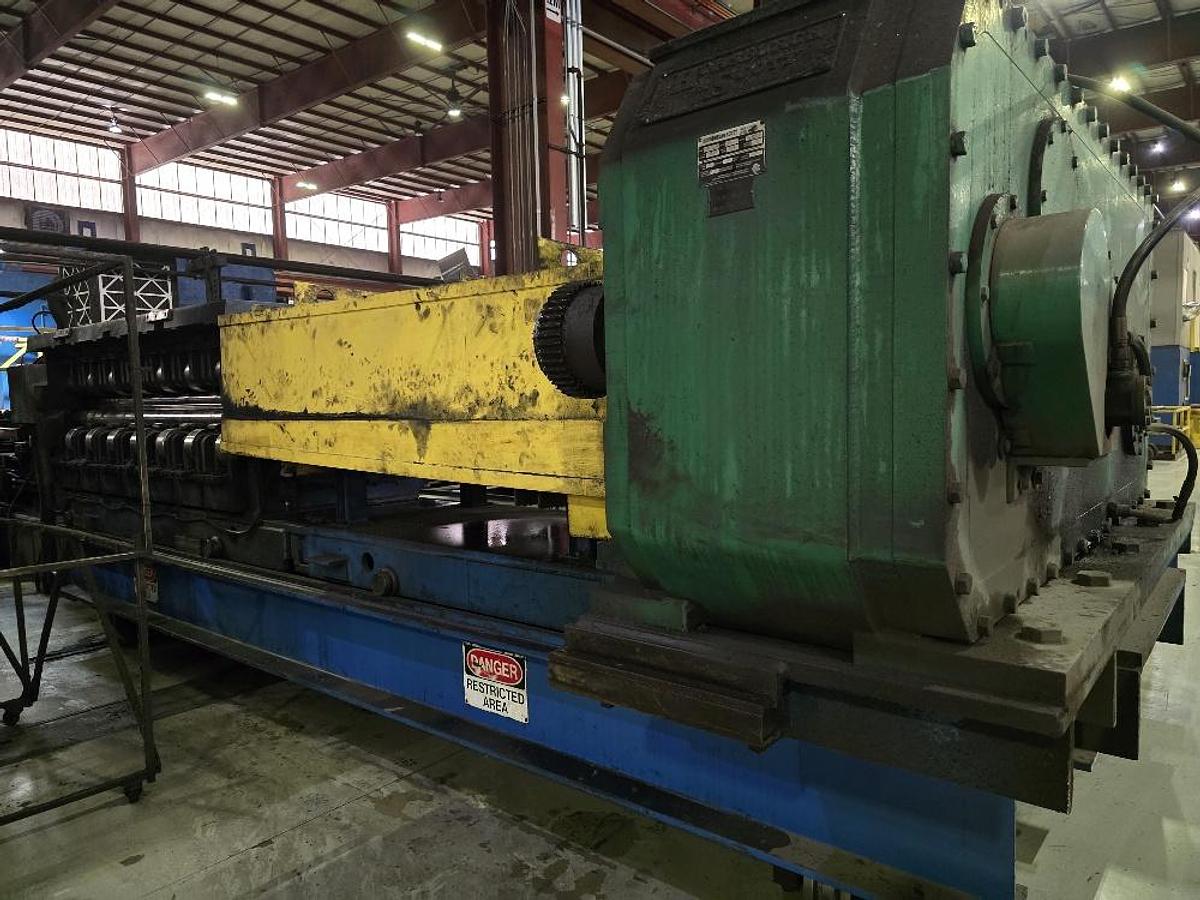

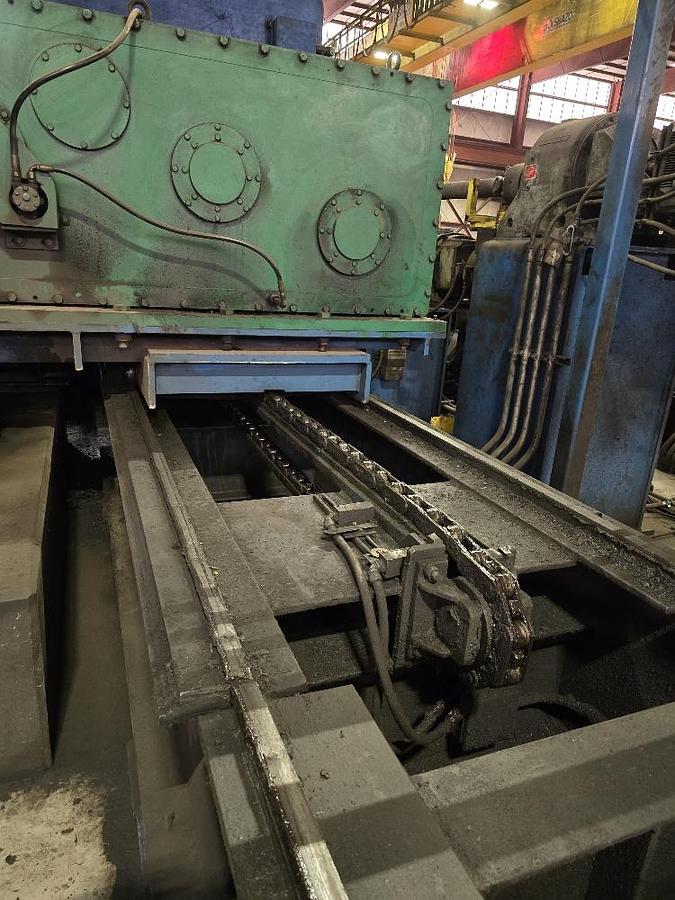

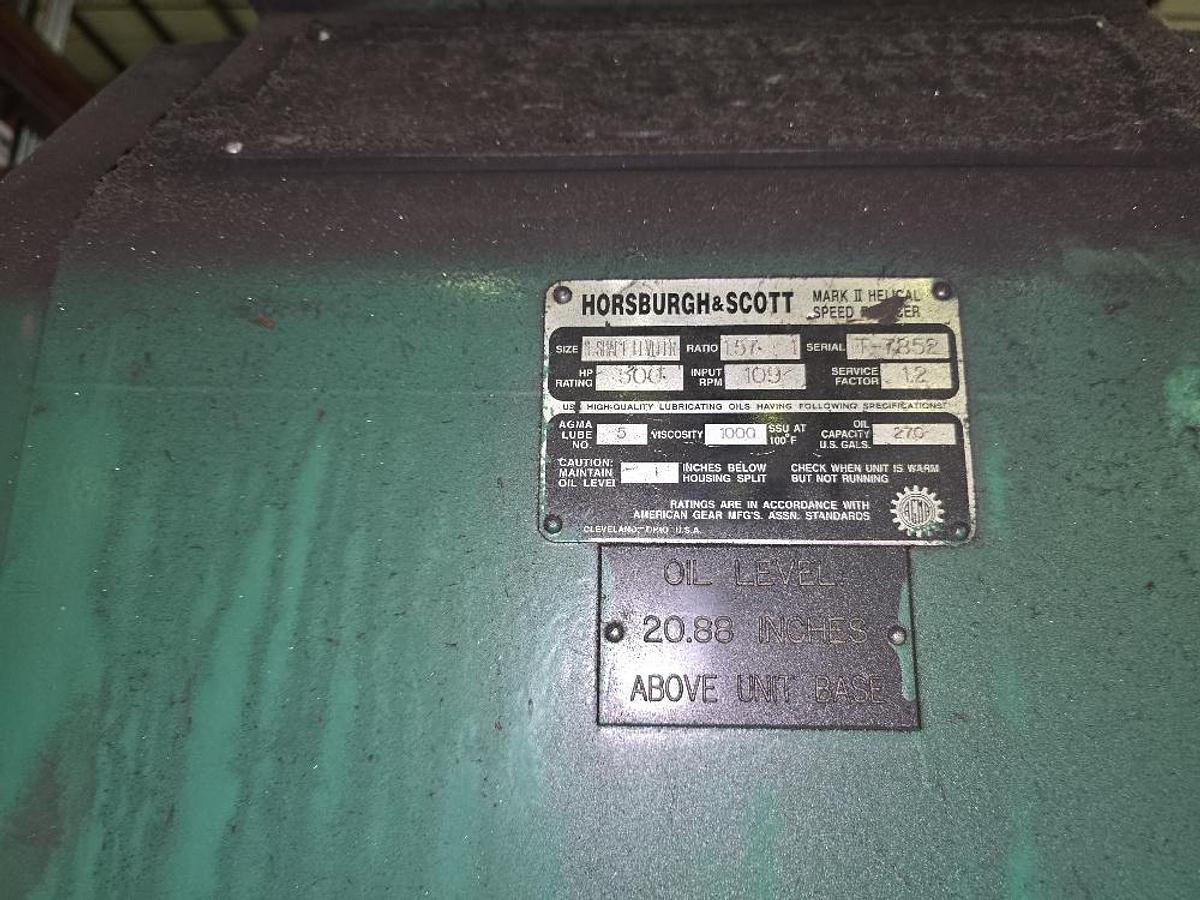

Main Drive:
Motor: 500 HP DC
Speed: 500/1,300 RPM
