6.6” x 0.28” DMC Tube Mill Line

Specifications:

Tube OD Max: 6.63” (168.3 mm) / Min: 2.00” (50.8 mm)

Wall Thickness Max: 0.276” (7.0 mm) / Min: 0.055” (1.4 mm)

Tube Cut Length Max: 39.37’ (12,000 mm) / Min: 19.69’ (6,000 mm)

Line Speed Max: 197 FPM (60 m/min) / Min: 66 FPM (20 m/min)

Complete Line With:

Coil Lifting Car

26,455 Lb (12,000 Kg) Mandrel Uncoiler

Peeler / Pinch Rolls

5-Roll Leveler

Auto Shear And End Welder

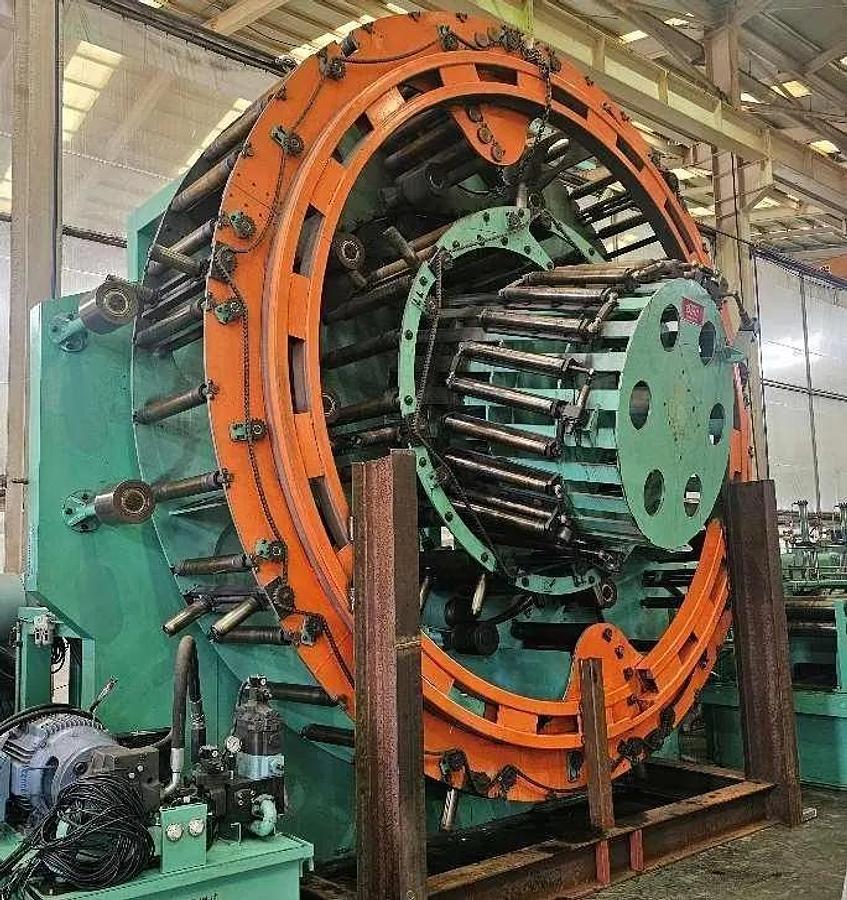

Vertical Rotary Accumulator

Forming Mill:

4.72” (120 mm) Diameter Shafts

Entry Pinch Rolls

7-Roll Leveler

4 Break Down Stands

3 Side Idler Rolls

2 Side Idler Roll Clusters

3 Fin Pass Stands

2 Side Idler Rolls

147 HP (110 kW) Forming Motor

100 HP (75 kW) Fin Pass Motor

Welding Section:

500 kW High Frequency Welder

Seam Guide Roll

4-Roll Squeeze Roll Stand

OD Bead Scarfing With 2 Cutting Tools

Ironing Pass

Scrap Winder

Cooling:

Cooling Bath

Emulsion Cooling System

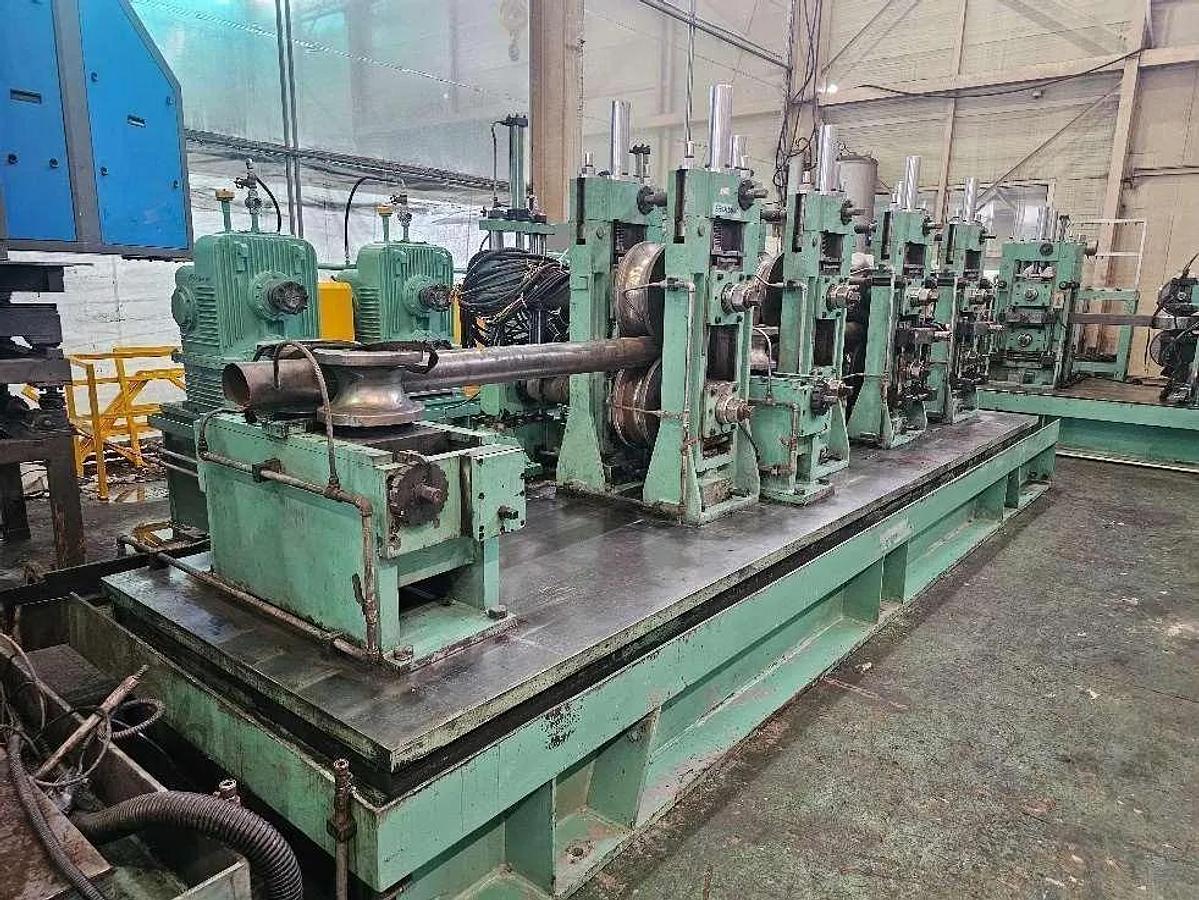

Sizing Mill:

4.72” (120 mm) Diameter Shafts

Twisting Roll Stand

5 Sizing Roll Stands

Measuring Roll Stand

2 Turks Heads

Pull-Out Stand

174 HP (130 kW) Drive

Flying Cold Saw Cut-Off:

56 HP (42 kW) AC Servo Accelerator Drive

40 HP (30 kW) Saw Motor

177” (4,500 mm) Saw Travel

Rack And Pinion

Run Out / Packing:

Run Out Table

Auto Packing System (Square Tube Only)

Chain Conveyor To Pusher

Lifting Pocket

Exit Chain Conveyor

Strapping Station

Roll Tooling Included:

Rounds: 4.00”, 3.76”, 4.50”, 5.01”, 5.50”, 6.27”, 6.38”, 7.52”, 7.51”

Squares And Rectangles: 4” x 2”, 4” x 4”, 5” x 3”, 5” x 5”, 6” x 4”

Spare Parts Included
