5” x .300” Turek & Heller Stainless Tube Mill Line

Specifications:

Manufacturer: Turek & Heller

Tube Diameter: 1.900” to 5.00”

Wall Thickness: .065” to .300”

Max Line Speed: 2 ft/min

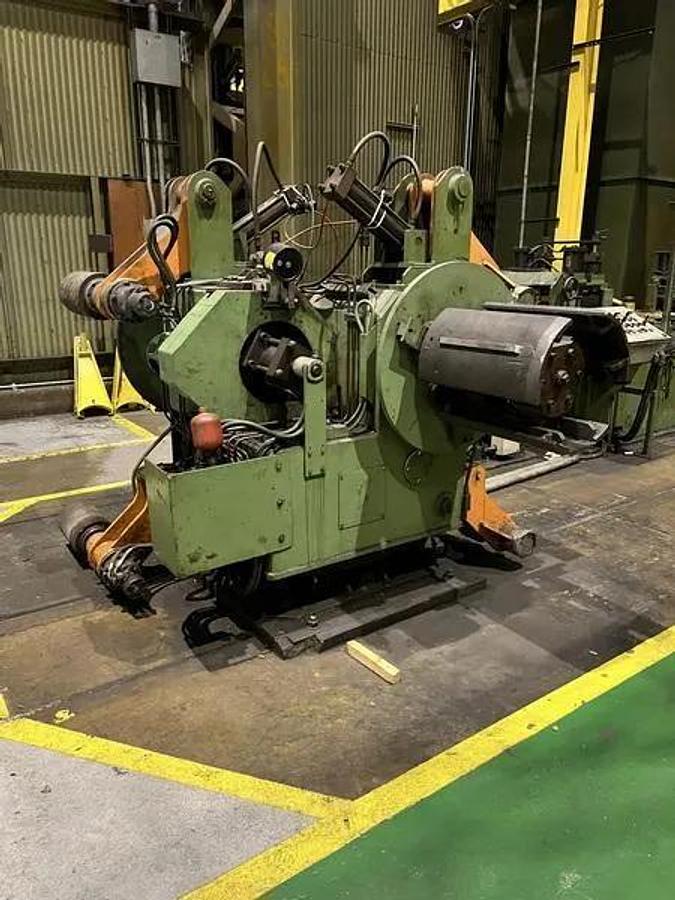

Uncoiler:

Oto Mills Double End Uncoiler

Hydraulic Expansion

Double Hold Down Rolls

Powered

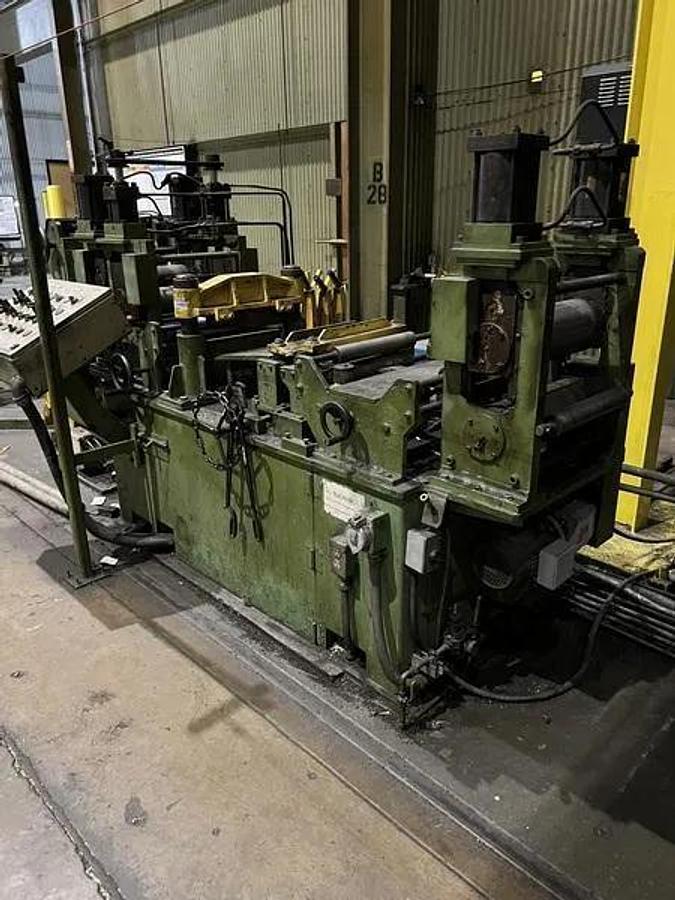

Shear & Welder:

Shear and End Welder

Cage Type Accumulator

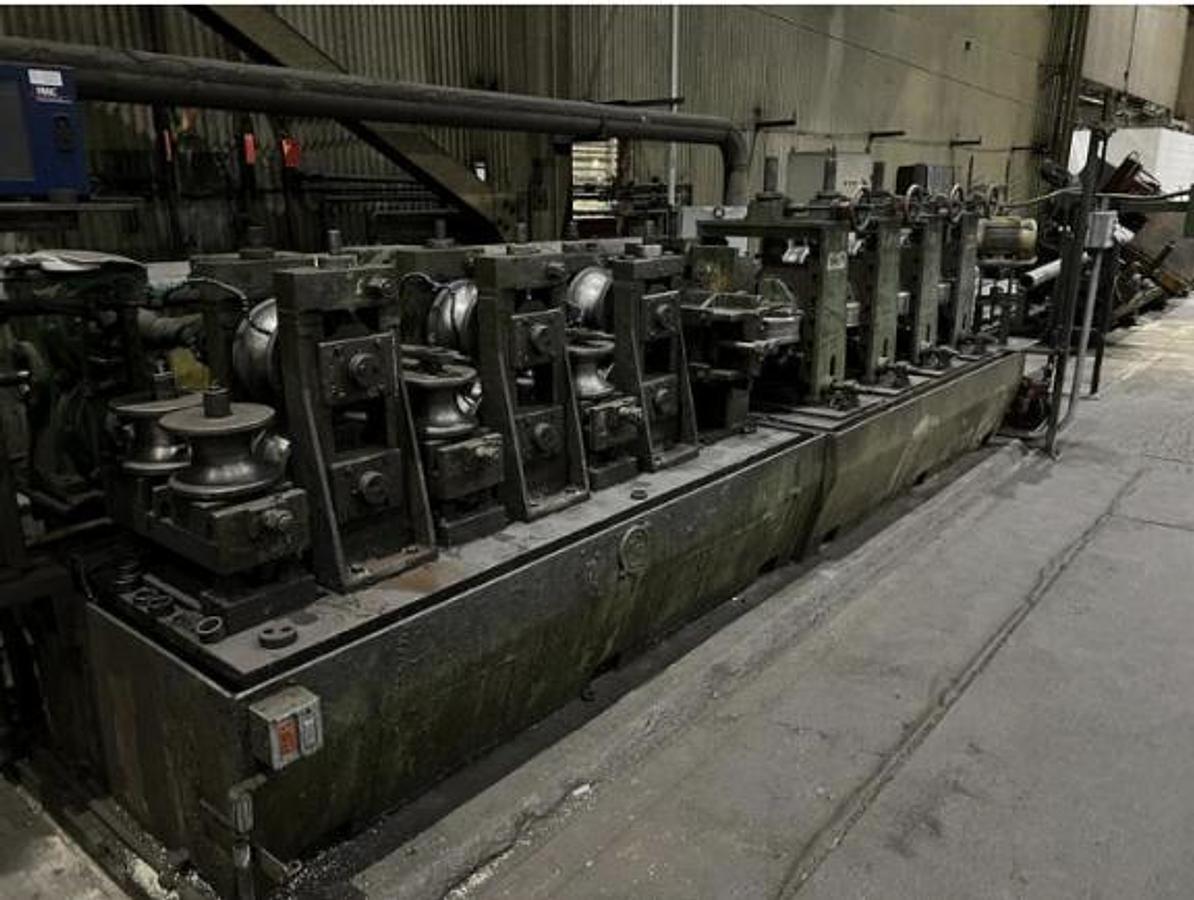

Forming Mill:

Turek & Heller Forming Mill

Universal Drive

Two-Motor Drive

Two-Speed Gear Box

Entry Forming Stand

Two Sets of Entry Edge Guides

Five Forming Stands

Four Side Idler Roll Stands

Three Finn-Pass Stands

Three Side Idler Roll Stands

Weld Section:

Four-Roll Weld Box

Exit Stand

Polisher:

Bossi Polisher

Sizing Mill:

Turek & Heller Sizing Mill

Universal Drive

Two-Speed Gear Box

Three Sizing Stands

Three Side Idler Rolls

Four Turks Heads (Fives, 2018)

Spare Turks Head Cages Included

Cutoff & Runout:

Inclined Traversing Band Saw Cut-Off

Run-Out Table

Electrics & Controls:

Allen Bradley PowerFlex 700 Digital Drives

PanelView 1000 Digital Readouts

Tooling Included:

1.50”, 1.90”, 2.375”, 2.50”, 2.875”, 3.00”, 3.75”, 4.00”, 5.00”
