18” x .250” Frohling 4Hi Reversing Cold Rolling Mill
Specifications
| Manufacturer | Frohling |
| Condition | Used |
| Stock Number | VX-35849 |
| Max Workpiece Width | 18” |
| Max Rolling Thickness | .250” |
| Min Rolling Thickness | .010” |
| Work Roll Face | 20” |
| Max Strip Width | 18” |
| Min Strip Width | 6” |
| Max OD | 60” |
| Coil ID | 20” |
| Max Rolling Force | 400 Ton |
| Max Rolling Speed | 1000 FPM |
| Line Direction | Right To Left |
Description
Specifications:
Manufacturer: Frohling (Germany)
Max Workpiece Width: 18”
Max Rolling Thickness: .250”
Min Rolling Thickness: .010”
Work Roll Face: 20”
Max Strip Width: 18”
Min Strip Width: 6”
Max OD: 60”
Coil ID: 20”
Max Rolling Force: 400 Ton
Max Rolling Speed: 1000 FPM
Line Direction: Right To Left
Roll Diameters:
Work Roll Diameter: 8”
Back-Up Roll Diameter: 24.5”
Motors:
Main Motor: 958 HP
Uncoiler Motors (2): 218 HP Siemens DC
Recoiler Motors (2): 210.5 HP Siemens DC
Maximum Coil Weight: 5 Ton

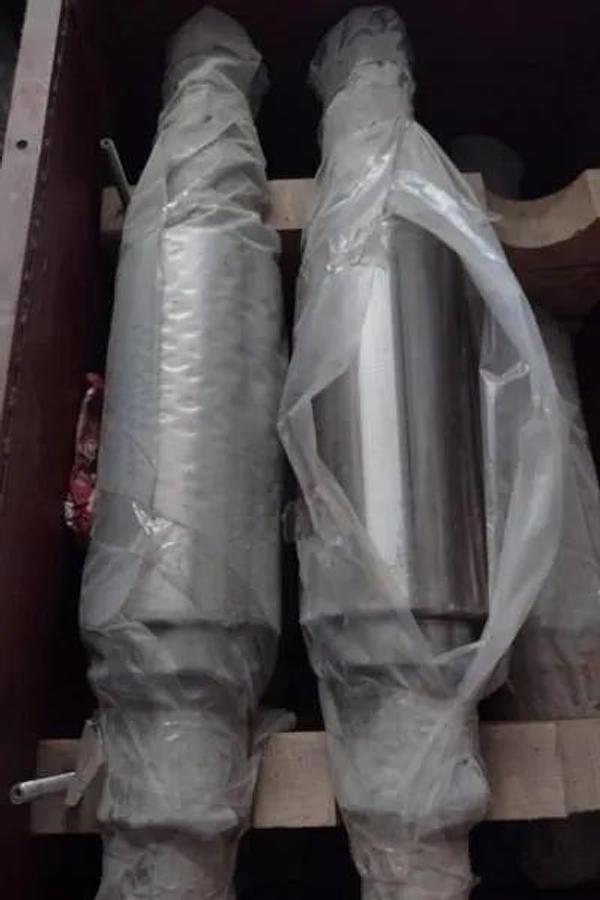

Spare Rolls And Chucks:
17 New Work Rolls
10 New Backup Rolls
15 Used Work Rolls
2 Used Backup Rolls
21 Work Roll Chucks
Upgrades: Mechanically and Electrically Upgraded in 2012 (Approx. $3.5MM USD)
Includes
(2) Coil Cars
Payoff
Uncoiler
4Hi Rolling Mill With AGC
Hydraulic Screwdowns
Recoiler
Exit Coil Car

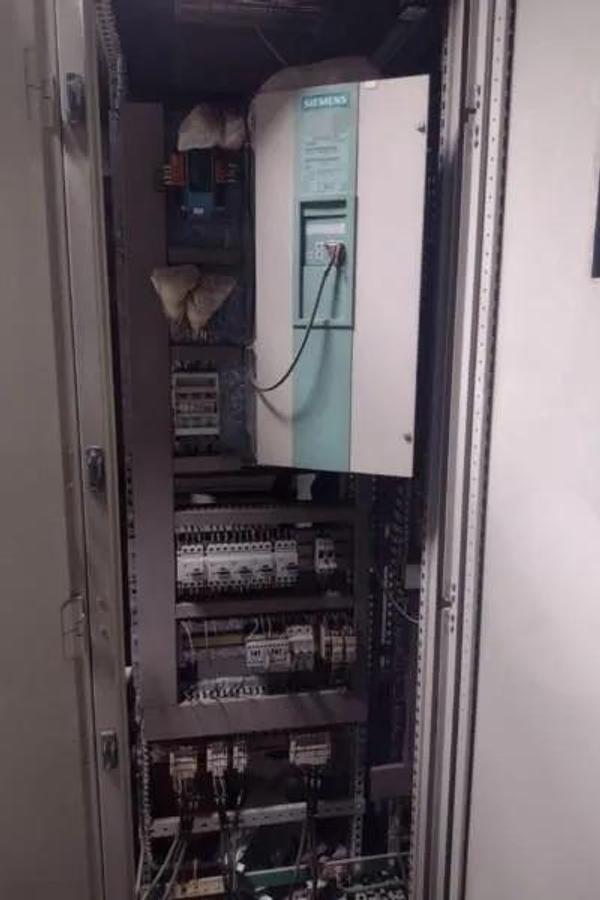

Siemens PLC And Drives

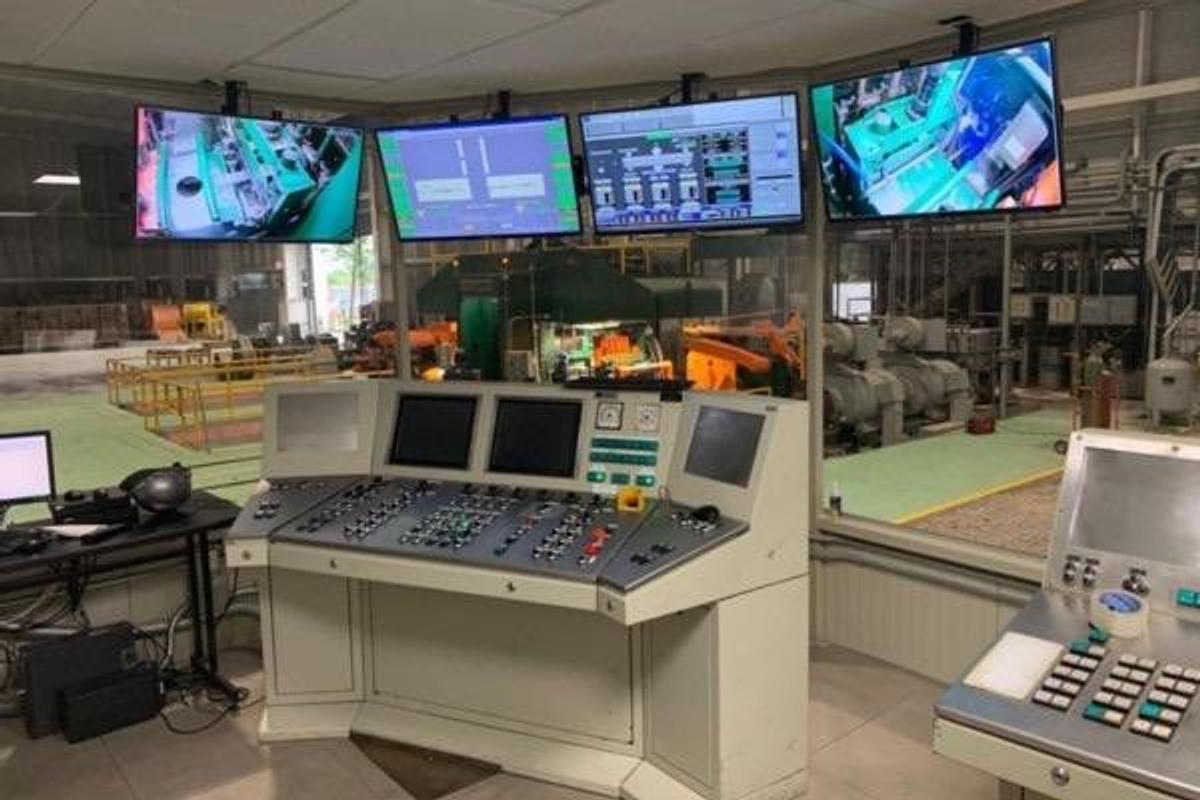

Controls, Electrics, Hydraulic Systems
