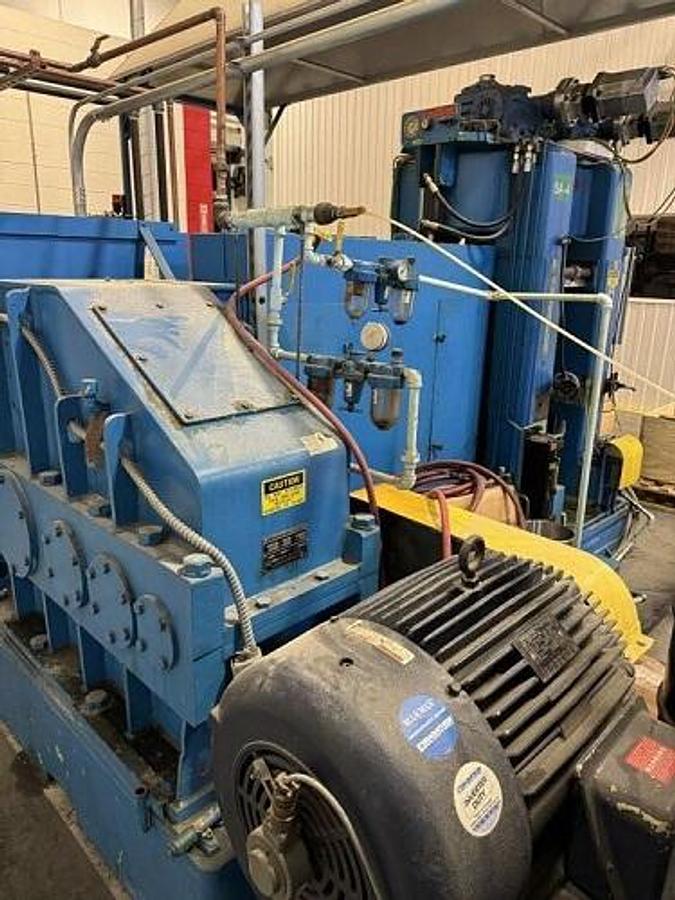

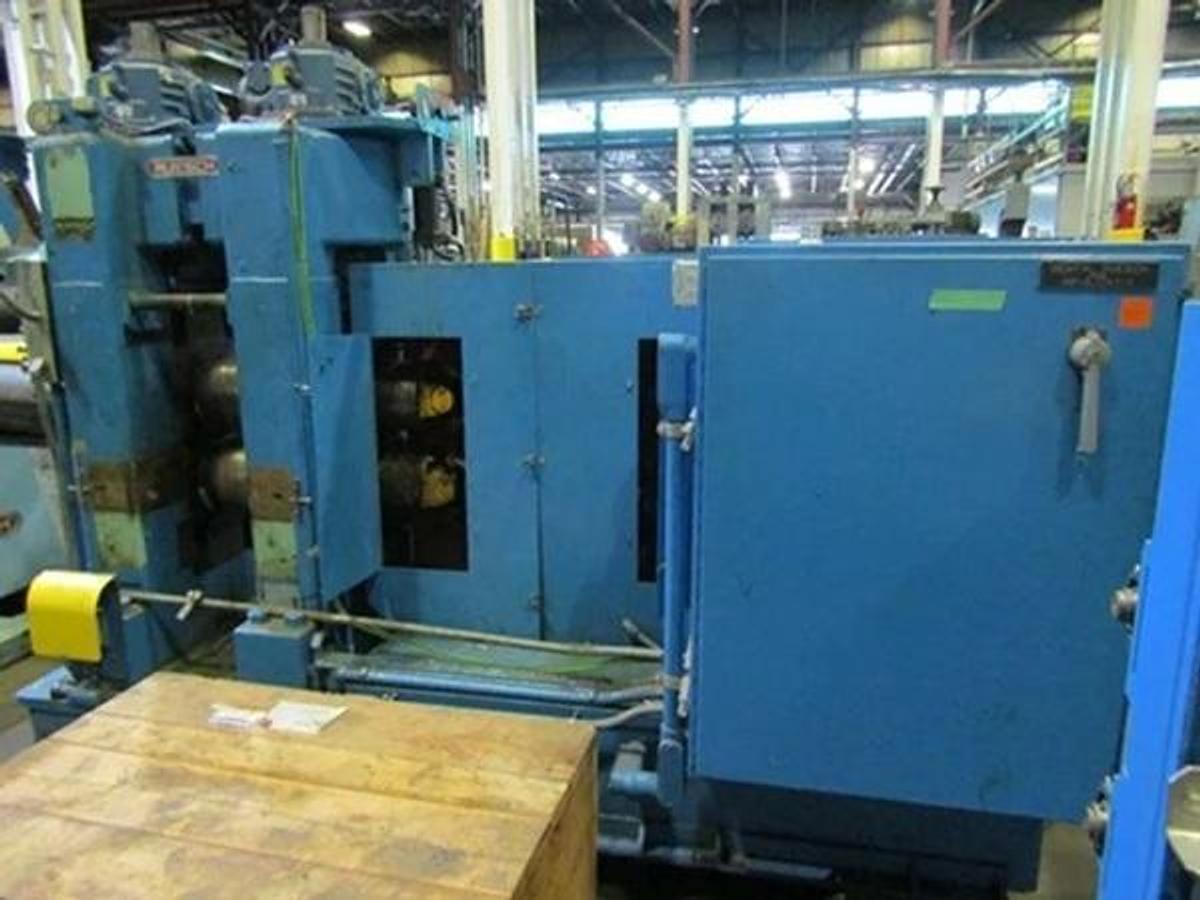

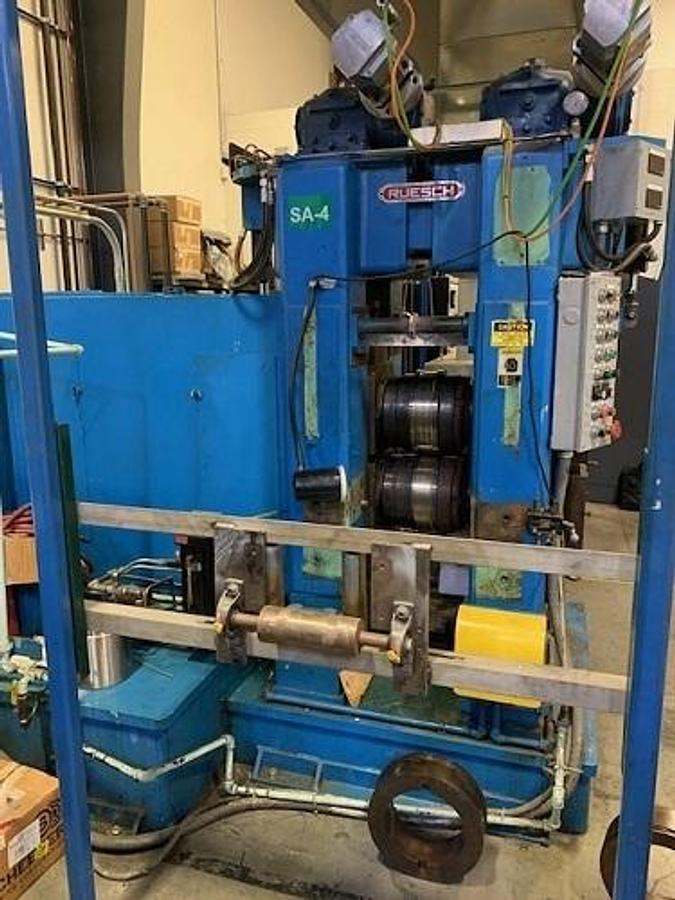

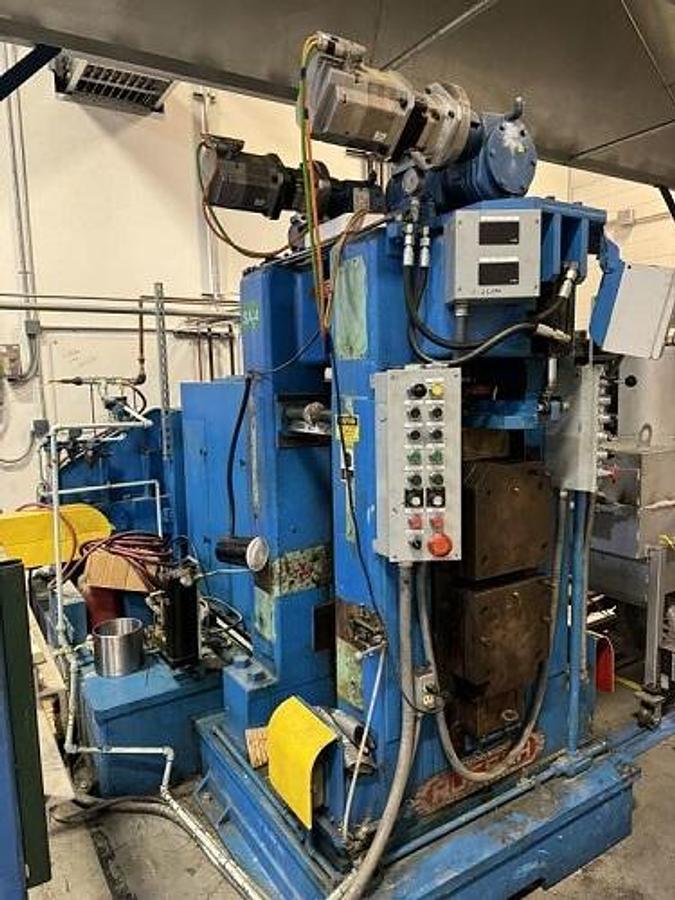

12” x 12” Ruesch 2Hi Reversing Rolling Mill

Specifications:

Manufacturer: Ruesch

Roll Size: 12” Dia. x 12” Face

Roll Bearings: Roller Bearing

Screwdowns: Electro-Mechanical

Maximum Roll Opening: 4.25”

Mill Stand Cross Section: 9” x 10”

Window Width: 13-1/4” x 41” High

Direction Of Travel: Right To Left If Used As Cladding Mill. Reversing Capability As Stand-Alone

Mill Stand Drive Motor: 50 HP, 230/460 Volts, 1750 RPM, 3 Phase, 60 Hz Variable Speed

Gear Box: Horsburgh & Scott Ratio 137.45 To 1

Mill Speed: 0 to 80 FPM

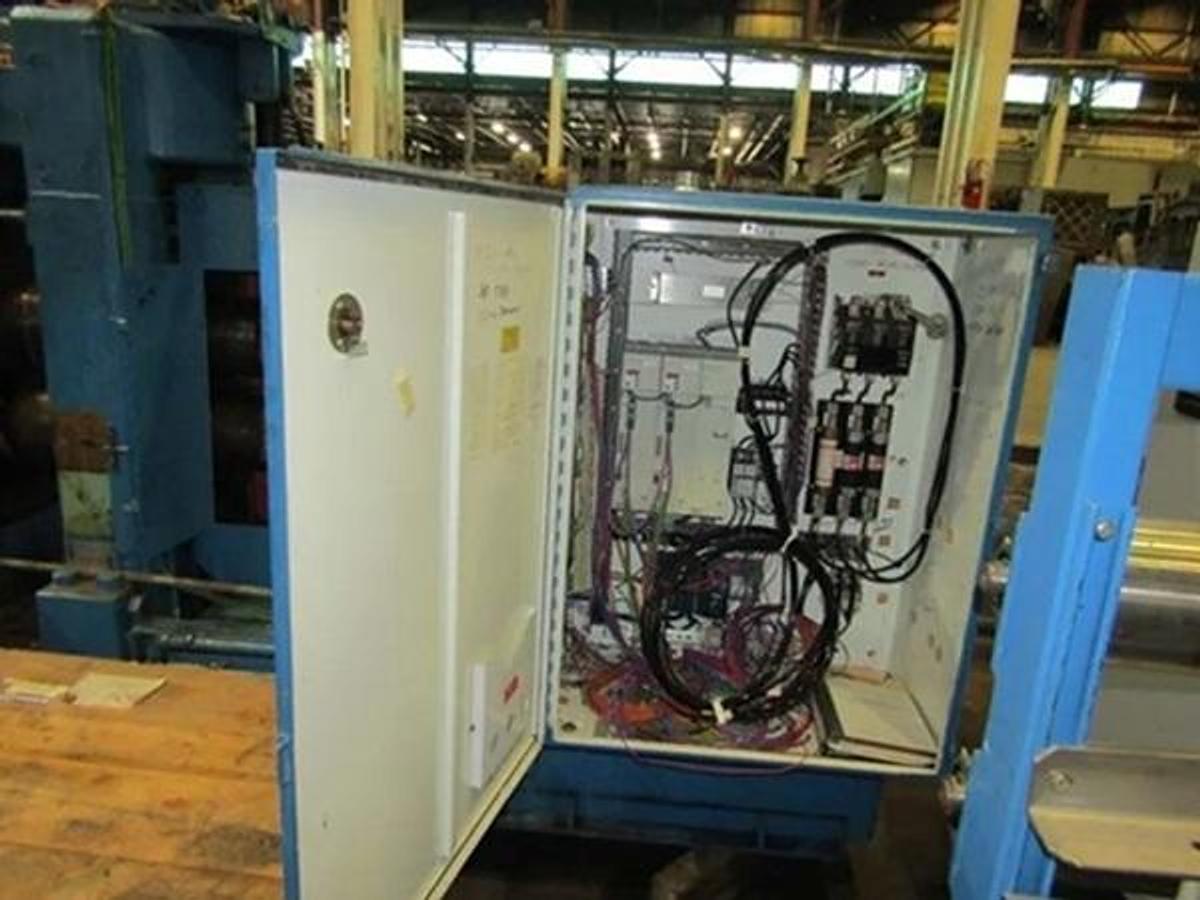

A.C. Variable Speed Drive: Parker A.C. Integrator 690+ Series With HTTL Encoder

Payoff: Buyer Must Supply

Rolling Mill: As Per Specs Above

Winder:

Entry Strip Side Guides

Pneumatic Strip Hold-Down Rolls

Winder Mandrel: 2-1/2” Diameter x 9” Wide

Variable Speed Controls

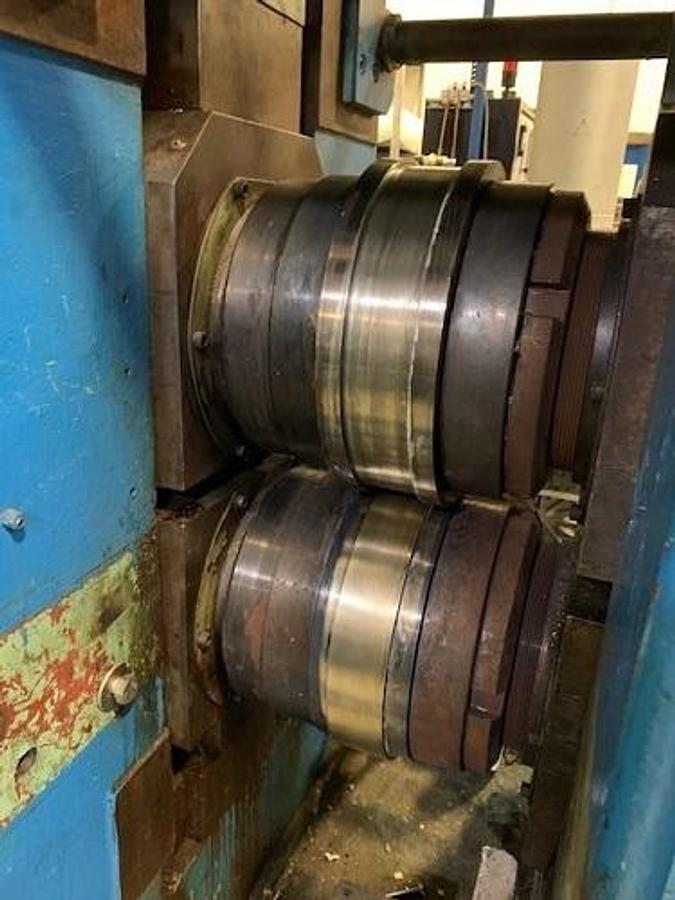

No. Of Rolls:

Flat Rolls: 1 Spare Set

Shell Rolls: 1 Set In Mill

Floor Space:

Mill Stand Alone: 124” Wide x 138” Deep

*Previous Use: Breakdown Mill For Gold And Silver, Intermediate Mill For Copper, Steel, Aluminum, Cladding / Bonding Mill For Dual Strip
