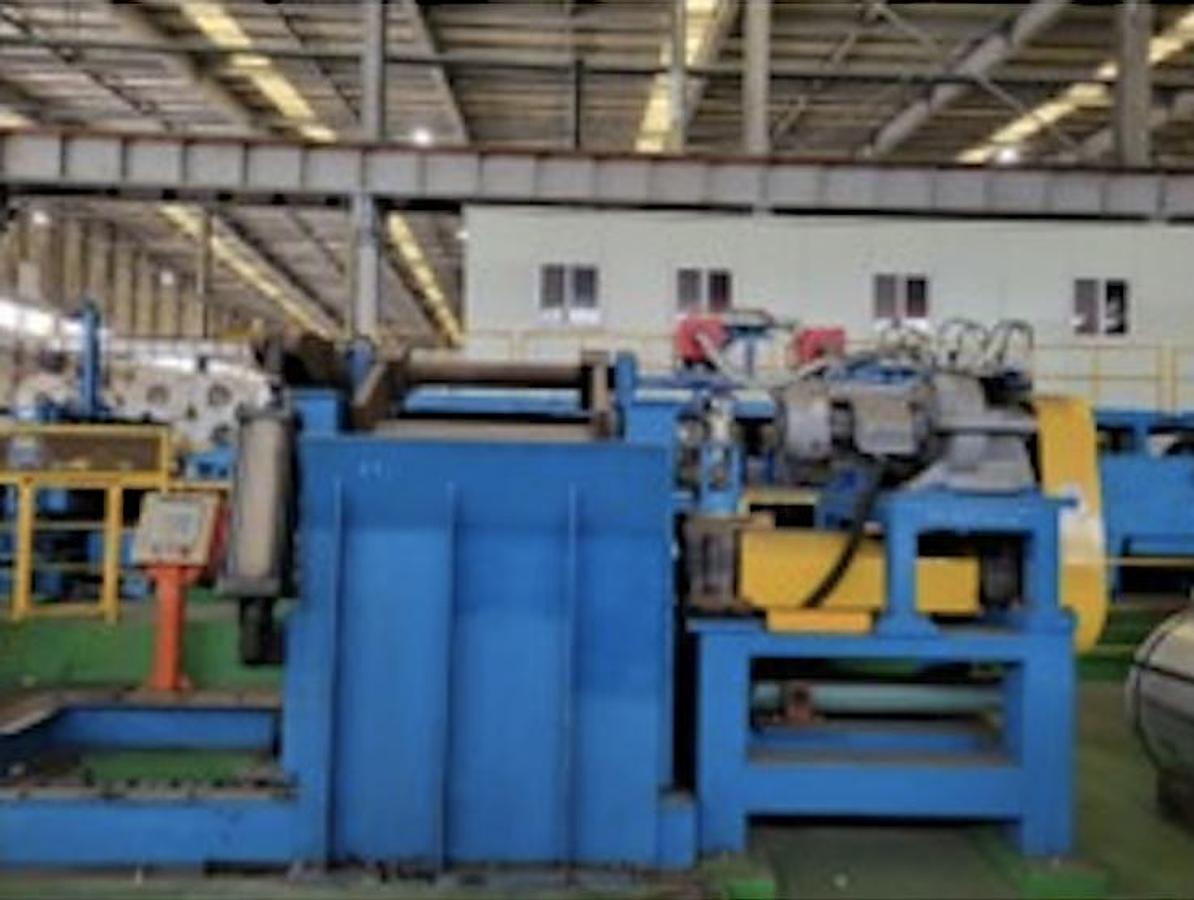

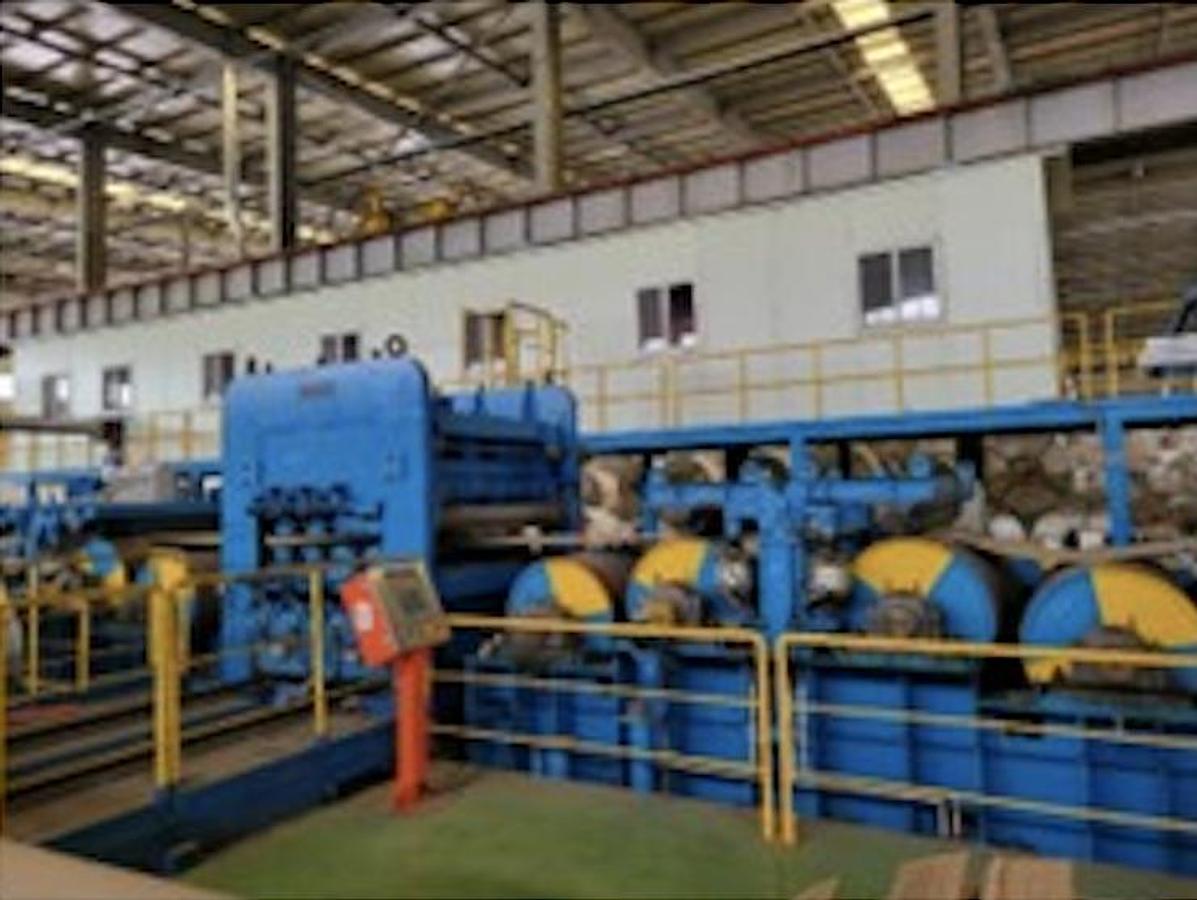

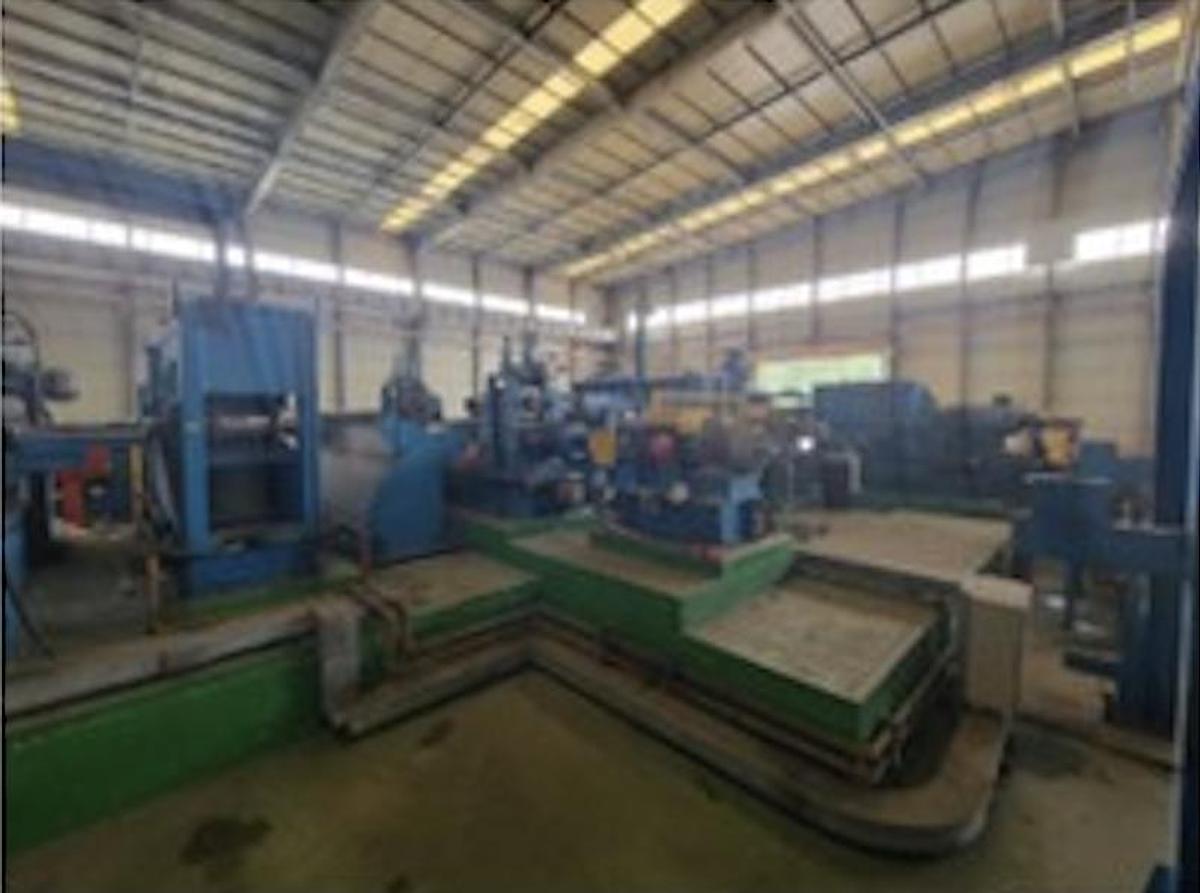

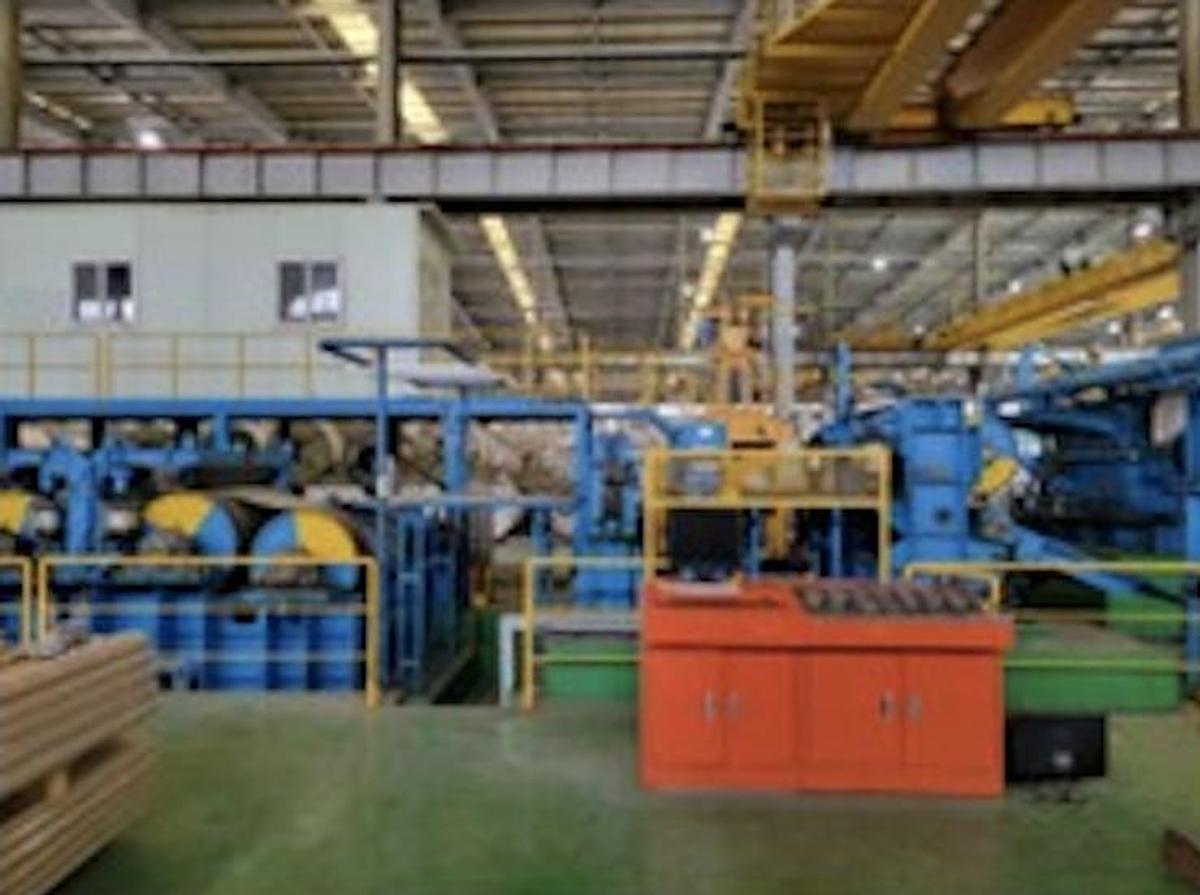

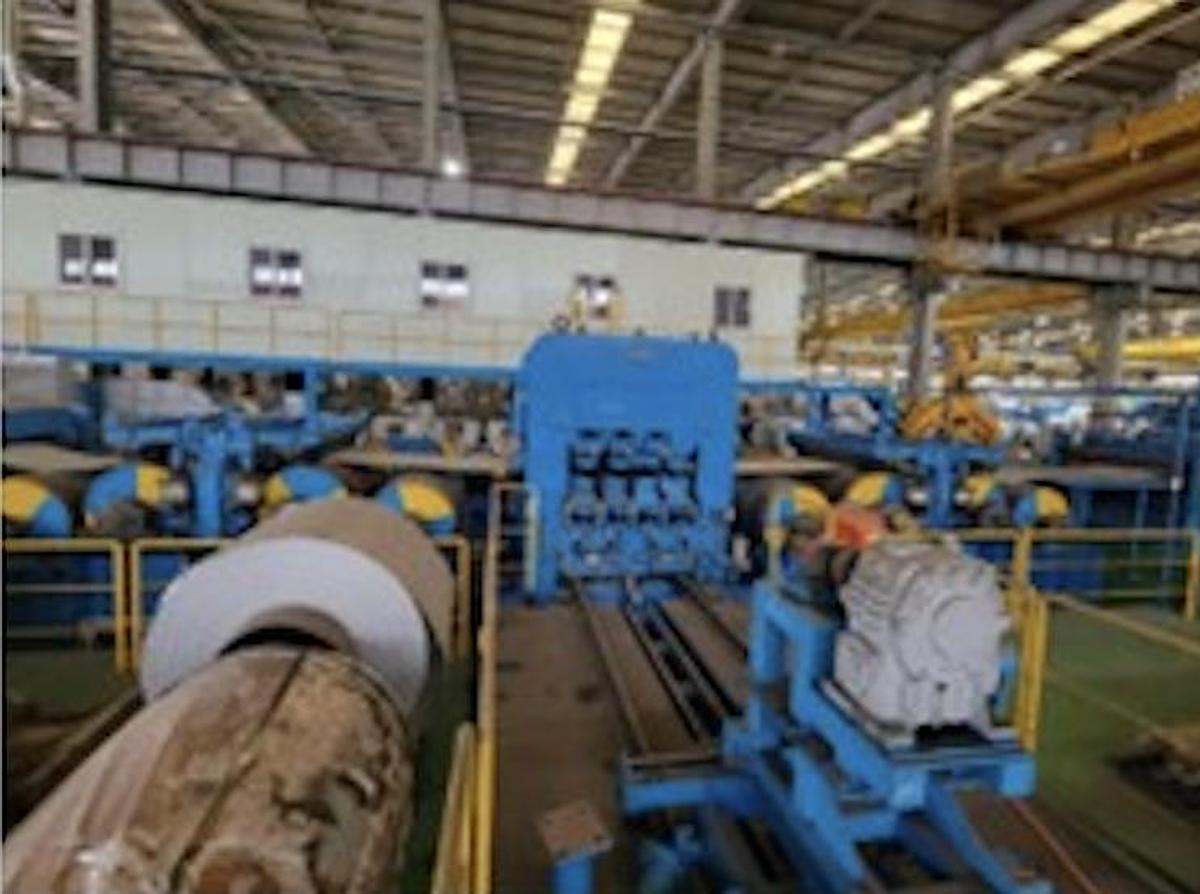

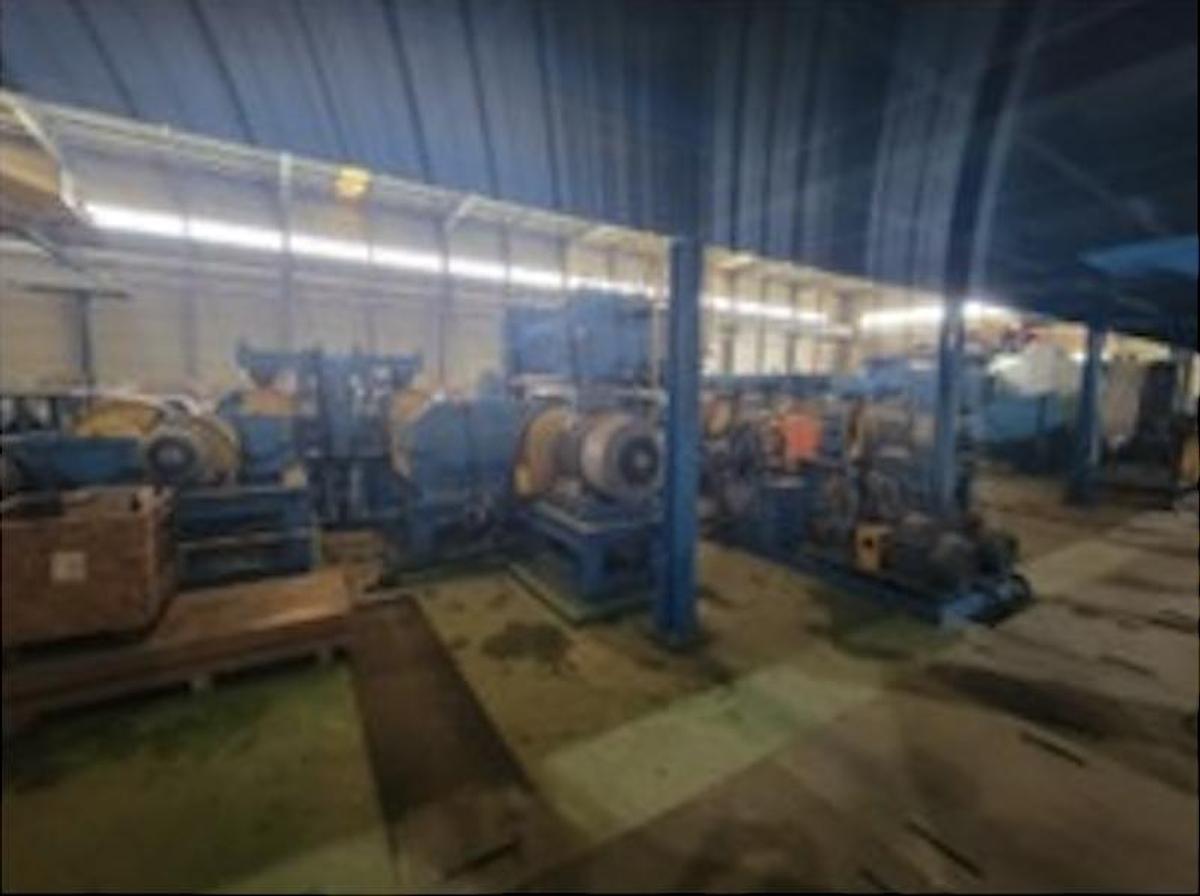

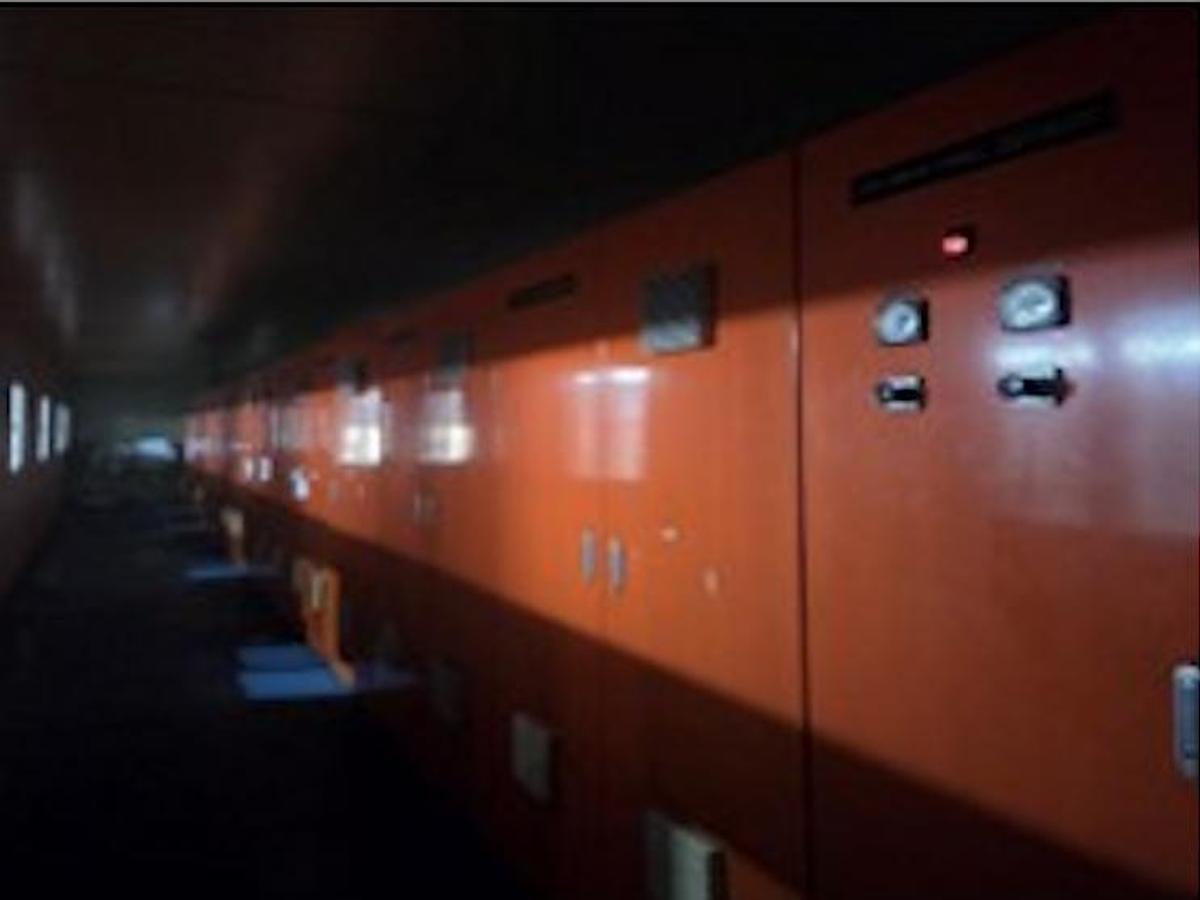

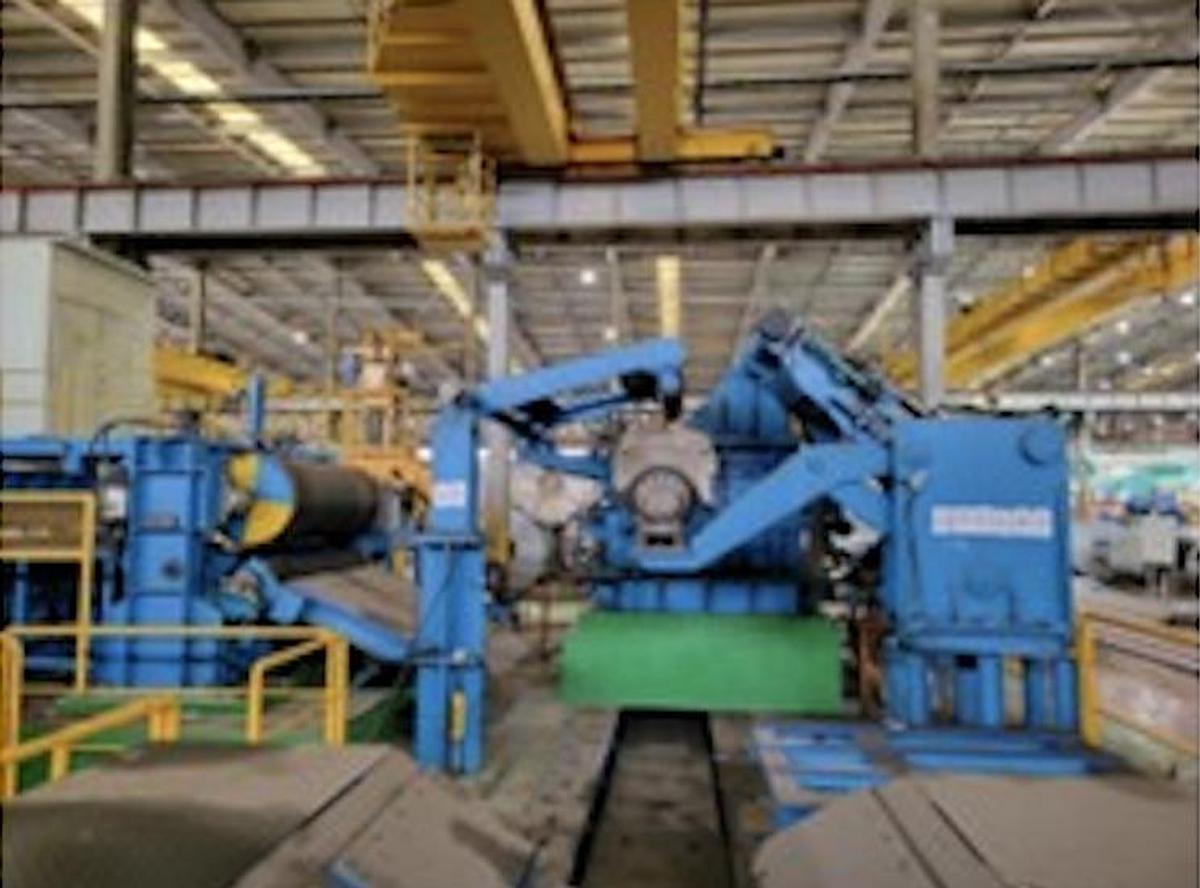

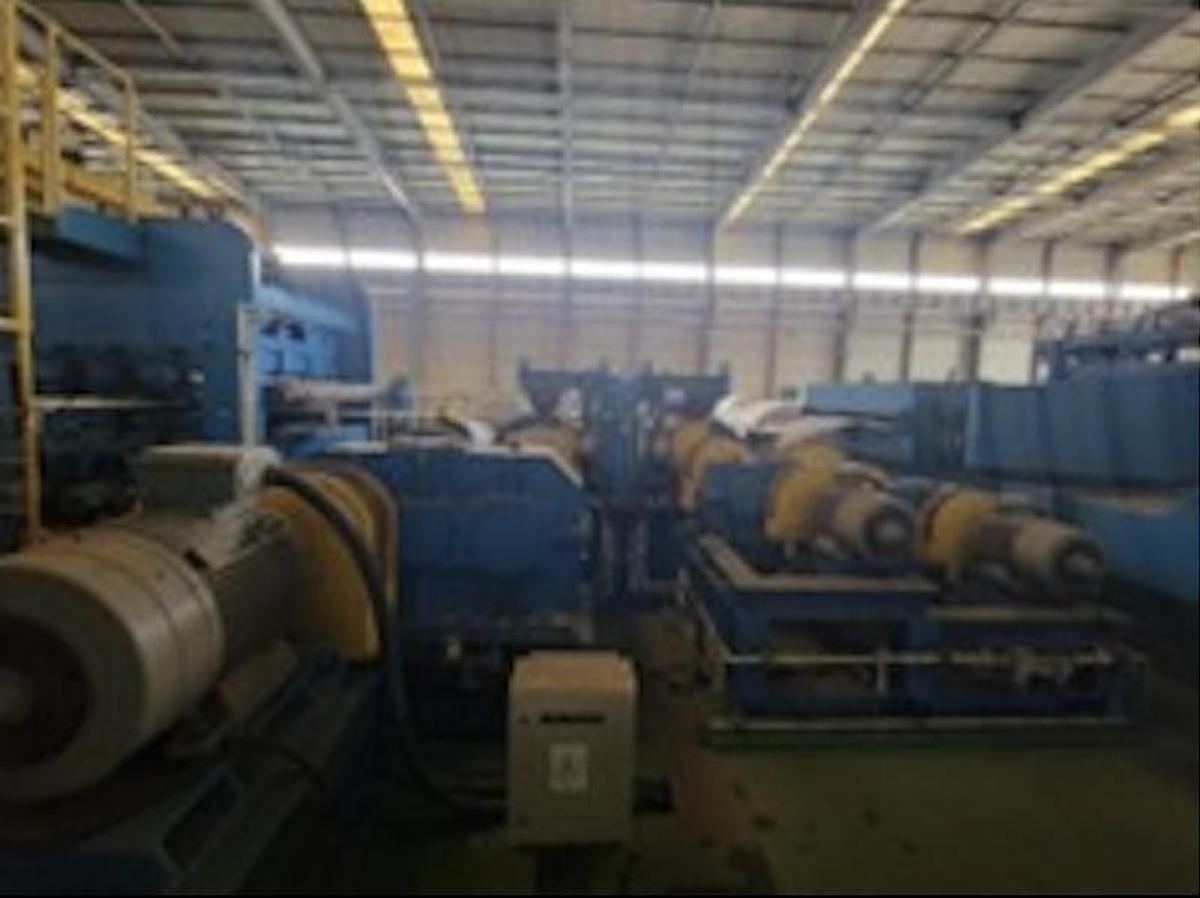

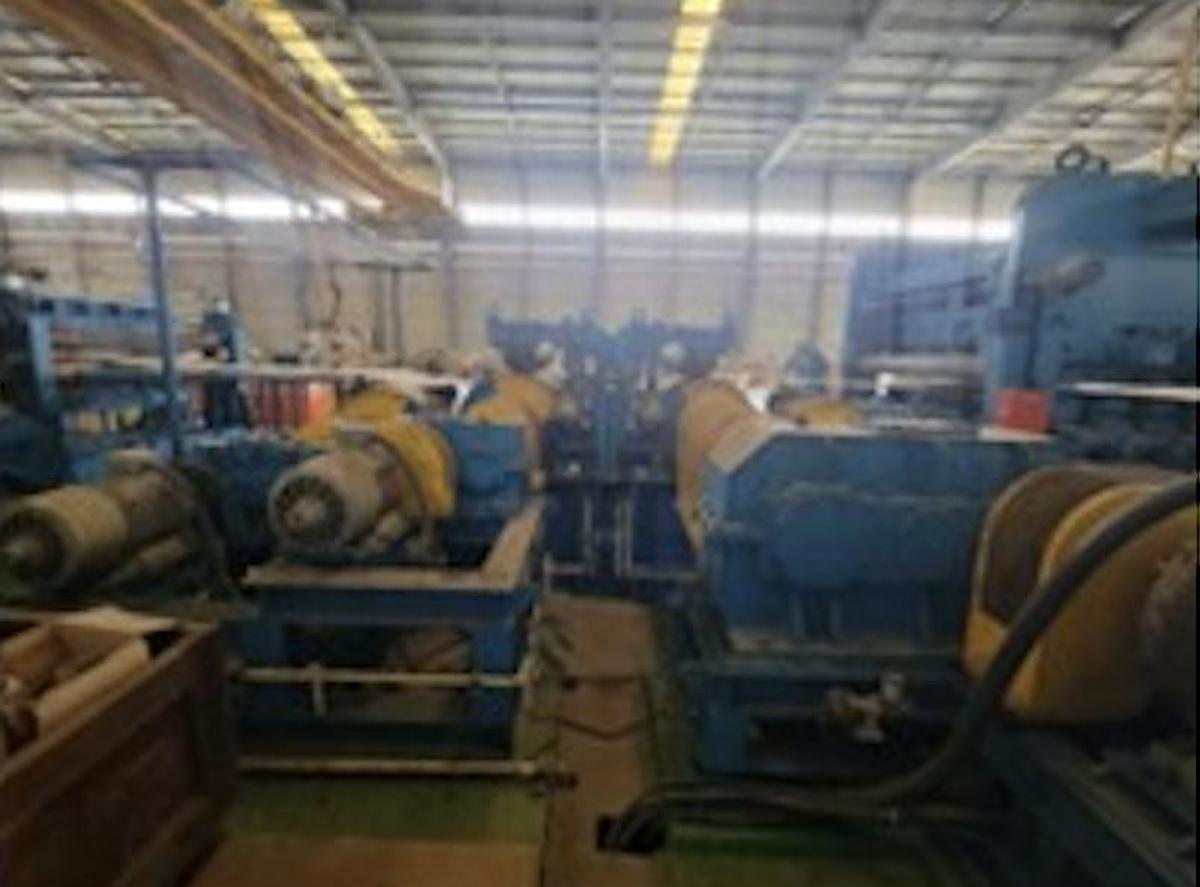

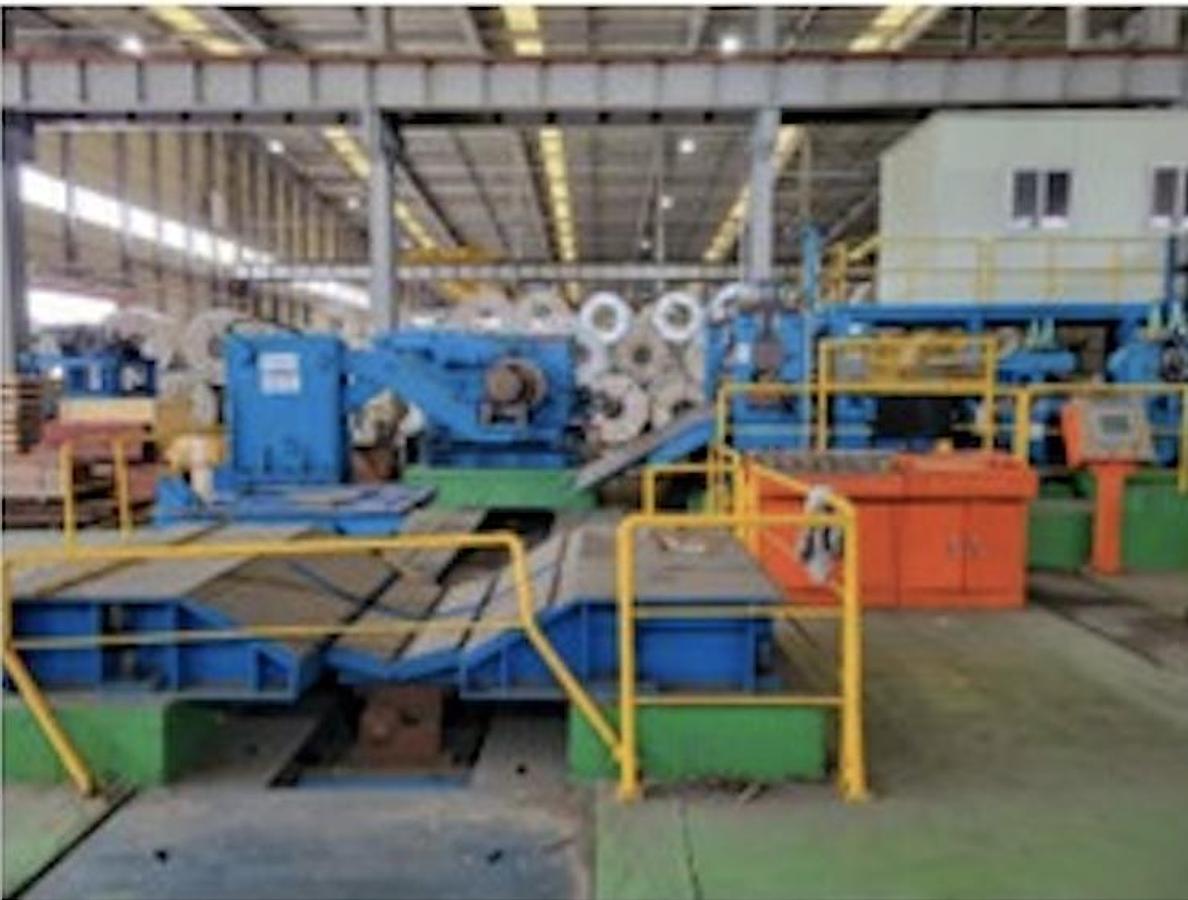

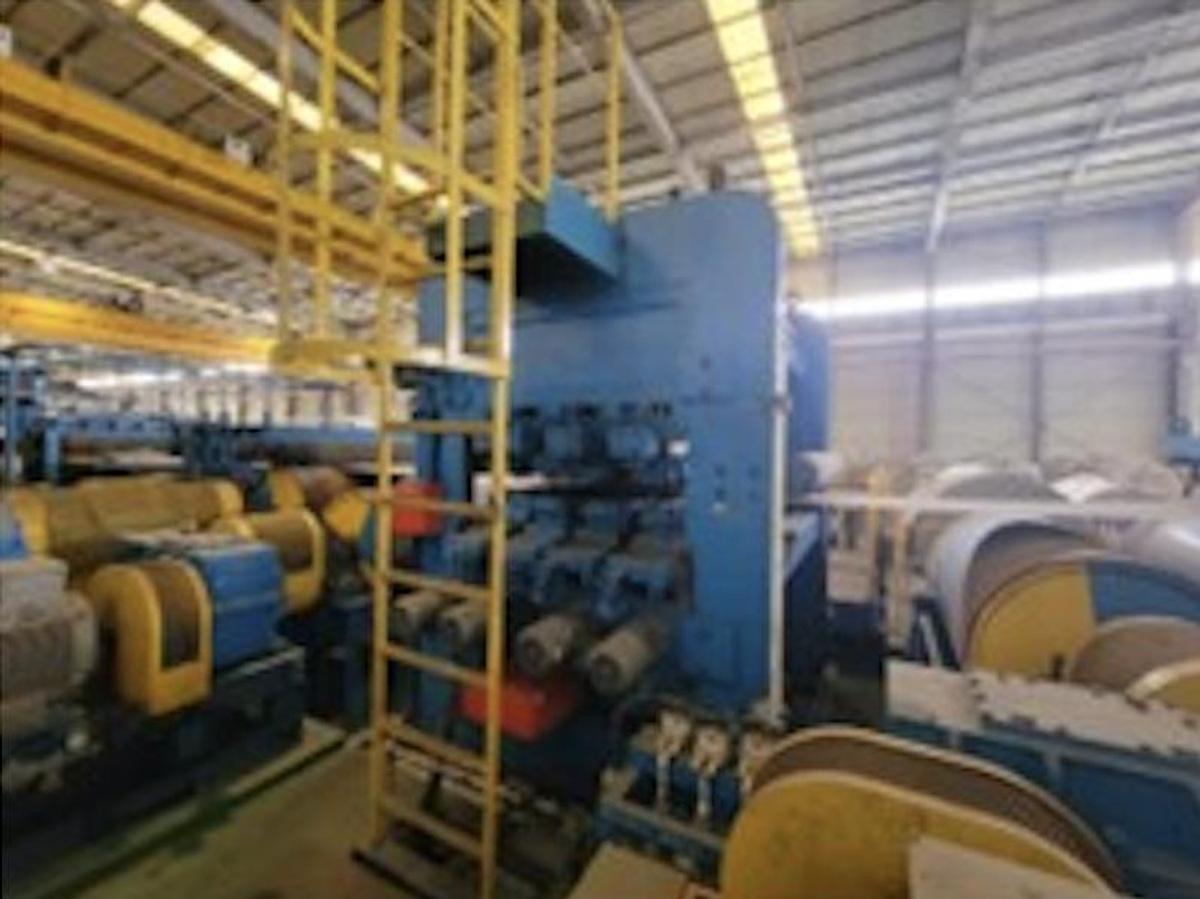

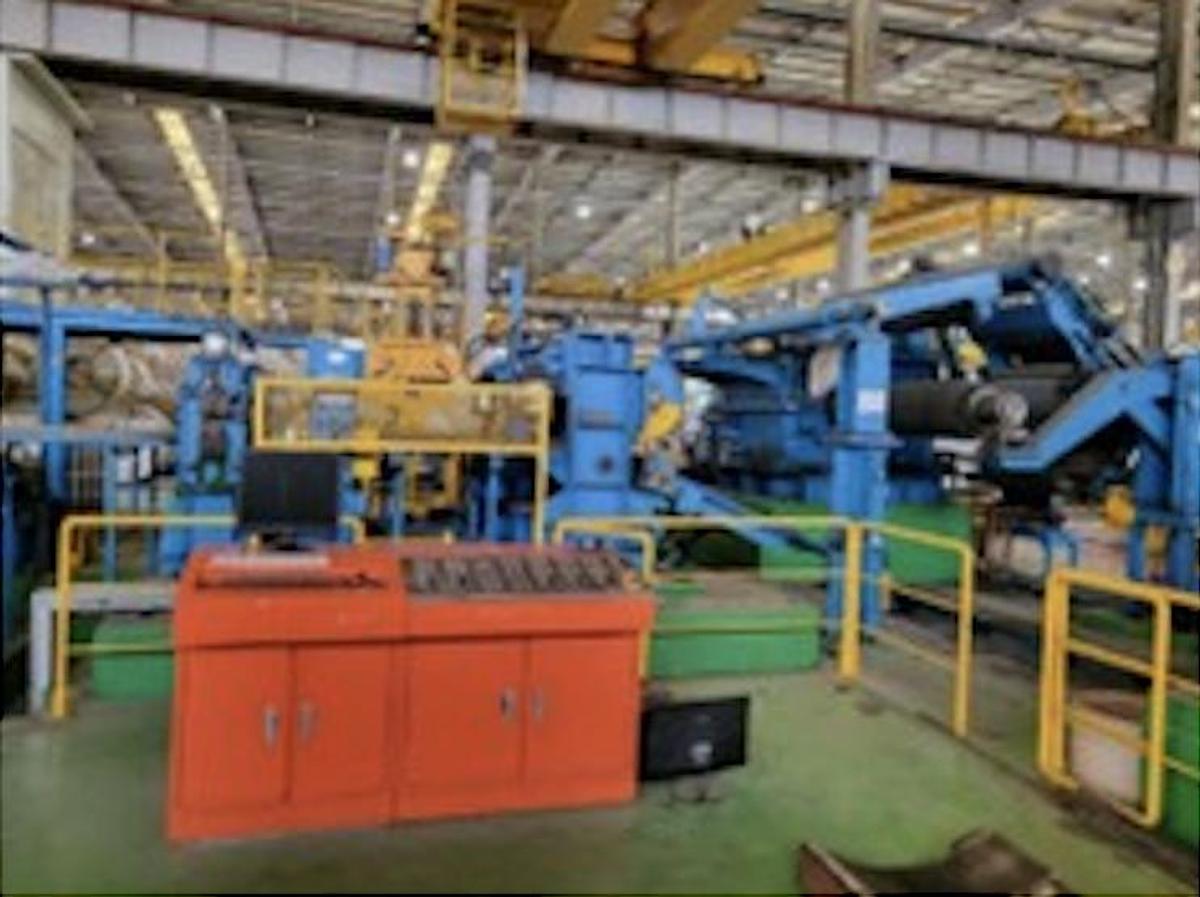

63” x 0.079” x 28,000 Lb Tension Leveling Line
Specifications
| Manufacturer | N/A |
| Condition | Used |
| Stock Number | VX-35880 |
| Maximum Tensile Strength | 74,000 PSI |
| Minimum Thickness | .008" (0.2 mm) |
| Maximum Thickness | .079" (2.0 mm) |
| Minimum Width | 27.6" (700 mm) |
| Maximum Width | 63.0" (1600 mm) |
| Maximum Coil Weight | 28,660 Lbs. (13,000 kg) |
| Coil ID | 20" / 24" (508 / 610 mm) |
| Minimum Coil OD | 31.5" (800 mm) |
| Maximum Coil OD | 78.7" (2000 mm) |
| Maximum Line Speed | 328 FPM (100 MPM) |
| Threading Speed | 33 FPM (10 MPM) |
| Coil ID During Threading | 16" / 20" (406 / 508 mm) |
Description
This used 63” x 0.079” x 28,000 Lb Tension Leveling Line is suitable for processing both aluminum (5XXXX, 6XXXX) and steel materials. It accommodates material thicknesses ranging from 0.2 mm to 2.0 mm, with a maximum tensile strength of 74,000 PSI. The line is designed to handle materials with a minimum width of 27.6 inches and a maximum width of 63 inches. Capable of supporting coils up to 28,660 lbs, it works with coil inside diameters of 20 inches and 24 inches, and can handle coil outside diameters from 31.5 inches to 78.7 inches. The leveling line operates at a maximum speed of 328 feet per minute, with a threading speed of 33 feet per minute. During threading, it can accommodate coil inside diameters of 16 inches and 20 inches. Whether you need to rectify material flatness or remove coil set, this tension leveling line offers reliable performance for industrial needs. Its flexibility in material and dimension handling makes it an efficient tool in various manufacturing processes.
