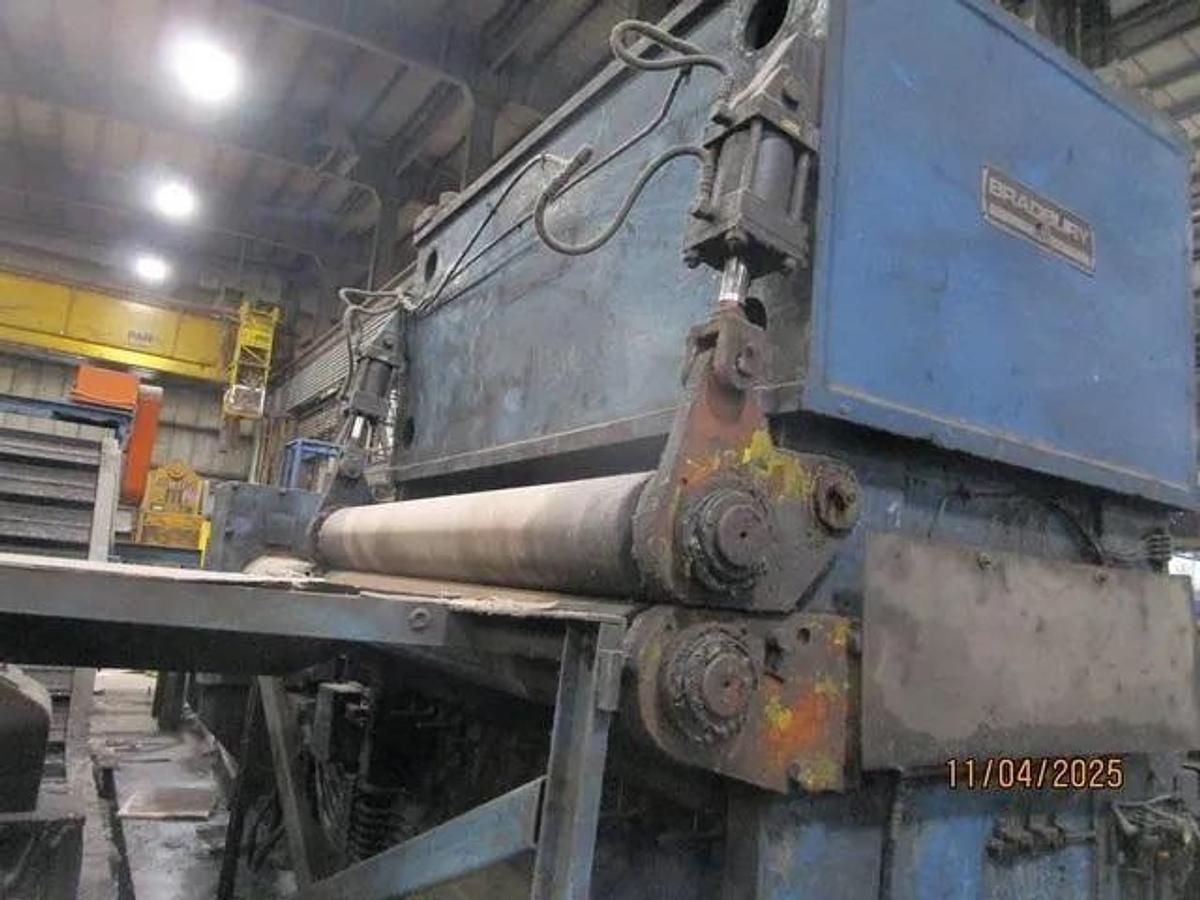

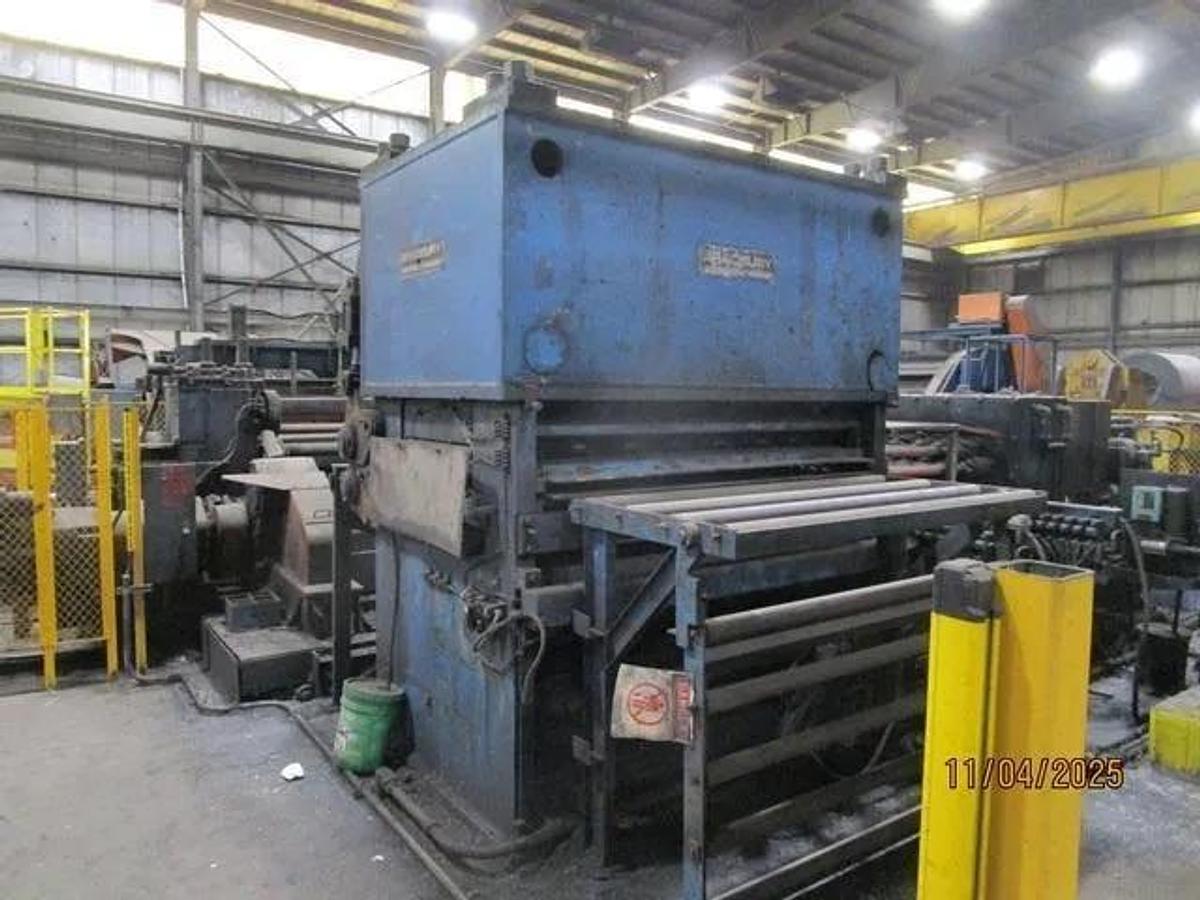

72" x .250" Bradbury Precision Back-Up Leveler
Specifications
| Manufacturer | Bradbury |
| Condition | Used |
| Stock Number | VX-35886 |
| Minimum Thickness | .057" |
| Maximum Thickness | .250" |
| Minimum Width | 24" |
| Maximum Width | 72" |
| Rating | 75,000 PSI |
| Number Of Work Rolls | 17 |
| Work Roll Diameter | 3.5" |
| Back-Up Flights | 7 Top / 7 Bottom |
| Back-Up Adjustment | Hydraulic |
| Entry Pinch Roll Diameter | 10" |
| Drive | 400 HP DC |
| Controls | Touchscreen |
| Spare Leveler Rolls | Included |
Description
The 72" x .250" Bradbury Precision Back-Up Leveler is a reliable piece of used equipment noted for its efficiency in handling both thin and thick material ranges with a minimum thickness of .057" and a maximum of .250". It accommodates sheet widths from 24" to 72", suited for a variety of industrial applications. This model features a robust rating of 75,000 PSI, ensuring performance for demanding tasks. Equipped with 17 work rolls each with a 3.5" diameter, it maintains precision and consistency in operations. The hydraulic adjustment for the seven top and seven bottom back-up flights enhances its versatility. Supporting the material feed, it includes a 10" entry pinch roll diameter and a powerful 400 HP DC drive, with digital control managed via a Parker system and an intuitive touchscreen interface. Additionally, spare leveler rolls are provided, contributing to reduced downtime and maintenance costs over its lifecycle. This leveler combines performance with user-friendly operation, making it a solid choice for facilities seeking dependable leveling capabilities.
