6.5" x .280" OTO Mills Tube Mill Line

or
Call (734) 854-8700

Specifications

ManufacturerOTO
Year2003
ConditionUsed
Stock NumberVX-35893
Minimum Strip Width7.8"
Maximum Strip Width20.9"
Minimum Strip Thickness.079"
Maximum Strip Thickness.280"
Minimum Tube Diameter2.5"
Maximum Tube Diameter6.6"
Minimum Square Tube Size2"
Maximum Square Tube Size5.1"
Minimum Rectangular Tube Size2.4" x 1.6"
Maximum Rectangular Tube Size6.3" x 3.9"
Maximum Line Speed295 FPM

Description

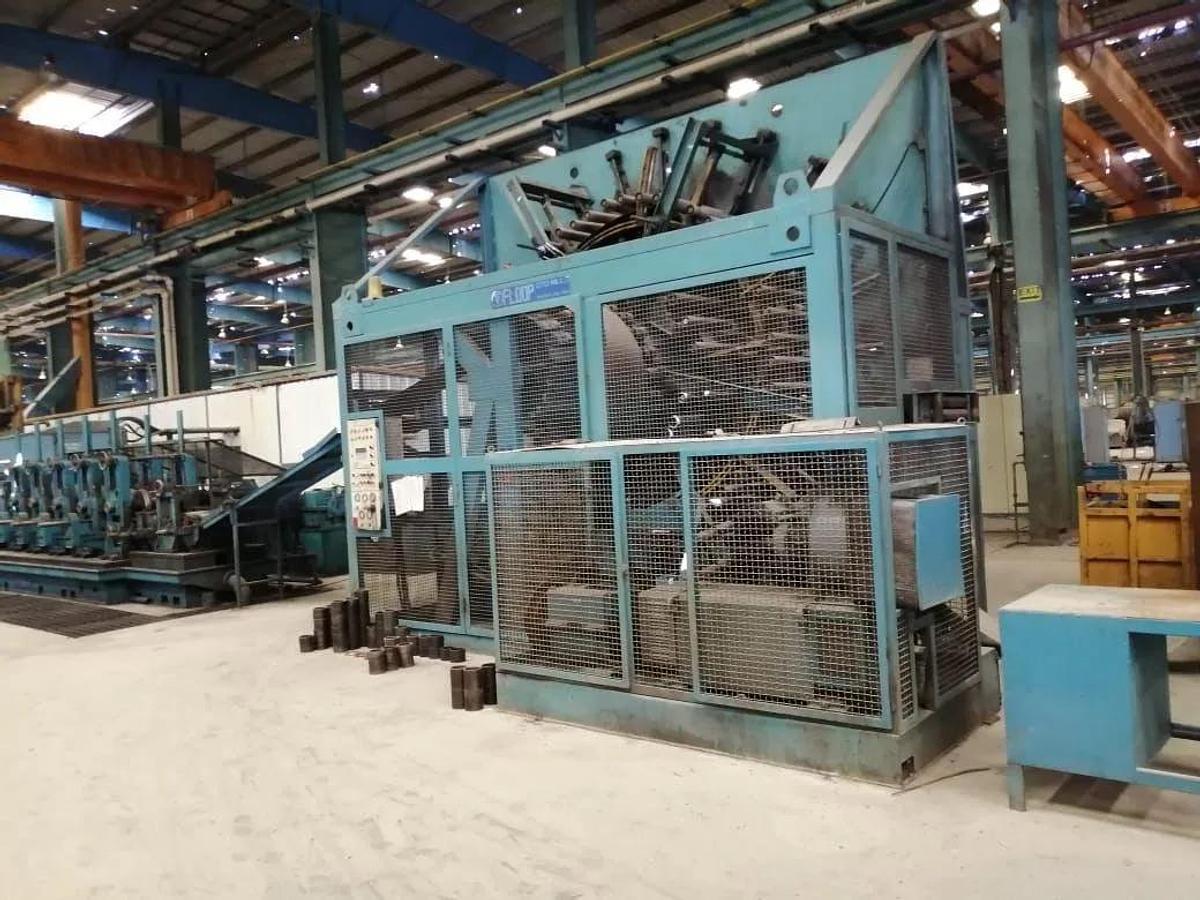

This used 6.5" x .280" OTO Mills Tube Mill Line is ideal for producing a wide range of tube sizes, offering versatility and performance. It accommodates strip widths from 7.8" to 20.9" and strip thicknesses between 0.079" and 0.280". The line supports tube diameters ranging from 2.5" to 6.6" and square tube sizes from 2" to 5.1". Rectangular tubes can be processed with dimensions from 2.4" x 1.6" to 6.3" x 3.9". The maximum line speed is 295 feet per minute, ensuring efficient production rates. The equipment includes essential components such as a 14,000 lb. double-end uncoiler, pinch rolls and straightener, a Thermatool solid state welder, and a cooling section with a variety of forming and sizing stands. The system also features a TCC flying cutoff with a 31.5" blade and associated drive motors. It comes with a robust packaging line manufactured by Mair, capable of handling minimum and maximum tube outer diameters of 2.4" and 6.6", respectively. The dual-head end facer and beveler caters to pipe diameters between 2" and 6". In addition, the line includes a dual-head hydrostatic tester with a maximum test pressure of 4,061 PSI, ensuring quality performance and reliability of your tubes. A washing station and various tooling options for round, square, and rectangular configurations are included, with a detailed tooling list available upon request.

Includes

Entry Equipment:

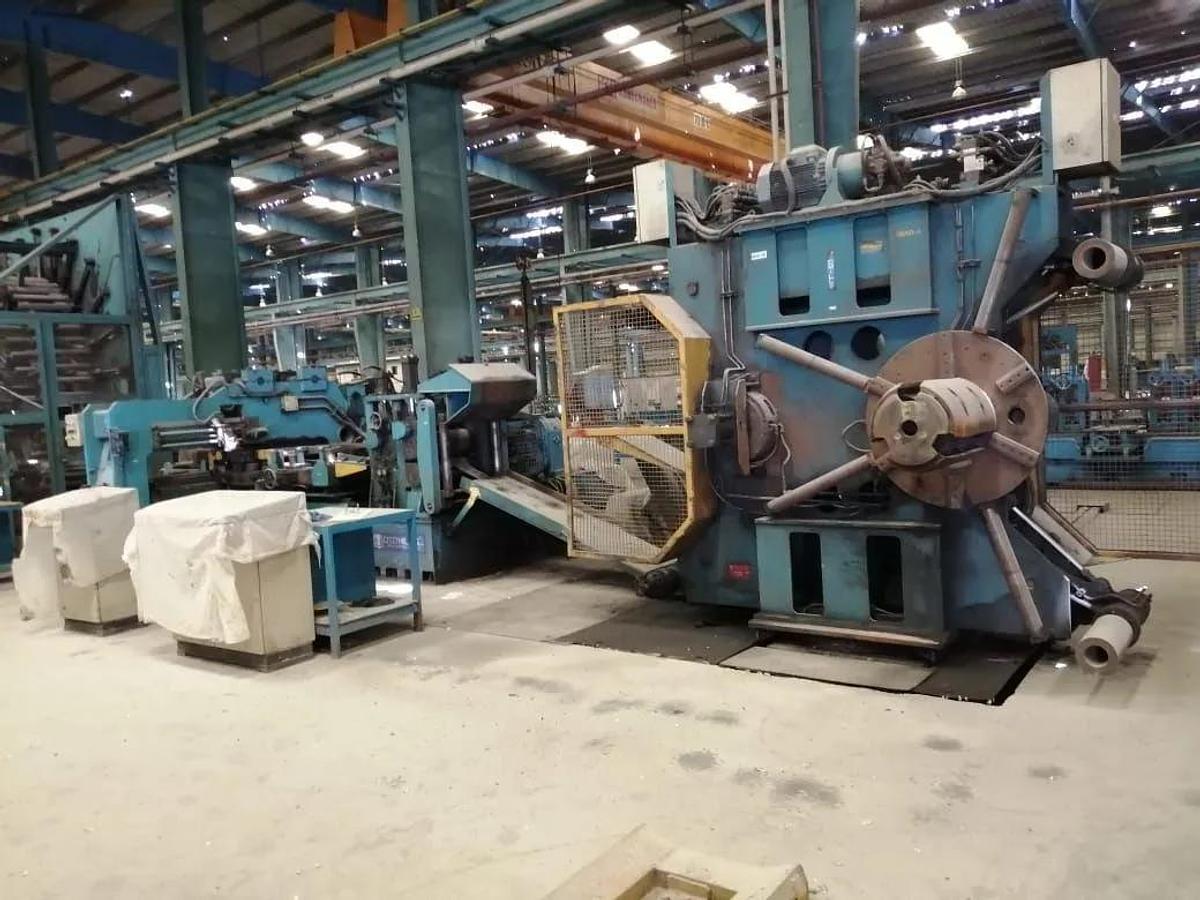

14,000 Lb. Double-End Uncoiler
Pinch Rolls and Straightener
Strip Joiner: Model GG 568
Vertical Loop: FR 465 H

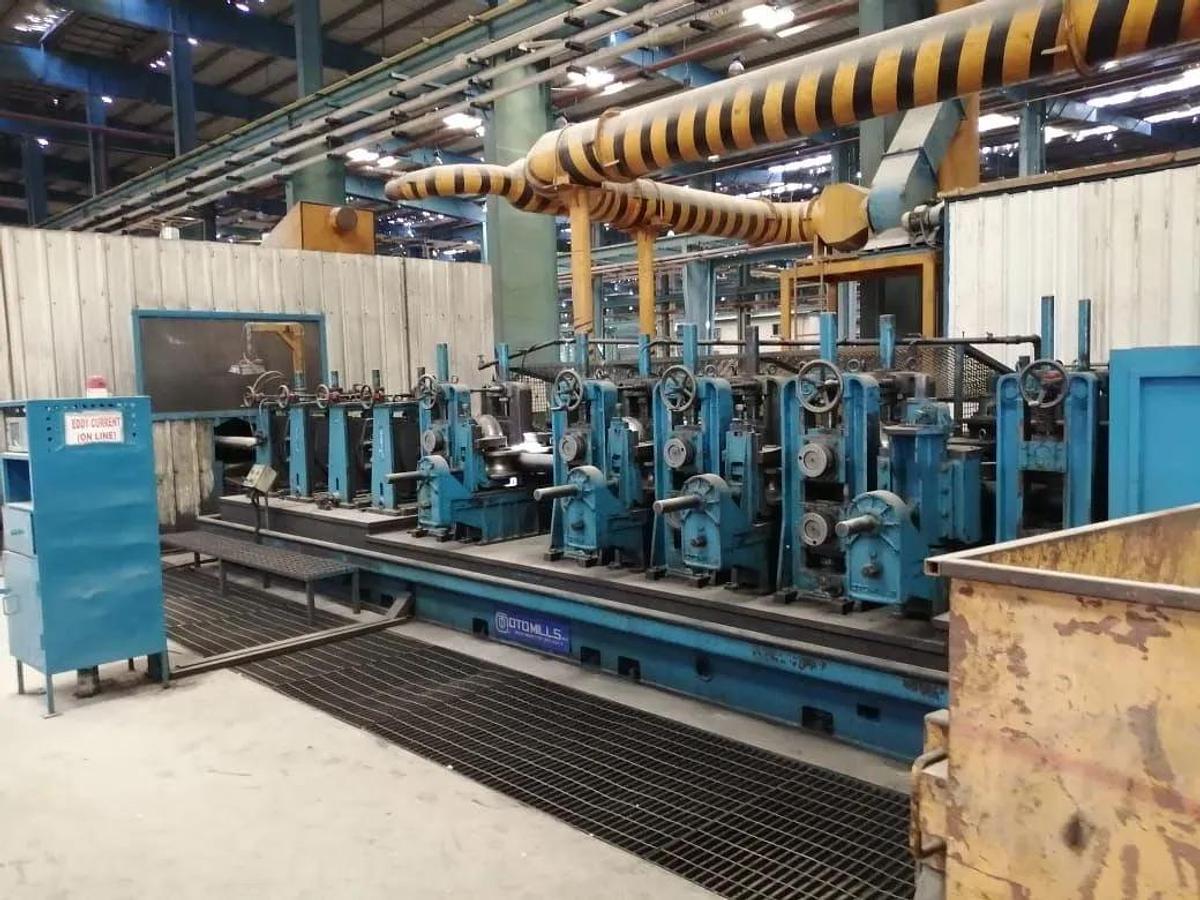

Forming Mill:
Entry Edge Guides
5-Roll Flattener
(2) Sets of Edge Guides
(5) Forming Stands
(4) Side Roll Stands
(2) Side Roll Cluster Stands
(3) Fin Pass Stands
(2) Side Roll Stands
Forming Mill Main Drive: 212 HP
Fin Pass Drive: 212 HP
Pinch Roll Drive: 261 HP

Welder:
Manufacturer: Thermatool
Type: Solid State Welder
Series: CFI
3/4-Roll Welding Box
Double O.D. Scarfing
Welder Power: 671 HP

Cooling Section

Sizing Mill:
(4) Sizing Stands
(4) Side Roll Stands
Turks Heads
Sizing Mill Drive: 212 HP

Flying Cutoff:
Manufacturer: TCC
Model: 120/168
Type: Friction Saw
Blade Diameter: 31.5"
Saw Motor: 147 HP
Accelerator Motor: 101 HP

Run-Out Table

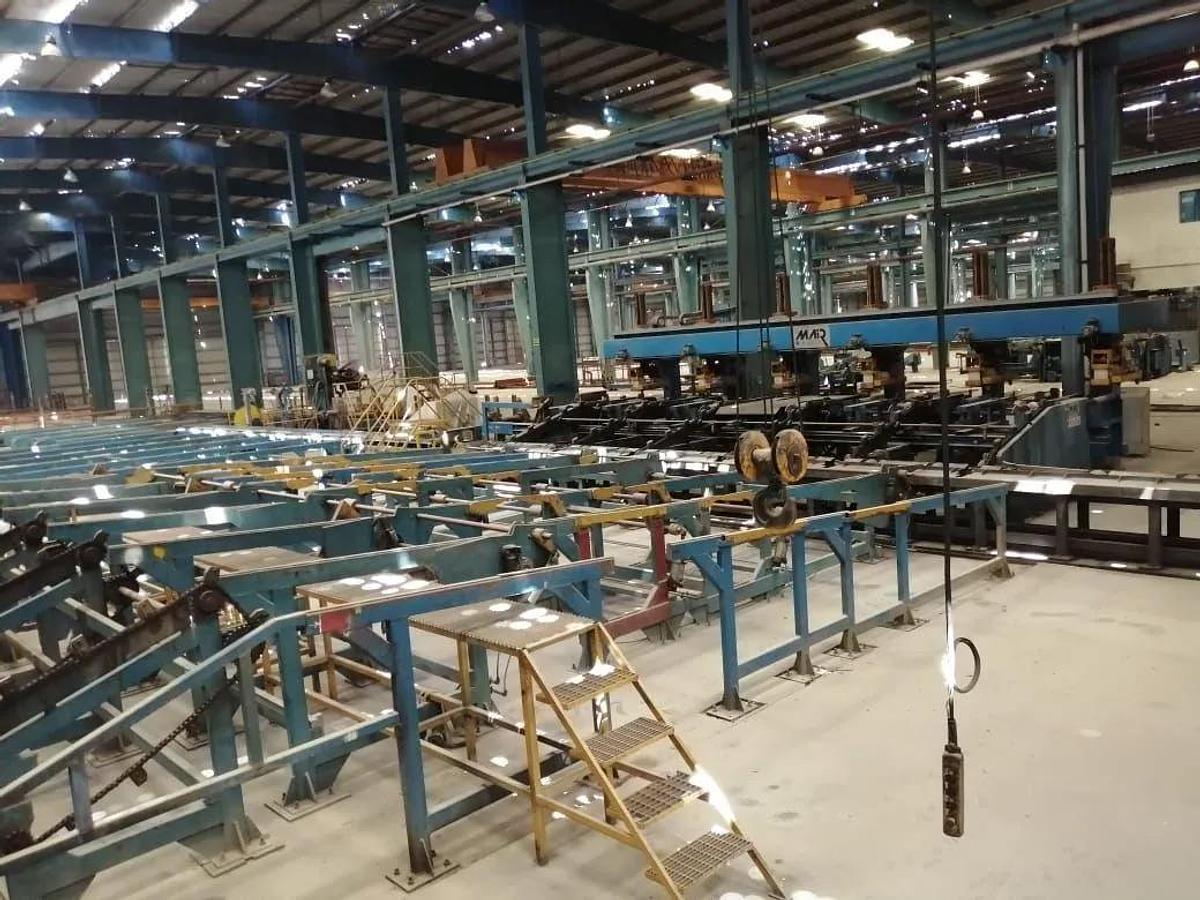

Packaging Line:
Manufacturer: Mair
Model: MPS RH200/D/6/SL
Minimum Tube O.D.: 2.4"
Maximum Tube O.D.: 6.6"
Minimum Cut Length: 13.1'
Maximum Cut Length: 42.7'
Minimum Square / Rectangular Bundle Size: 9.8" x 7.9"
Maximum Square / Rectangular Bundle Size: 29.5" x 23.6"
Minimum Hexagon Bundle Size: 11.8" x 10.2"
Maximum Hexagon Bundle Size: 27.6" x 24"
Maximum Bundle Weight: 8,818 Lbs.

End Finishing:
Dual-Head End Facer and Beveler
Minimum Pipe Diameter: 2"
Maximum Pipe Diameter: 6"
Minimum Pipe Length: 19.7'
Maximum Pipe Length: 39.4'
Outside Bevel: 30 Degrees
Inside Bevel: 45 Degrees

Hydrostatic Tester:
Type: Dual-Head Hydrostatic Tester
Maximum Test Pressure: 4,061 PSI
Minimum Pipe Diameter: 2.4"
Maximum Pipe Diameter: 6.6"
Minimum Pipe Length: 18'
Maximum Pipe Length: 42.7'
Washing Station: Included

Tooling:
Round, Square, and Rectangular Tooling
Tooling List Available Upon Request
