8.5" x .393" OTO Mills Tube Mill Line
Specifications
| Manufacturer | OTO |
| Condition | Used |
| Stock Number | VX-35894 |
| Minimum Strip Width | 11" |
| Maximum Strip Width | 27.2" |
| Minimum Strip Thickness | .098" |
| Maximum Strip Thickness | .393" |
| Minimum Tube Diameter | 3.5" |
| Maximum Tube Diameter | 8.6" |
| Maximum Production Speed | 262 FPM |
Description
This used 8.5" x .393" OTO Mills Tube Mill Line is an efficient solution for manufacturing various tube sizes, with capability to handle strip widths from 11" to 27.2" and thicknesses from .098" to .393". It accommodates tube diameters ranging from 3.5" to 8.6" and can produce at a maximum speed of 262 feet per minute. The line is equipped with comprehensive entry equipment, including a coil storage rack and a single uncoiler with a 33,069 lb. capacity. The forming section consists of multiple forming and side roll stands, supported by a Thermatool solid-state welder delivering 805 HP. Essential seam annealing capabilities are provided by two Thermatool seam annealers, each rated at 671 HP. For finishing, it features a dual-blade cold saw by TCC with a blade diameter of 24.4", powered by a 50 HP saw motor. The run-out table and packaging line ensure a smooth operation workflow. Additional tooling for round, square, and rectangular profiles is available, with a complete tooling list upon request. This tube mill line offers robust performance for diverse industrial needs.
Includes

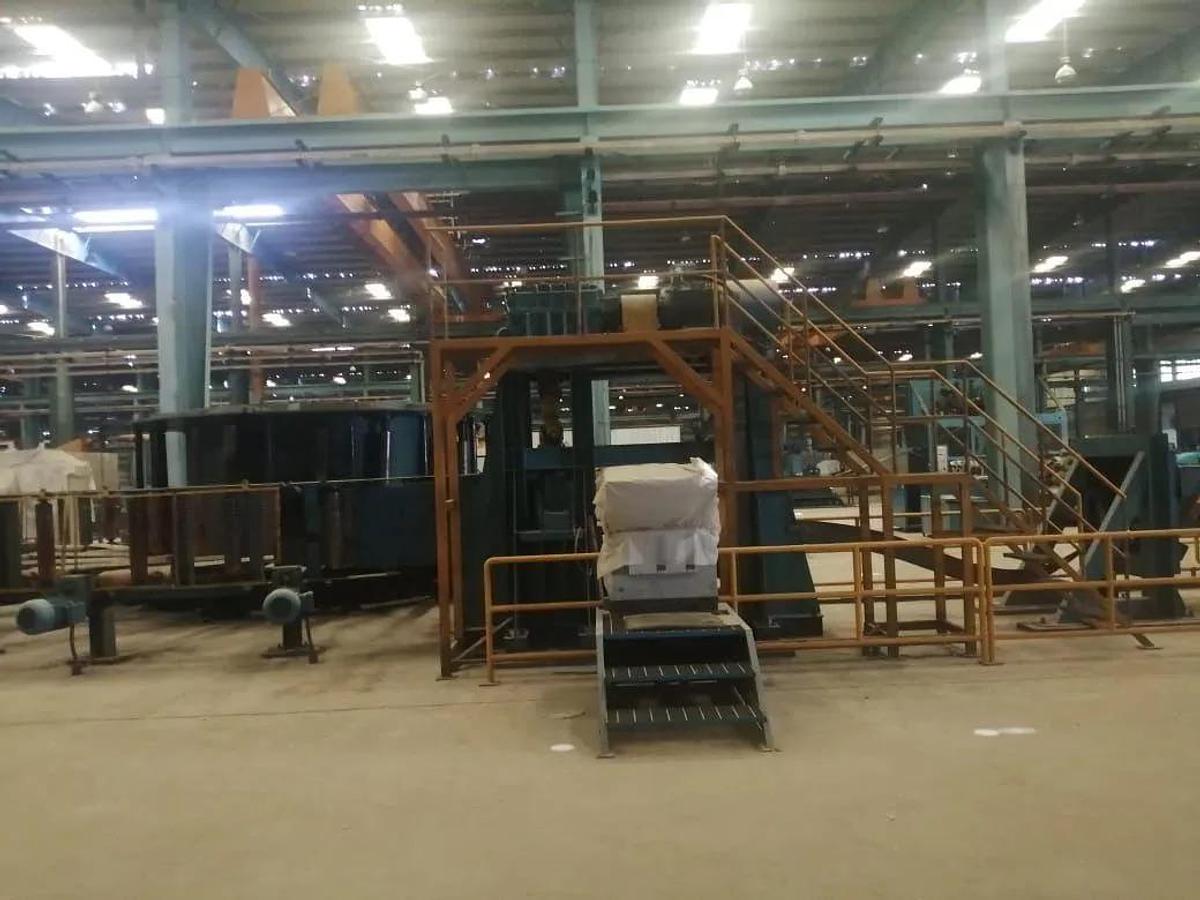

Entry Equipment:
Coil Storage Rack
Coil Loading Carriage
Single Uncoiler: 33,069 Lb. Capacity
Coil Holding Rolls
Peeler Hold Down Roll
Bulkhead With (2) Tilting Rolls
Pinch Rolls With 5-Roll Straightener
Edge Guides
Pre-Joining Shear
Strip Joiner:
Model: GG 8010
Hydraulic Shear With Lateral Guides

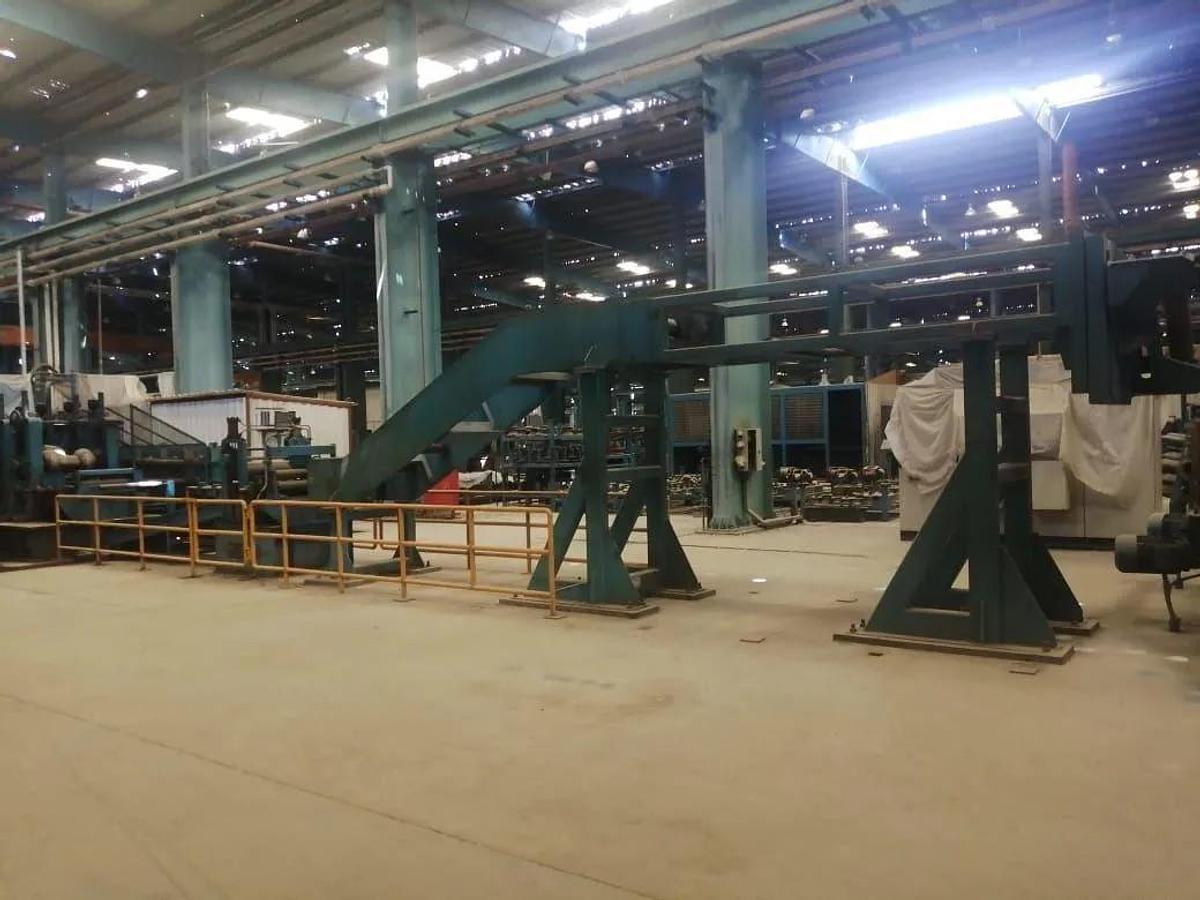

Accumulator:
Manufacturer: SMS Meer / OTO Mills
Type: Horizontal Accumulator
Model: SPSP 220
Capacity: 984 Ft.
Fill Speed: 656 FPM
Drive: 119 HP
Entry Section:
Pinch Rolls
Edge Guides
Entry Strip Station

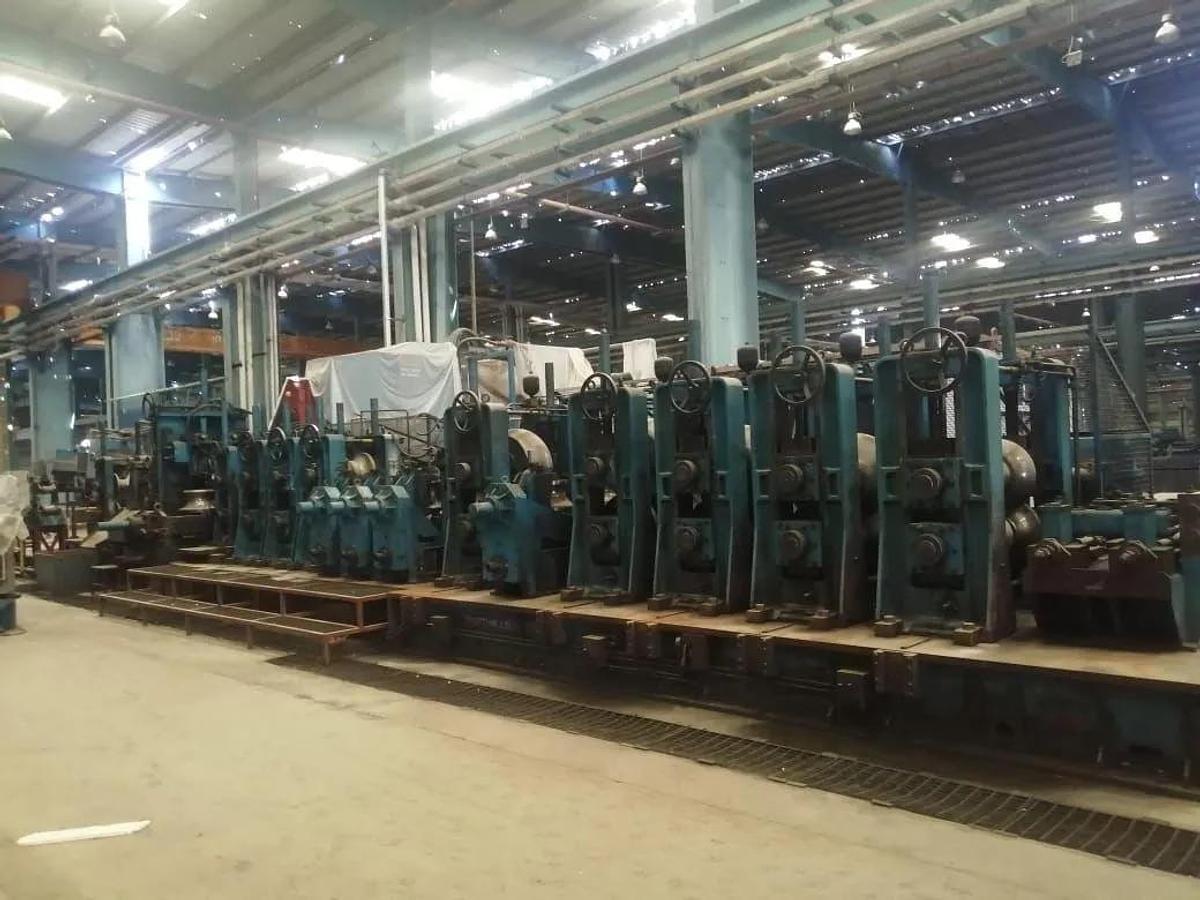

Forming Mill:
Entry Pre-Forming Stand
(2) Sets of Edge Guides
(4) Forming Stands
(1) Side Roll Stand
(1) Additional Forming Stand
(3) Side Roll Cluster Stands
(3) Fin Pass Stands
2-Roll Weld Box
Seam Guide Rolls
I.D. Scarfing
Double O.D. Scarfing
Exit Pull-Out Stand
Welder:
Manufacturer: Thermatool
Type: Solid State Welder
Series: CFI
Power: 805 HP
Frequency: 300 kHz
Seam Annealing:
Manufacturer: Thermatool
Quantity: (2) Seam Annealers
Power: 671 HP Each
Voltage: 460 V
Frequency: 50/60 Hz
Annealing Frequency: 3 kHz
Cooling Section

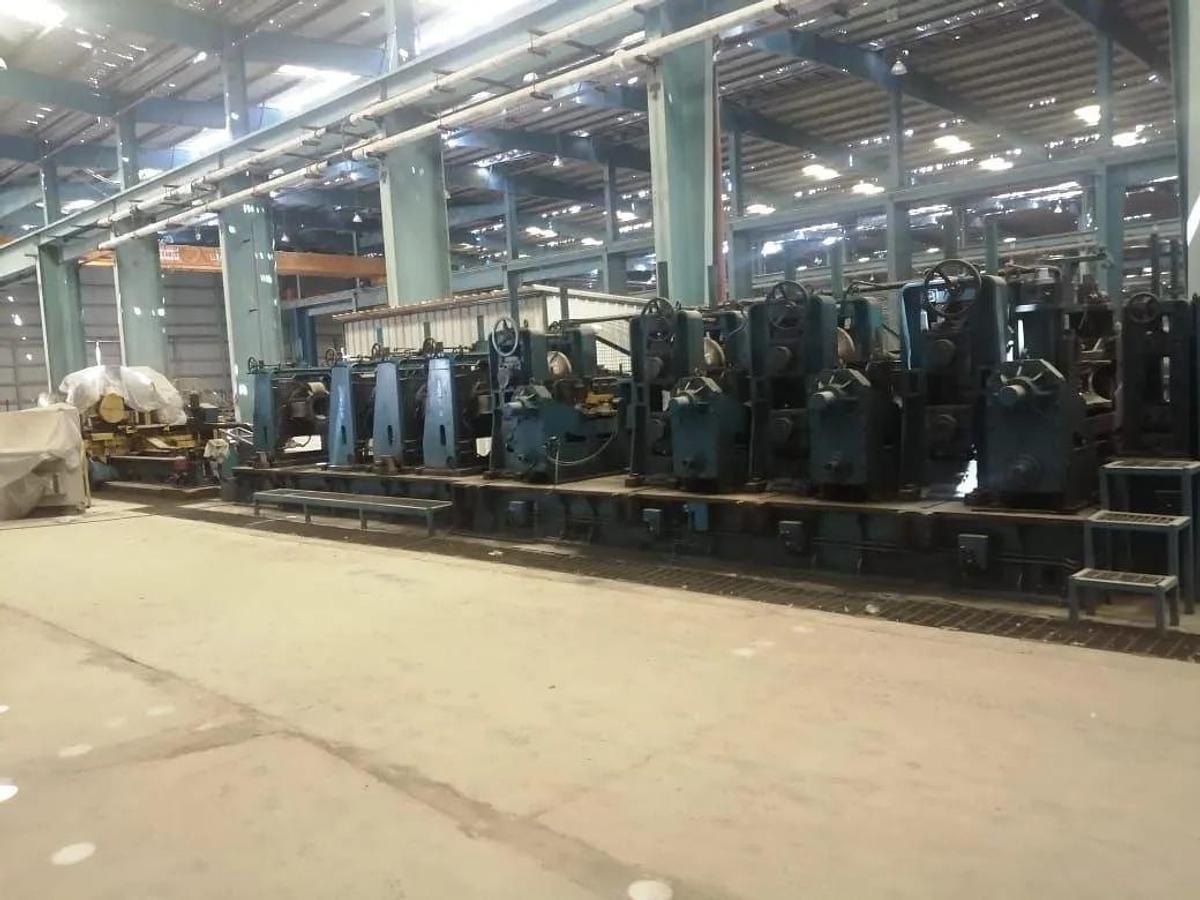

Sizing Mill:
(4) Sizing Stands
(4) Side Roll Stands
(3) Turks Heads
(1) Straightening Stand
Flying Cutoff:
Type: Dual-Blade Cold Saw
Manufacturer: TCC
Model: 80 Twin Electric Double Cold Saw
Blade Diameter: 24.4"
Saw Motor: 50 HP
Accelerator Motor: 139 HP

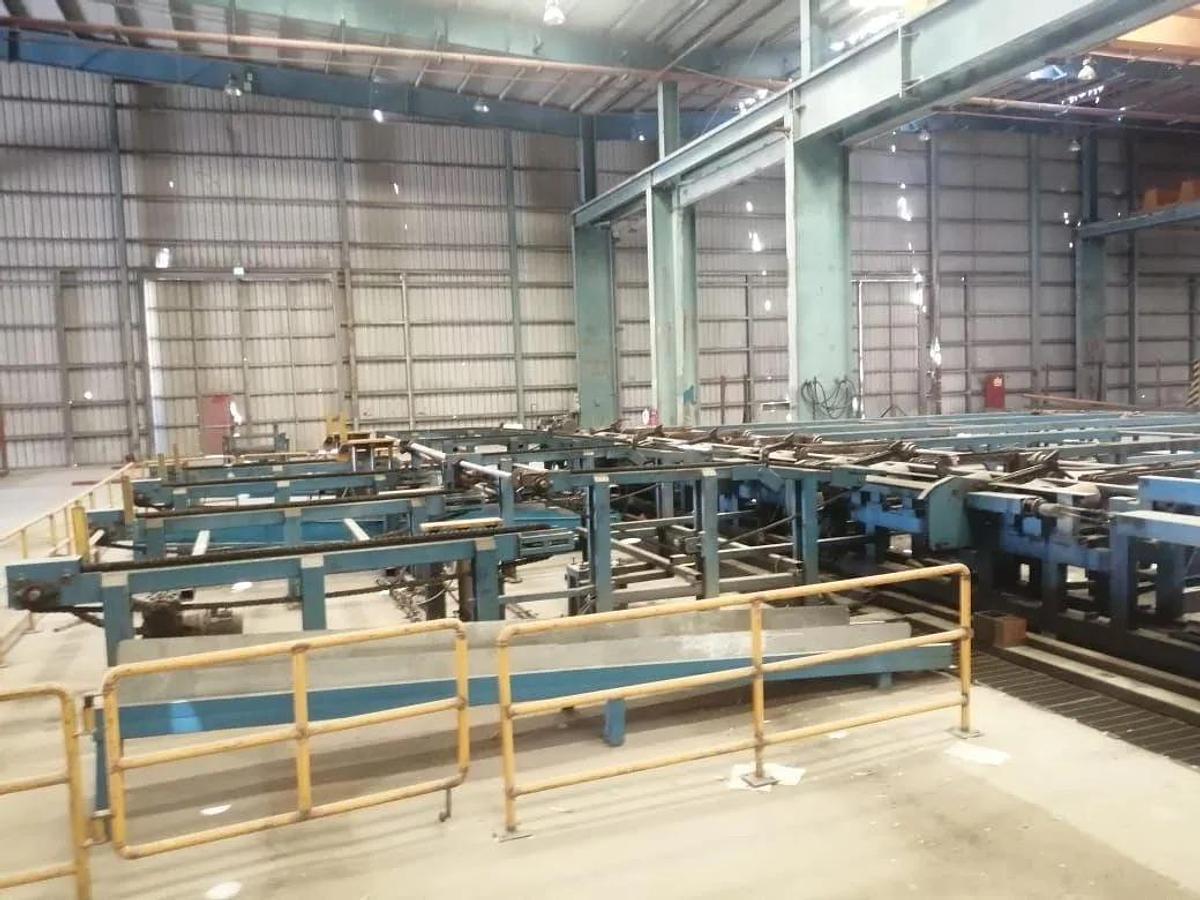

Run-Out Table
Packaging Line
Tooling:
Round, Square, and Rectangular Tooling
Tooling List Available Upon Request
