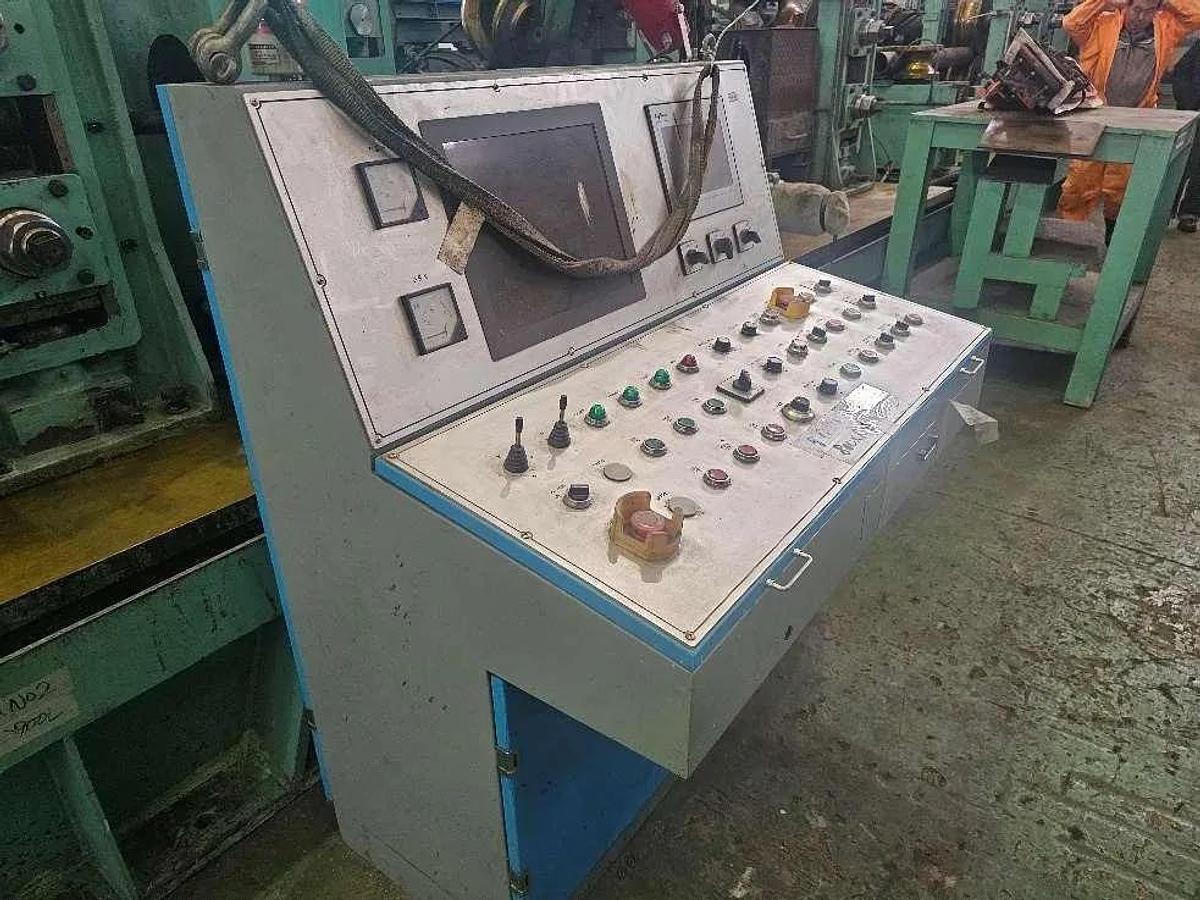

6.63” (168mm) x 0.28” (7.0mm) DMC Tube Mill Line

Specifications:

Manufacturer: DMC

Tube Outer Diameter Max: 168.3 mm (6.626”)

Tube Outer Diameter Min: 50.8 mm (2.000”)

Wall Thickness Max: 7.0 mm (0.276”)

Wall Thickness Min: 1.4 mm (0.055”)

Tube Cut Length Max: 12,000 mm (472.44”)

Tube Cut Length Min: 6,000 mm (236.22”)

Line Speed Max: 60 m/min (196.85 FPM)

Line Speed Min: 20 m/min (65.62 FPM)

Complete Line With:

Coil Lifting Car

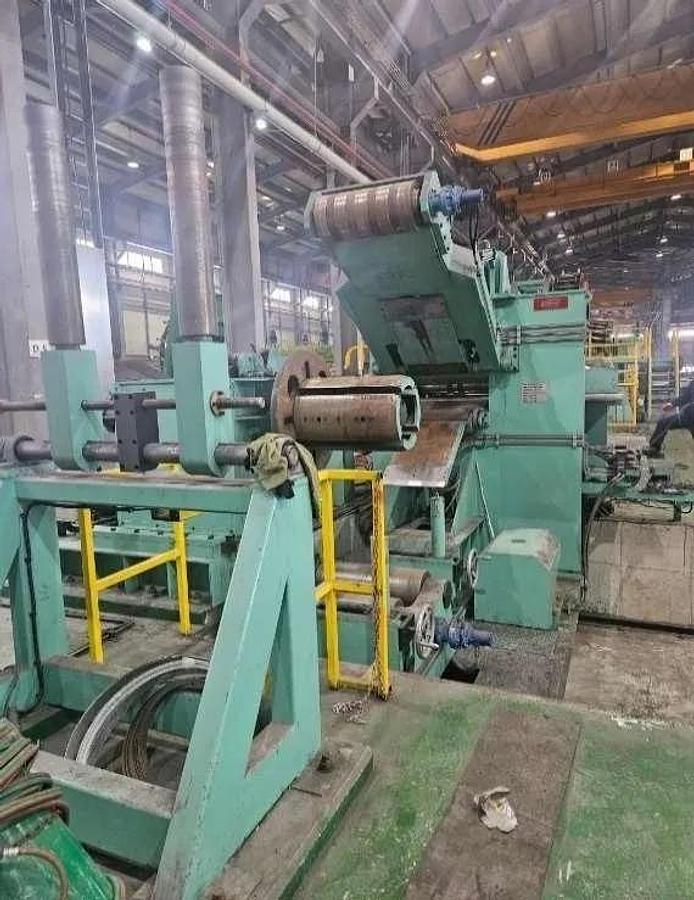

12,000 Kg (26,455 Lbs) Mandrel Uncoiler

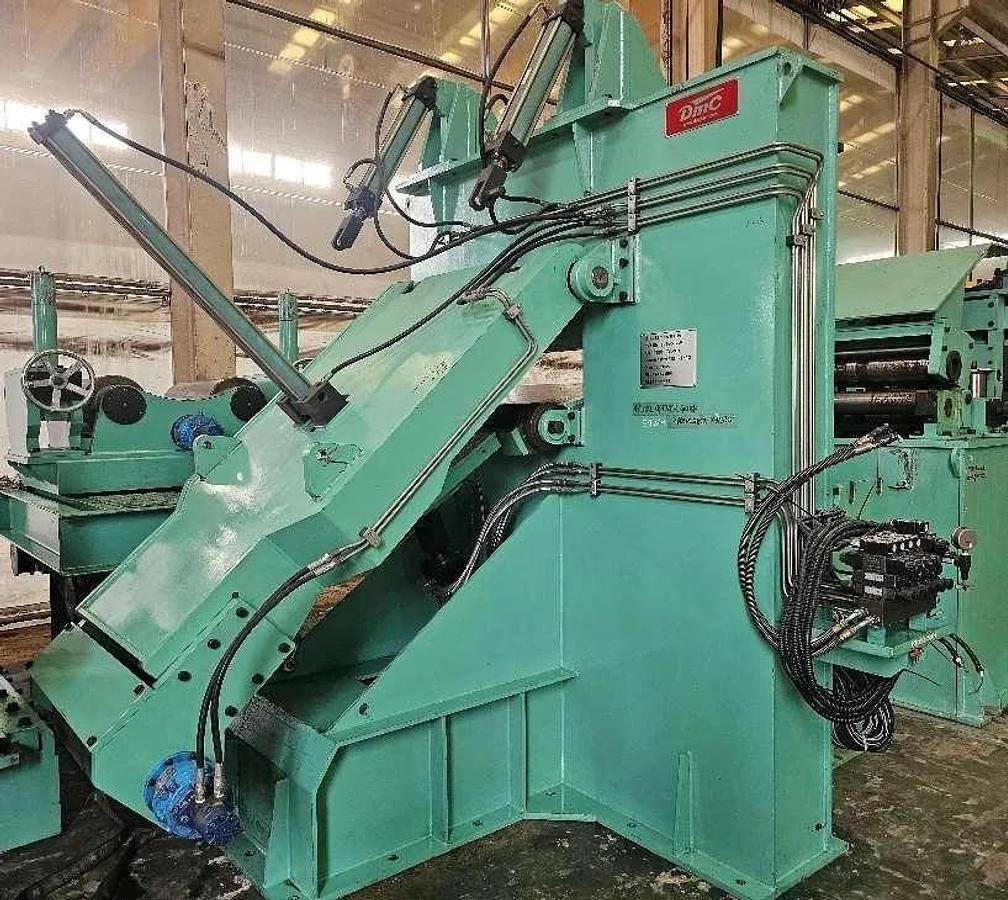

Peeler / Pinch Rolls

5 Roll Leveler

Auto Shear And End Welder

Vertical Rotary Accumulator

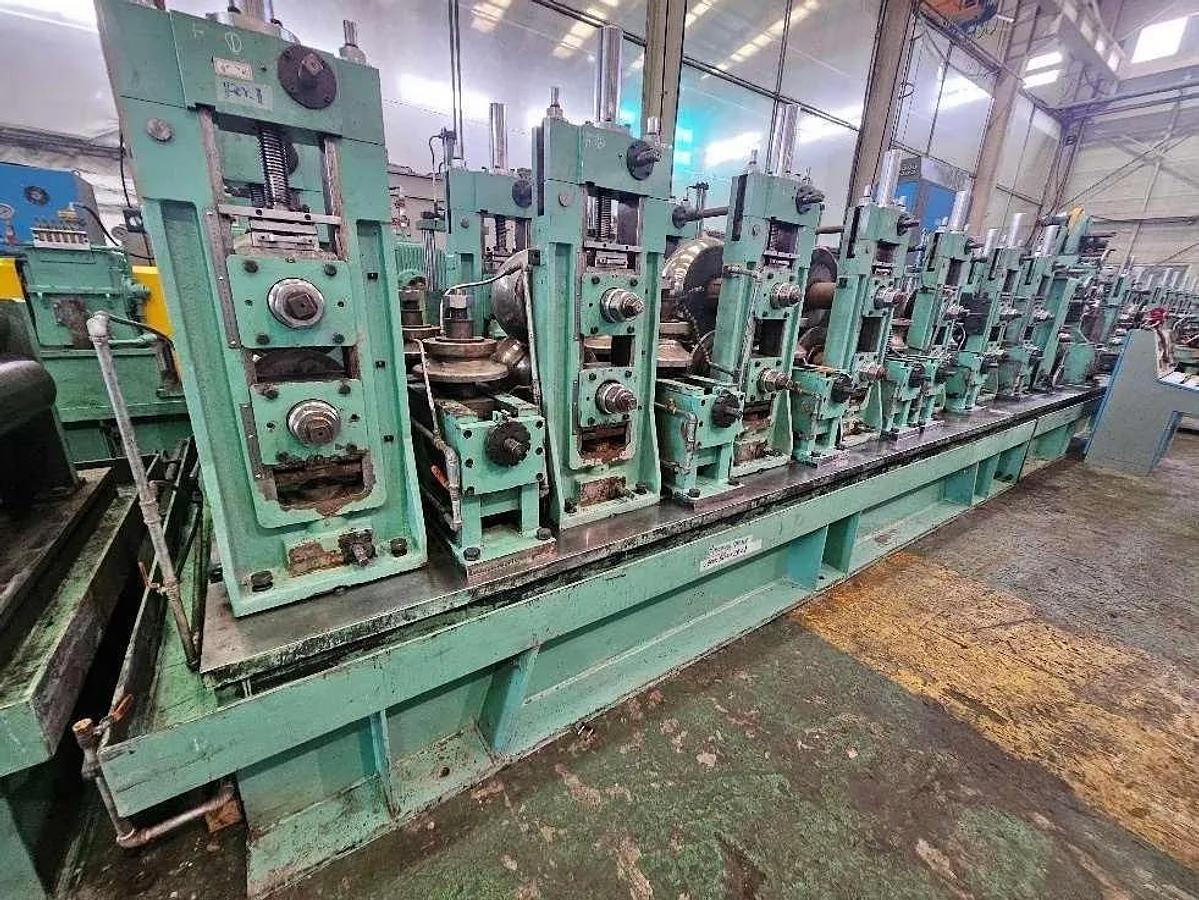

Forming Mill:

120 mm (4.724”) Diameter Shafts

Entry Pinch Rolls

7 Roll Leveler

4 Breakdown Stands

3 Side Idler Rolls

2 Side Idler Roll Cluster

3 Finn Pass Stands

2 Side Idler Rolls

110 Kw (147.5 HP) Forming Motor

75 Kw (100.6 HP) Finn Pass Motor

Welding Part Section:

500 Kw (670 HP) High Frequency Welder

Seam Guide Roll

4 Roll Squeeze Roll Stand

OD Bead Scarfing With 2 Cutting Tools

Ironing Pass

Scrap Winder

Cooling Section:

Cooling Bath

Emulsion Cooling System

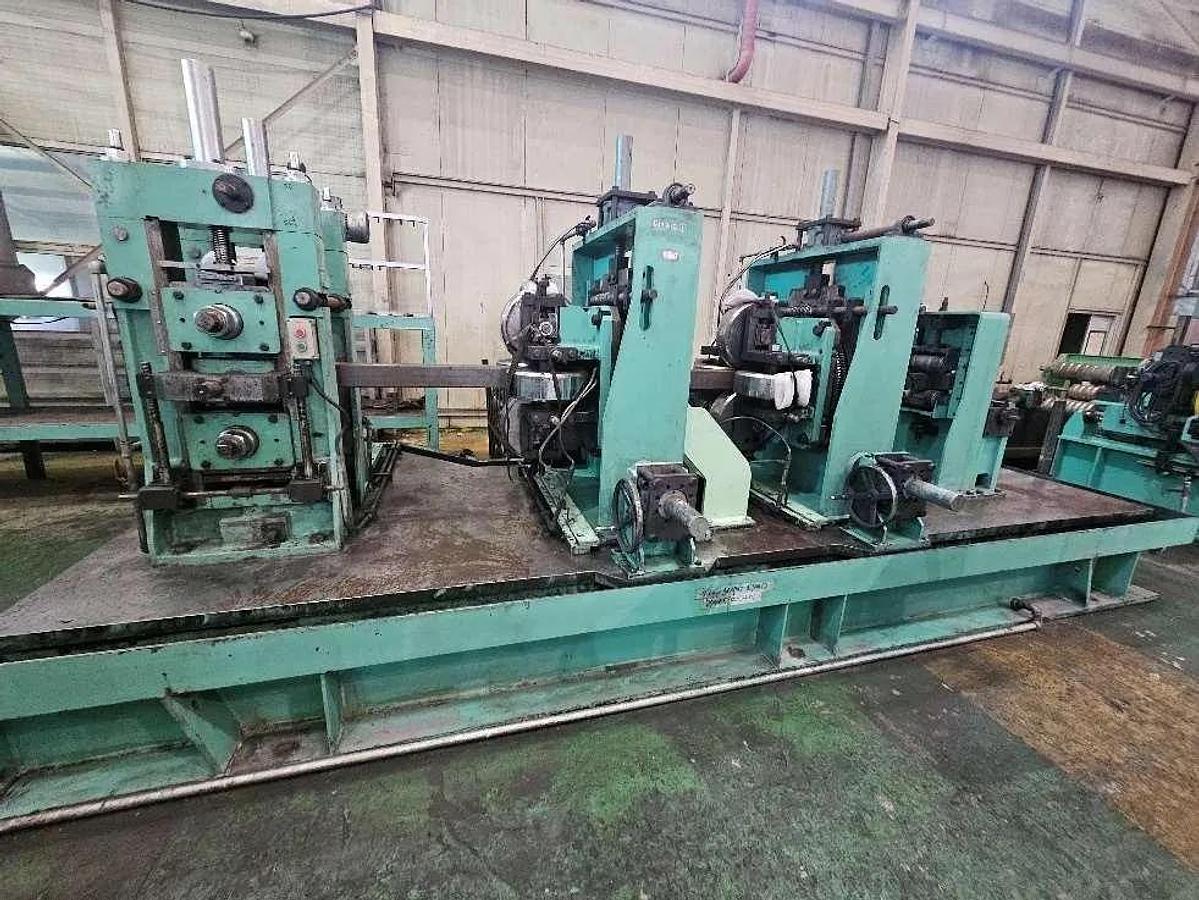

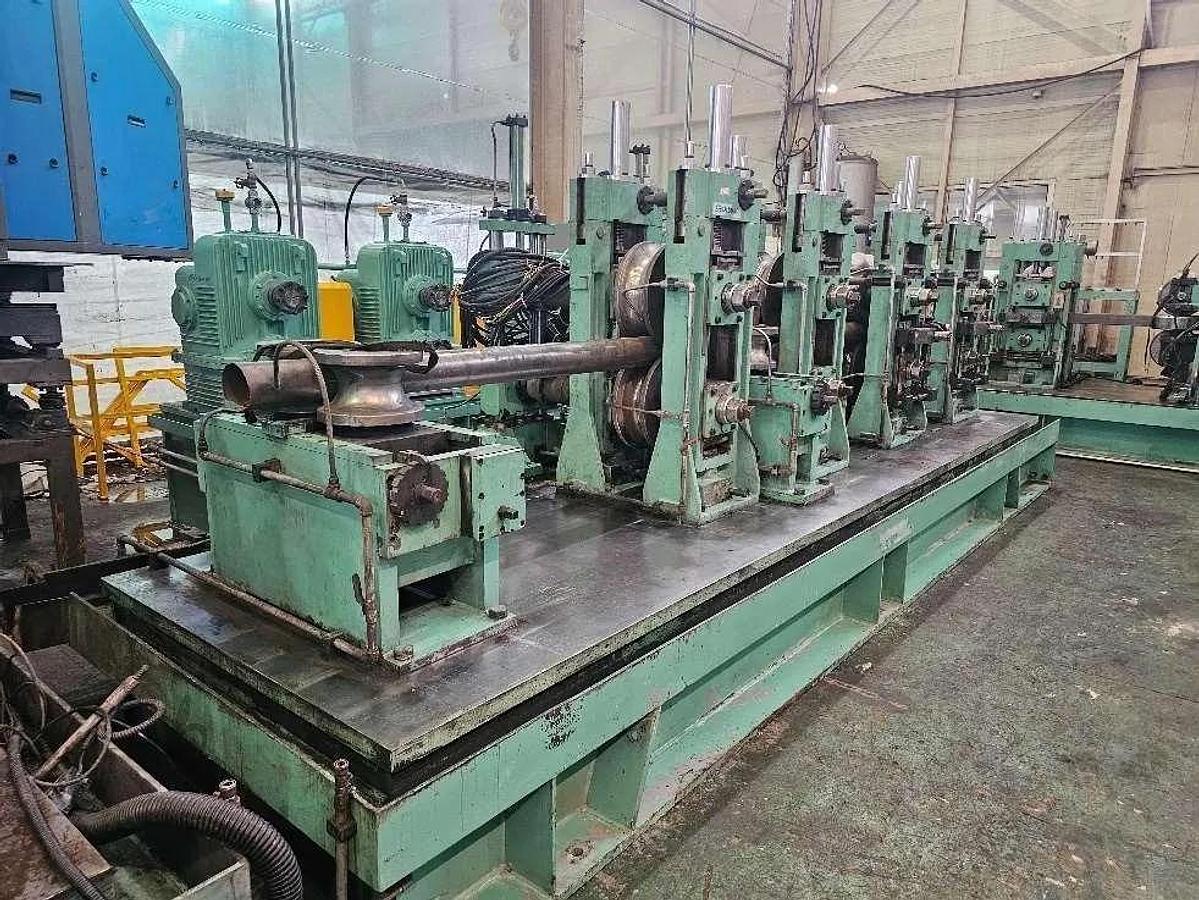

Sizing Mill:

120 mm (4.724”) Diameter Shafts

Twisting Roll Stand

5 Sizing Roll Stands

Measuring Roll Stand

2 Turks Heads

Pull Out Stand

130 Kw (174.3 HP) Drive

Flying Cold Saw Cut Off:

42 Kw (56.3 HP) AC Servo Accelerator Drive

30 Kw (40.2 HP) Saw Motor

4500 mm (177.16”) Saw Travel

Rack & Pinion

Run Out And Packaging:

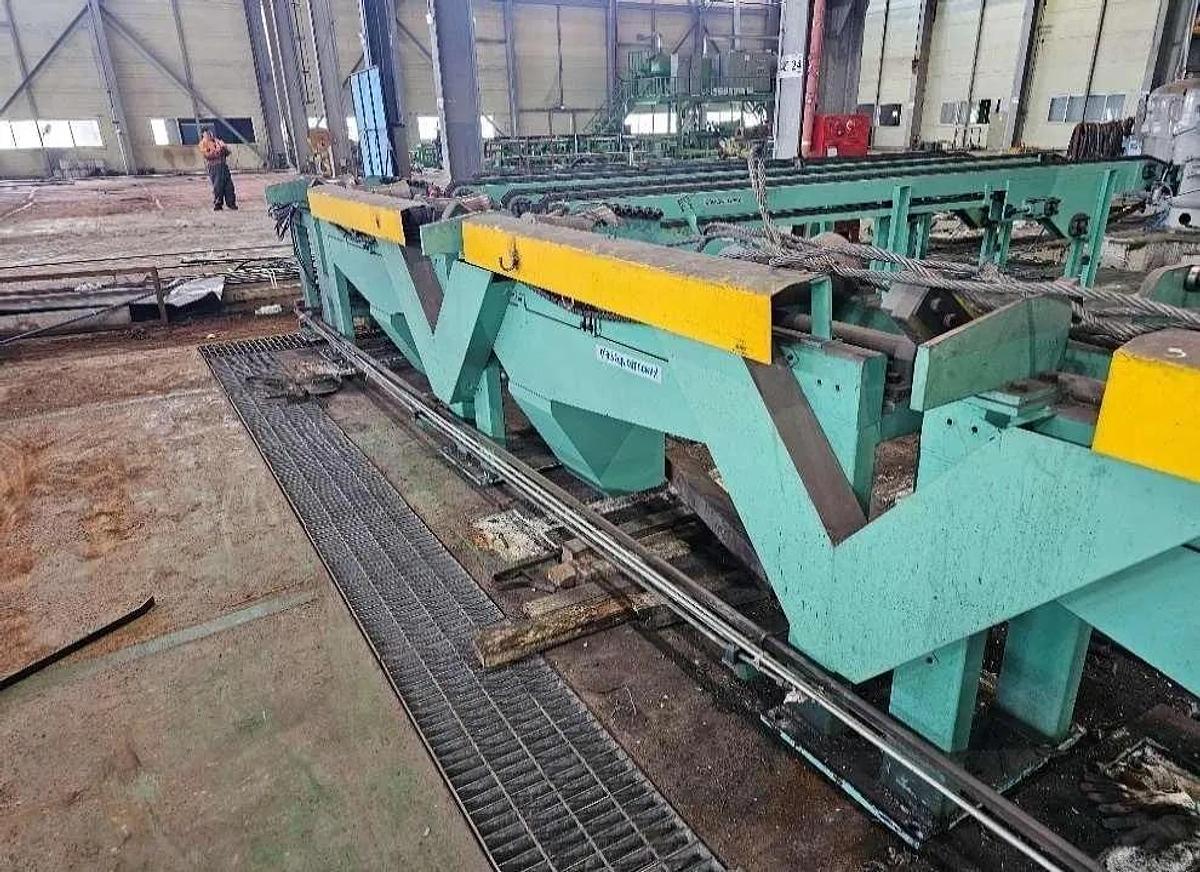

Run Out Table

Auto Packing System (Square Tube Only)

Chain Conveyor To Pusher

Lifting Pocket

Exit Chain Conveyor

Strapping Station

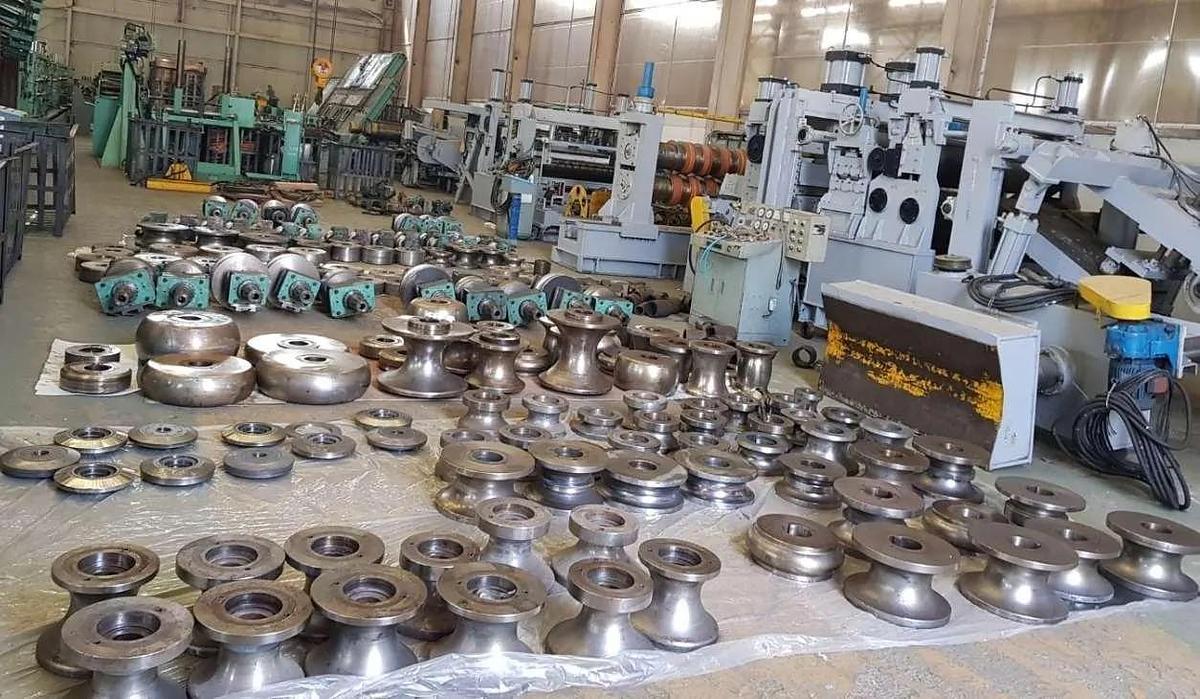

Roll Tooling Included:

Rounds: 101.6 mm (4”), 95.54 mm (3.761”), 114.3 mm (4.500”), 127.38 mm (5”), 139.8 mm (5.504”), 159.23 mm (6.268”), 162.2 mm (6.386”), 191.08 mm (7.523”), 190.7 mm (7.508”)

Squares And Rectangles:

100 mm x 50 mm (3.937” x 1.969”)

100 mm x 100 mm (3.937” x 3.937”)

125 mm x 75 mm (4.921” x 2.953”)

125 mm x 125 mm (4.921” x 4.921”)

150 mm x 100 mm (5.906” x 3.937”)
