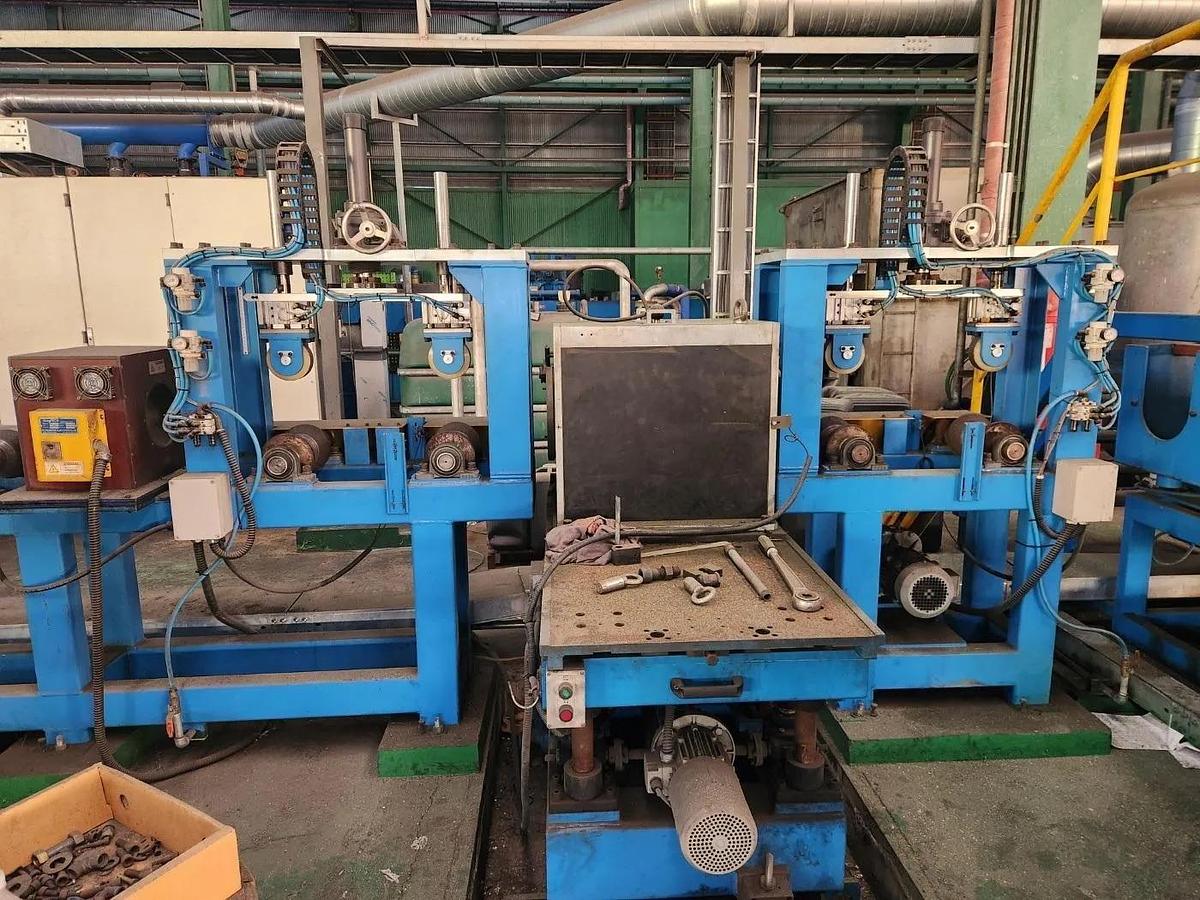

165.2mm (6.504”) x 5.5mm (0.217”) MTM Tube Mill Line

Specifications:

Manufacturer: MTM

Diameter Range: 31 mm – 165.2 mm (1.220” – 6.504”)

Wall Thickness Range Rounds: 1.8 mm – 5.5 mm (0.071” – 0.217”)

Wall Thickness Range Squares & Rectangles: 2.8 mm – 5.5 mm (0.110” – 0.217”)

Max Mill Speed: 95 MPM (311.68 FPM)

Direction: Right To Left

Max Strip Width: 523.3 mm (20.602”)

Rafted Design, Without Second Set Of Rafts/Stands

Upgraded Gear Boxes

Tooling Included:

Rounds: 76.3 mm (3”), 89.1 mm (3.5”), 101.6 mm (4”), 114.3 mm (4.5”), 139.8 mm (5.5”), 165.2 mm (6.5”)

Squares & Rectangles:

75 mm x 75 mm (2.953” x 2.953”)

100 mm x 100 mm (3.937” x 3.937”)

100 mm x 50 mm (3.937” x 1.969”)

125 mm x 125 mm (4.921” x 4.921”)

4” x 3”, 4” x 4”, 5” x 3”, 6” x 2”, 6” x 3”, 6” x 5”, 5” x 5”

Entry Section:

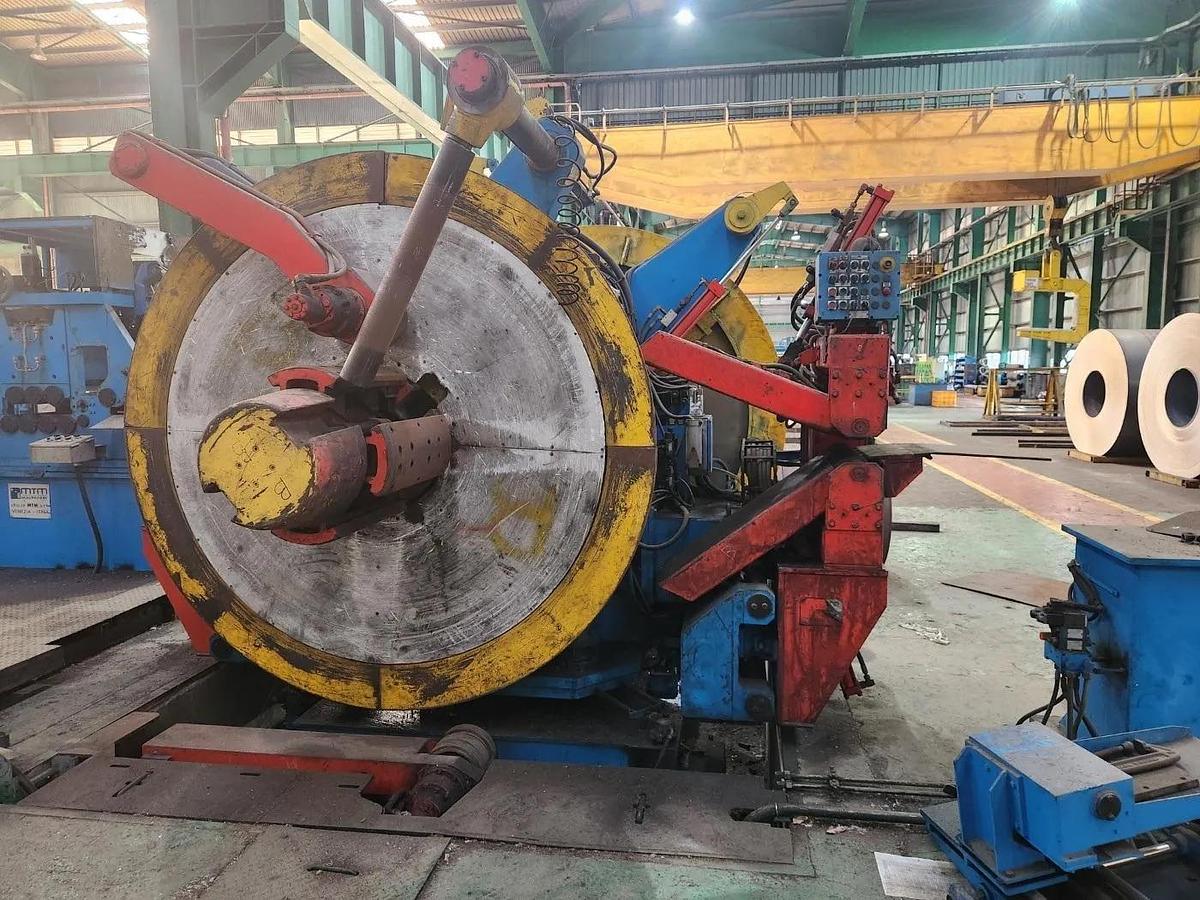

MTM Double End Uncoiler

Coil Weight Capacity: 6,000 Kg (13,227 Lbs)

Coil O.D.: 1800 mm (70.866”)

Coil I.D. Expansion: 508 mm – 610 mm (20” – 24”)

Hydraulic Expansion, Rotation, Motors

Hydraulic Disc Brakes

Feed Funnel / Coil Breaker / Strip End Flattener

Coil Snubber Hold Down Roll, Hydraulic Top & Bottom

Coil Keeper

Motor, Pump & Reservoir

Entry Preparation:

MTM Entry 7 Roll Straightener

Coil Peeler Table

Pinch Rolls

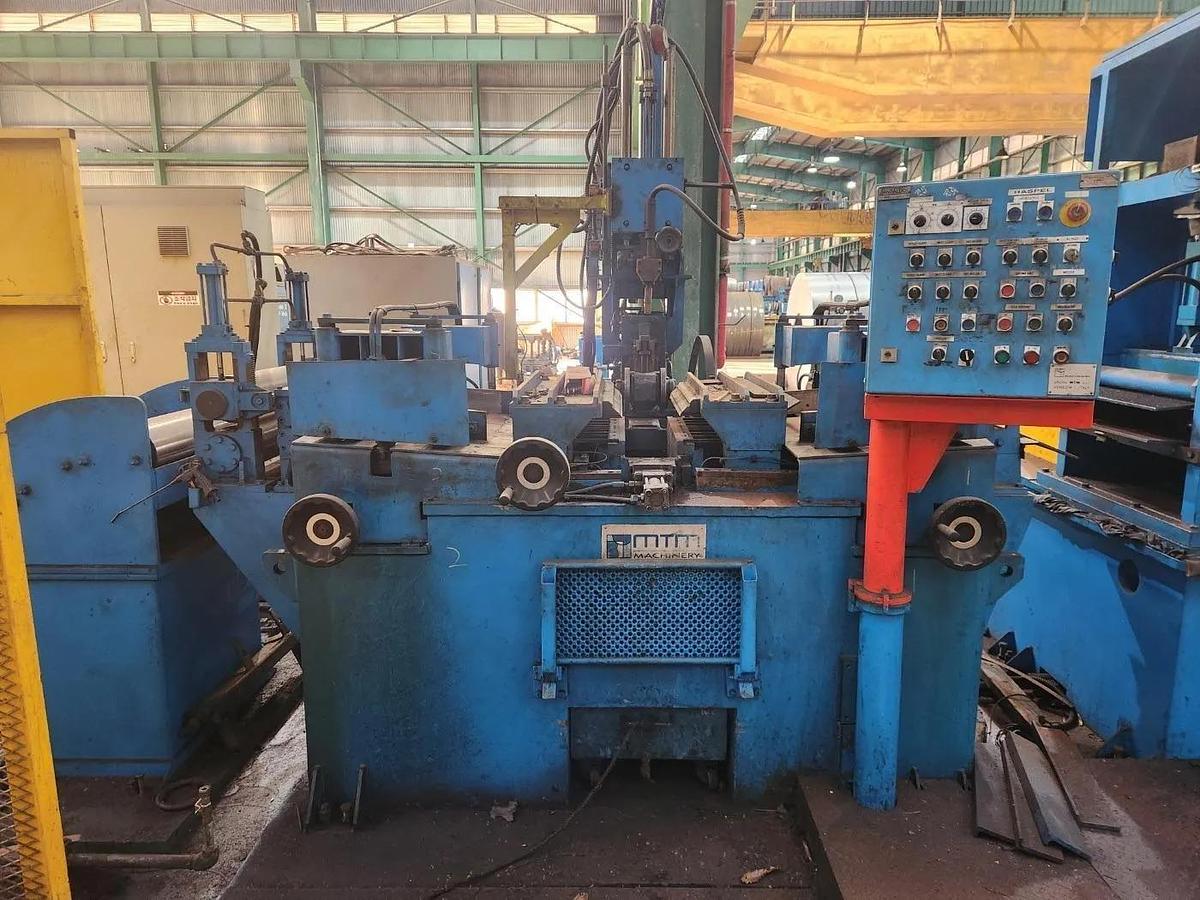

Strip Joining & Accumulation:

MTM Semi Automatic Strip Joiner

Rotary Shear With TIG Welder

Forward / Reverse Cut

CO2 Welder (500A)

MTM Entry Strip Guide With Vertical Plane “U” Turn

MTM Horizontal Accumulator

Strip Capacity: 500 Meters (1,640.42 Ft)

Entry Pinch Roll Motor: 45 Kw (60.3 HP)

Accumulator Motor: 26 Kw (34.8 HP)

Entry Guiding & Edge Control:

JULIUS Entry Pinch Rolls And Guides

JULIUS Entry Edge Unit

Entry Guides

(3) Position Rolling

(3) Position Scarfing

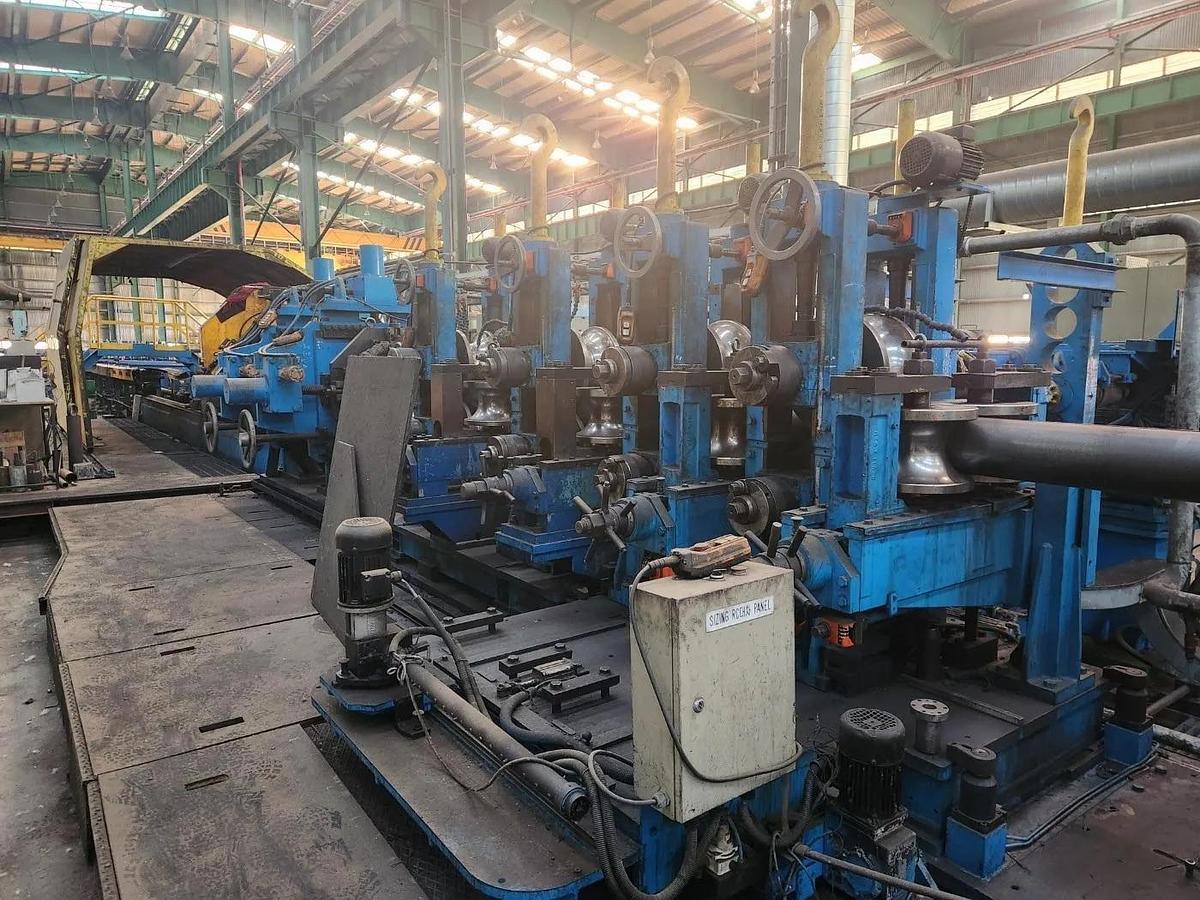

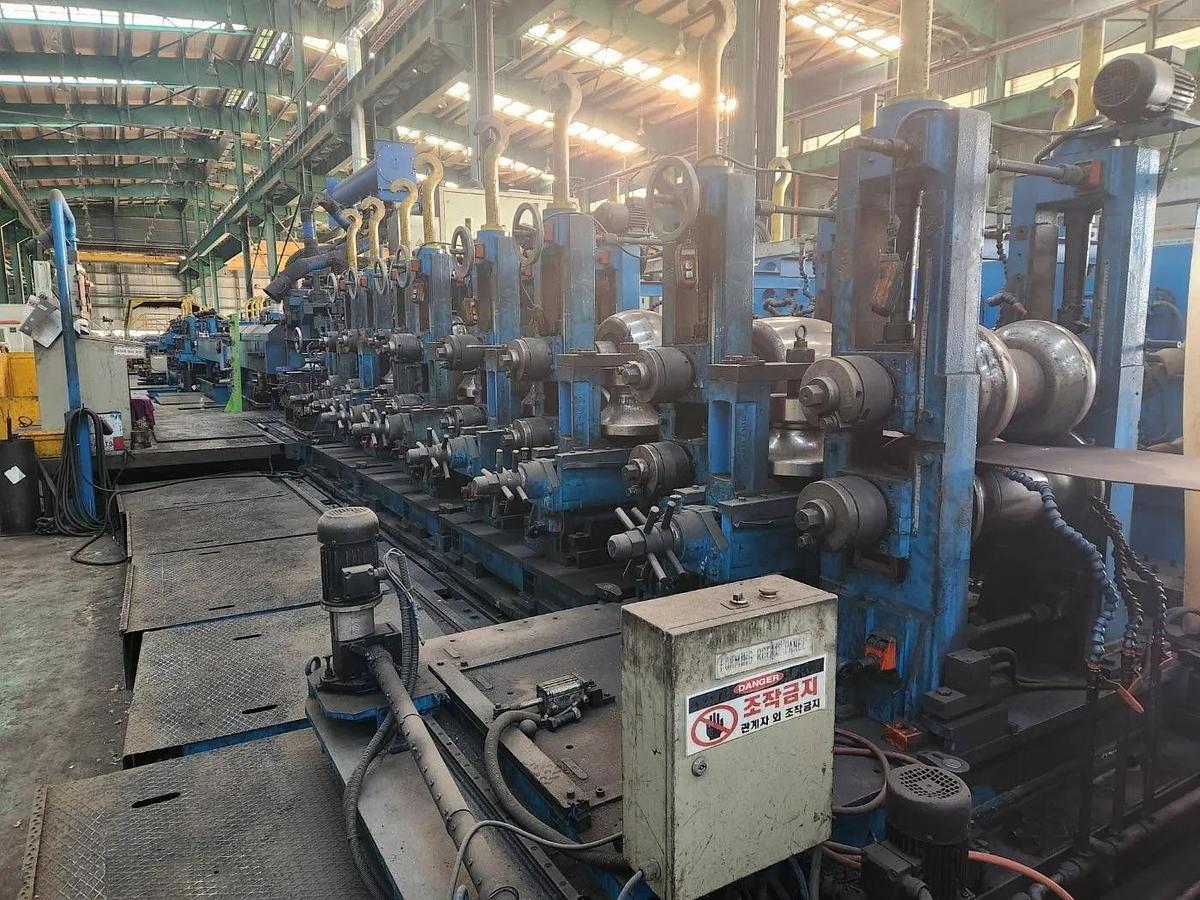

Forming Section:

(5) Forming Stands, Rafted For Automated Quick Change

Single Point Adjustment, Motorized

Shaft Diameter: 110 mm (4.331”)

148 Kw DC Drive Motor (198.5 HP), 600 – 2000 RPM

(3) Fin Pass Stands

Rafted For Automated Quick Change

Single Point Adjustment, Motorized

Shaft Diameter: 110 mm (4.331”)

Forming With (7) Side Stands

Roll Diameter: 150 mm (5.906”)

148 Kw DC Drive Motor (198.5 HP), 600 – 2000 RPM

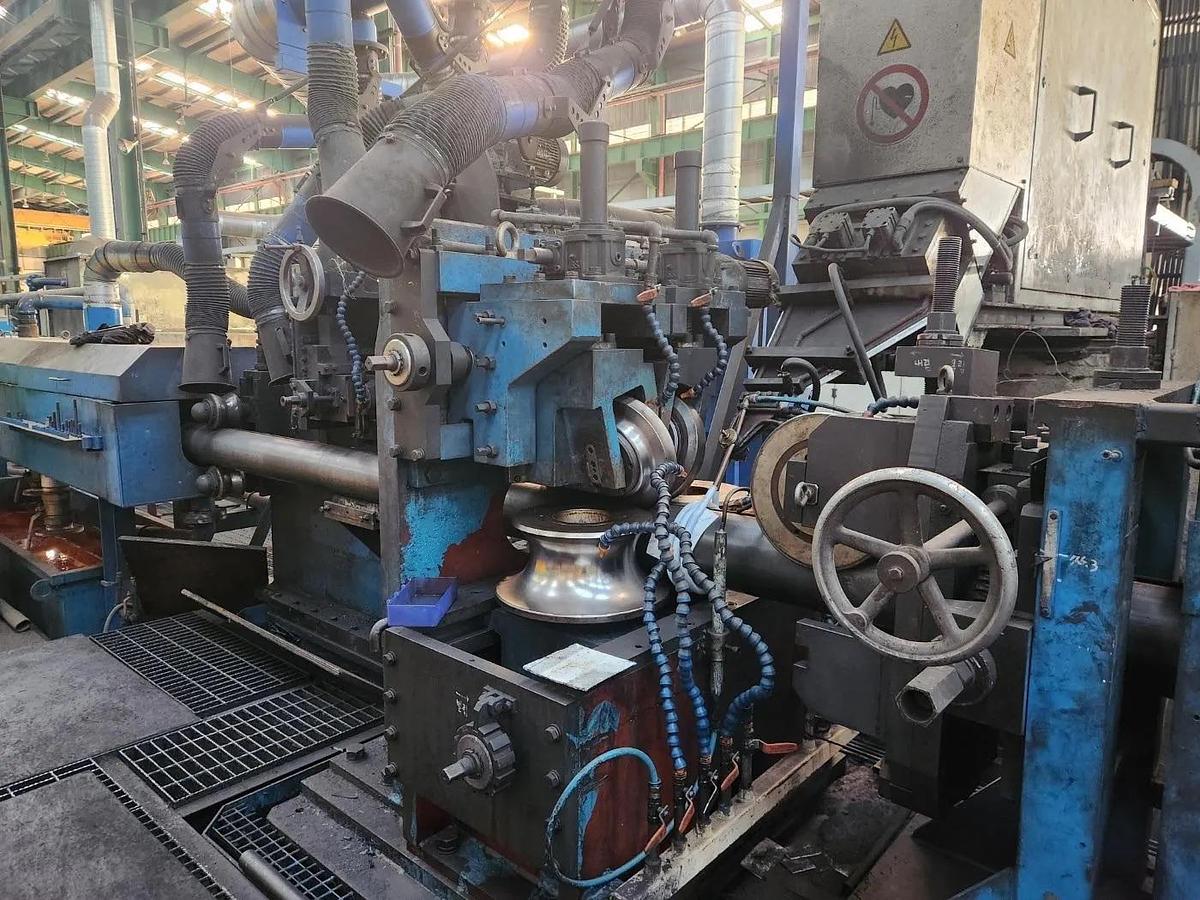

Welding Section:

SMS ELTHERM Solid State High Frequency Welder (2008)

Nominal Power: 410 Kw (549.8 HP)

Frequency Range: 100 – 400 KHz

Entry Seam Guide

(2) Roll Weld Box / (2) Seam Guide Rolls

I.D. Scarfing

O.D. Double Head Scarfing Station

Cooling Section:

Cooling Length: 6 Meters (19.685 Ft)

Rapid Water Cooling

Sizing Section:

(4) Vertical Stands

Rafted For Automated Quick Change

Single Point Adjustment, Motorized

Shaft Diameter: 110 mm (4.331”)

148 Kw Drive Motor (198.5 HP), 600 – 2000 RPM

(4) Side Stands

Roll Diameter: 150 mm (5.906”)

Turksheads & Straightening:

MTM Turksheads (2)

Vertical & Horizontal Hydraulic Motor Adjustment

Delisting And Straightening

Roll Diameter: 120 mm (4.724”)

Cutoff Section:

MTM Flying Cutoff Saw

Top Driven Saw Blade

75 Kw Motor (100.6 HP), 400 Volt, 1100 – 1800 RPM

Hydraulic 75 Kw DC Servo Motor Carriage Drive

Caterpillar Pull Out

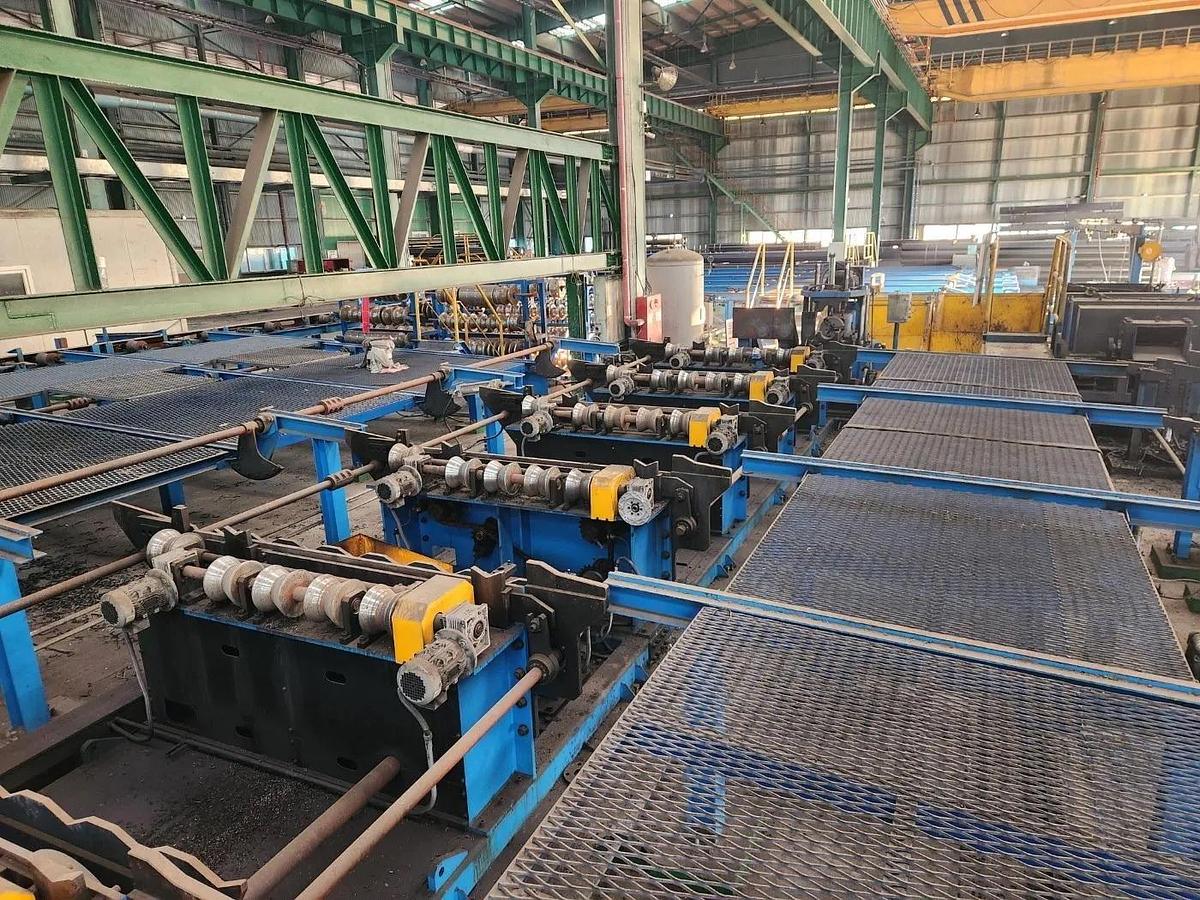

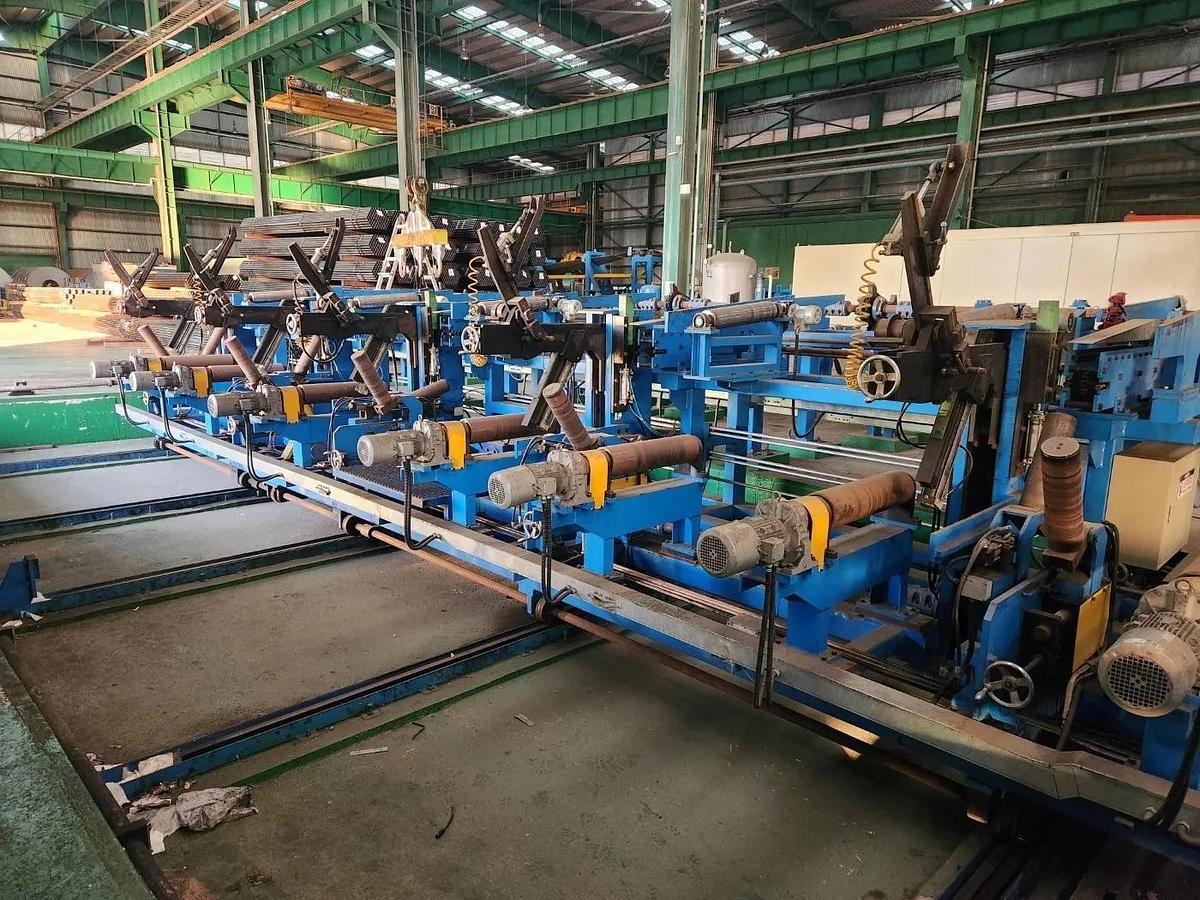

Runout Conveyor

Operator & Upgrades:

Operator Flat Screen Panels

New January 2022:

KTM Double Head End Facer

KTM Vertical Cross Roll Straightener

KTM Off Line Eddy Current Tester

Marktec Marking Machine

KTM Packaging Line With Auto Banding

Upgraded Electrical Drives And Controls
