6.6" x .250" NEW Tube Mill

Specifications:

Coil Thickness: .079” - .256” (2.00 - 6.50 mm)

Max Coil Weight: 26,455 Lbs (12,000 kg)

Coil Width Range: 9.45” - 20.47” (240 - 520 mm)

Coil I.D.: 18.70” - 20.47” (475 - 520 mm)

Coil O.D.: 39.37” - 78.74” (1000 - 2000 mm)

Tube O.D. Range: 3.00” - 6.61” (76 - 168 mm)

Profile Size Range: 2.36” x 2.36” - 4.72” x 4.72” (60 x 60 - 120 x 120 mm)

Product Length: 157” - 472” (4000 - 12000 mm)

Line Speed: Up To 197 FPM (60 m/min)

Line Includes:

Entry Line:

Hydraulic Strip Car

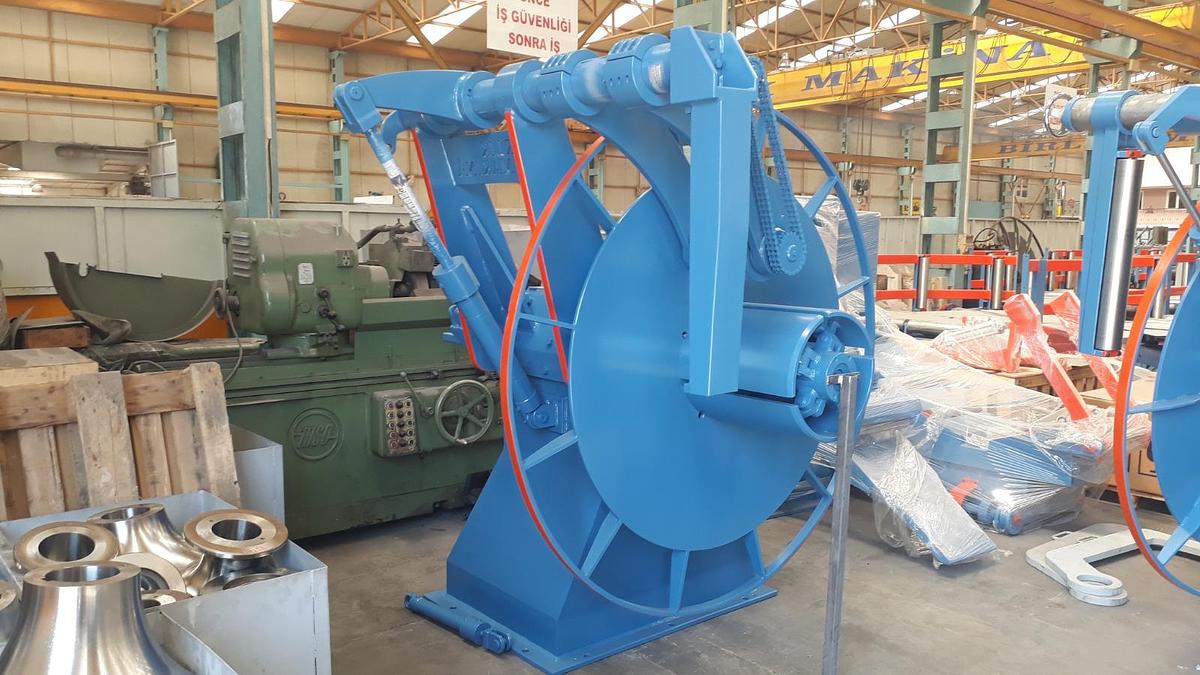

Strip Uncoiler

Strip Levelling Group

Shear And Strip Endwelder

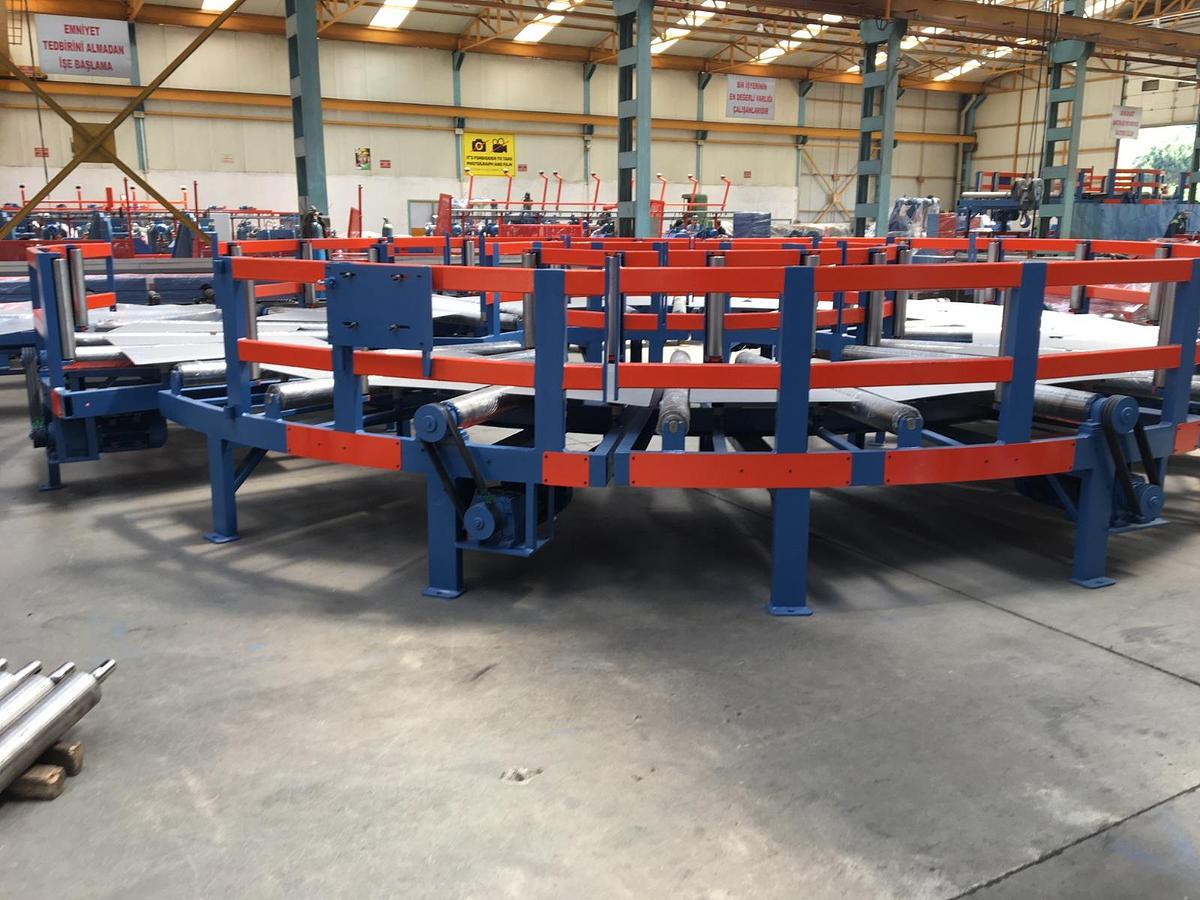

Horizontal Strip Accumulator

Mill Portion:

Strip Entry Leveling

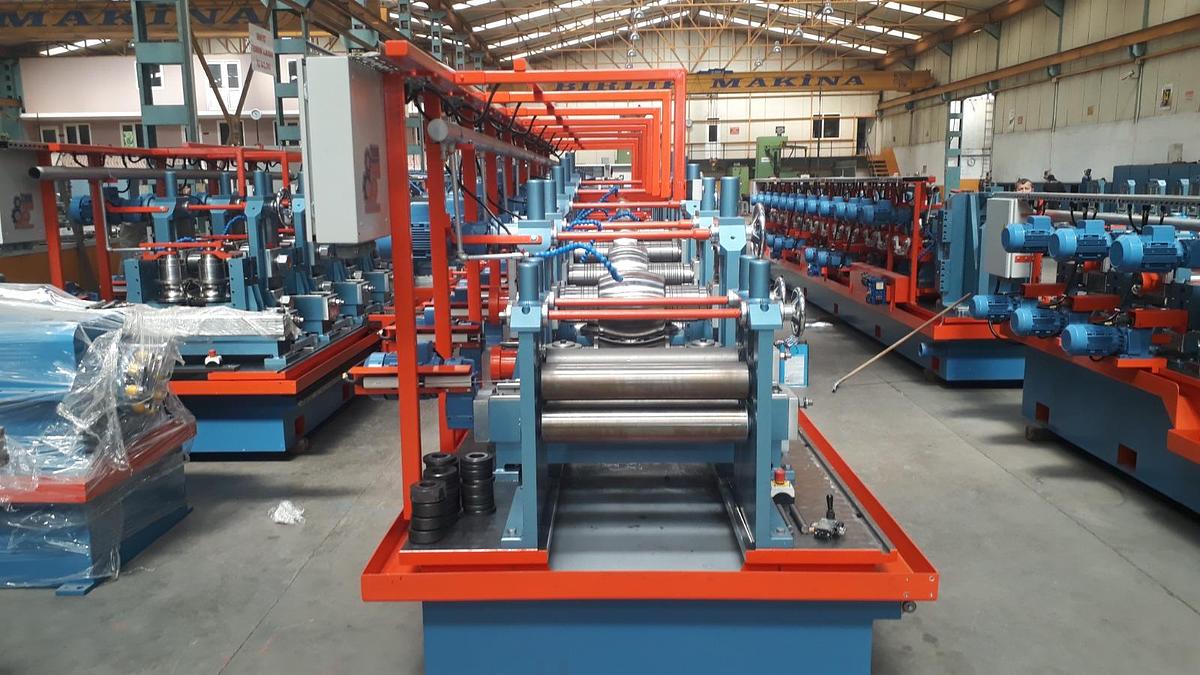

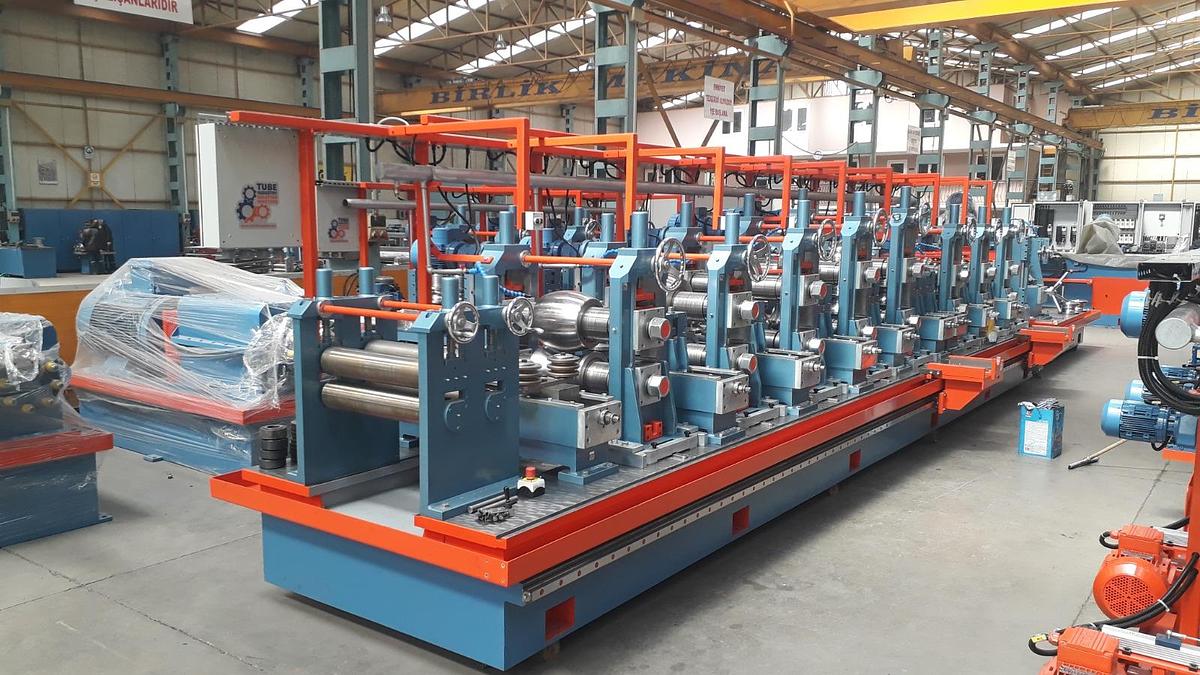

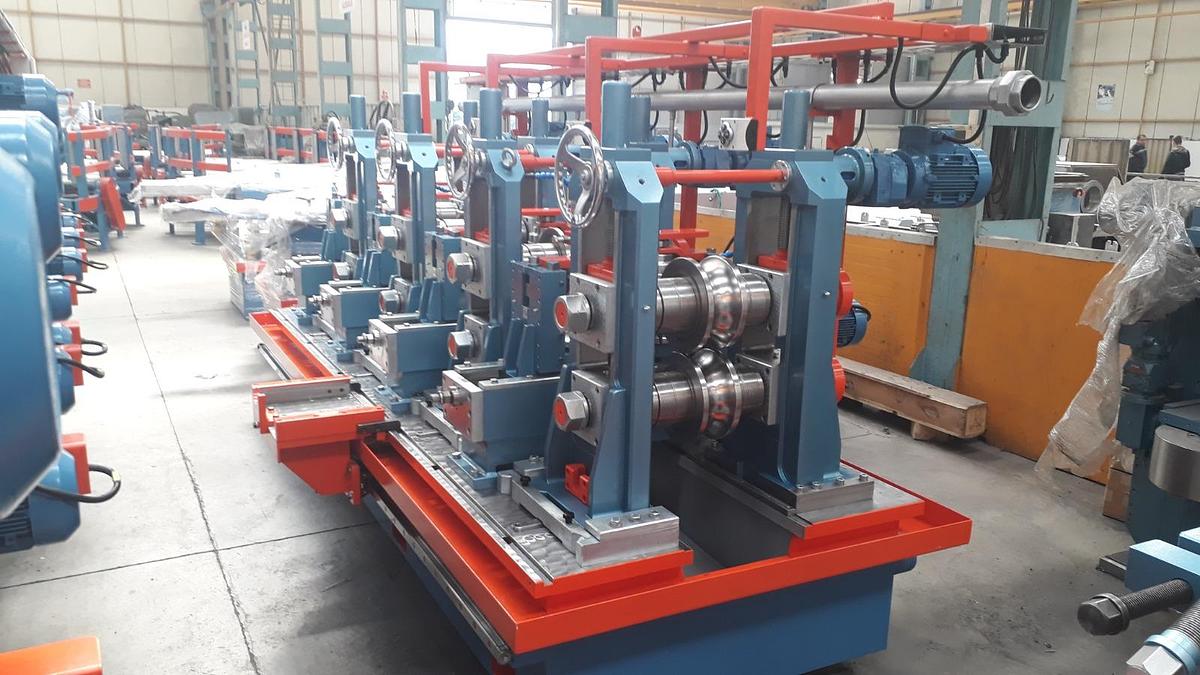

Forming Group

Guiding Rolls / Seam Guide

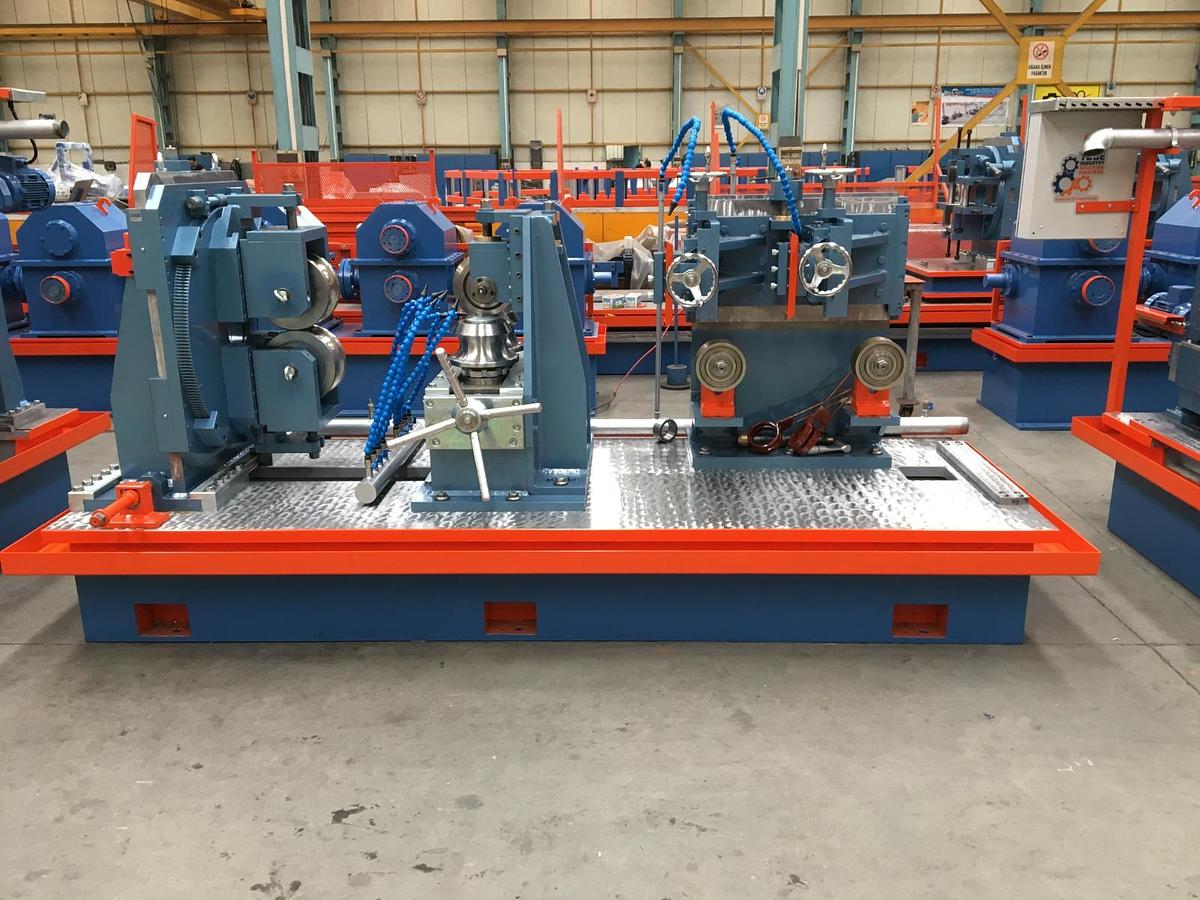

Welding Group And Chip Removing

H.F. Solid State Welding Machine

Cooling Tunnel

Calibration / Sizing Group

Turks Heads (Profiling-Straightening Group)

Saw And Runout System:

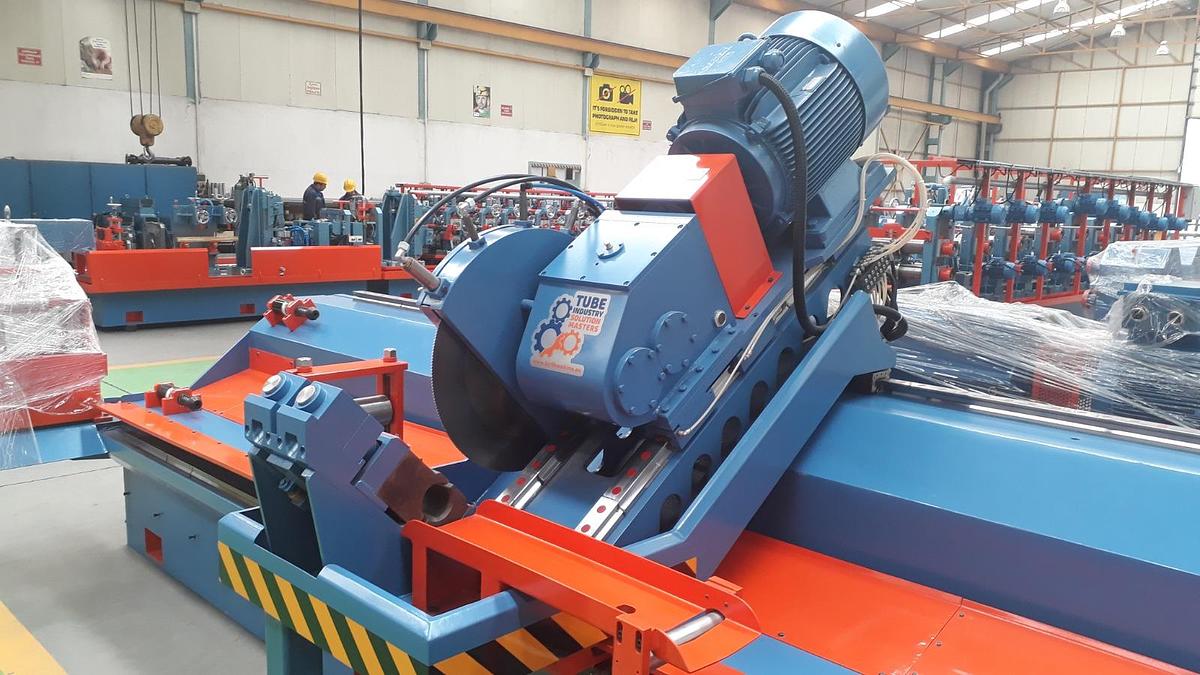

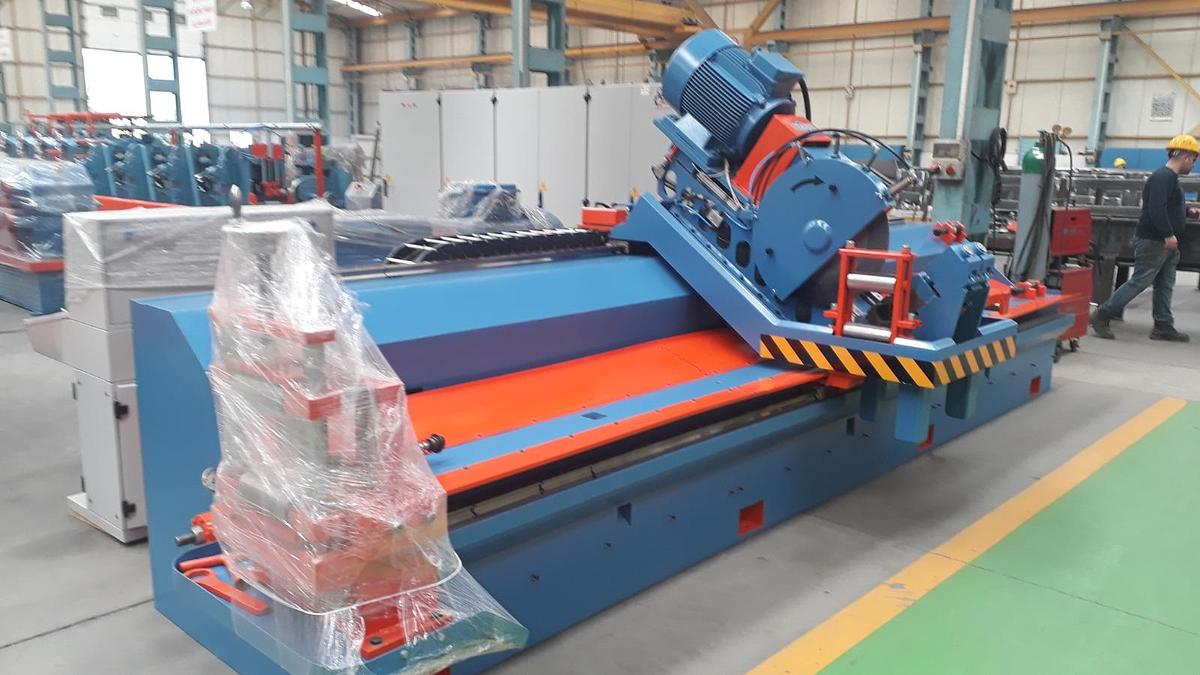

Saw Group

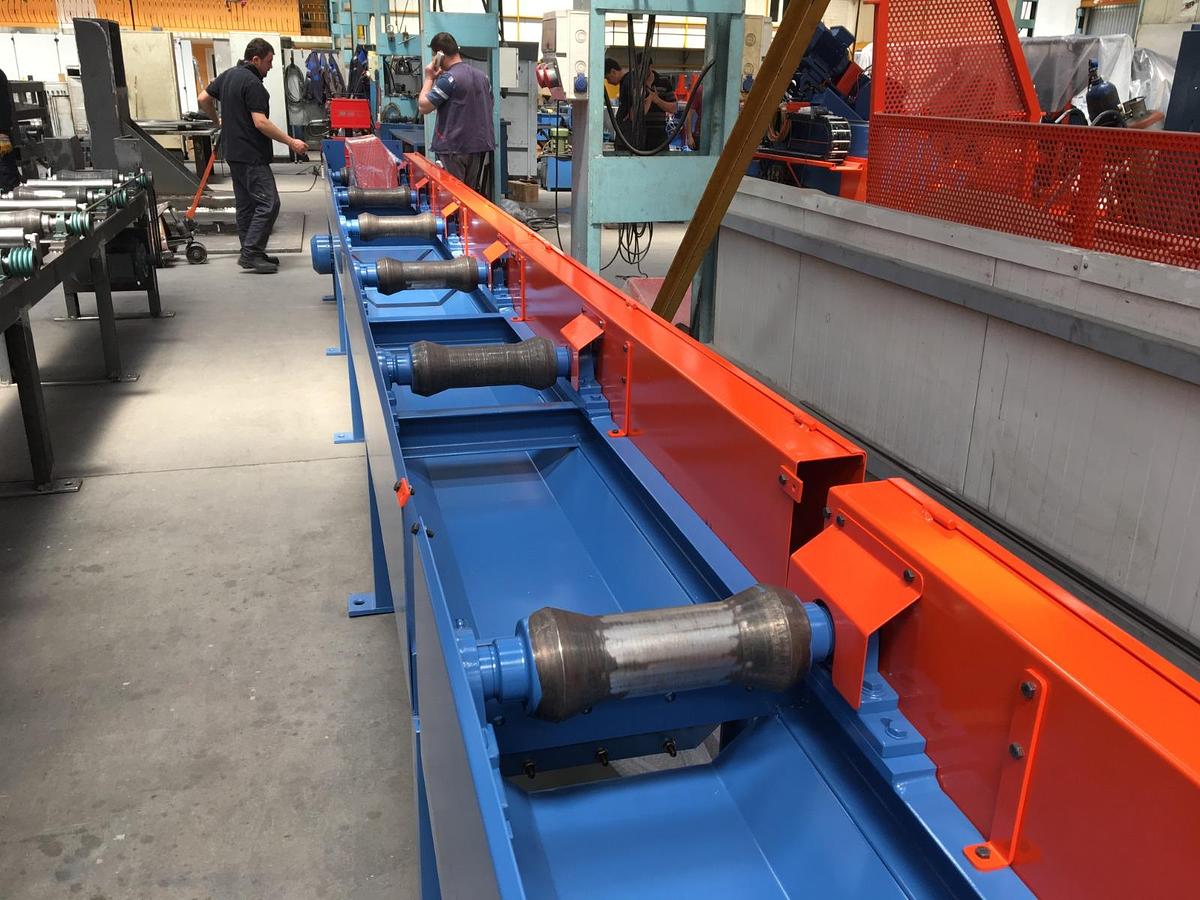

Run Out Conveyor And Double Stacking Table

Additional:

Electrical And Electronic Systems

Hydraulic Group

Spare Parts
