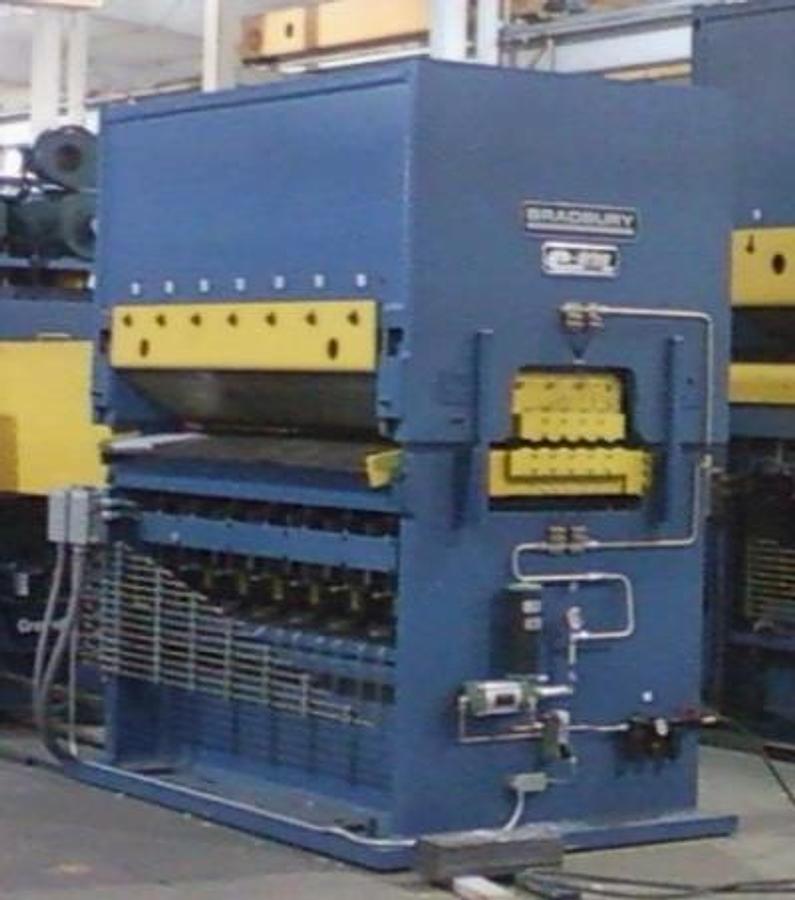

72" x 2.875” Bradbury "e-Drive" Precision Leveler

Specifications:

Manufacturer: Bradbury

Maximum Capacity:

0.181” x 72” @ 75,000 PSI

0.232” x 72” @ 50,000 PSI

Minimum Capacity:

0.060” x 72” @ 75,000 PSI

0.040” x 72” @ 50,000 PSI

Work Rolls: 11 (5 Up / 6 Down)

Work Roll Diameter: 2.875”

Work Roll Face: 84”

Backup Flights: 7 Top / 7 Bottom

Flight Adjustment Cylinders: 7 Entry / 7 Exit

Main Drive: Dual 150 HP e-Drive Motors

Base Speed: 200 FPM

Maximum Speed: 275 FPM

Pass Line Height: 56.25”

Intermediate Rolls: 4 HI

Features:

Auto-Selective e-Drive System

Precision Hydraulic Leveler

Flatness Improvement Capability Per ASTM A1030/A1030M-05

Suitable For Cold Rolled, Hot Rolled, And HSLA Materials

Hydraulic Flight Adjustment

Heavy Duty Backup Flight Arrangement
