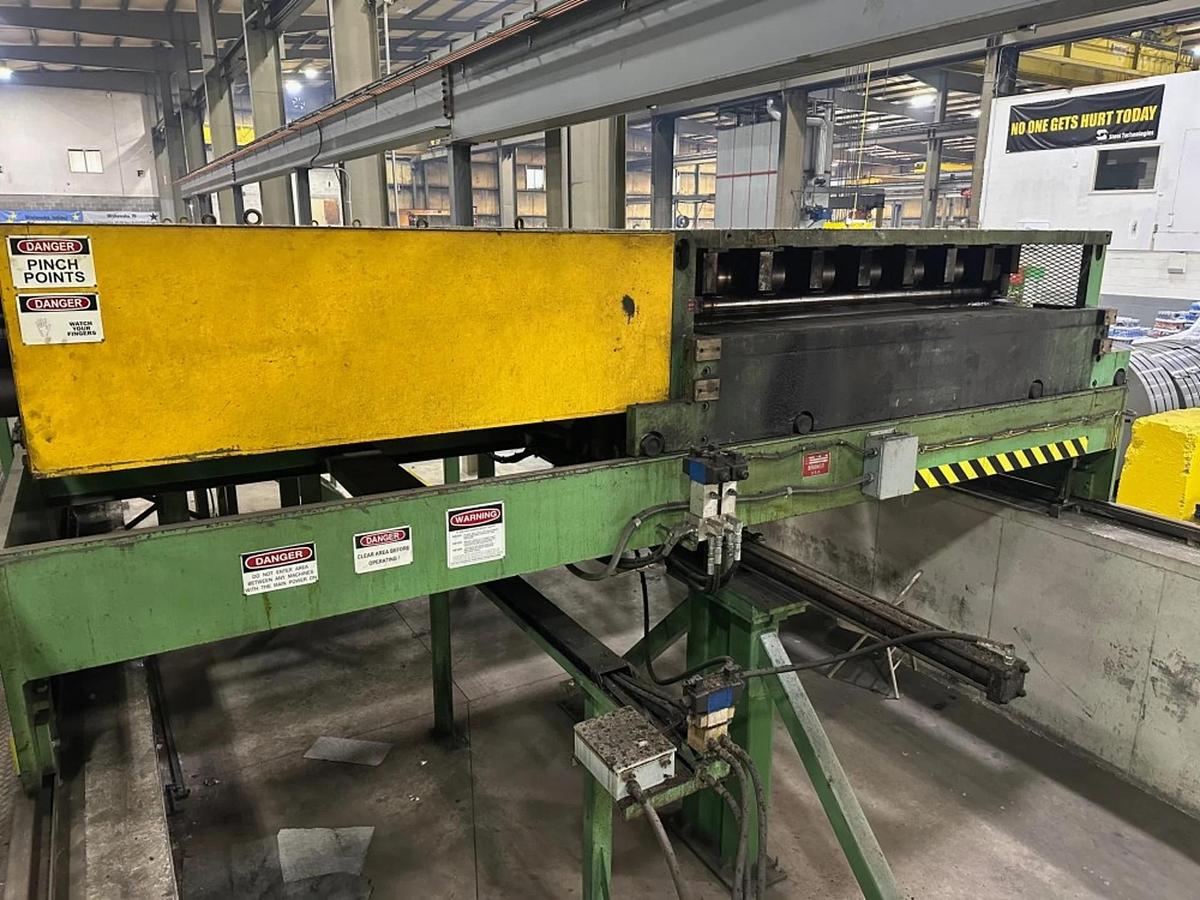

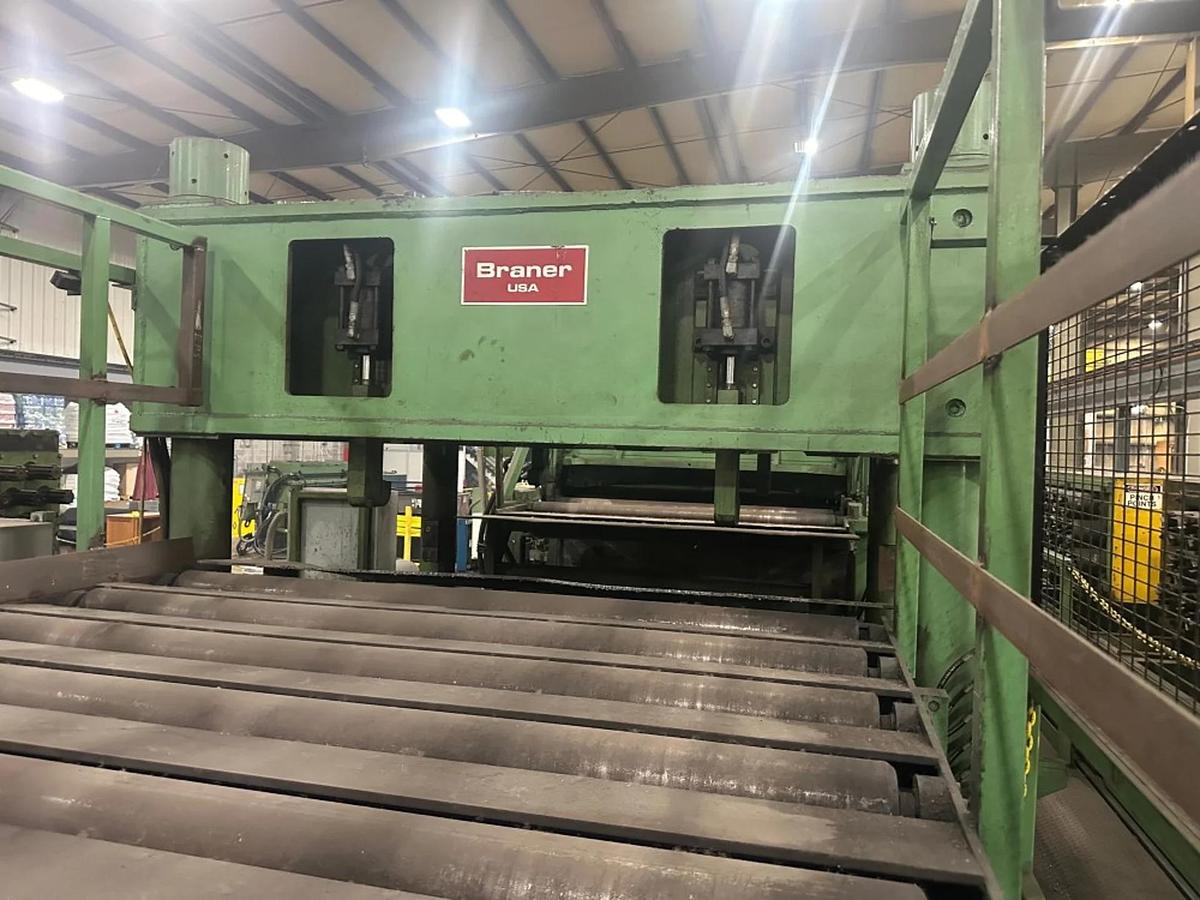

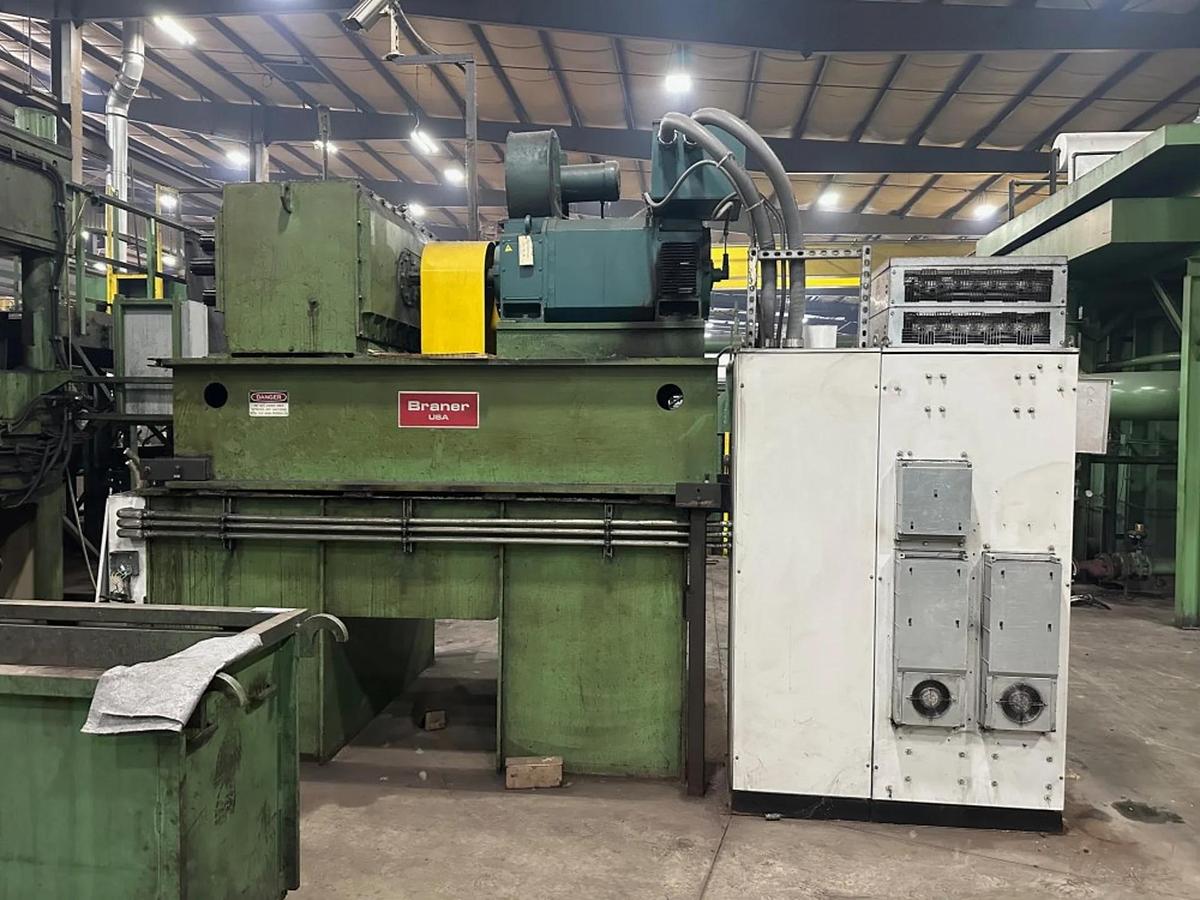

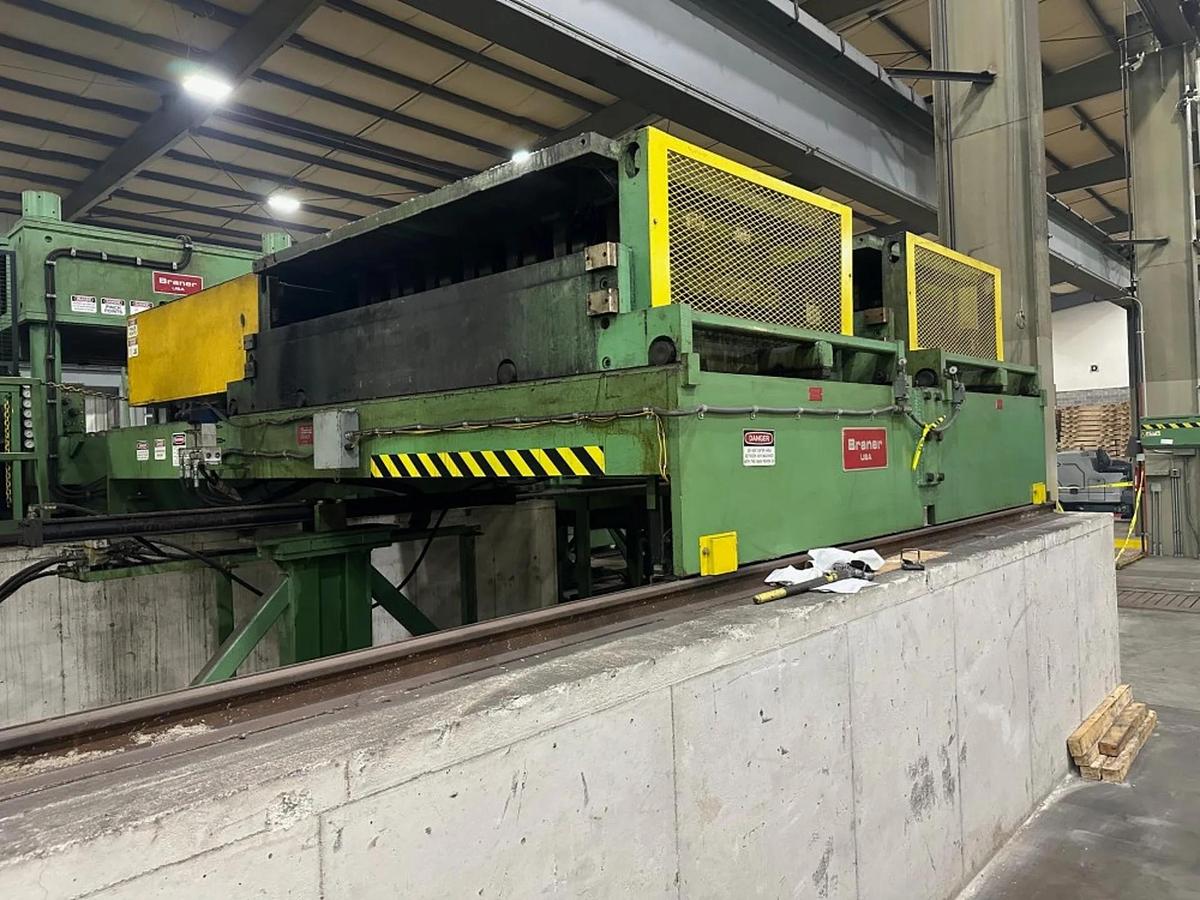

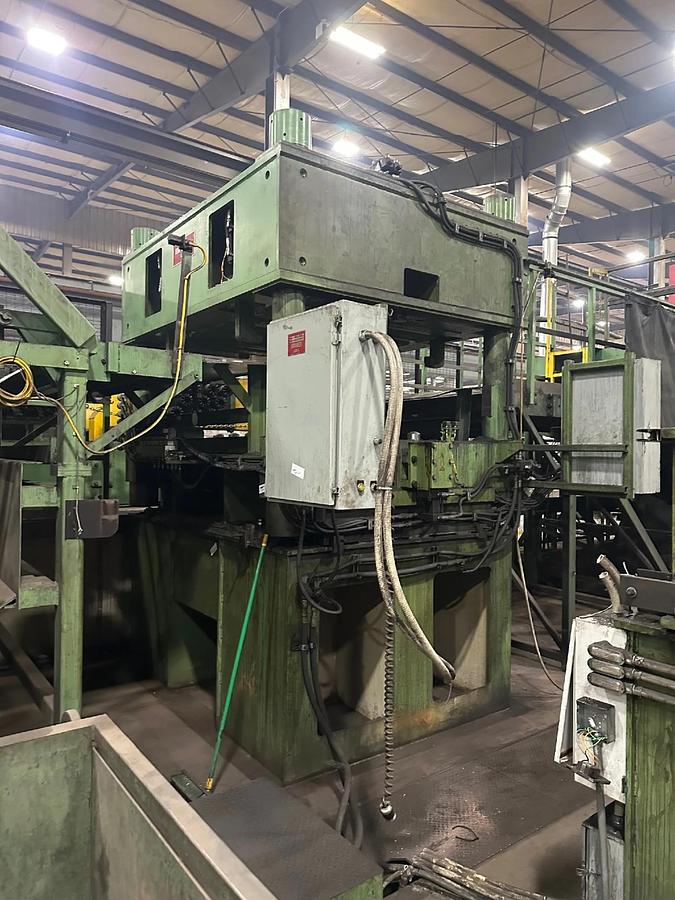

72" X .040- .375" Braner Cassette Leveler

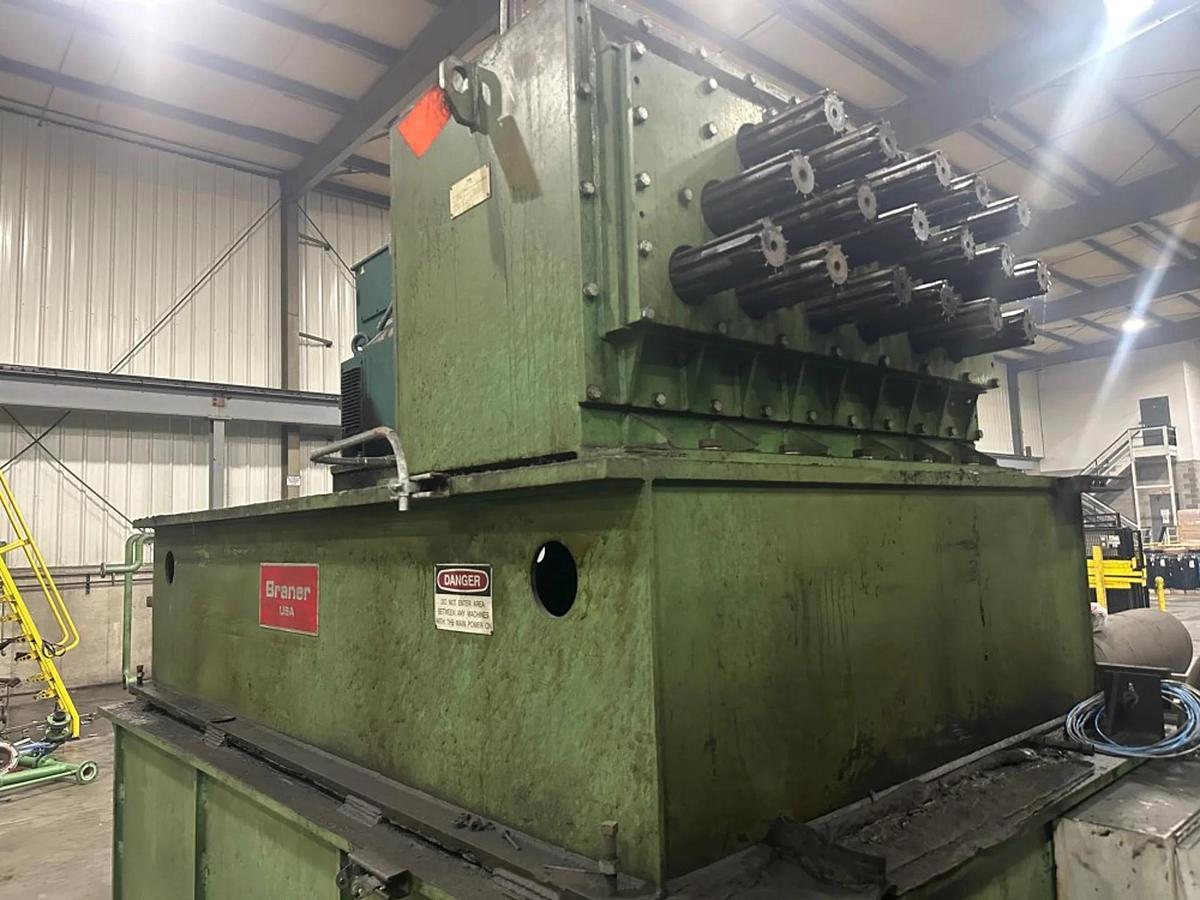

The 72" Braner Cassette Leveler, manufactured in 2012, is designed to manage material widths up to 72 inches with a thickness range of .040" to .375". It is powered by a robust 250 HP motor that operates at speeds of 650 RPM and 1950 RPM, coupled with a gear ratio of 7.88:1 to ensure efficient operation. The leveler is equipped with two cassettes: the first featuring work rolls measuring 72" x 4" in diameter and the second with work rolls of 72" x 2.5" in diameter. This equipment is further enhanced with seven flights for backup support, which are hydraulically adjustable for precision leveling. Its dual cassette setup allows versatility in handling various material grades and thicknesses. As a used unit, the Braner Cassette Leveler offers a practical solution for those in need of reliable leveling capabilities in their manufacturing processes.
